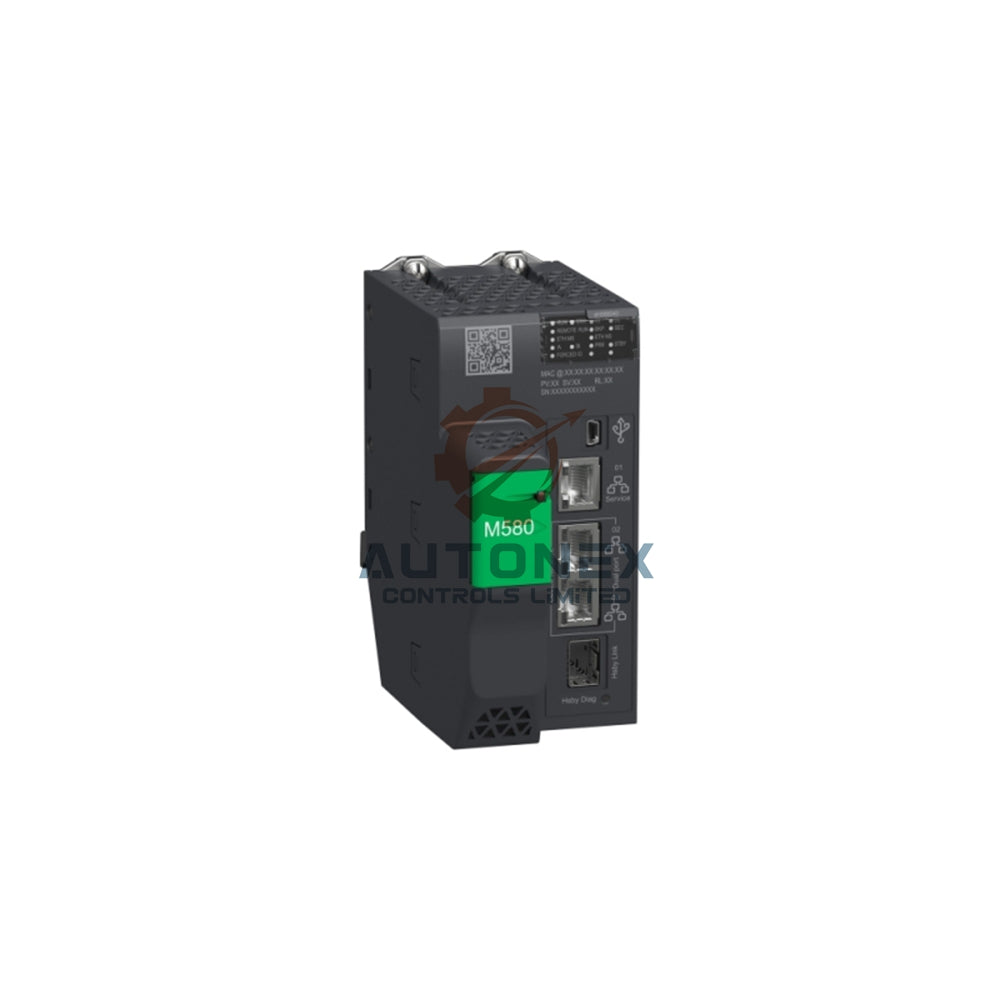

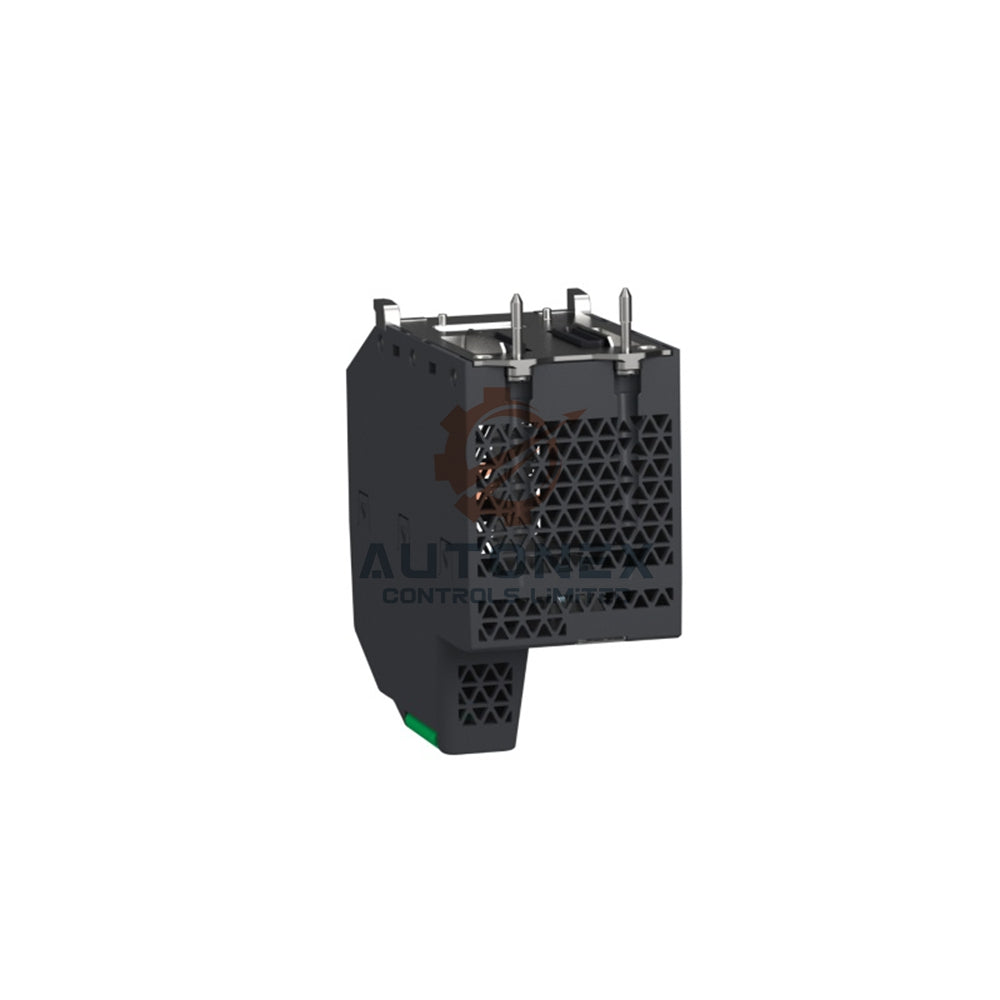

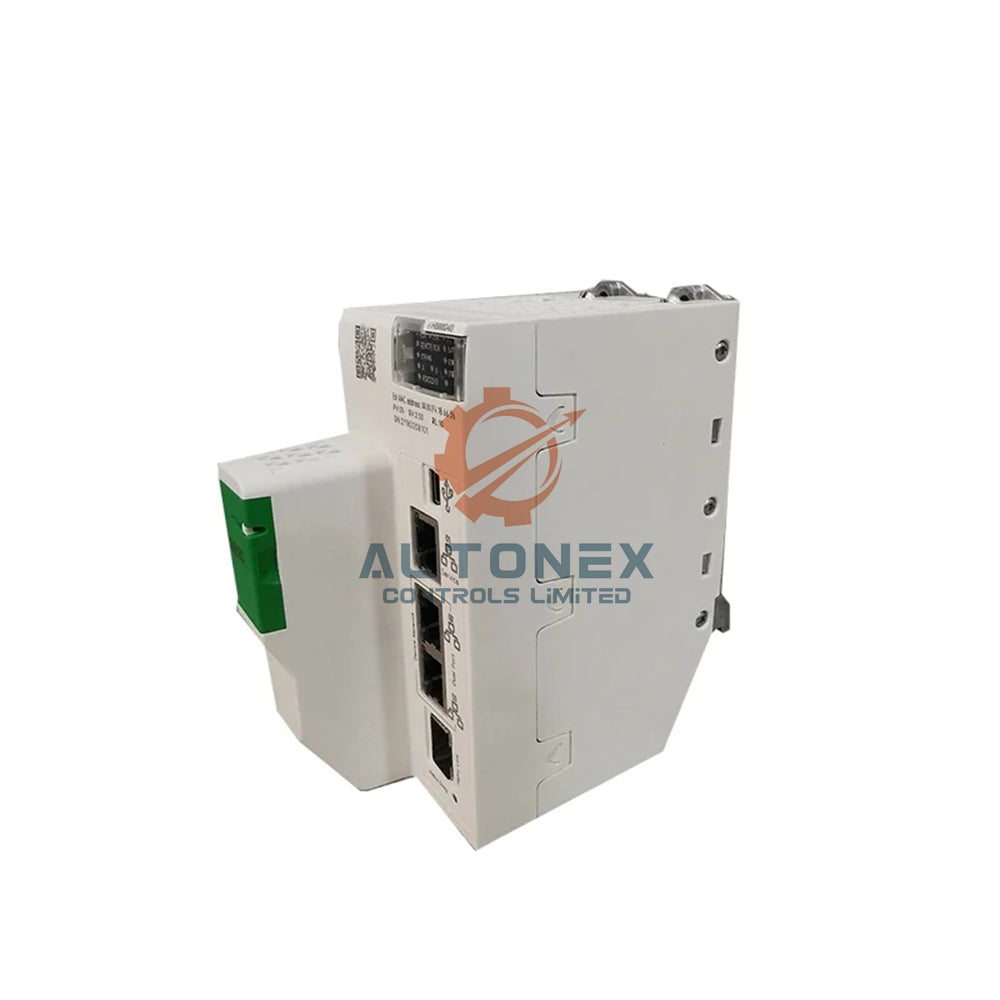

Schneider BMEH586040 Redundant Processor Module

Schneider Electric Modicon M580 BMEH586040 High-Performance Redundant Processor

Core Technology & Performance Specifications

• The Modicon M580 BMEH586040 features a significant 64 MB of integrated RAM for program and data, enabling complex control strategies.
• It achieves high-speed execution of 40K to 50K instructions per millisecond for responsive system performance.
• This processor supports management of up to 64 distributed Ethernet devices across the network.
• It can handle an extensive 31 remote I/O stations, supporting both X80 and Quantum drops.
• The module includes 4 GB of expandable flash memory for substantial data storage and logging.
• It operates reliably across a temperature range of 32 to 140 °F (0 to 60 °C).

Advanced Connectivity & Network Integration

• Integrated ports include 2 Ethernet TCP/IP device networks and 1 service port for versatile networking.
• A dedicated Ethernet HSBY port maintains robust communication between redundant processor pairs.
• A USB type mini B port provides convenient access for local configuration and maintenance.
• The unit supports essential communication services like RIO scanner and DIO scanner.
• Its capacity allows for the integration of multiple Ethernet and AS-Interface communication modules.

Cybersecurity & Advanced Control Features

• This processor boasts comprehensive, built-in cybersecurity measures, including an embedded firewall.
• It utilizes advanced security protocols such as IPSec and Transport Layer Security (TLS).
• The module is Achilles Certified and features DoS prevention and detailed audit trail logging.
• It supports specialized functions including SSI encoder, HART, motion control, and accurate time stamping.
• Application execution is managed through 1 cyclic master task and 1 periodic fast task.

Rugged Design & Environmental Compliance

• The module demonstrates exceptional reliability with a high MTBF of 650,000 hours.
• Its robust design withstands vibrations up to 3 gn and shocks up to 30 gn.
• Certified for use in Hazardous Location Class I Division 2 areas, ensuring safety in volatile environments.
• It carries major global certifications including UL, CSA, CE, and EAC.
• The processor receives operational power internally through the Modicon M580 backplane.

Frequently Asked Questions (FAQ)

Q: What is the key difference between the BMEH586040 and other M580 CPUs?
A: The Modicon M580 BMEH586040 stands out with its large 64 MB combined program and data memory and support for 31 remote I/O stations, making it ideal for large, complex applications.

Q: Is this processor suitable for harsh industrial environments?
A: Absolutely. It is designed to resist shock and vibration and is certified for Class I Division 2 hazardous locations, meeting rigorous industrial standards.

Q: How many communication modules can this CPU support?
A: The processor has the capacity to handle 6 Ethernet communication modules and 16 AS-Interface modules, offering great network flexibility.

Q: What certifications does this product hold?
A: The module carries multiple global approvals, including UL, CSA, CE, EAC, and RCM, ensuring compliance for international projects.

Q: What is included in the shipment, and what is your return policy?
A: You will receive a 100% new, factory-sealed unit. We offer a 30-day return policy for items in original, unopened condition.

For complete technical details, wiring diagrams, and configuration guidelines, please request the full product manual. Contact us to download the official PDF datasheet.
