Ethernet TCP/IP Module Schneider Electric 140NOE77111

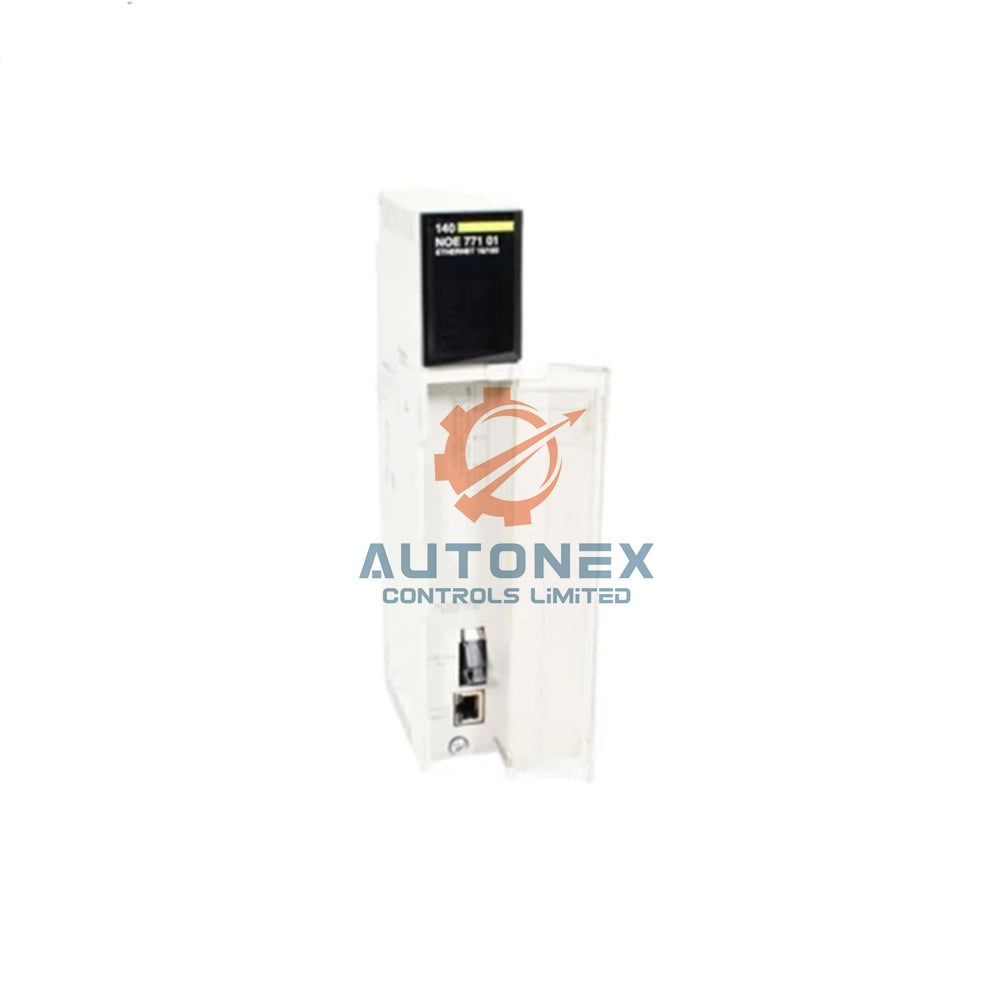

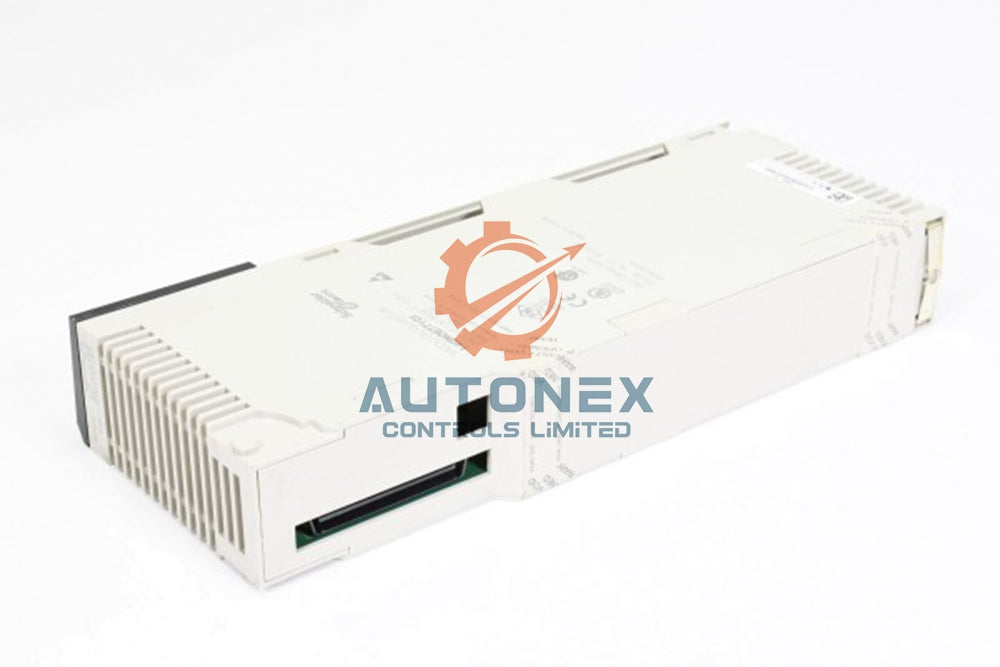

Schneider Electric Modicon Quantum Ethernet TCP/IP Module

Core Product Specifications

• Brand & Model: Manufactured by Schneider Electric, model 140NOE77111.
• Product Series: Part of the reliable Modicon Quantum automation platform.
• Power Supply: Draws 750 mA at 5 VDC directly from the rack.
• Network Interface: Dual ports: MT/RJ for 100BASE-FX fiber optic and RJ45 for 10/100BASE-TX copper.
• Data Rate: Operates at 10/100 Mbit/s with auto-negotiation.
• Web Server Class: Features a high-performance Class C30 web server.

Key Features & Communication Services

• FactoryCast Configurable for creating custom web applications.
• Advanced SMTP e-mail notification for system alerts and reports.
• NTP time synchronization ensures precise timing across the network.
• Comprehensive services include Modbus TCP messaging, I/O scanning, and Global Data exchange.
• Features bandwidth management, SNMP network management, and an FDR server.
• Supports a hot standby redundant architecture for critical reliability.

Environmental Durability & Certifications

• Operating Temperature: Rated for 32 to 140 °F (0 to 60 °C).
• Enclosure Rating: IP20 protection for standard industrial environments.
• Robust Design: High resistance to electrostatic discharge and electromagnetic interference.
• Safety Certifications: Certified for FM Class 1 Division 2 hazardous locations.
• Altitude Rating: Operational up to 14,764 ft (4500 m).

Frequently Asked Questions (FAQ)

• Q: What is the key feature of the Class C30 web server?
  A: The Class C30 provides the highest memory and performance level for advanced web applications.
• Q: Can this module send email alerts?
  A: Yes, the integrated SMTP e-mail notification service can send system alerts directly.
• Q: What does FactoryCast configurability offer?
  A: It allows engineers to develop custom web-based interfaces on the module itself.
• Q: Is this module suitable for high-availability systems?
  A: Absolutely. It supports a hot standby redundant architecture for fail-safe operation.
• Q: What is your shipping and return policy?
  A: We ship in-stock items within 5 days via major carriers and offer a returnable policy.
