Schneider Electric - 140NWM10000 Ethernet TCP/IP Module

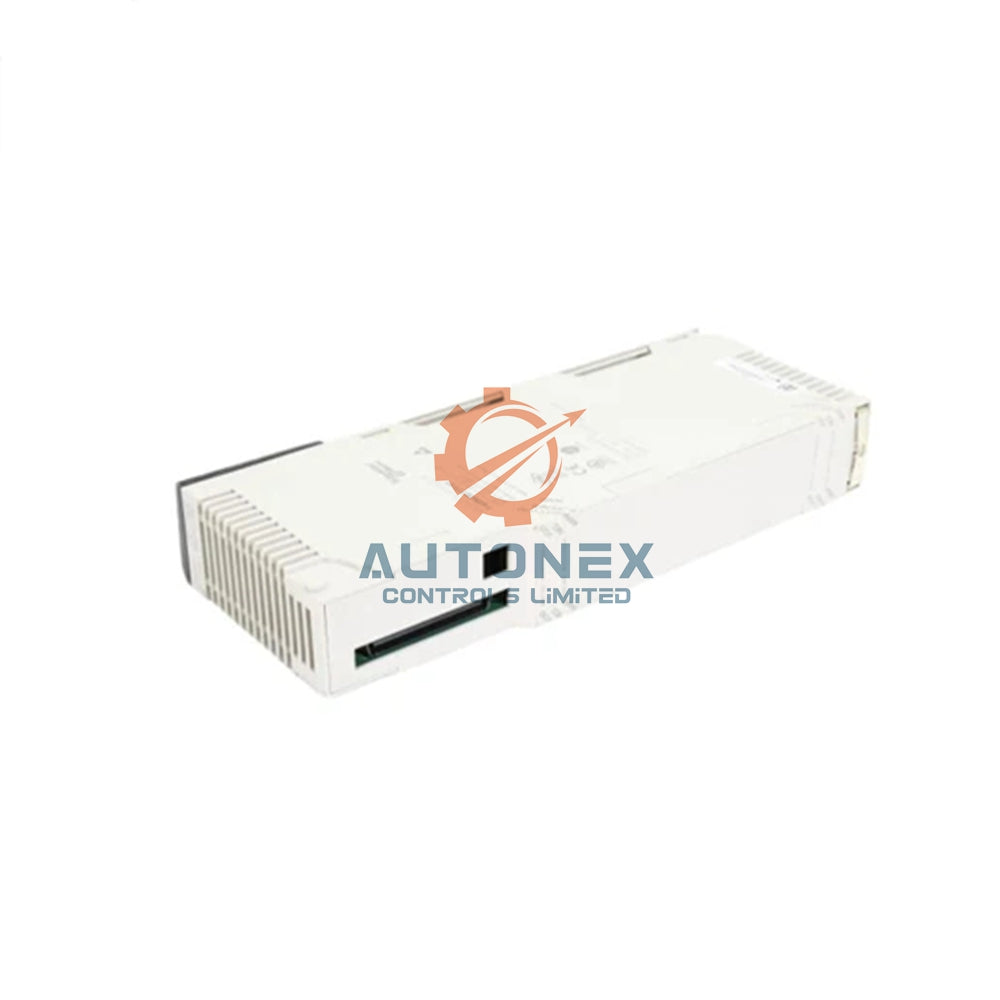

Product Overview: Schneider Electric Modicon Quantum 140NWM10000 Ethernet TCP/IP Module

Core Technical Specifications & Communication

• The 140NWM10000 module features dual-speed Ethernet at 10/100 Mbit/s for flexible network integration.
• It supports key protocols including Modbus TCP messaging and SNMP for network management.
• Physical interfaces include both RJ45 (100BASE-TX) and MT/RJ (100BASE-FX fiber optic) connections.
• It draws 750 mA at 5V DC directly from the rack power supply.
• The module operates reliably in temperatures from 32 to 140 °F (0 to 60 °C).
• It is rated for altitudes up to 14,764 ft (4500 m) and 95% non-condensing humidity.

FactoryCast HMI & Web Services Features

• This module includes an active FactoryCast HMI for embedded visualization.
• It hosts a configurable web server with web services and a rack viewer for remote monitoring.
• The integrated data editor allows for direct data manipulation and display configuration.
• These features enable real-time data access and control without a separate HMI panel.

Status Indicators & Environmental Ratings

• Comprehensive LED signaling includes status for network link, speed, activity, faults, and rack operation.
• It provides robust EMC protection: 4 kV contact / 8 kV air ESD and 9.1 V/m RF immunity (IEC 801).
• The module carries major certifications: cUL, UL 508, FM Class 1 Div 2, and CSA C22.2 No 142.
• It has an IP20 protection degree for installation in controlled environments.

Frequently Asked Questions (FAQ)

• What is the main function of the 140NWM10000 module?
  The Schneider Electric 140NWM10000 provides Ethernet TCP/IP connectivity and embedded FactoryCast HMI for Quantum PLCs.
• Is the module brand new and genuine?
  Yes, we supply only 100% new, original Schneider Electric products with full manufacturer support.
• What Ethernet speeds and protocols does it support?
  It supports 10/100 Mbit/s auto-negotiation and communicates via Modbus TCP/IP.
• Do you have stock, and what is your shipping time?
  Yes, we have stock. Orders are processed and shipped within 5 business days via major couriers.
• What is the return policy for this Ethernet module?
  We offer a 30-day return policy for unused items in their original sealed packaging.
• What is FactoryCast HMI?
  It is an embedded web-based HMI allowing you to create visualization screens that run directly on the module.
