Schneider Electric 140NOM25200 Fiber Optic DIO Adapter

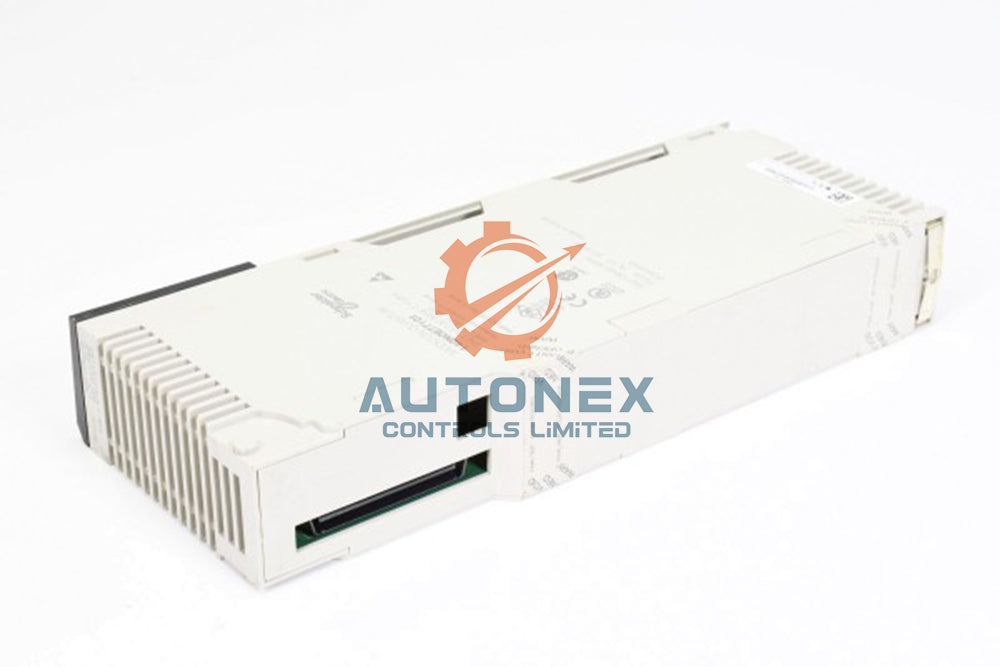

Product Overview: Schneider Electric Modicon Quantum 140NOM25200 DIO Head-End Adapter

Key Technical Specifications & Performance

• The 140NOM25200 supports a high transmission rate of 1 Mbit/s for efficient data transfer.
• It handles 30 input and 32 output words for comprehensive I/O management.
• Power dissipation is rated at 4 W with a bus current requirement of 750 mA.
• This Schneider Electric adapter operates in temperatures from 32 to 140 °F (0 to 60 °C).
• It can be stored safely in a wider range of -40 to 185 °F (-40 to 85 °C).
• The unit functions at up to 16,404 ft (5000 m) altitude in 95% humidity non-condensing.

Communication Ports & Optical Specifications

• This module provides 1 Modbus Plus fiber optic single copper port for noise-immune long-distance communication.
• It also includes 1 Modbus RS232 twisted pair port for local device connectivity.
• Electrical connections are made via 1 RJ45 connector and 2 TX/RX connectors.
• The fiber optic interface uses an 820 nm wavelength with a 20 ns rise/fall time.
• It features a dynamic range of 20 dB and detected silence at -36 dBm.
• Power loss budget varies by cable: 11 dB (62.5/125µm), 16.5 dB (100/140µm), 6.5 dB (50/125µm).

Environmental Robustness & Certifications

• The adapter provides 4 kV contact and 8 kV air electrostatic discharge protection (IEC 801-2).
• It resists electromagnetic fields up to 9.1 V/m (10 V/m) from 80-2000 MHz per IEC 801-3.
• The product carries multiple certifications including UL 508, CSA Class 1 Div 2, GOST, DNV, and RINA.

Frequently Asked Questions (FAQ)

• What type of fiber optic port does the 140NOM25200 have?
  The Schneider Electric 140NOM25200 features 1 Modbus Plus fiber optic single copper port for reliable long-distance communication.
• Is this a brand new genuine Schneider Electric product?
  Yes, we supply only 100% new and authentic Schneider Electric modules with full manufacturer warranty.
• What is the operating temperature for this adapter?
  This adapter is designed to operate in 0 to 60 °C (32 to 140 °F) environments continuously.
• How quickly can you ship the 140NOM25200?
  We ship most orders within 5 business days using express carriers like DHL or FedEx.
• Do you accept returns for this product?
  Yes, we offer a 30-day return policy for unused items in original packaging.
• What are the key advantages of the fiber optic connection?
  Fiber optic provides immunity to EMI/RFI, longer distance capability, and electrical isolation for safer operation.
