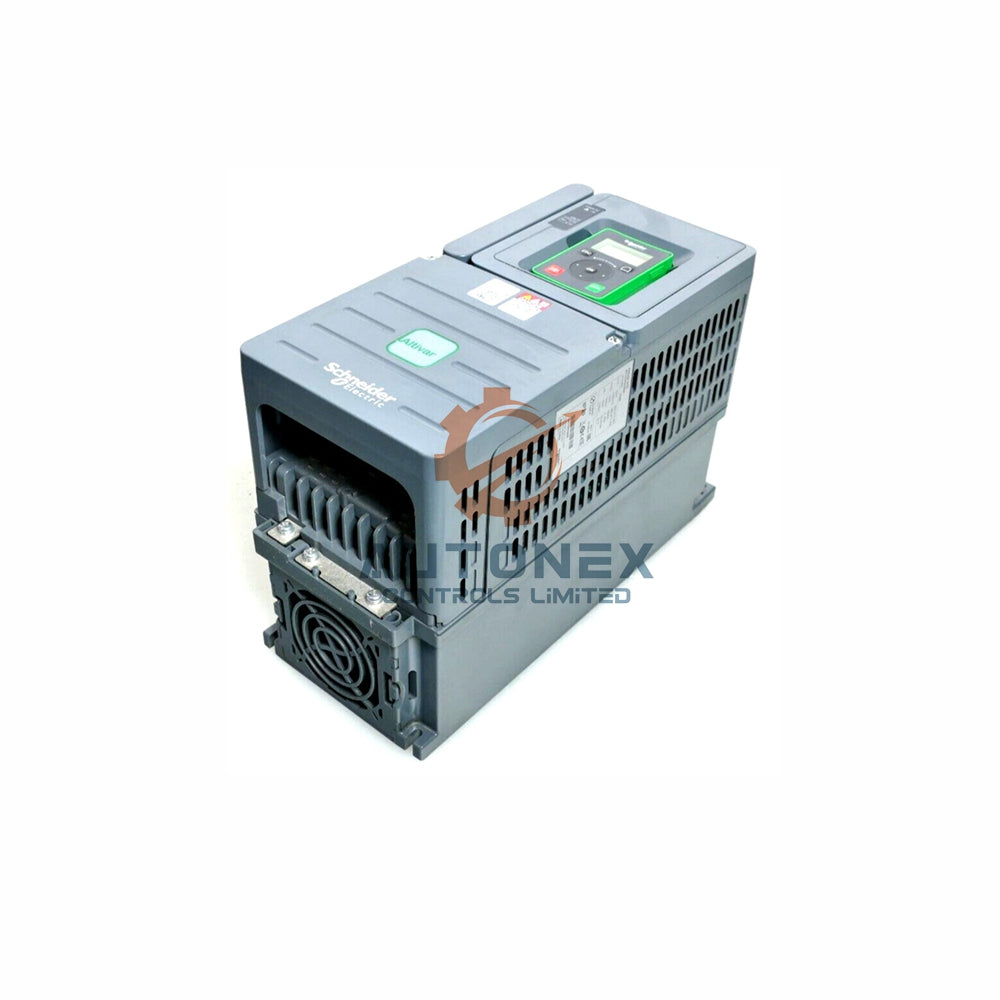

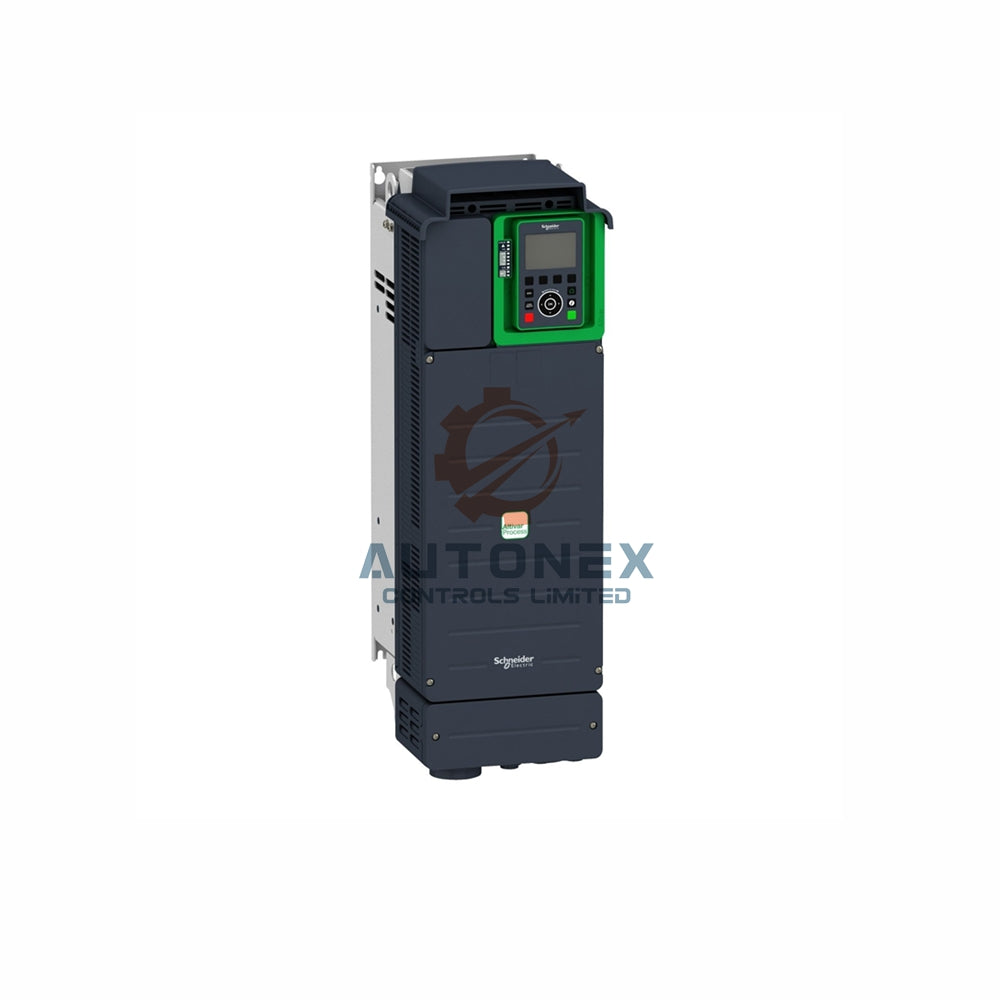

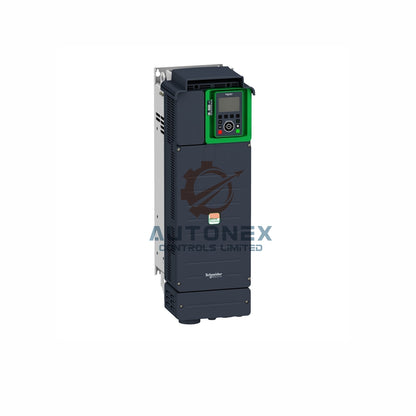

Schneider ATV930D37N4 Variable Speed Drive | 400/480V 37kW

Schneider Electric Altivar Process ATV930 Variable Speed Drive

Core Technical Specifications

• Brand & Model: Schneider Electric ATV930D37N4.
• Motor Power: 37.0 kW / 50 HP (Normal Duty) or 30.0 kW / 40 HP (Heavy Duty).
• Supply Voltage: 380...480V AC, 3-phase.
• Output Current: 74.5 A (Normal Duty) or 61.5 A (Heavy Duty) at 4 kHz.
• Enclosure Rating: Robust IP21 / UL Type 1 protection.
• Control Profiles: Variable torque, constant torque, and synchronous motor control (PMSM, SynRM).
• Integrated Safety: Includes Safe Torque Off (STO), Safely Limited Speed (SLS), and Safe Brake Control (SBC).

Detailed Inputs & Outputs

• Discrete Inputs: 10 total inputs, including 8 programmable (DI1-DI8) and 2 for STO.
• Discrete Outputs: 2 logic outputs (DQ+, DQ-), programmable as high-speed pulse outputs.
• Analog Inputs: 3 software-configurable inputs (AI1-AI3) for 0-10V or 0/4-20mA signals.
• Analog Outputs: 2 software-configurable outputs (AQ1, AQ2) for 0-10V or 0-20mA.
• Relay Outputs: 3 configurable relay contacts (R1, R2, R3) for status and control.

Performance & Advanced Features

• Frequency Range: Maximum output frequency of 599 Hz.
• Overload Capacity: High transient current of up to 92.3 A for 60 seconds.
• Braking: Integrated brake chopper for effective motor braking.
• Switching Frequency: Adjustable from 2 to 16 kHz.
• Communication: Built-in Ethernet (EtherNet/IP, Modbus TCP) and RS485. Multiple optional card slots for PROFINET, PROFIBUS, CANopen, etc.

Environmental & Physical Data

• Operating Temperature: -15°C to 50°C without derating.
• Cooling: Efficient design with a cooling air volume of 240 m³/h.
• Dimensions (HxWxD): 673 x 226 x 271 mm.
• Weight: Product weight is approximately 28.2 kg.
• Certifications: Complies with CE, UL, CSA, TÜV, and meets IEC 61800 standards.
• Noise Level: Operational noise level of 71.5 dB.

Frequently Asked Questions (FAQ)

• Q: Is this drive brand new and original?
  A: Yes, all our drives are 100% new and original from Schneider Electric.
• Q: What is the stock and delivery time for the ATV930D37N4?
  A: We have this ATV930 model in stock. We typically ship within 5 business days.
• Q: What shipping methods do you use?
  A: We ship globally via reliable carriers like DHL, FedEx, and UPS.
• Q: Does this model include safety features?
  A: Yes, it features integrated Safe Torque Off (STO), Safely Limited Speed (SLS), and Safe Brake Control (SBC).
• Q: What motor types can the ATV930 control?
  A: It can control both standard asynchronous (induction) motors and synchronous motors (PMSM, SynRM).
• Q: What is the return policy?
  A: We offer a 30-day return policy for unused items in original packaging.
