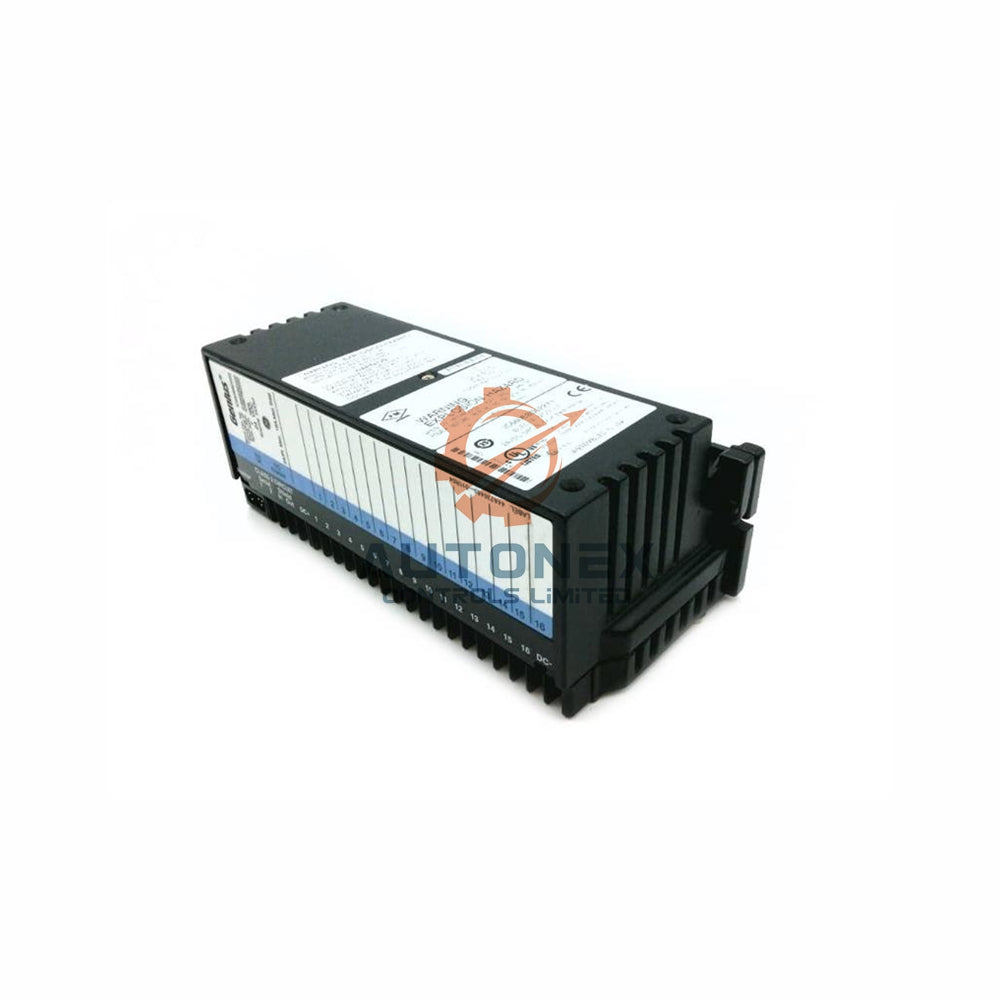

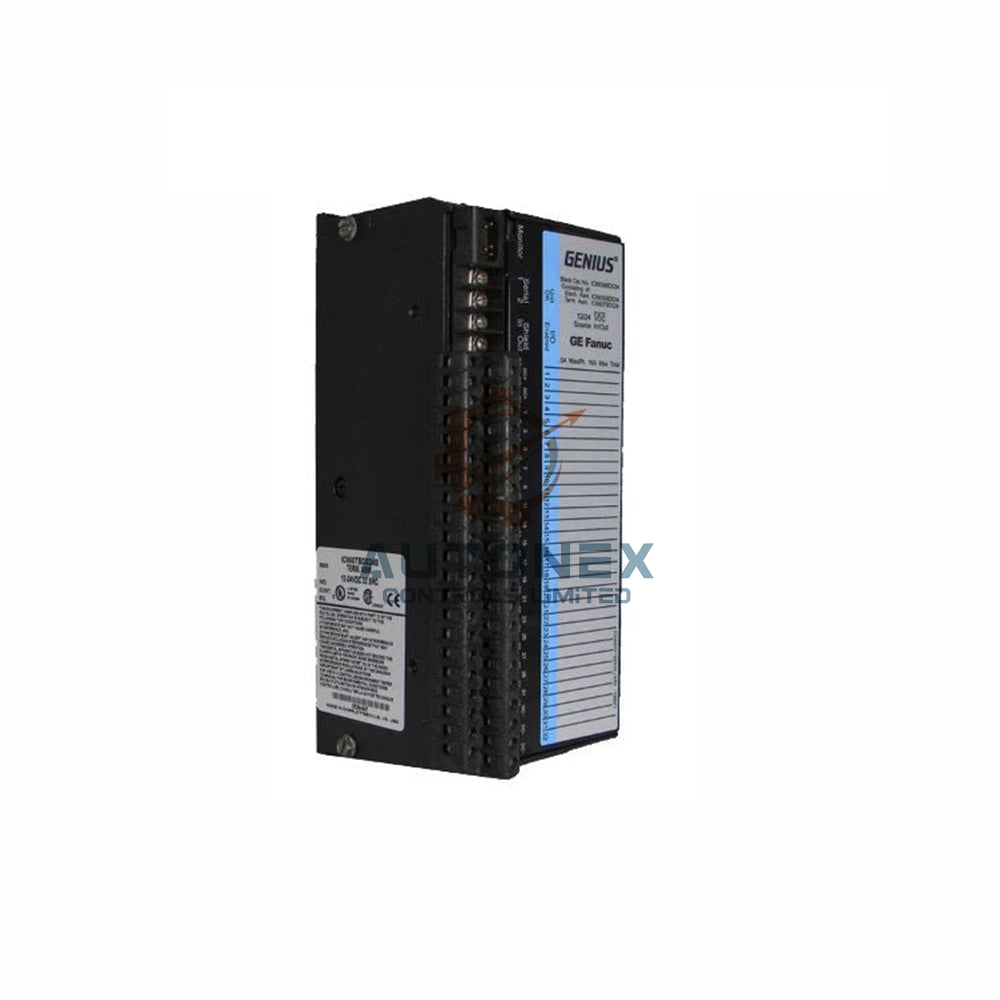

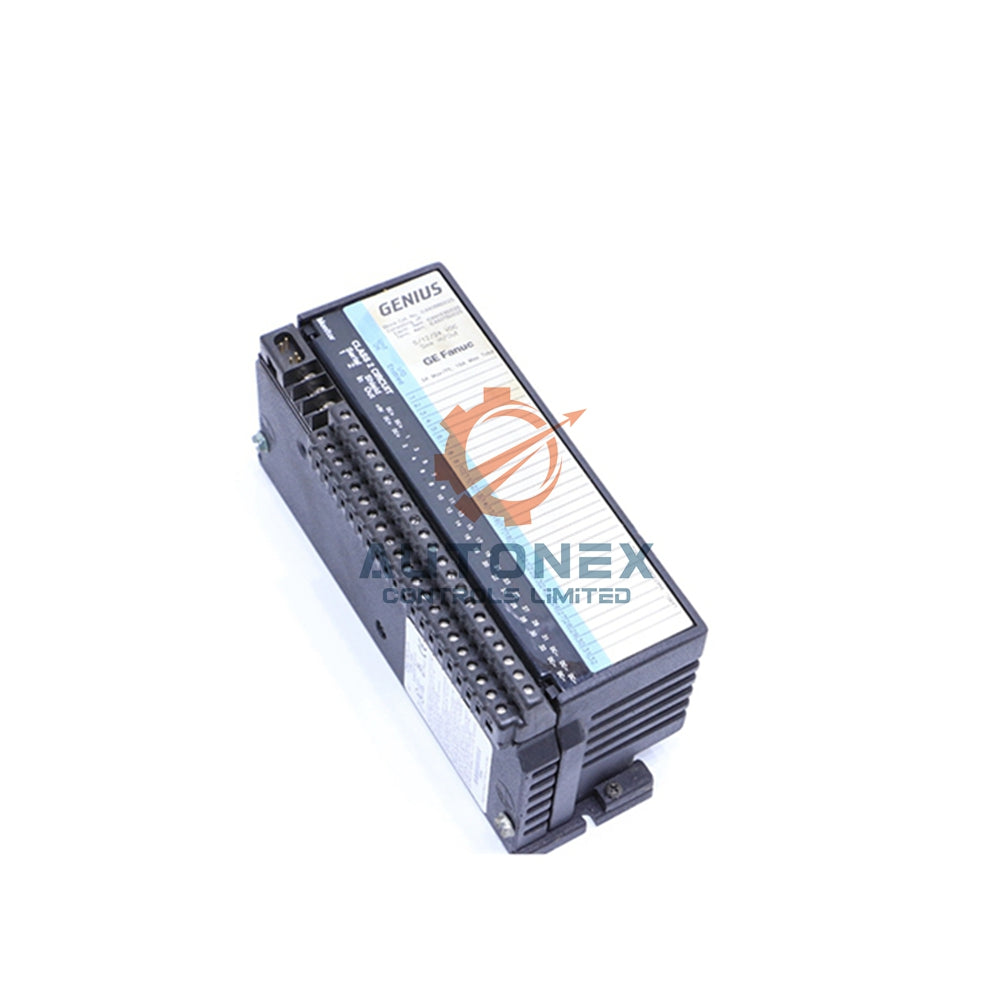

IC660BBD022 I/O Block GE Fanuc

Key Technical Specifications of the GE Fanuc IC660BBD022

• Manufacturer: GE Fanuc.
• Part Number: IC660BBD022
• Series: Genius I/O Block
• Circuit Configuration: Sixteen (16) configurable Source I/O circuits.
• Nominal Operating Voltage: 24 VDC (Operating Range: 18-30 VDC).
• Input Signal Voltage: Accepts 24 / 48 VDC signals for wide compatibility.
• Maximum Load Current: Delivers 2 Amperes per circuit for output loads.
• Input Processing Time: Fast response time of 1.7 milliseconds, plus a configurable filter.
• Output Response Time: Quick output activation with a 1.0 millisecond response time.
• Heat Dissipation: Rated at 68.8 Watts when operating at the maximum 2 Amperes load.
• Filter Time: Selectable input filter time ranging from 5 to 100 milliseconds.
• Maximum Switching Frequency: Supports switching once per second for controlled operations.

Advanced Diagnostic and Safety Features

• Output Diagnostics: Detects and reports critical conditions, including Short Circuit, Overload, No Load, Failed Switch, and Overtemperature.
• Input Diagnostics: Monitors for potential faults such as Open Wire, Overtemperature, and Failed Switch.
• Protective Measures: Features internal shutdown capabilities in the event of an overload or electronic short circuit.
• Tristate Capability: Detects open wire, no load, and failed switch conditions when operating in tristate input mode.
• Isolation: Provides Block to Block Isolation of 1500V for one minute, enhancing system safety.

Configuration and Installation Guidelines

• Interface: Configuration can be performed locally using a Hand-Held Monitor (HHM) connected to the monitoring port.
• Remote Configuration: Users can also configure the module remotely through the programming software of the host controller (PLC / PAC).
• Terminal Connections: The block features 22 terminals that accommodate up to #12 wire or two #14 wires.
• Power and I/O Wiring: DC power connects to terminals 5 and 22; I/O circuits use terminals 6 through 21, selectable as DC+ or DC-.
• Installation: Requires installation in a protective case with adequate cooling and airflow, free from airborne contaminants.
• Status Indicators: Equipped with Unit OK and I/O Enabled LEDs for visual operational status checks.
• Temperature and Humidity: Operating temperature range is 0 to 60 degrees Celsius; 5-95% non-condensing humidity.

Frequently Asked Questions (FAQ)

• Q: Is this IC660BBD022 module new?
  A: Yes, we supply only new, original factory-sealed units.
• Q: What is the current stock status of the IC660BBD022?
  A: We currently maintain in-stock availability for this model.
• Q: What is the expected delivery timeframe?
  A: We typically ship all orders within 5 days of processing.
• Q: What shipping carriers do you use?
  A: We primarily use reliable logistics services such as DHL, FedEx, and UPS.
• Q: Do you accept returns?
  A: Yes, we support returns within 30 days of purchase.
• Q: Can the IC660BBD022 accept both 24 VDC and 48 VDC input signals?
  A: Yes, the input circuits are designed to accept nominal input signal voltages of both 24 VDC and 48 VDC.
• Q: What is the maximum current output per channel?
  A: The module can deliver a maximum output current of 2 Amperes per circuit.
