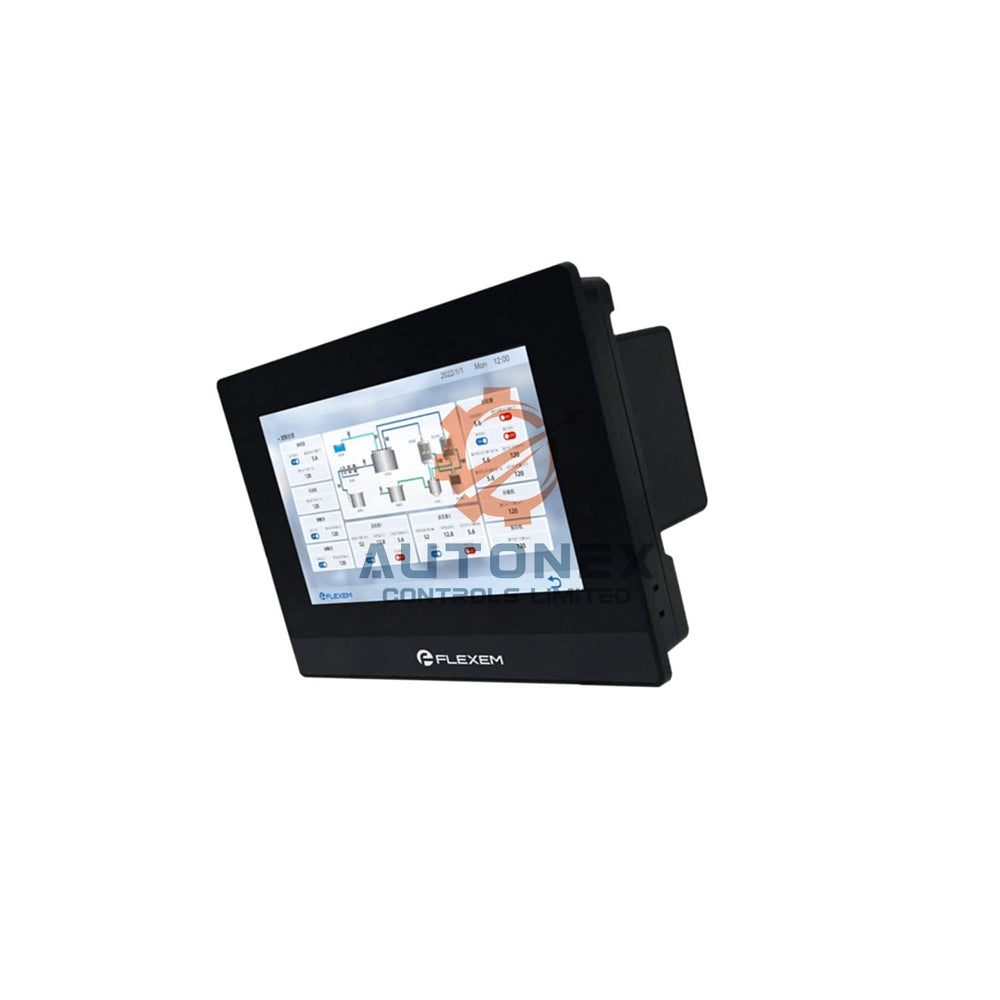

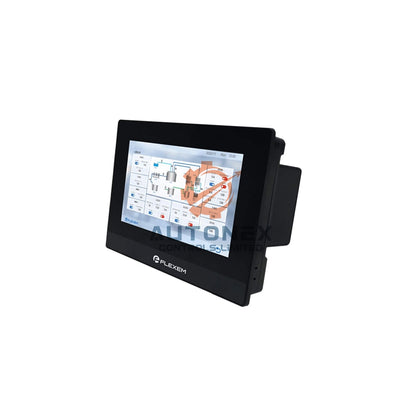

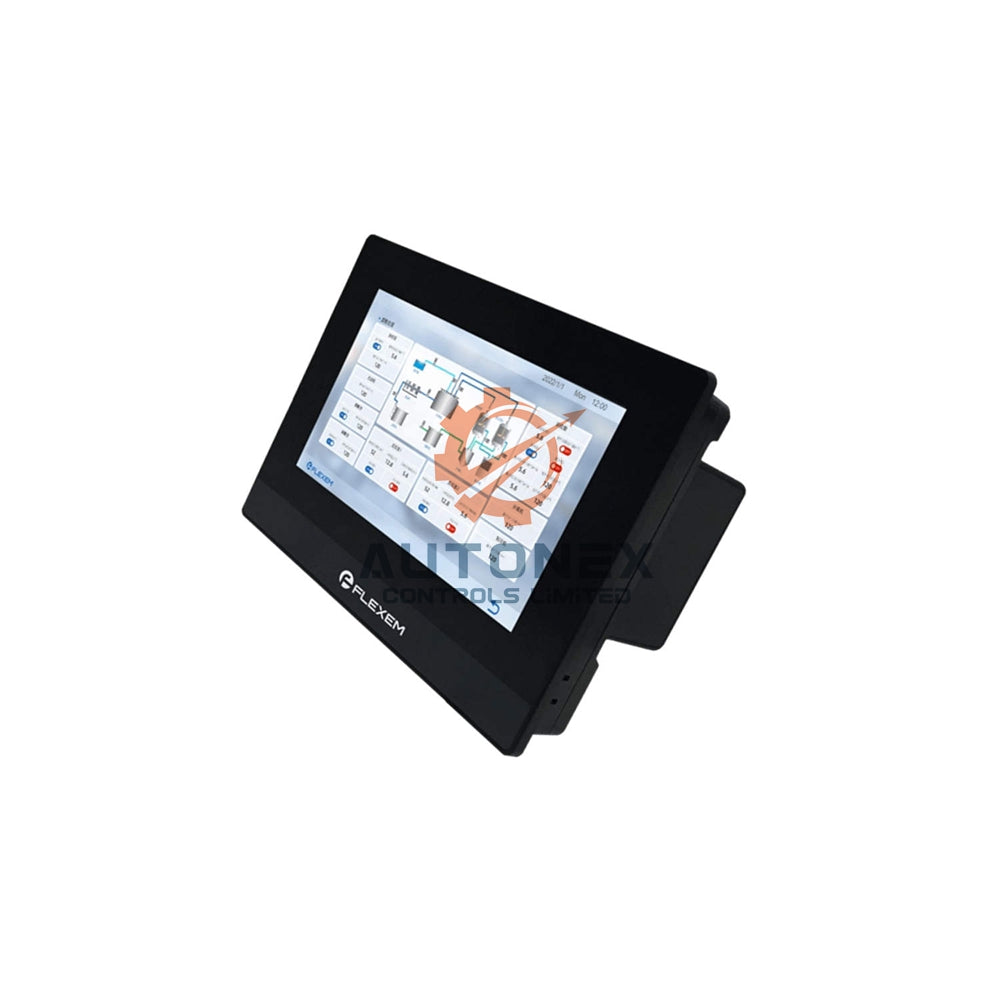

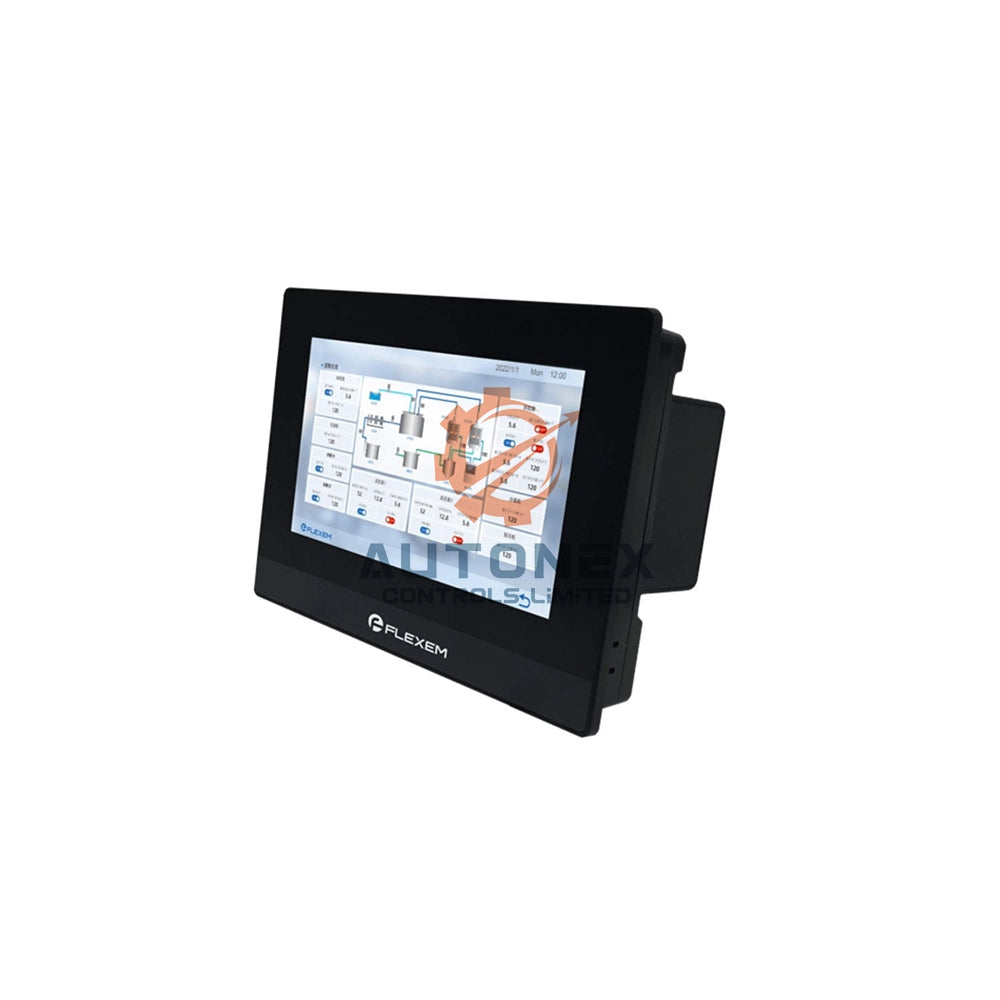

Flexem FE6070H HMI Touch Screen Panel

Flexem FE6070H Industrial HMI: A Next-Generation IIoT Touch Screen Panel

Key Display & Touch Specifications

• Brand & Model: Flexem FE6070H (6000 Series HMI).
• Display Size & Type: 7-inch 16:9 TFT LCD with wide 85-degree viewing angles.
• Resolution & Colors: Sharp 1024 x 600 pixel resolution with 24-bit true color depth.
• Brightness: High 350 cd/m² brightness for clear visibility in various lighting.
• Touch Panel: Reliable 4-wire industrial-grade resistive touchscreen.

Core Hardware & Processing Power

• CPU Options: Choose between a V2: 600 MHz ARM Cortex-A8 or a V3: 1.2 GHz ARM Cortex-A7 processor.
• Memory Configuration: V2 offers 128 MB Flash with 128 MB DDR3 RAM. V3 provides 4 GB EMMC storage and 256 MB DDR3 RAM.
• Power Supply: Low power consumption under 10W with a wide DC input range from 9V to 28V (24V rated).
• Power Protection: Includes built-in lightning surge protection for enhanced reliability.
• Power Interruption Tolerance: Can withstand brief power drops of less than 5 milliseconds.

Connectivity & Communication Ports

• Ethernet Port: Models available with either 1 or 2 x 10/100 Mbps Ethernet ports for network connectivity.
• USB Ports: 1 x USB Slave 2.0 and 1 x USB Host 2.0 port for easy data transfer and peripheral connection.
• Program Download: Download projects via USB Slave, USB flash drive, or Ethernet for flexible setup.
• Serial Ports: COM1: RS232/RS485/RS422; COM2: RS485; COM3: RS232 for versatile device communication.

Robust Environmental Durability

• Operating Temperature: Reliable performance from 0°C to 50°C.
• Storage Temperature: Can be stored safely from -20°C to 60°C.
• Environmental Humidity: Operates in 10% to 90% relative humidity (non-condensing).
• Vibration Endurance: Withstands vibration of 10~25 Hz (2G for 30 min in X, Y, Z directions).
• Protection Rating: Front panel rated at IP65 (NEMA 4 equivalent), rear panel at IP20.
• UV Note: Avoid direct operation in environments with high ultraviolet (UV) light exposure.

Frequently Asked Questions (FAQ)

• Q: What is the operating voltage range for the FE6070H?
  A: The HMI has a wide operating range from 9V to 28V DC, with a rated voltage of 24V DC.
• Q: What type of touchscreen does it use?
  A: It uses a durable 4-wire resistive touch panel, suitable for industrial environments.
• Q: What are the communication port options?
  A: It includes multiple serial ports (RS232, RS485, RS422), Ethernet, and USB host/slave ports.
• Q: Is the front panel waterproof?
  A: Yes, the front panel is rated IP65, making it dust-tight and protected against low-pressure water jets.
• Q: How do I download my project to the HMI?
  A: You can transfer programs via the USB slave port, a USB flash drive on the host port, or over Ethernet.
• Q: What is the difference between the V2 and V3 hardware versions?
  A: The V3 version features a faster 1.2 GHz CPU, larger 4 GB EMMC storage, and 256 MB DDR3 RAM compared to the V2.
