DS200TCDAH1BGD GE Mark V Digital I/O Board Specs

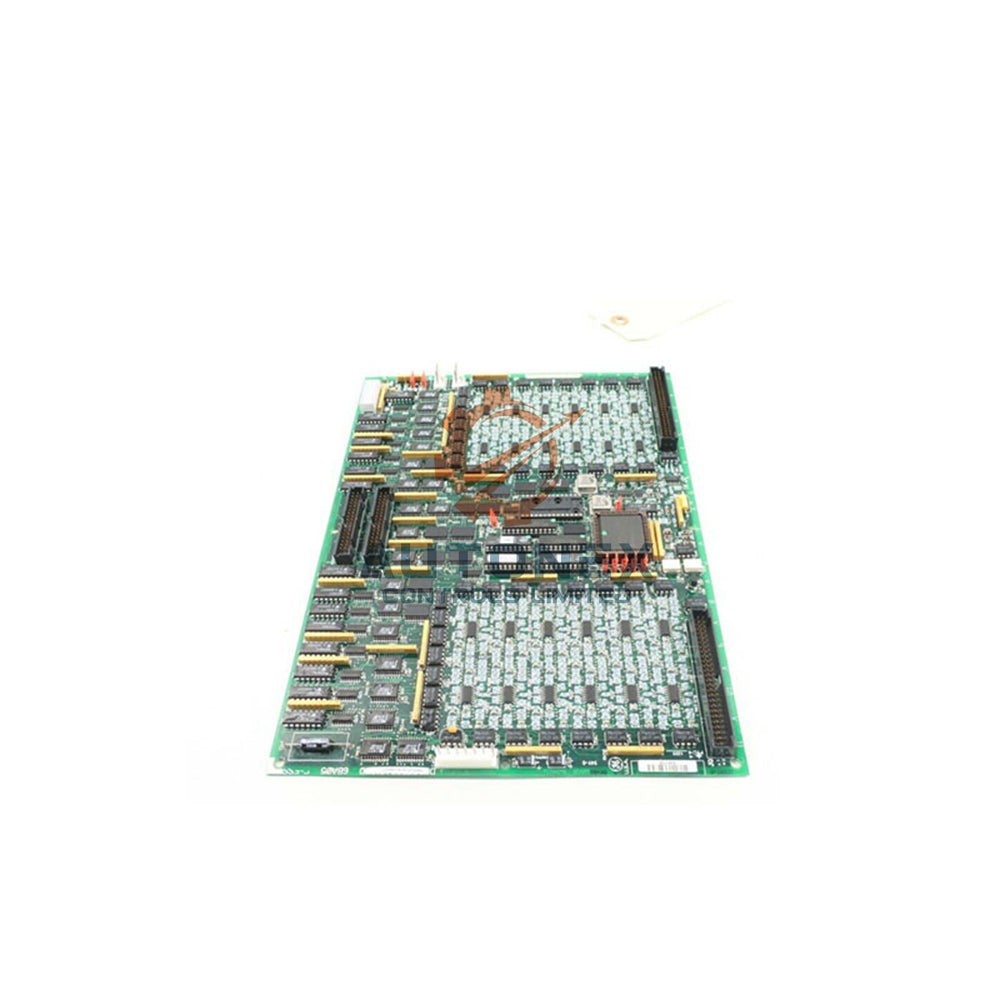

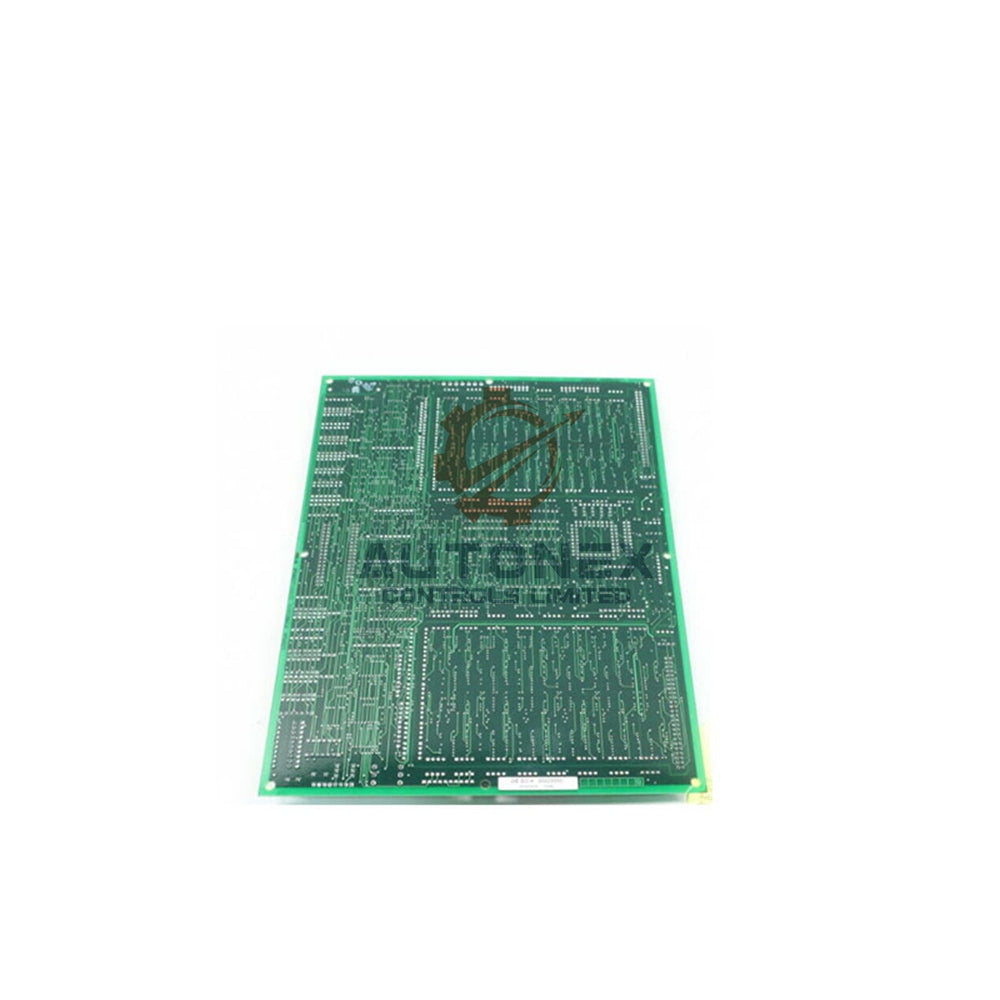

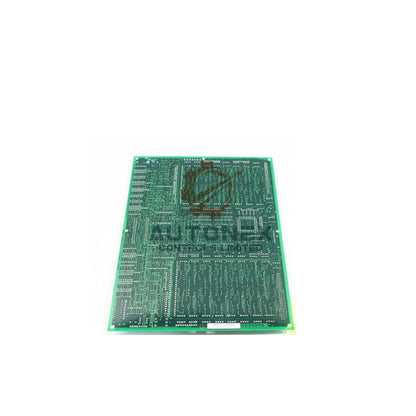

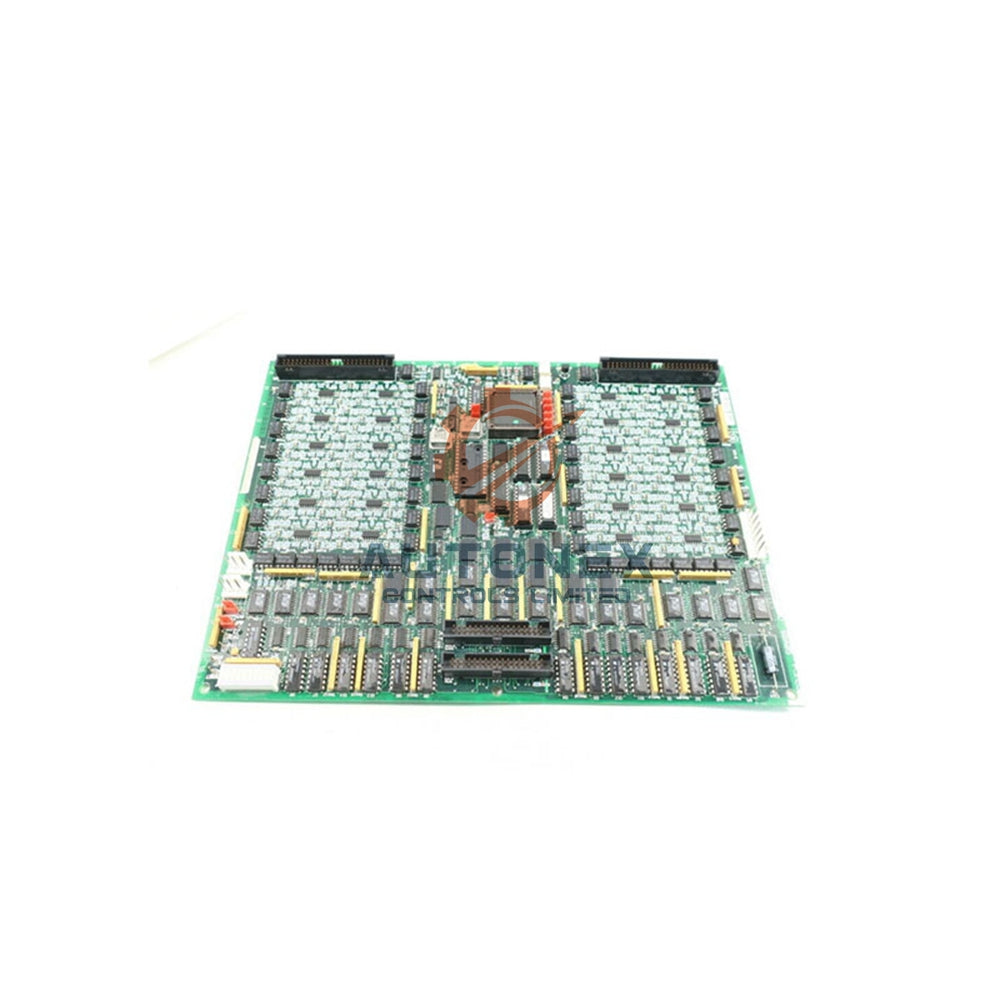

DS200TCDAH1BGD Digital I/O Board – GE Mark V Series

• Core function: Digital I/O Board (functional acronym TCDA) with conformal coating for environmental protection.
• Processor & memory: One microprocessor plus multiple programmable read‑only memory (PROM) modules.
• LED indicators: One block of 10 LEDs for status monitoring, plus one side‑visible LED.
• Connectors: Two 50‑pin connectors (JQ, JR) for interfacing with DS200DTBA and DS200DTBB boards.
• Jumpers: Eight jumpers (JP1–JP8) for IONET termination, ID selection, and stall timer enable.
• Test points: Multiple test points (TP1, TP2, etc.) for circuit diagnostics and fault isolation.

Technical Specifications

• Brand: General Electric (GE).
• Model: DS200TCDAH1BGD (functional revision 1 B, conformal coated PCB).
• Microprocessor: Embedded processor for real‑time digital I/O control.
• Memory: PROM modules store configuration and operational firmware.
• Jumpers configuration:
  • JP1–JP8 – select IONET ID, termination resistors, and stall timer enable.
  • J1 and J8 – reserved for factory testing only (do not alter).
  • J2 and J3 – set IONET termination resistors.
  • J4, J5, J6 – define the IONET ID for board addressing.
  • J7 – enables or disables the stall timer function.
• Connector details:
  • JQ (50‑pin) – connects to JQR on DS200DTBA via ribbon cable.
  • JR (50‑pin) – receives contact input signals from DS200DTBB.
  • JX1 and JX2 (3‑pin) – auxiliary connectors for additional signaling.
• Test points: TP1, TP2, etc. – allow voltage and signal measurements with a qualified device.
• Temperature range: 0 to +55 °C operating; -40 to +85 °C storage.
• Environmental protection: Conformal coating guards against moisture, dust, and contaminants.

Hardware Configuration & Installation

• Verify jumper settings (JP1–JP8) match your IONET addressing and termination requirements.
• Connect JQ to the DS200DTBA board’s JQR port using a 50‑pin ribbon cable for signal exchange.
• Connect JR to the DS200DTBB board to receive contact input signals.
• Do not adjust J1 or J8 – these are factory test jumpers and do not affect normal operation.
• Use test points (TP1, TP2, etc.) with a multimeter or oscilloscope for diagnostics.
• Observe the 10‑LED block for real‑time status indication of digital channels.

What’s in the Box

• One DS200TCDAH1BGD printed circuit board – conformal coated and fully tested.
• No additional cables, jumpers, or mounting hardware are included with this board.
• No documentation or software media supplied – please refer to GE Mark V manuals.

Shipping & Returns

• We ship worldwide via FedEx, UPS, or DHL – tracking number provided upon dispatch.
• Orders ship within 5 business days after payment confirmation.
• This DS200TCDAH1BGD model is kept in stock for immediate delivery.
• 30‑day return policy applies – contact us for RMA authorization and instructions.

Frequently Asked Questions

• Is this a new or refurbished board?
  This is a brand new, original GE surplus board – not a repair or clone.
• Can I use the DS200TCDAH1BGD with a Mark VI system?
  No, this board is specifically designed for the Mark V series only.
• How do I verify the functional revision?
  Check the PCB marking “1 B” – this confirms the B‑rated revision of the TCDA board.
• What is the purpose of the side‑visible LED?
  It provides a quick visual indication of board power or activity status.
• Do you provide technical support for configuration?
  We offer basic guidance; detailed setup requires GE’s Mark V documentation.
