DS200TBQCG1A GE Mark V Analog Termination Board Specs

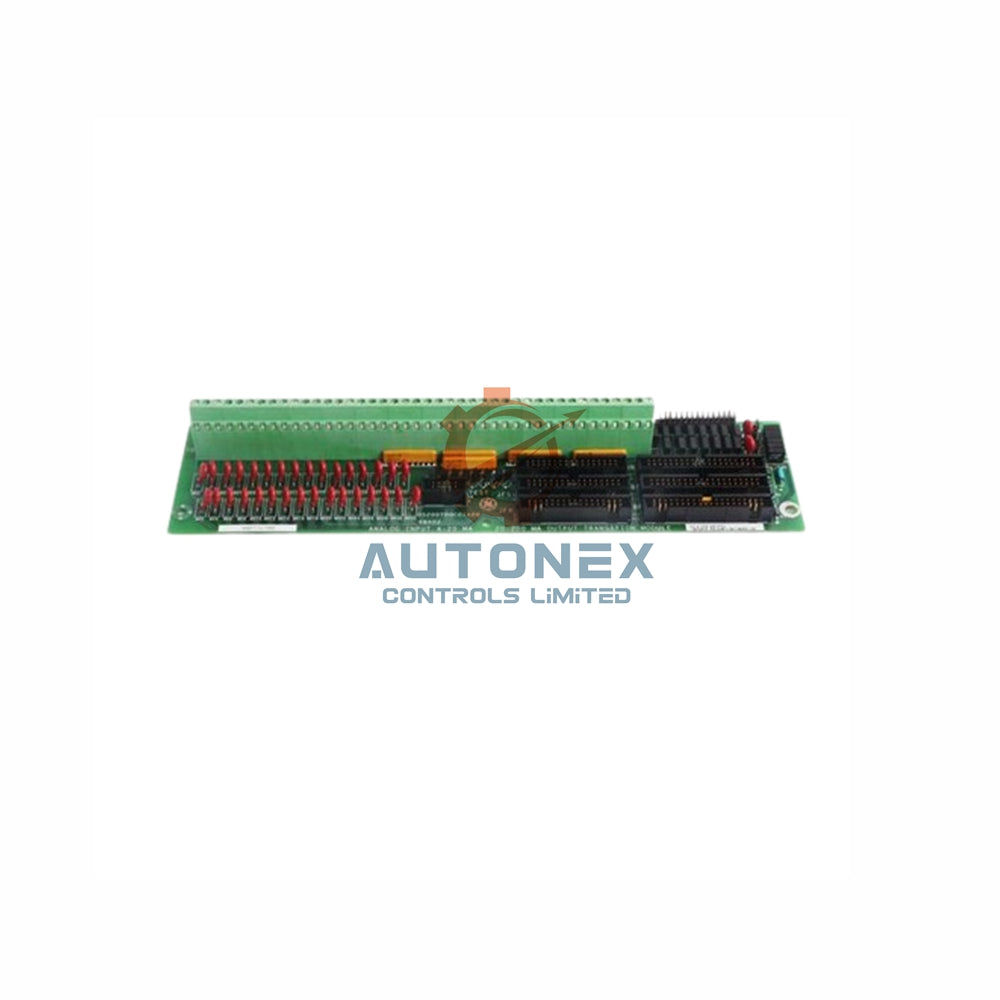

DS200TBQCG1A Analog Termination Board – Mark V Series

Technical Specifications

• Brand: General Electric (GE).
• Model: DS200TBQCG1A (functional revision 1 A, PCB coating normal).
• Input signals: 4‑20 mA inputs #1–#15 referenced to DCOM via BJ1–BJ15.
• Output signals: Two 4‑20 mA or 0‑200 mA outputs (jumper-selectable).
• Position inputs: LVDT/R position signals handled through JFR connector.
• Temperature range: 0 to +55 °C (ambient operating).
• Storage environment: -40 to +85 °C with 5%–95% non‑condensing humidity.
• Noise immunity: Built with GE’s robust filtering and isolation for industrial turbine environments.

Frequently Asked Questions

• Is this a new or refurbished unit?
  This is a brand new, original GE surplus board – not a clone or repair.
• Can I use this board with a Mark VI system?
  No, the DS200TBQCG1A is specifically designed for the Mark V series only.
• How do I verify the functional revision?
  Check the PCB marking “1 A” – this is the A‑rated revision of the TBQC board.
• What happens if I connect the wrong jumper?
  Incorrect jumper settings may cause output saturation or input reading errors – follow the manual.
• Do you offer technical support for installation?
  We provide basic wiring guidance; for detailed configuration please refer to GE’s Mark V manual.
