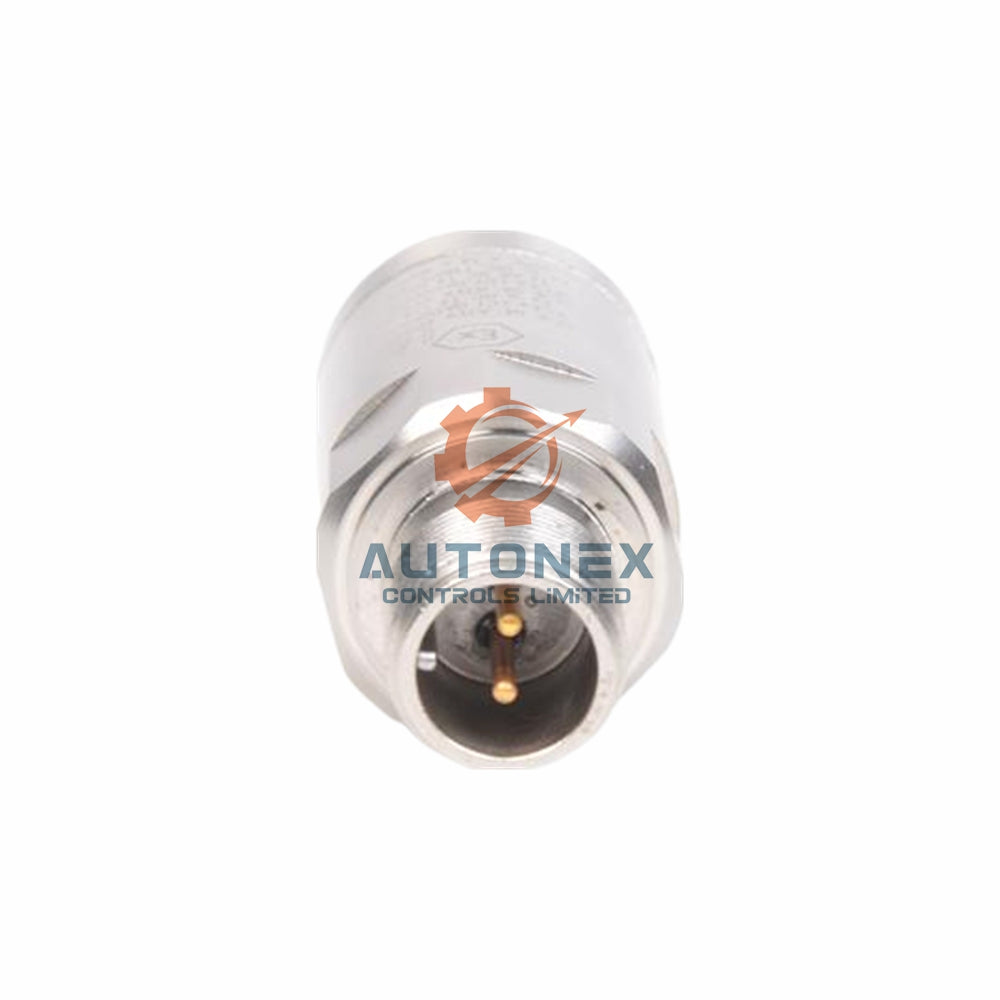

Bently Nevada - Accelerometer 200350-01-00-00

Bently Nevada Model 200350-01-00-00: Detailed Technical Specifications

Electrical & Signal Output Specifications

• Sensitivity: 100 mV/g ±20% (10.2 mV/(m/s²) ±20%)
• Frequency Range: 30 to 600,000 cpm (0.5 to 10,000 Hz, ±3 dB)
• Transverse Sensitivity: ≤ 7% of primary axis
• Bias Voltage: 8 to 12 VDC
• Excitation (Power): 18 to 28 VDC, 2 to 20 mA constant current
• Output Impedance: < 150 Ω
• Discharge Time Constant: ≥ 0.3 seconds to 37%
• Case Isolation: > 10⁸ Ω
• Warm-up Time: < 2 seconds to within 1% of final bias

Mechanical & Performance Parameters

• Measurement Range: ±50 g peak
• Linearity: ±1% of full scale
• Resonant Frequency: 1500 kcpm (25 kHz)
• Broadband Noise: 350 µg RMS (3434 µm/s²) in 1–10 kHz band
• Cross-axis Sensitivity: ≤ 5% (typical)
• Thermal Sensitivity Coefficient: < 0.02% per °C

Environmental & Durability Ratings

• Operating Temperature: -65°F to +250°F (-54°C to +121°C)
• Storage Temperature: -67°F to +257°F (-55°C to +125°C)
• Shock Survivability: 5,000 g pk (operating), 10,000 g pk (non-operating)
• Enclosure Rating: IP68, submersible to 3 meters depth for 24 hours
• Mounting Torque: 2 to 5 ft-lb (2.7 to 6.8 N·m)

Service & Maintenance Information

• Recommended Calibration Interval: Every 12 months for optimal accuracy
• Expected Service Life: > 10 years under continuous duty conditions
• Warranty Coverage: 12 months from the original shipment date

Frequently Asked Questions (FAQ)

• Q: What is the exact sensitivity of the 200350-01-00-00?
  A: Its standard sensitivity is 100 mV/g, with a tolerance of ±20%.
• Q: Can this sensor operate in wet environments?
  A: Yes, the IP68 rating means it is waterproof and can withstand immersion.
• Q: What is the standard power requirement?
  A: It requires 18-28 VDC constant current excitation, drawing 2-20 mA.
• Q: How often should I calibrate this accelerometer?
  A: Bently Nevada recommends calibration every 12 months for critical applications.
• Q: Is this model 200350-01-00-00 new and in stock?
  A: We supply only new, original, and authentic stock, typically ready for shipment.
• Q: What is your shipping and return policy?
  A: We ship via DHL, FedEx, or UPS within 5 business days and offer a 30-day return period.

Get the Complete Technical Documentation
For wiring diagrams, application notes, and full certification details, download the official datasheet.

Download Full PDF Datasheet: 200350 and 200355 Accelerometers

For product inquiries, technical support, or to place an order for the Bently Nevada 200350-01-00-00, please contact our sales team.
