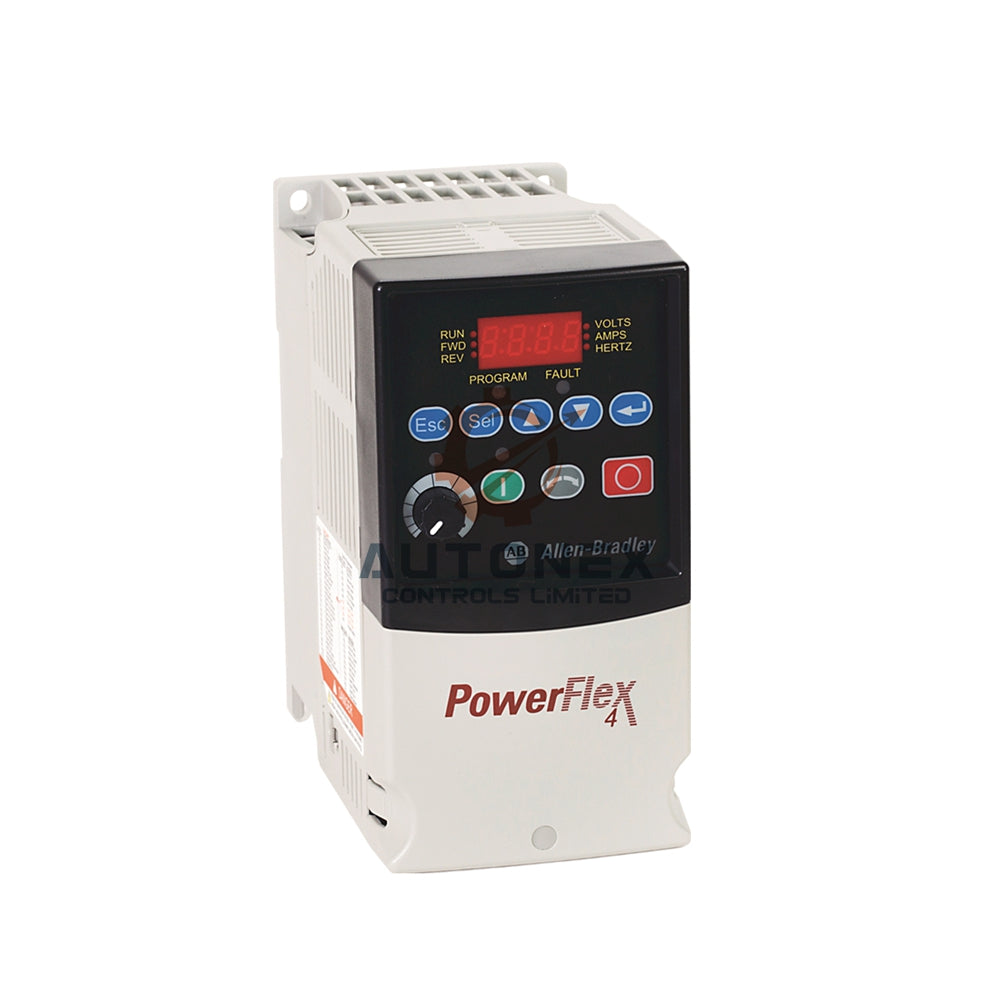

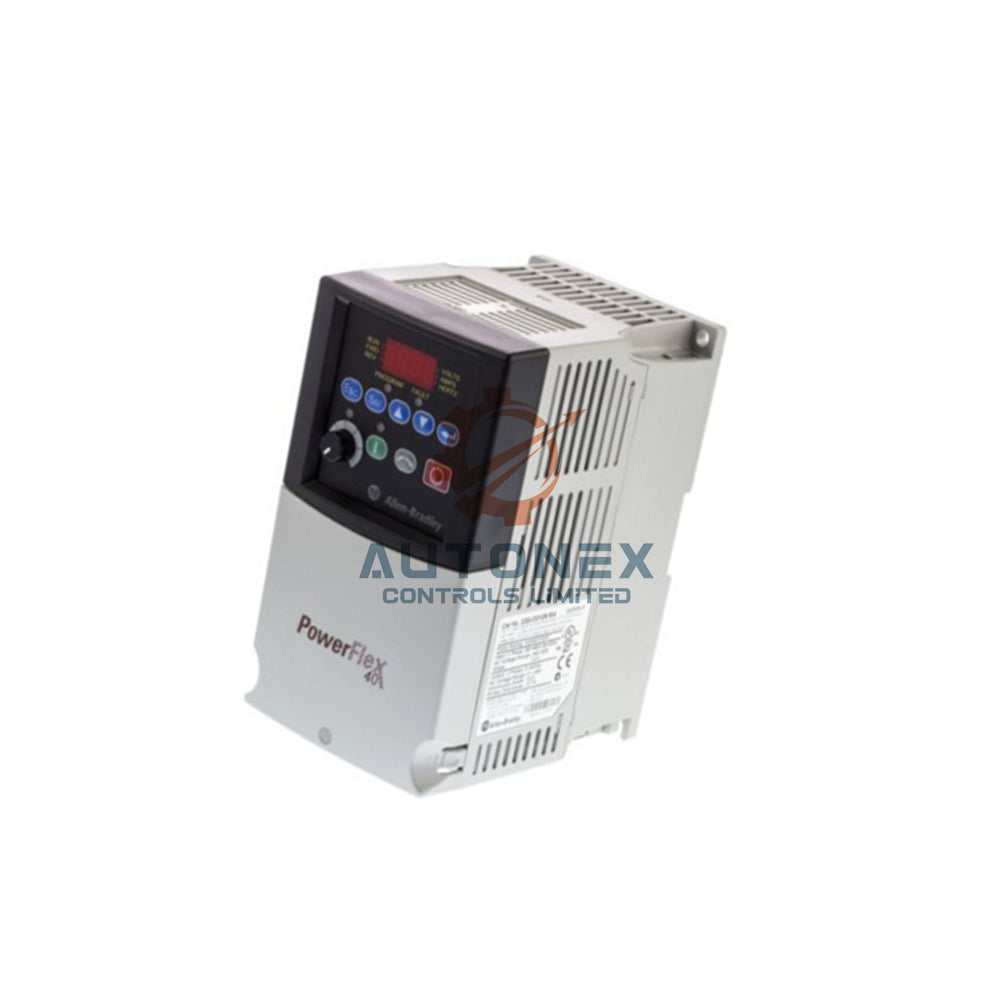

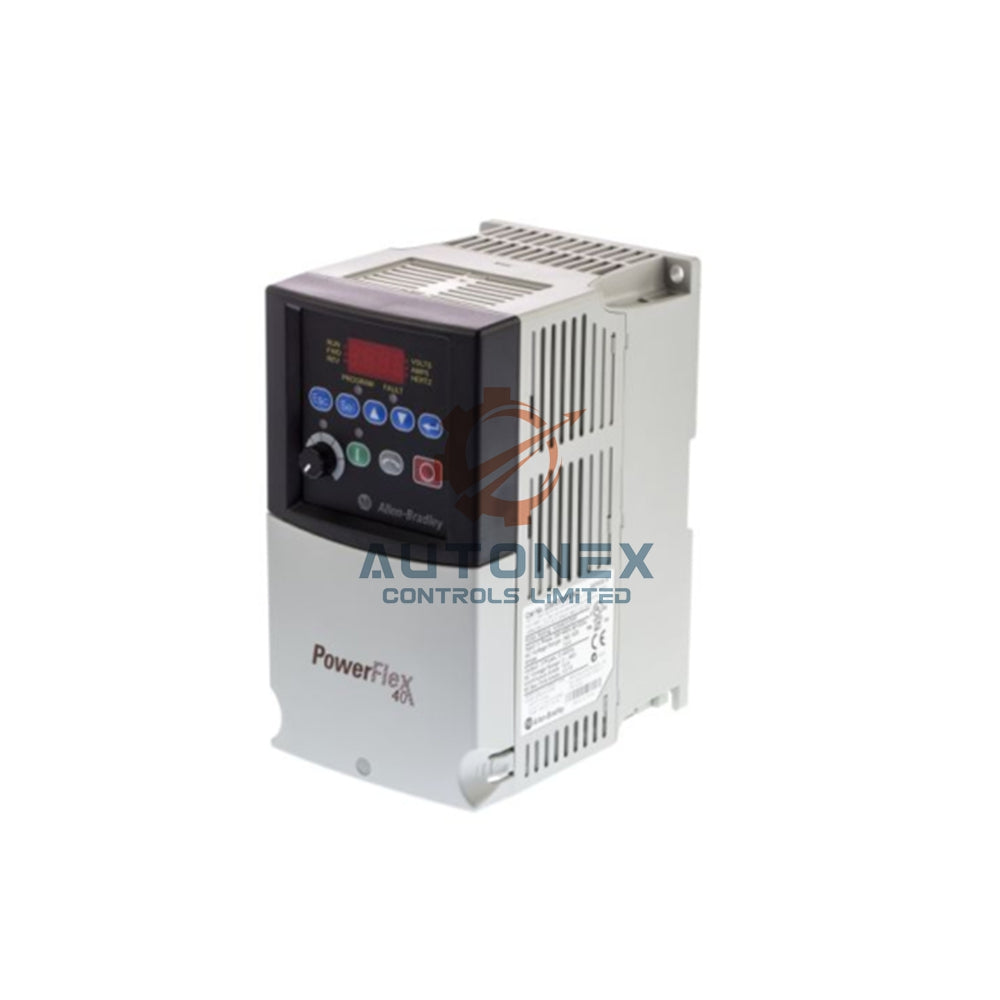

Allen-Bradley 22B-A5P0F104 Allen-Bradley 100% Genuine New

Flange Mount PowerFlex 40 Drive Solution

Essential Technical Parameters

• Manufacturer & Model: Allen-Bradley 22B-A5P0F104
• Mounting Configuration: Flange mount with IP20 protection
• Input Voltage: 240 VAC ±10% at 50/60 Hz
• Output Current: 5.0 Amps maximum rating
• Power Capacity: 1 HP (0.75 kW) motor power
• Power Factor: 1.0 to 0.95 lagging displacement
• Energy Efficiency: ≥97% at full load conditions

Advanced Power Technology

• Switching Bridge: Diode or fully gated configuration
• IGBT Performance: 200 nanosecond rise time
• Power Quality: Excellent displacement power factor
• Heat Management: Efficient flange mount dissipation
• Electrical Protection: Built-in overload protection
• Control Accuracy: Precise motor speed regulation

Installation & Mounting Features

• Mounting Type: Flange mount for secure attachment
• Enclosure Rating: IP20/NEMA Type Open design
• Space Requirements: Compact footprint saves panel space
• Installation Ease: Simple flange mounting procedure
• Maintenance Access: Easy front access for service
• Wiring Convenience: Accessible terminal connections

Technical Questions Answered

• What motors work with this drive? It controls standard 1 HP three-phase motors.
• What input voltage does it require? 240 VAC ±10% single-phase power supply.
• How efficient is this drive unit? It achieves ≥97% efficiency at full load.
• What mounting method does it use? Flange mount for secure installation.
• What is the IGBT performance? 200 ns rise time for smooth operation.
• What protection rating does it have? IP20 front protection against contaminants.
• Is technical documentation available? Yes, download the complete manual below.

Download Technical Manual: PowerFlex 4 and 40 AC Drives Documentation

Contact our sales team for application support: sales@nex-auto.com

Download PDF Document

Click to download PDF
