330102-00-24-10-02-05 Bently Nevada - Proximity Probes

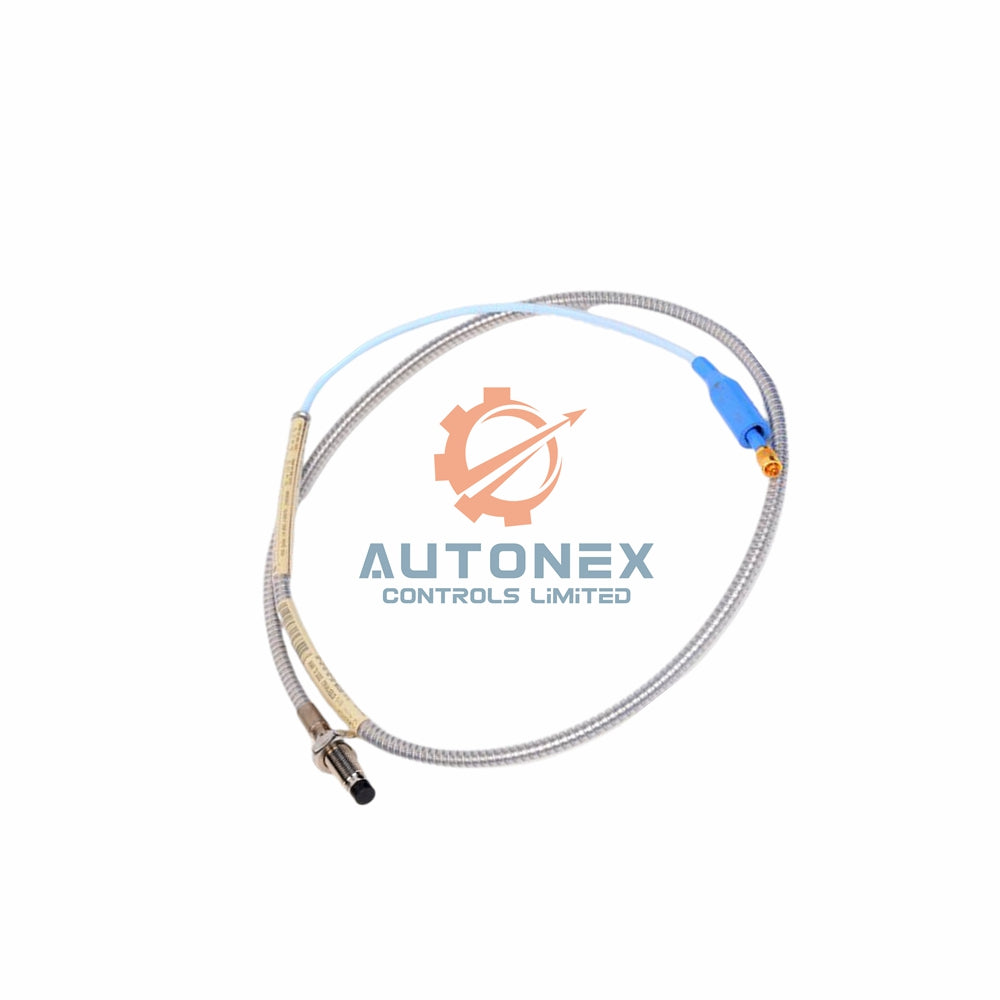

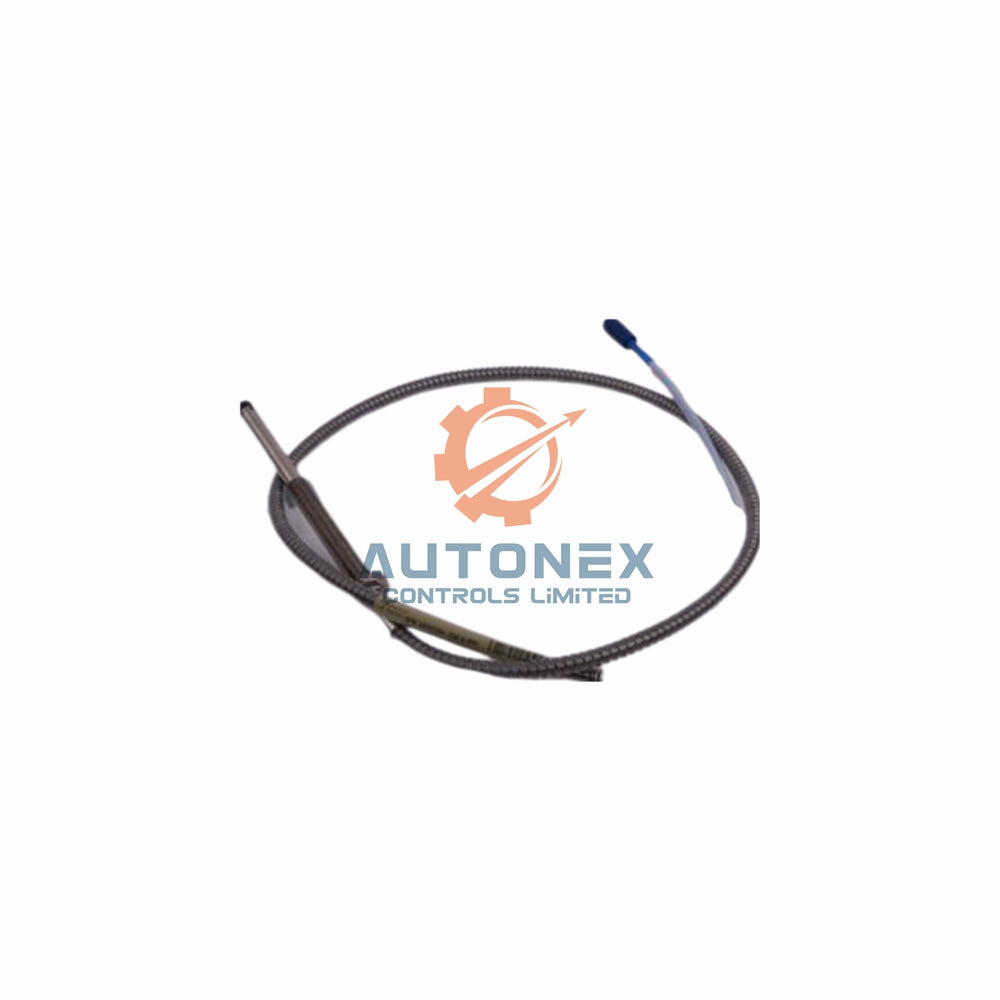

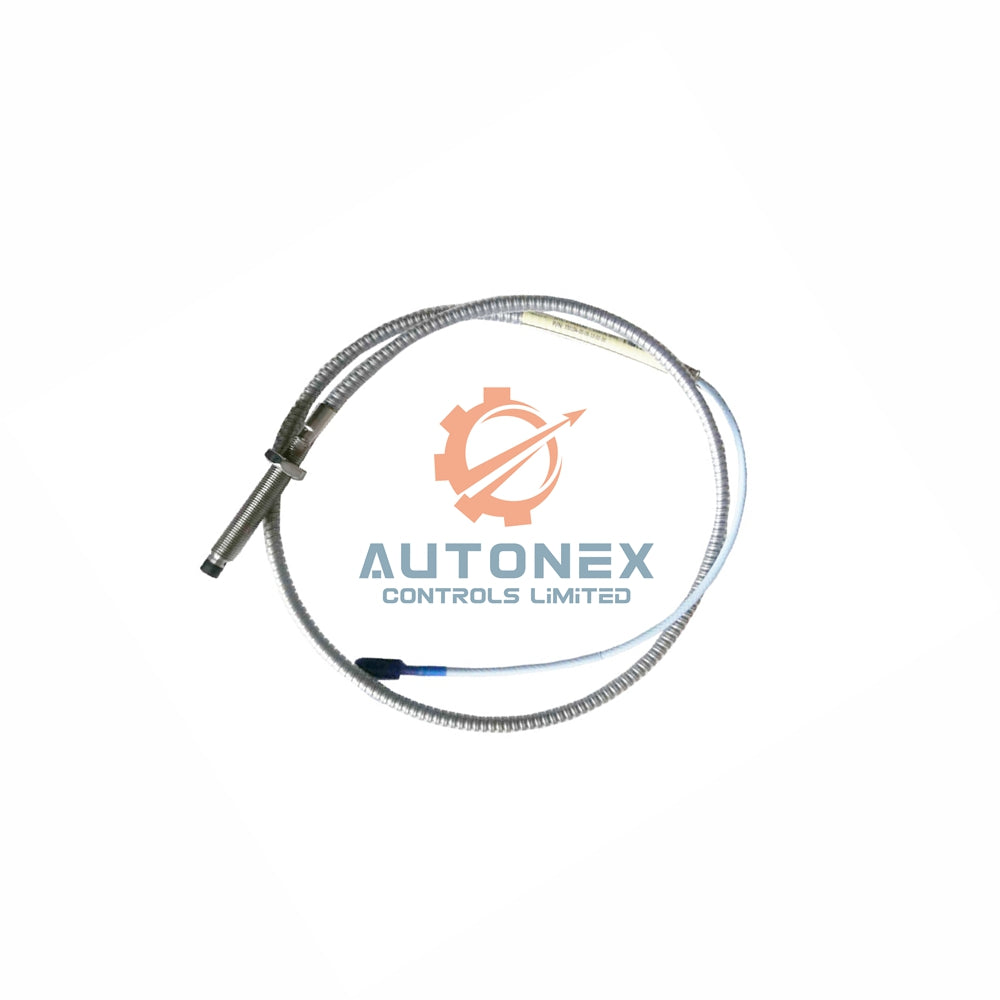

Bently Nevada 330102-00-24-10-02-05: Your Precision Vibration Guardian

Core Technical Specifications

• Brand: Bently Nevada
• Model: 330102-00-24-10-02-05 (3300 XL Series)
• Measurement Range: 0.25 mm to 2.3 mm (10 to 90 mils).
• Output Voltage: Linear -1 Vdc to -17 Vdc across the measurement range.
• Sensitivity: Standard scale factor of 200 mV/mil (7.87 V/mm).
• Linearity: High accuracy within ±0.5% of the full scale.
• Cable Resistance: Approximately 7.59 ohms per meter at 20°C.
• Operating Temperature: Excellent performance from -52°C to +218°C at the probe tip.
• Weight: Cable weight is about 323 grams per meter (11.4 oz per foot).

Model Code Configuration Explained

• 330102: The fundamental part number for an 8mm proximity transducer.
• 00: Indicates zero (0) inches of unthreaded probe length.
• 24: Specifies a compact total case length of 2.4 inches.
• 10: Includes a 1.0-meter integrated, armored cable.
• 02: Features the reliable Bently Nevada ClickLoc quick-connect system.
• 05: Denotes comprehensive safety certifications.

Installation & Wiring Guidelines

• Cable Specification: Use 3-core, individually shielded cables (16-24 AWG) for best performance.
• Maximum Cable Run: Supports extended distances up to 305 meters.
• Mounting Thread: Standard 3/8-24 UNF thread for installation.
• Wrench Flat: Maximum wrench flat size is 14.3 mm.

Frequently Asked Questions (FAQ)

• Q: Is this sensor new and authentic?
  A: Yes, the Bently Nevada 330102-00-24-10-02-05 is 100% brand new and original, guaranteed.
• Q: What makes this model compact?
  A: Its key feature is a short 2.4-inch total case length, ideal for space-constrained mounting points.
• Q: What is the ClickLoc connector?
  A: It is Bently Nevada's proprietary quick-connect system (code -02) for secure, tool-free cable connection.
• Q: Can I use this in a hazardous location?
  A: Absolutely. Its ATEX and IECEx certifications permit use in classified hazardous areas.
• Q: How is the product shipped?
  A: We ship via global couriers (DHL/UPS/FedEx), and your order leaves our warehouse within 5 business days.

Access the complete technical manual for installation details, calibration procedures, and system integration notes.
Download the official system datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
