25B-B017N104 Allen-Bradley Powerflex 525 | AC Drive

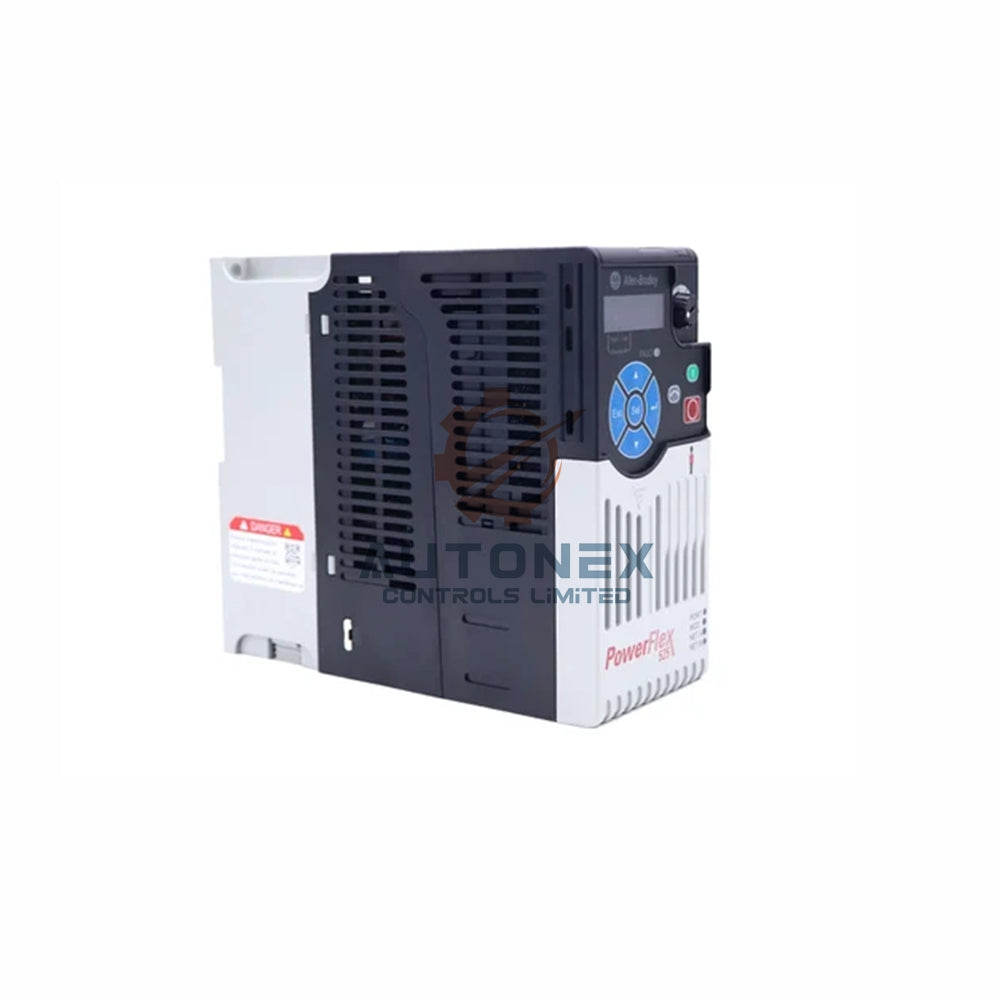

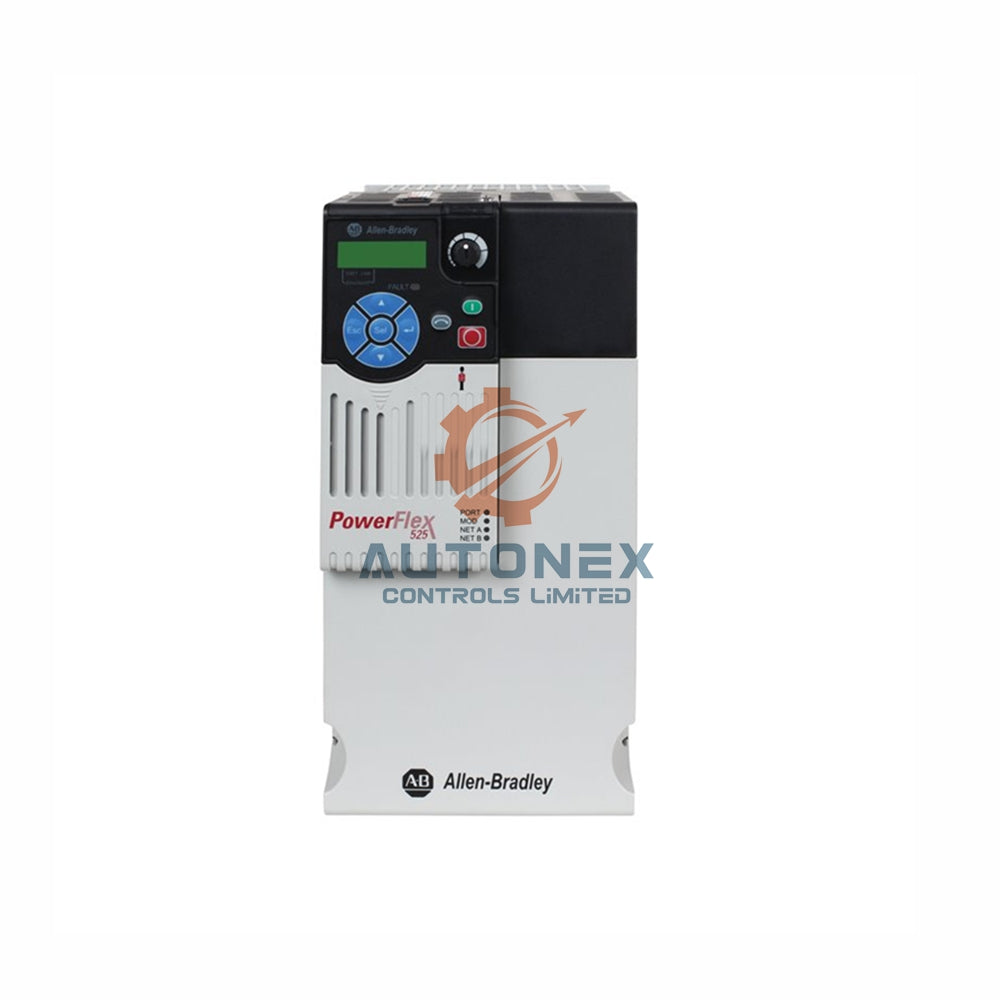

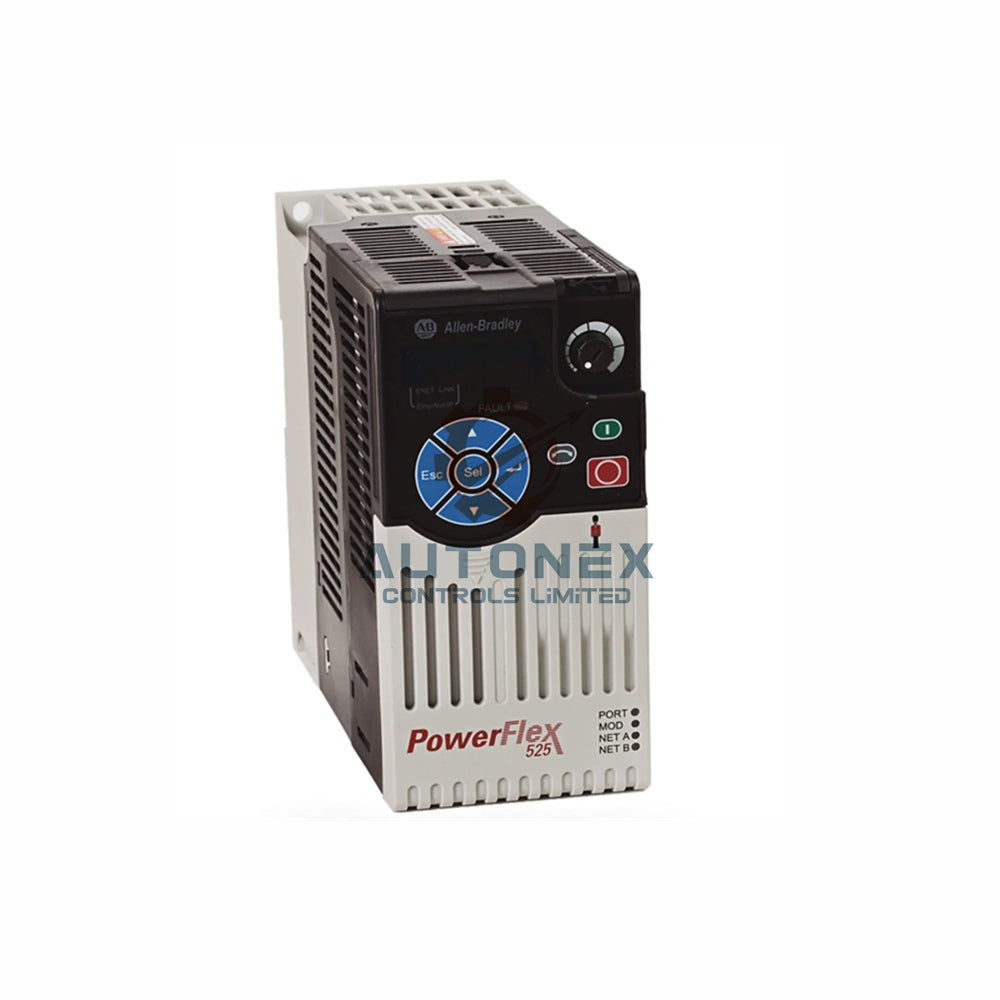

Allen-Bradley PowerFlex 525 Variable Frequency Drive

Core Technical Specifications

• Manufacturer & Model: Allen-Bradley 25B-B017N104
• Rated Motor Power: 5.0 kW
• Output Current Rating: 17.5 Amps
• Input Voltage Range: 170-264 V AC, 3-Phase
• Output Voltage Capacity: Up to 240 V AC, 3-Phase
• Enclosure Protection: IP20 Open Type
• Operating Temperature: -20°C to +50°C

Performance & Control Features

• Output Frequency Range: 0 to 500 Hz for wide speed control
• Carrier Frequency: 2 to 16 kHz for optimized motor performance
• Overload Capacity: 150% for 60 seconds for handling peak demands
• Control Methods: V/Hz and Sensorless Vector control modes
• Analog Inputs: Accepts 0-10 V or 0-20 mA control signals
• Analog Outputs: Provides 0-10 V or 0-20 mA feedback signals

Connectivity & I/O Capabilities

• Digital Inputs: 7 programmable points for control commands
• Output Options: Relay and open collector outputs for status indication
• Communication Ports: Built-in Ethernet/IP and RS485 connectivity
• Expansion Capability: Supports optional communication adapters

Technical Documentation

• Complete technical manual available for download: PowerFlex 520-series AC Drive PDF

Frequently Asked Questions

What is the power capacity of the 25B-B017N104 model?

• This drive handles 5.0 kW motors with a maximum output current of 17.5 Amps.

What input power does this VFD require?

• It operates on 3-phase AC power from 170 to 264 volts.

Are these drives brand new and available immediately?

• Yes, we supply 100% genuine, factory-new units from current stock.

What control methods does this drive support?

• It offers both V/Hz and sensorless vector control for different application needs.

How many digital inputs are available?

• The 25B-B017N104 provides 7 programmable digital inputs for control functions.

What is your shipping and return policy?

• We ship within 5 days using major carriers and offer 30-day returns on unused items.

For specific application requirements or volume pricing, reach out to our technical sales team.
