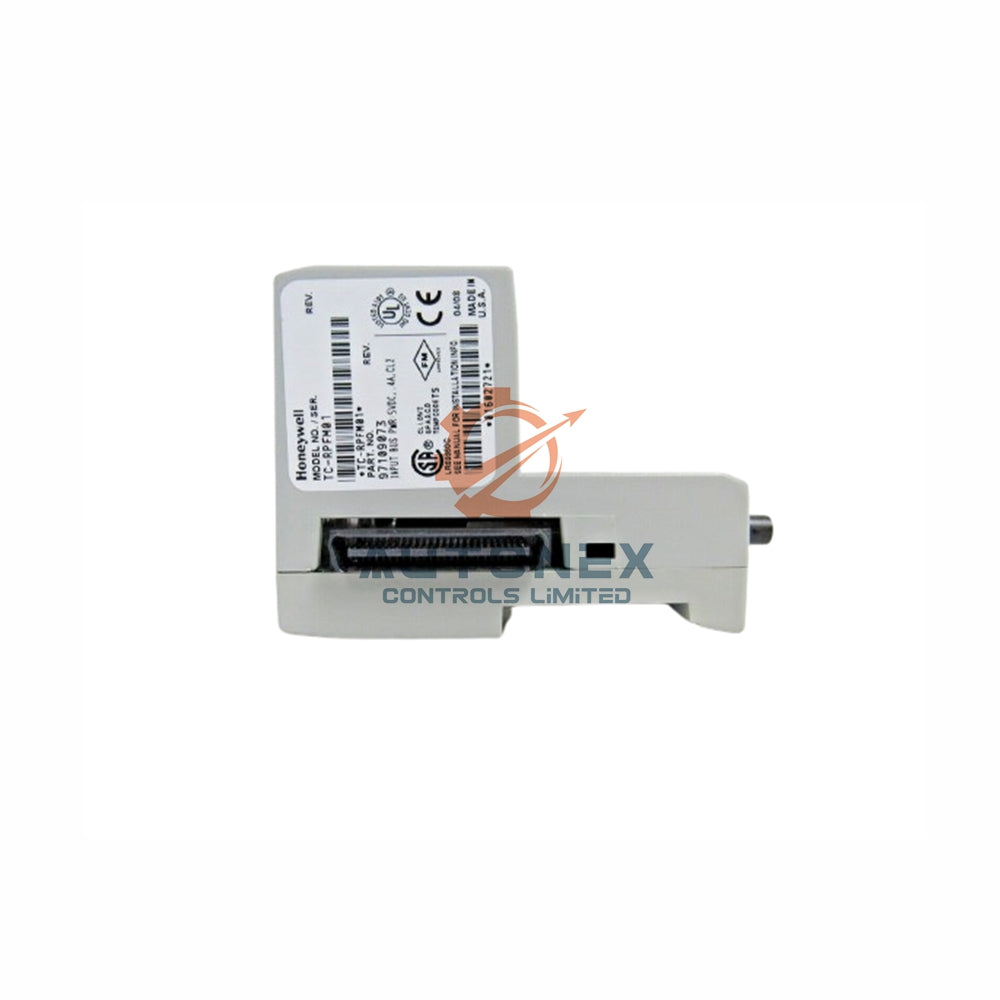

TC-RPFM01 Honeywell ControlNet Fiber Module for Non-Hazardous Locations

• Brand & Model: Honeywell TC-RPFM01 – a dedicated fiber module for non-hazardous location applications.
• Fiber Capacity: Accommodates one fiber module plus one repeater adapter module.
• Power Supply: Draws power through the connected repeater adapter module – no separate input needed.
• Bus Interface: Uses 30-pin male (output) and female (input) connectors with vendor-specific TTL bus.
• Fiber Type & Termination: Supports 62.5/125 micron fiber with ST connectors (plastic or ceramic).
• Optical Specifications: Operates at 1300 nm with a 13.3 dB optical power budget.

Communication & Electrical Features

• Transmission Distance: Reaches up to 3 km (9,842 ft) – ideal for sprawling factory floors.
• Communication Rate: Provides 5 Mbit/s data transfer, fully compatible with ControlNet International Version 1.5.
• Galvanic Isolation: Isolates TTL bus from ControlNet per DIN EN 50 020 for signal integrity.
• Power & Consumption: All power and dissipation values are inherited from the repeater adapter module.

Environmental & Physical Characteristics

• Temperature Range: Operates from –20°C to 70°C (–4°F to 158°F). Stores safely from –20°C to 100°C (–4°F to 212°F).
• Humidity & Durability: Withstands 95% relative humidity (non-condensing) and passes 15g shock (11 ms) and 2g vibration (10–500 Hz) per IEC 68-2-6.
• Weight & Dimensions: Light at 0.147 kg (0.32 lb). Measures 94 x 94 x 87 mm (3.7 x 3.7 x 3.4 inches).
• Certifications: CE compliant with DIN EN 50081-2, 50082-2, and NAMUR NE 21. Marked for all applicable directives.

Frequently Asked Questions

• Is the TC-RPFM01 a new original Honeywell part? Yes, we supply only brand-new, factory-sealed units.
• Can I use this module outdoors? Yes – it suits non-hazardous indoor or sheltered outdoor industrial environments.
• What fiber cable does it support? It works with 62.5/125 micron multimode fiber with ST connectors.
• Does it provide its own power? No – it draws power from the connected repeater adapter module.
• How do I verify fiber link status? Use the LED indicators on the repeater adapter for link and bus activity.
• Is this module ATEX certified? No – this version is for non-hazardous locations only (no ATEX marking).
