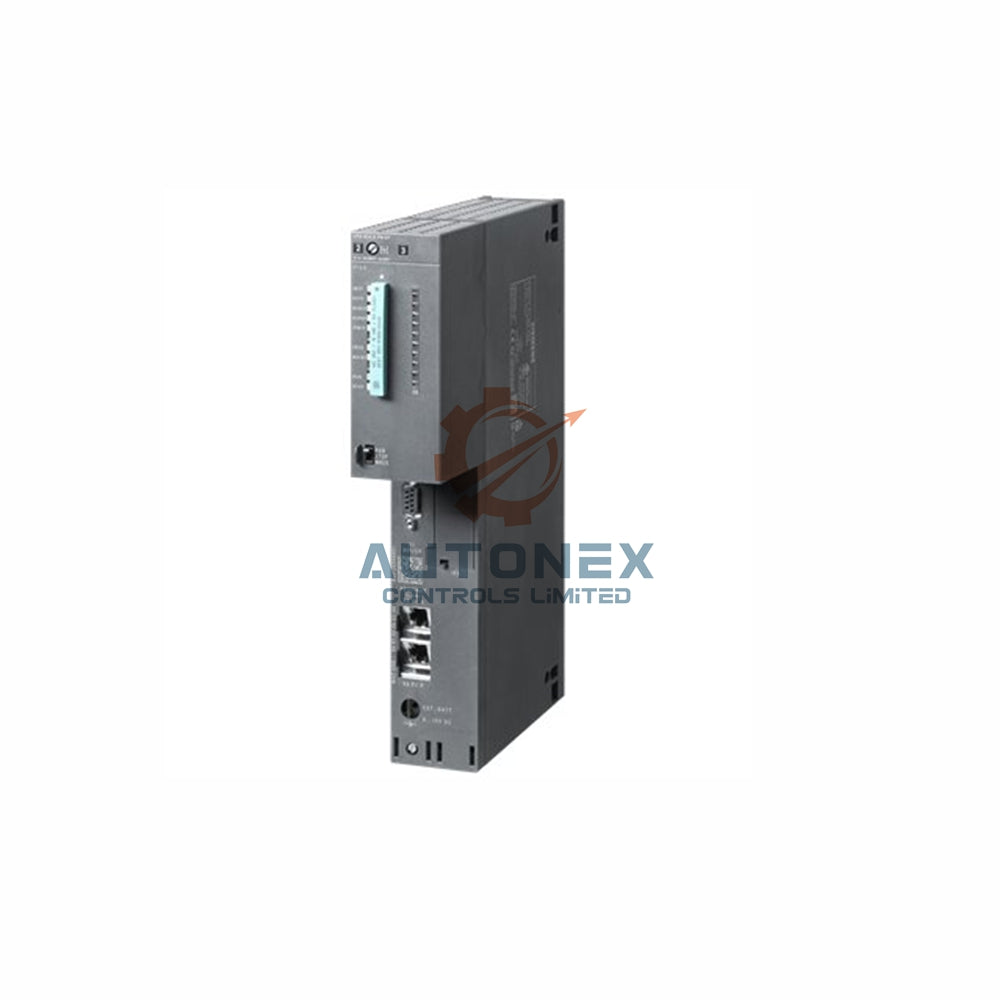

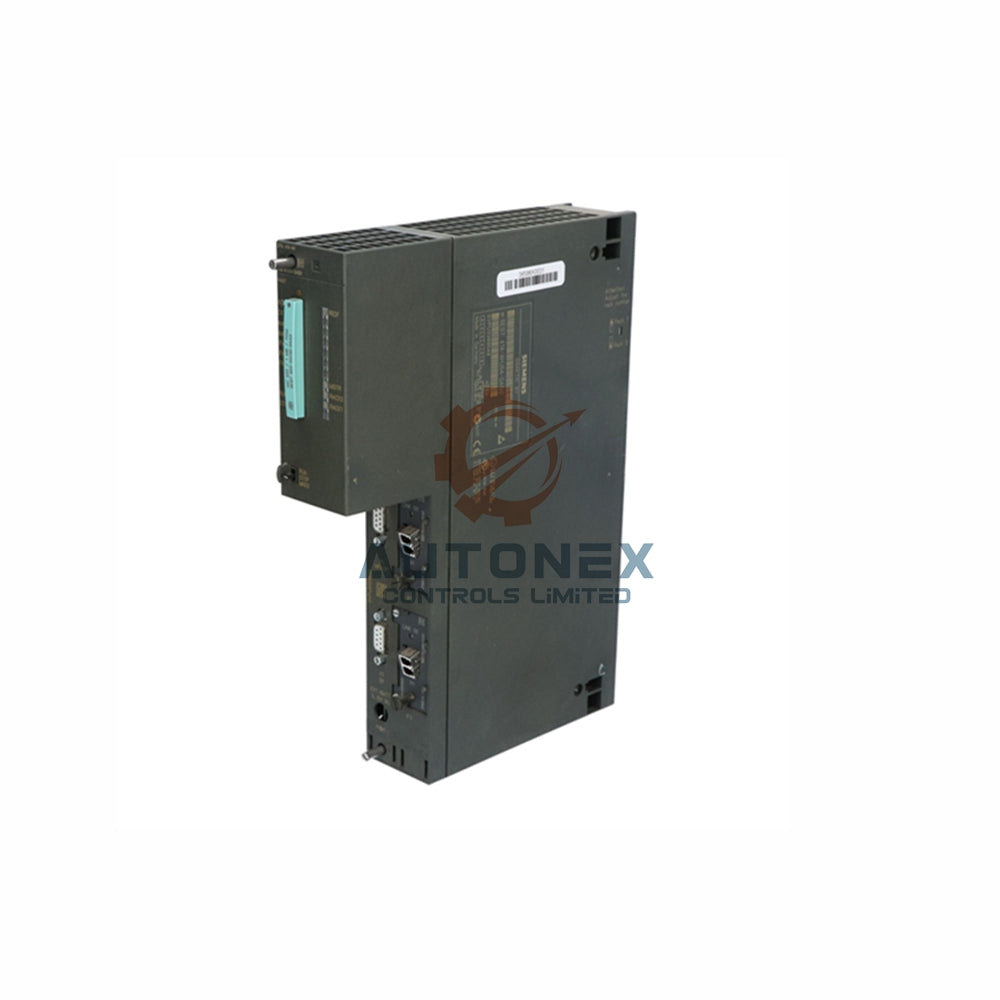

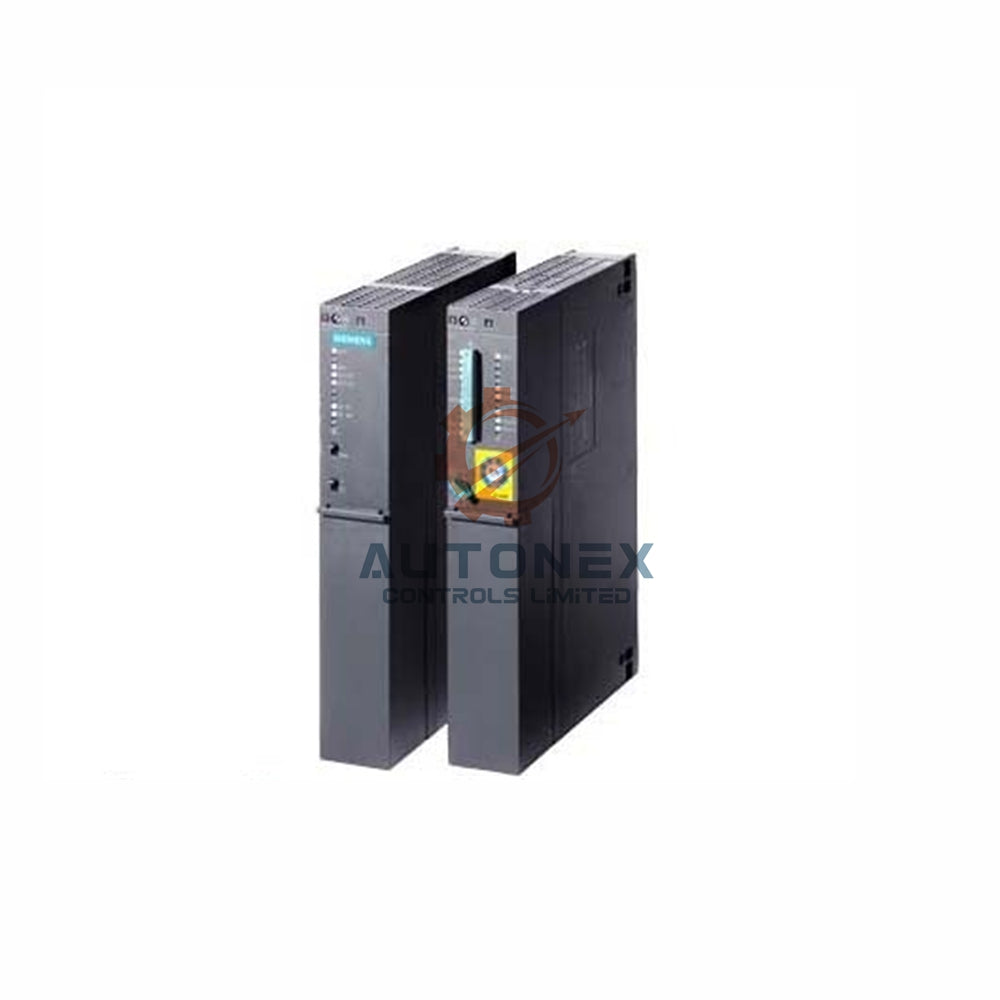

6ES7467-5GJ02-0AB0 Siemens S7-400 IM 467 PROFIBUS DP Master

6ES7467-5GJ02-0AB0 Siemens SIMATIC S7-400 IM 467 PROFIBUS DP Master Interface

Technical Specifications

• Brand: Siemens
• Model: 6ES7467-5GJ02-0AB0
• Product Type: PROFIBUS DP master interface module
• Series: SIMATIC S7-400
• Module Designation: IM 467 (RS485)
• Interface Type: 9-pin sub D socket
• Physics: RS 485
• Functionality: PROFIBUS DP master
• Supply Voltage: 5 V DC ± 5 % and 24 V DC ± 5 %
• Input Current: Max. 1,300 mA from backplane bus 5 V DC
• Modules per CPU: 10 in the CR, depending on CPU type
• Max. Connections: 32, depending on CPU type
• Max. Transmission Rate: 12 Mbit/s
• Max. DP Slaves: 96
• Services: Equidistance and direct data exchange (slave-to-slave communication)
• Ambient Temperature (Operation): 0 °C to 60 °C
• Ambient Temperature (Storage/Transport): -40 °C to 70 °C
• Installation Altitude: Max. 3,000 m above sea level
• Relative Humidity (Operation): Max. 95 % at 26 °C
• Width: 25 mm
• Height: 290 mm
• Depth: 210 mm
• Weight: Approx. 700 g

Installation Guide

• Power down the S7-400 rack before you install the IM 467 module.
• Insert the 6ES7467-5GJ02-0AB0 into a free slot in the rack.
• Secure the module with the front panel mounting screws.
• Connect the PROFIBUS DP cable to the 9-pin sub D socket.
• Set the correct bus address and termination on the network.
• Keep the ambient temperature between 0 °C and 60 °C during operation.
• Restore power and check that the module LEDs show normal bus activity.

Package List

• 1 x Siemens 6ES7467-5GJ02-0AB0 IM 467 PROFIBUS DP master interface module
• 1 x Anti-static protective bag
• 1 x Original Siemens packaging box

Shipping and Support

• We keep this Siemens S7-400 module in stock for fast order handling.
• We ship orders within 5 days after payment confirmation.
• We use FedEx, UPS, and DHL for international delivery.
• We accept returns within 30 days under our return policy.
• We supply new original products through trusted sourcing channels.

FAQ

• Q: What is the brand and model of this module?
  A: This is a Siemens 6ES7467-5GJ02-0AB0 PROFIBUS DP master interface for the SIMATIC S7-400 series.
• Q: What interface type does this module use?
  A: It uses a 9-pin sub D socket with RS 485 physics.
• Q: What is the maximum transmission rate?
  A: The maximum transmission rate is 12 Mbit/s.
• Q: How many DP slaves can it support?
  A: It supports up to 96 DP slaves.
• Q: How many connections can it handle?
  A: It supports up to 32 connections, depending on the CPU type.
• Q: How much current does it draw?
  A: It draws a maximum of 1,300 mA from the 5 V DC backplane bus.
• Q: What is the operating temperature range?
  A: It operates from 0 °C to 60 °C.
• Q: What is the maximum installation altitude?
  A: The maximum installation altitude is 3,000 m above sea level.
• Q: What are the dimensions and weight?
  A: It measures 25 mm wide, 290 mm high, and 210 mm deep, with a weight of about 700 g.
• Q: Is this product in stock?
  A: Yes, we keep this item in stock and ship it within 5 days.
• Q: What shipping methods do you use?
  A: We use FedEx, UPS, and DHL for most international shipments.
• Q: Can I return the product?
  A: Yes, we support returns within 30 days according to our policy.
