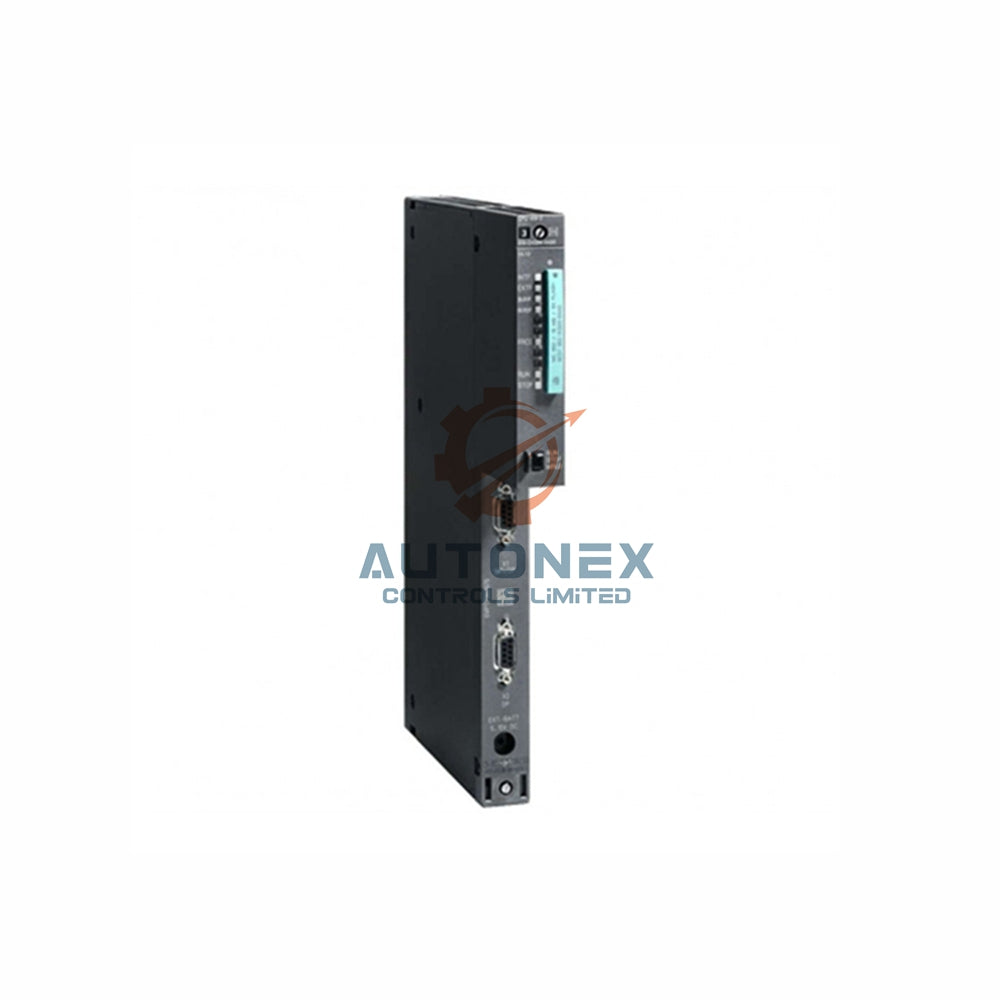

6ES7460-3AA01-0AB0 Siemens S7-400 IM 460-3 Interface Module

6ES7460-3AA01-0AB0 Siemens SIMATIC S7-400 IM 460-3 Interface Module with C-Bus

Technical Specifications

• Brand: Siemens
• Model: 6ES7460-3AA01-0AB0
• Series: SIMATIC S7-400
• Product type: Interface module Send IM 460-3
• Function: Distributed coupling via C-bus
• Max cable length: 102.25 m between first and last interface module
• Input current from backplane bus: 5 V DC, max. 1,550 mA
• Power loss: Max. 7,750 mW
• Connection method: Termination plug 6ES7461-3AA0-7AA0
• Dimensions (W x H x D): 25 mm x 290 mm x 280 mm
• Weight: Approx. 630 g
• Manufacturer: Siemens AG

Core Performance and Reliability

• The module supports long-distance coupling up to 102.25 meters.
• It draws a maximum of 1,550 mA from the 5 V DC backplane bus.
• The C-bus interface keeps data transfer stable across distributed racks.
• Siemens builds this IM 460-3 module for continuous industrial operation.
• The termination plug 6ES7461-3AA0-7AA0 ensures proper bus termination.

Installation Guide

• Power down the S7-400 system before you install the module.
• Insert the 6ES7460-3AA01-0AB0 into a compatible rack slot.
• Connect the C-bus cable between the first and last interface modules.
• Attach the termination plug 6ES7461-3AA0-7AA0 to the final module.
• Verify the cable length stays within the 102.25 m limit.
• Restore power and check communication through your PLC software.

Package List

• 1 x Siemens 6ES7460-3AA01-0AB0 IM 460-3 interface module
• 1 x Anti-static protective bag
• 1 x Original Siemens packaging box

Shipping and Support

• We ship with FedEx, UPS, and DHL for global delivery.
• We dispatch in-stock items within 5 days after order confirmation.
• We accept returns within 30 days under our standard policy.
• Contact us for bulk orders or urgent replacement needs.

FAQ

• Q: What is the maximum cable length for the 6ES7460-3AA01-0AB0?
  A: The maximum cable length is 102.25 meters between the first and last interface modules.
• Q: Which Siemens series does this module fit?
  A: It fits SIMATIC S7-400 systems through the C-bus interface.
• Q: What is the input current of this module?
  A: It draws a maximum of 1,550 mA from the 5 V DC backplane bus.
• Q: What is the power loss of the IM 460-3?
  A: The maximum power loss is 7,750 mW.
• Q: Which termination plug does this module use?
  A: It uses the termination plug 6ES7461-3AA0-7AA0.
• Q: What are the dimensions of this module?
  A: The module measures 25 mm wide, 290 mm high, and 280 mm deep.
• Q: What is the approximate weight?
  A: The module weighs approximately 630 grams.
• Q: Is this product new and original?
  A: Yes, we supply brand new original Siemens modules.
• Q: How fast do you ship this item?
  A: We ship in-stock items within 5 days.
• Q: Which couriers do you use?
  A: We use FedEx, UPS, and DHL for delivery.
• Q: Can I return the module if it does not fit?
  A: Yes, we support returns within 30 days.
