Schneider Electric BMENOC0301 - Communication Module

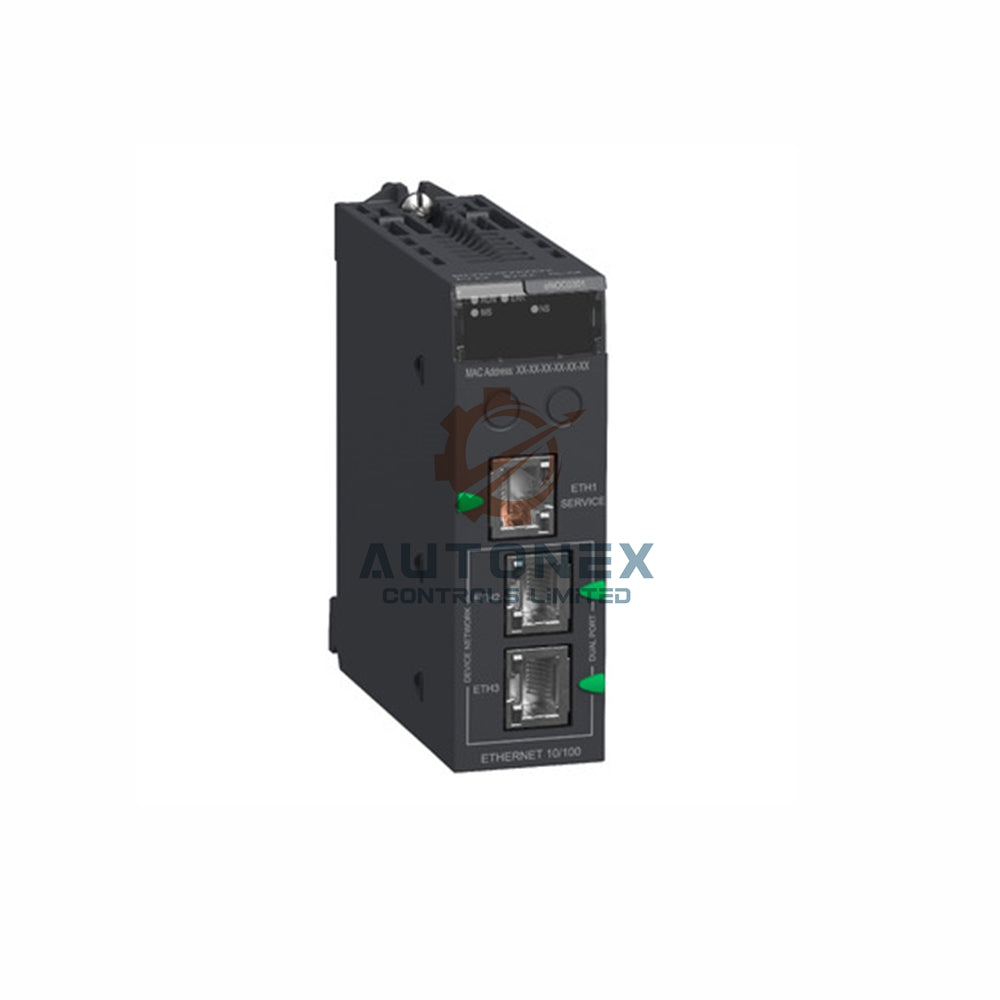

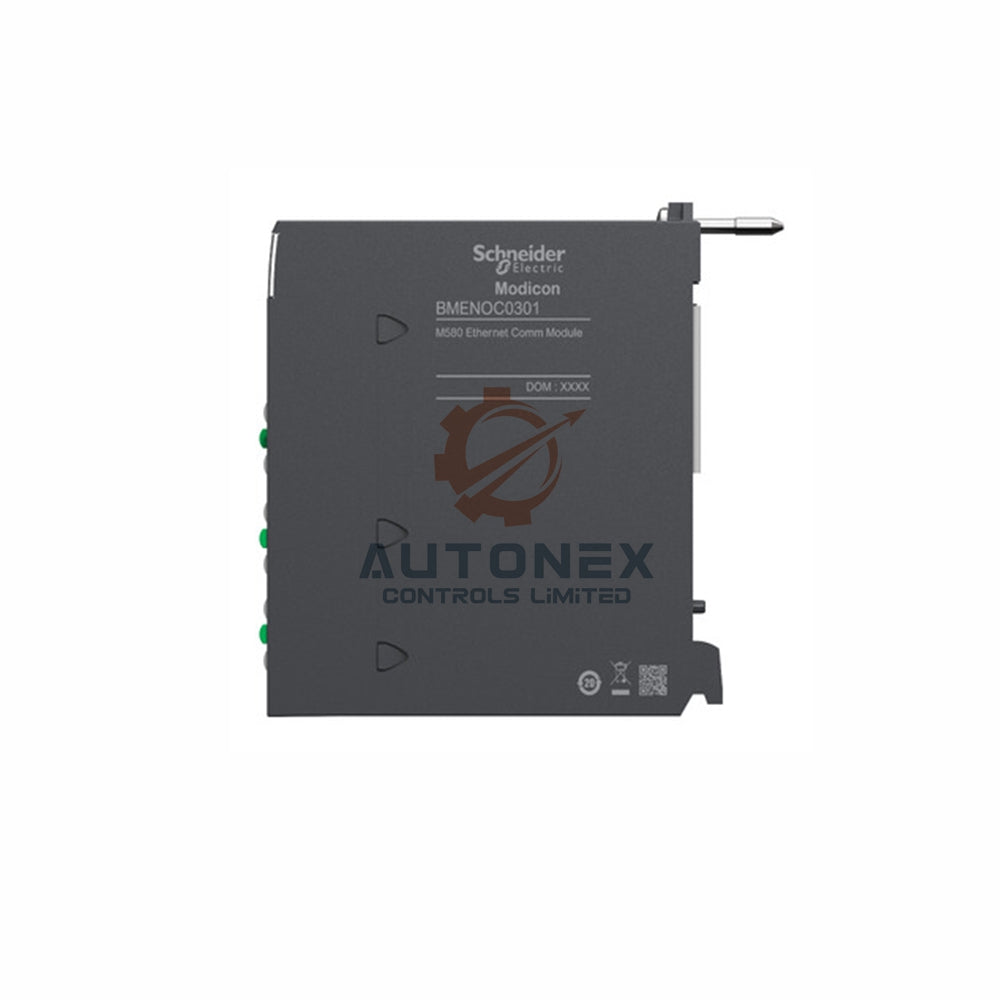

Schneider Electric Modicon M580 BMENOC0301 Ethernet Communication Module

Technical Specifications

• Brand: Schneider Electric
• Model: BMENOC0301
• Product Type: Ethernet Communication Module
• Compatibility: Works with Modicon M580 standalone CPUs like BMEP58, redundant BMEH58, safety CPUs BMEP582, and redundant safety BMEH582 series.
• Mounting: Installs in the main rack's Ethernet + X-bus slot, occupying 1 slot with up to 4 modules per rack.
• Ethernet Ports: 3 integrated 10/100 Mbit/s RJ45 ports with a double-shielded twisted pair design.
• Communication Services: Supports Modbus TCP and Ethernet/IP for both I/O scanning and messaging.
• Network Features: Includes an embedded multiport switch, RSTP support, port mirroring, bandwidth management, and an FDR server.
• Diagnostics & Management: Equipped with a built-in web server for commissioning and maintenance, plus SNMP support for network administrators.
• Power Consumption: Requires 900 mA at 3.3V DC for product version 13 and above. Earlier versions require 1800 mA.
• LED Indicators: Features four LEDs for status monitoring (RUN, ERR, ETH MS, ETH NS).
• Environmental Rating: Rated IP20 for protection and operates in a wide temperature range of 32 to 140 °F (0 to 60 °C).
• Dimensions: Compact size of 1.3 x 4.08 x 3.4 inches (32 x 103.7 x 86 mm) and light weight of 0.4 lb (0.2 kg).

Frequently Asked Questions (FAQ)

• What is the main function of the BMENOC0301 module?
  The BMENOC0301 acts as a powerful network bridge for the Modicon M580 PLC. It allows the controller to communicate on industrial networks using both Modbus TCP and Ethernet/IP protocols simultaneously.
• How many devices can I connect to this module?
  The module has three built-in Ethernet ports with an embedded switch. This design lets you daisy-chain multiple devices without needing an external network switch, simplifying cabinet layout.
• What is the operating temperature range?
  The module operates reliably in temperatures from 32°F to 140°F (0°C to 60°C), making it suitable for most industrial environments.
• Is this module brand new and do you have stock?
  Yes, we supply only brand new, original Schneider Electric modules. The BMENOC0301 is currently in stock for quick shipment.
• What is your shipping and returns policy?
  We ship worldwide via DHL, FedEx, or UPS. You can return the product within 30 days under our standard return policy. Please contact us for specific terms.
• Can this module work in a redundant CPU system?
  Absolutely. The BMENOC0301 is fully compatible with redundant Modicon M580 CPU setups, such as those using the BMEH58 or BMEH582 series processors.
