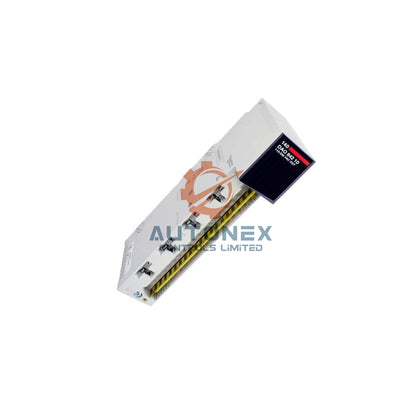

Schneider 140DAM59000 - 115V AC Discrete I/O Module

Product Introduction: Schneider Electric Modicon Quantum Mixed I/O Module

Key Technical Specifications

• Brand: Schneider Electric
• Model: Modicon Quantum 140DAM59000
• Product Type: Mixed Discrete I/O Module
• Total I/O Count: 24 Points (16 Inputs / 8 Outputs)
• Input Voltage: 115V AC, 47-63 Hz
• Output Type: Solid State, 115V AC
• Isolation: 1780 Vrms between channels and bus

Detailed Input & Output Parameters

• Discrete Inputs (16): Organized in two isolated groups of eight points.
• Input Logic Levels: State '1' from 79-132V AC; State '0' below 20V AC.
• Response Time: Between 0.75ms (0->1) and 12.3ms (1->0).
• Discrete Outputs (8): Organized in two groups of four solid-state points.
• Output Current Rating: Up to 4A per point, 8A per group.
• Output Response Time: 0.5ms or less for both switching states.
• Output Protection: Includes an RC filter and a 5A internal fuse per group.

Environmental & Operational Ratings

• Operating Temperature: 0°C to 60°C (32°F to 140°F).
• Storage Temperature: -40°C to 85°C (-40°F to 185°F).
• Operating Altitude: Up to 5000 meters (16404 feet).
• Relative Humidity: 95% non-condensing.
• EMC Immunity: Resists electromagnetic fields up to 10 V/m.
• ESD Protection: Withstands 4kV contact and 8kV air discharge.

Power, Diagnostics & Physical Details

• Bus Current Requirement: 250 mA from the Quantum backplane.
• Power Dissipation: 5.5W plus 1.1W per amp of load current.
• Field Power: 85-132V AC for the output circuit.
• LED Indicators: Show bus activity, field power, faults, and point status.
• Net Weight: 19.8 oz (560 grams / 0.99 lb).
• Product Certifications: cUL listed, FM Class 1 Div 2, compliant with UL 508.

Frequently Asked Questions (FAQ)

• Q: Is the module brand new and original?
  A: Yes, we supply only new and original Schneider Electric products.
• Q: What is the typical delivery time?
  A: We process and ship orders within 5 business days from our available stock.
• Q: How do you ship, and what are the logistics options?
  A: We use common international express services like DHL, FedEx, and UPS for reliable delivery.
• Q: What is the return policy for this I/O module?
  A: We support a 30-day return policy from the receipt date for unused items in original packaging.
• Q: Can the outputs handle high inrush currents?
  A: Yes, outputs have high-cycle surge ratings (e.g., 45A for 1 cycle per group) for inductive loads.
• Q: What is the minimum load required for the outputs?
  A: A minimum load of 5 mA is required for proper solid-state output operation.
