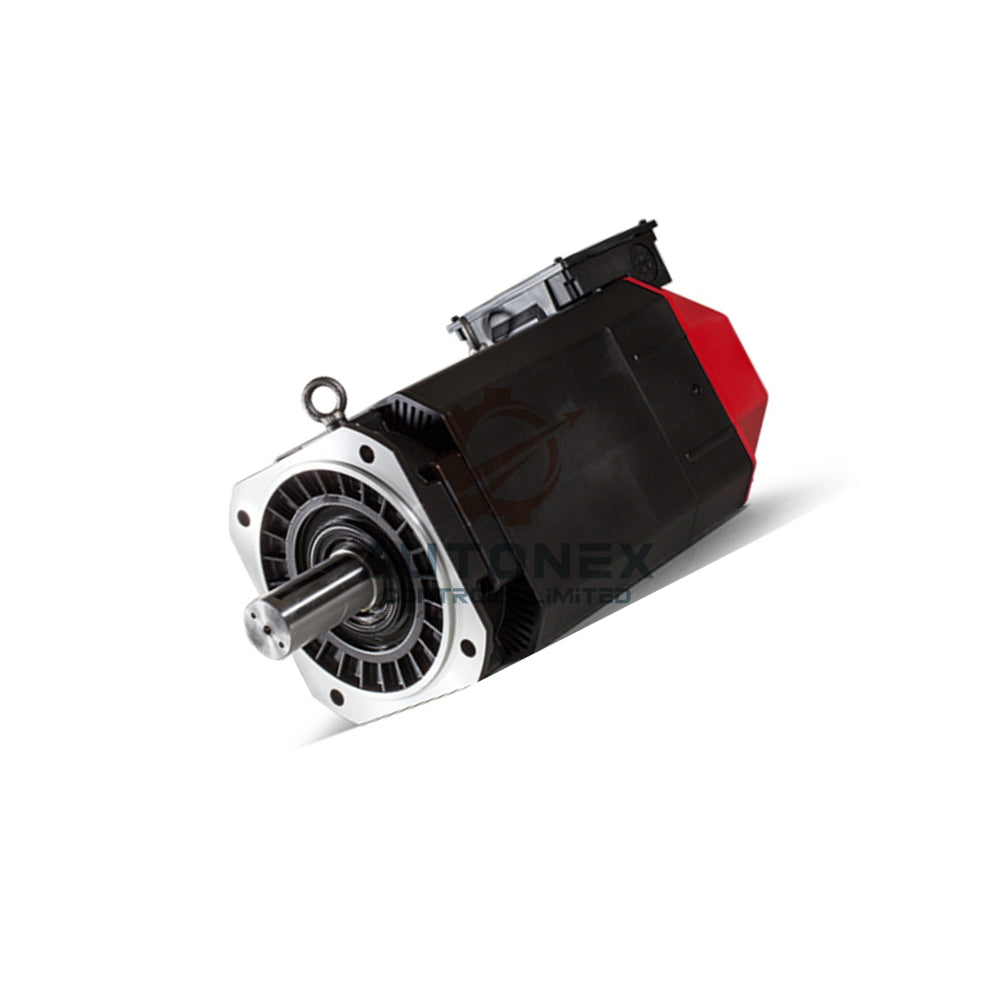

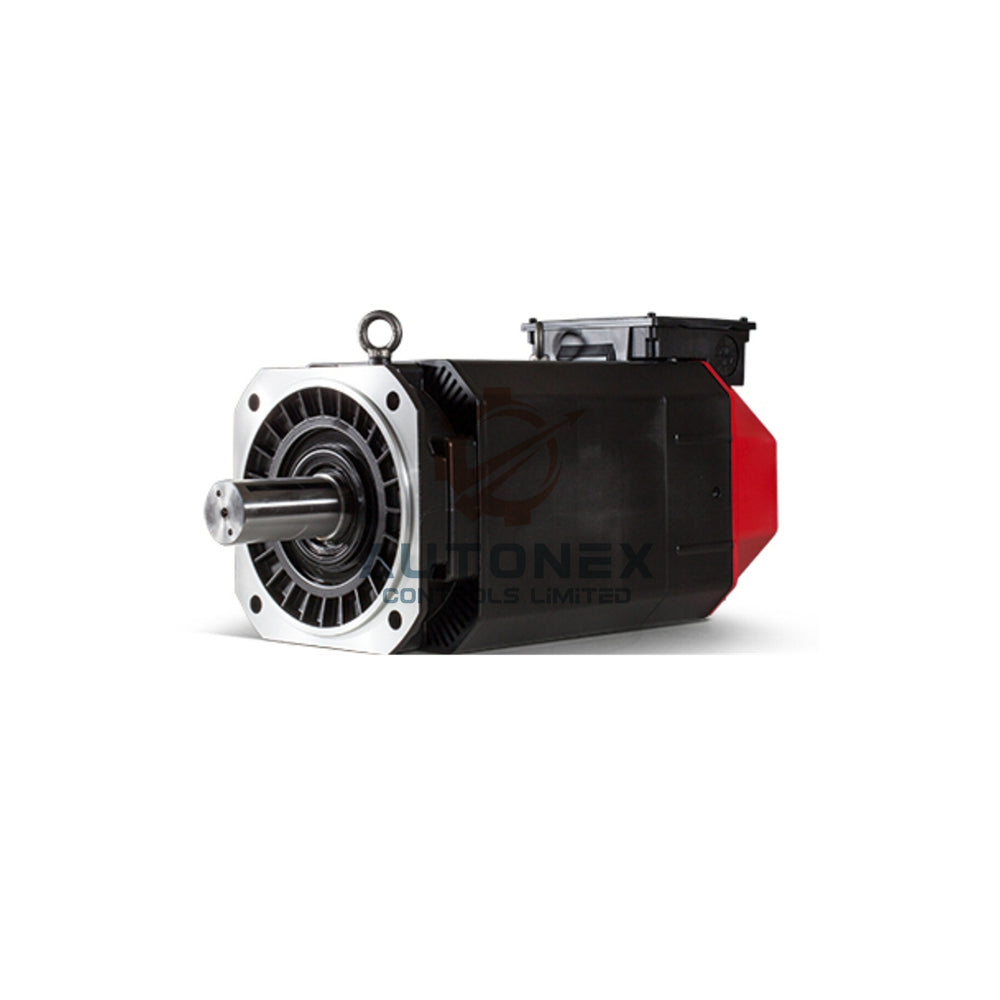

FANUC A06B-0186-B675 IP67 Flange Mount Motor

FANUC A06B-0186-B675 Servo Motor Introduction

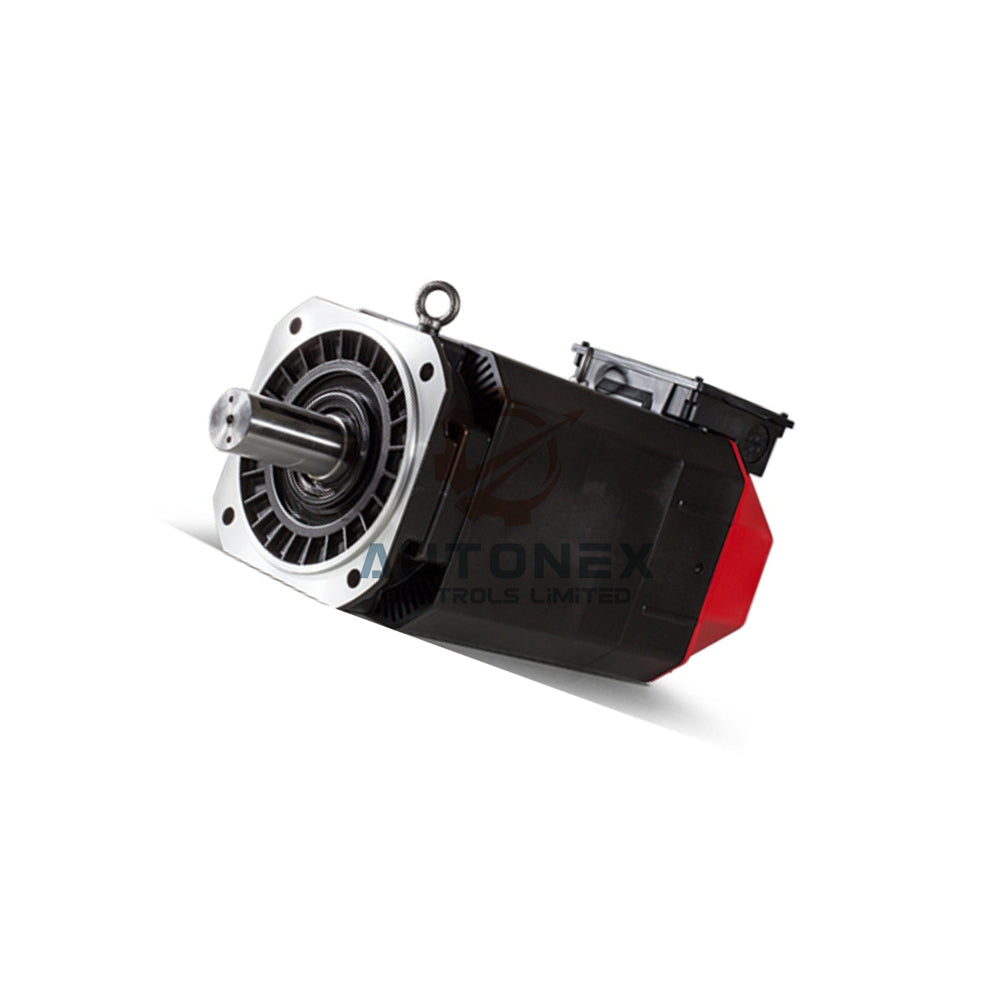

The FANUC A06B-0186-B675 is a high-torque flange-mounted servo motor. It delivers reliable power for demanding industrial automation and machine tool applications. This motor combines strong performance with robust environmental protection.

Core Technical Specifications

• Brand: FANUC
• Model: A06B-0186-B675
• Product Type: Servo Motor
• Rated Power: 3.8 kW
• Rated Torque: 30 Nm
• Rated Speed: 2000 RPM
• Voltage: 228 V
• Current: 9.8 A

Electrical & Mechanical Specifications

• Phase Type: 3-Phase
• Frequency: 133 Hz
• Encoder Type: A64
• Shaft Type: Tapered
• Mounting Type: Flange mounting (IM B5)
• Cooling Type: Air-cooled
• The motor provides precise feedback via its high-resolution A64 encoder.
• The standard IM B5 flange mounting simplifies mechanical integration.

Safety & Environmental Ratings

• Brake: Included
• Insulation Class: F
• Protection Class: IP67
• Weight: 77.00 lbs (34.93 kg)
• The integrated brake provides holding torque for safety and positioning.
• IP67 rating ensures protection against dust and temporary water immersion.
• Insulation Class F allows operation at higher temperatures.

Application & Integration

• This motor is ideal for main axes on machine tools and heavy-duty automation.
• Its high torque and power rating suit applications like indexing tables and feed drives.
• The robust IP67 rating makes it suitable for environments with coolants or washdown.
• It is designed to pair with compatible FANUC servo amplifiers for a complete system.

Installation & Mounting Guide

• Utilize the IM B5 flange for secure and accurate mounting to the machine structure.
• Ensure proper alignment of the tapered shaft with the coupling or driven load.
• Connect the three-phase power leads and the A64 encoder feedback cable.
• Wire the brake circuit according to the system safety and control requirements.
• Provide adequate airflow around the motor for the air-cooling system to function.

Packaging & Shipping Information

• The FANUC A06B-0186-B675 motor is shipped in a heavy-duty crate.
• Special packaging protects the shaft, encoder, and connectors during transit.
• The shipment includes the servo motor with brake.
• We arrange freight shipping globally via FedEx DHL and UPS.

Frequently Asked Questions (FAQ)

• What is the torque rating? The rated torque is 30 Nm.
• What is the protection rating? It has an IP67 protection class.
• Does it include a brake? Yes, a brake is included.
• What type of encoder does it have? It is fitted with an A64 encoder.

For technical data or to purchase the FANUC A06B-0186-B675 contact us.
