330910-06-13-10-01-CN Bently Nevada 3300 NSv Proximity Probe

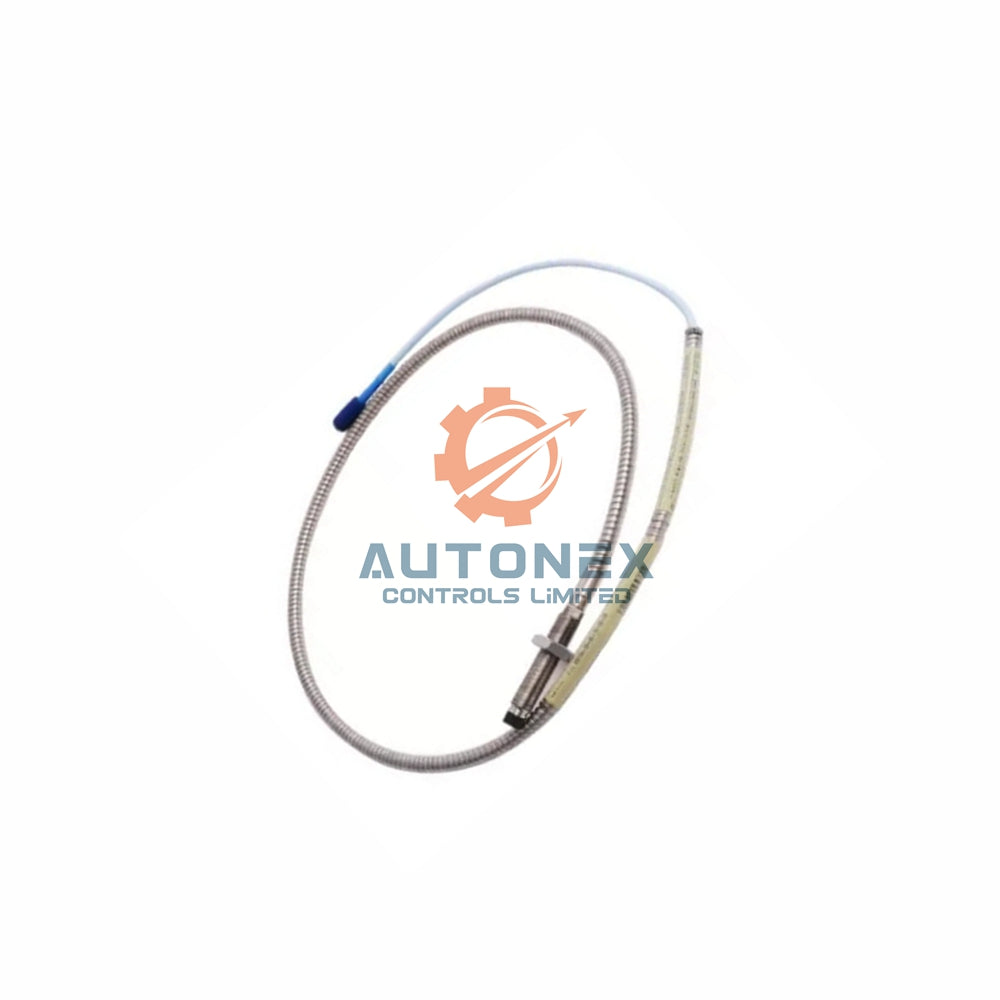

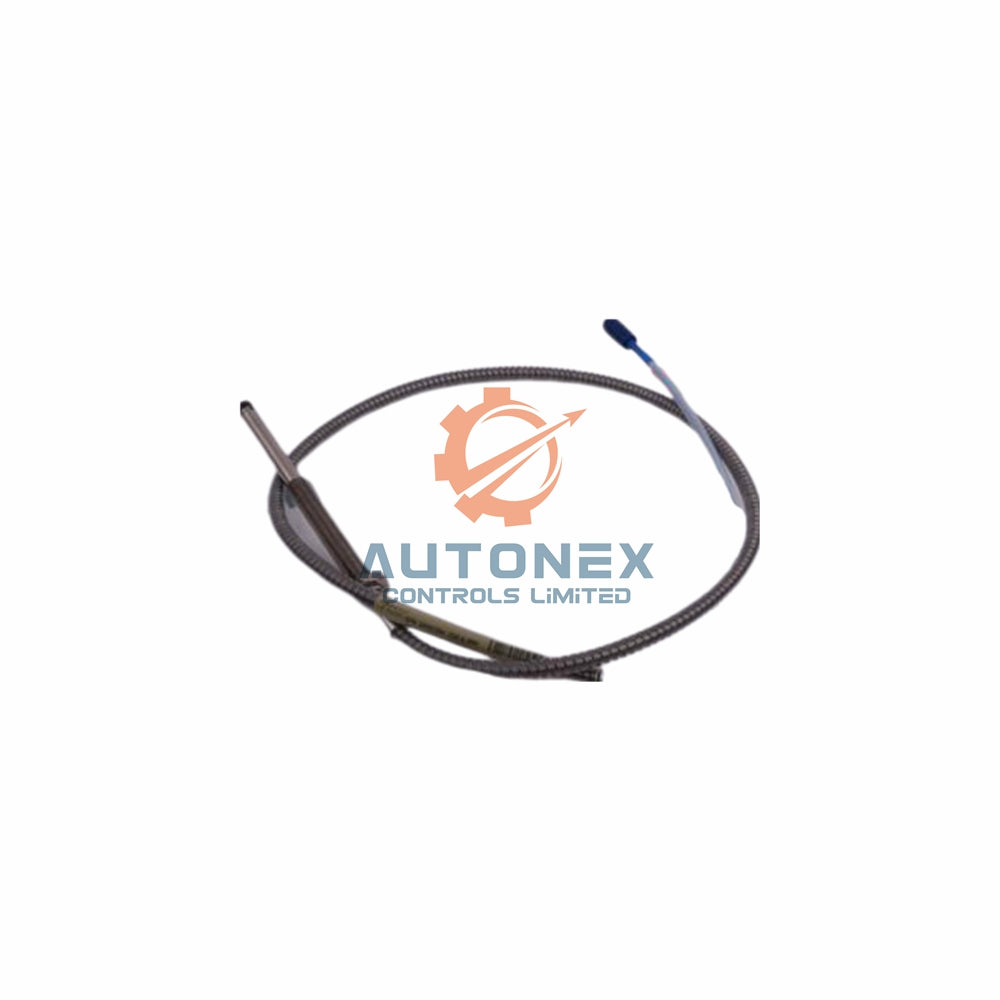

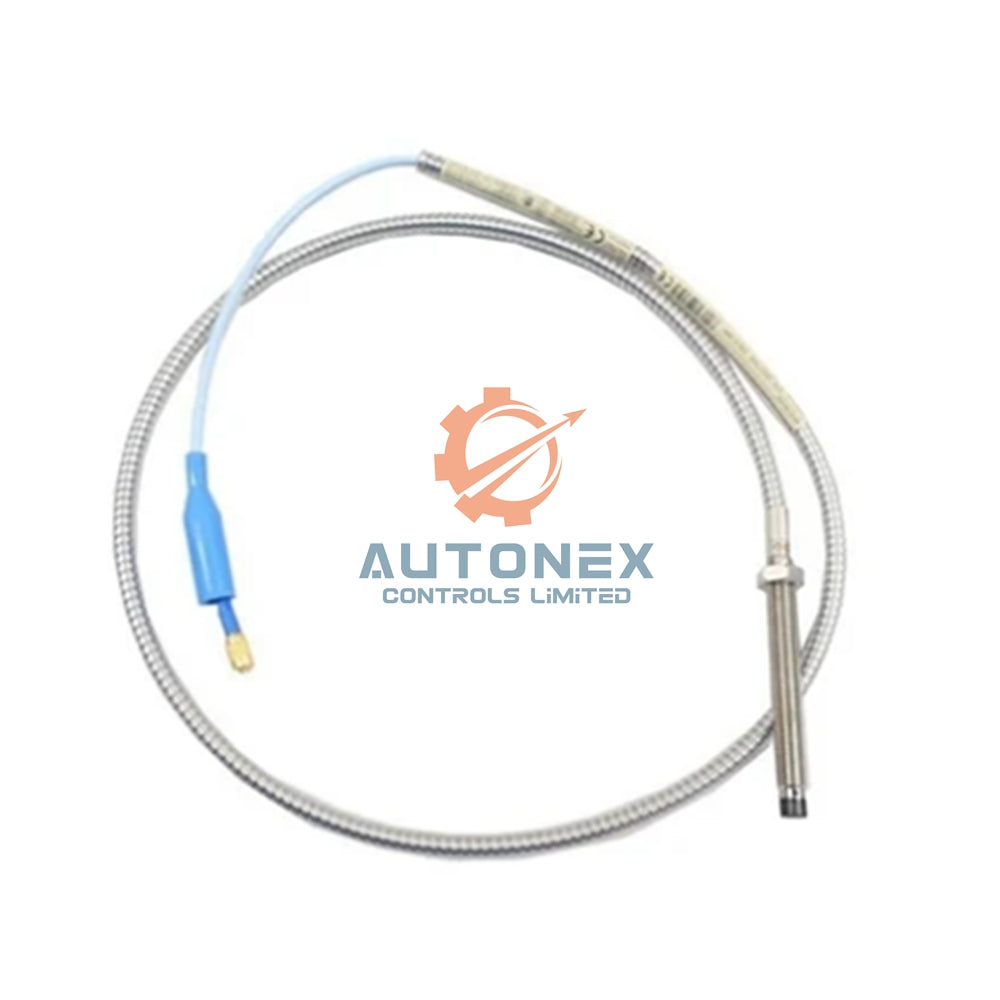

Bently Nevada 3300 NSv Proximity Probe Model 330910-06-13-10-01-CN

Technical Specifications

• Brand and Series: Bently Nevada 3300 NSv Proximity Probes
• Full Part Number: 330910-06-13-10-01-CN – M10X1 thread with armor
• Unthreaded Length: -06 = 60 mm
• Overall Case Length: -13 = 130 mm
• Total Probe Length: -10 = 1.0 meter (39 inches)
• Connector Type: -01 = Miniature coaxial ClickLoc connector with connector protector, standard cable
• Agency Approval: CN = Country Specific
• Linear Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm
• Recommended Gap Setting: 1.0 mm (40 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% tolerance
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils)
• Frequency Response: 0 to 10 kHz with +0, -3 dB typical up to 305 meters of field wiring
• Probe DC Resistance: 4.2 ± 0.5 ohms at 1.0 meter length (center to outer conductor)
• Minimum Target Size: 8.9 mm (0.35 in) diameter
• Recommended Minimum Target: 13 mm (0.5 in) diameter

Frequently Asked Questions (FAQ)

• Is the 330910-06-13-10-01-CN a new original part?
  Yes, we supply only new and original Bently Nevada 3300 NSv Proximity Probes in factory packing.
• What is the linear range of the 3300 NSv probe?
  The linear range measures 1.5 mm (60 mils) from 0.25 mm to 1.75 mm from the target.
• What temperature range does this probe support?
  The probe operates and stores safely between -52°C and +177°C (-62°F to +351°F).
• Do you have the 330910-06-13-10-01-CN in stock?
  Yes, we keep this model in stock for immediate orders.
• What is your shipping and delivery policy?
  We ship within 5 business days using DHL, FedEx, or UPS.
• Can I return this product?
  Yes, we support returns within 30 days of delivery.
• What field wiring length works with this probe?
  You can use up to 305 meters (1000 feet) of field wiring between the Proximitor Sensor and monitor.
• What torque should I apply to the probe case?
  Apply finger tight torque as recommended. Do not exceed 0.56 N•m (5 in•lb).
