330910-03-09-05-02-05 - Proximity Probe Bently Nevada

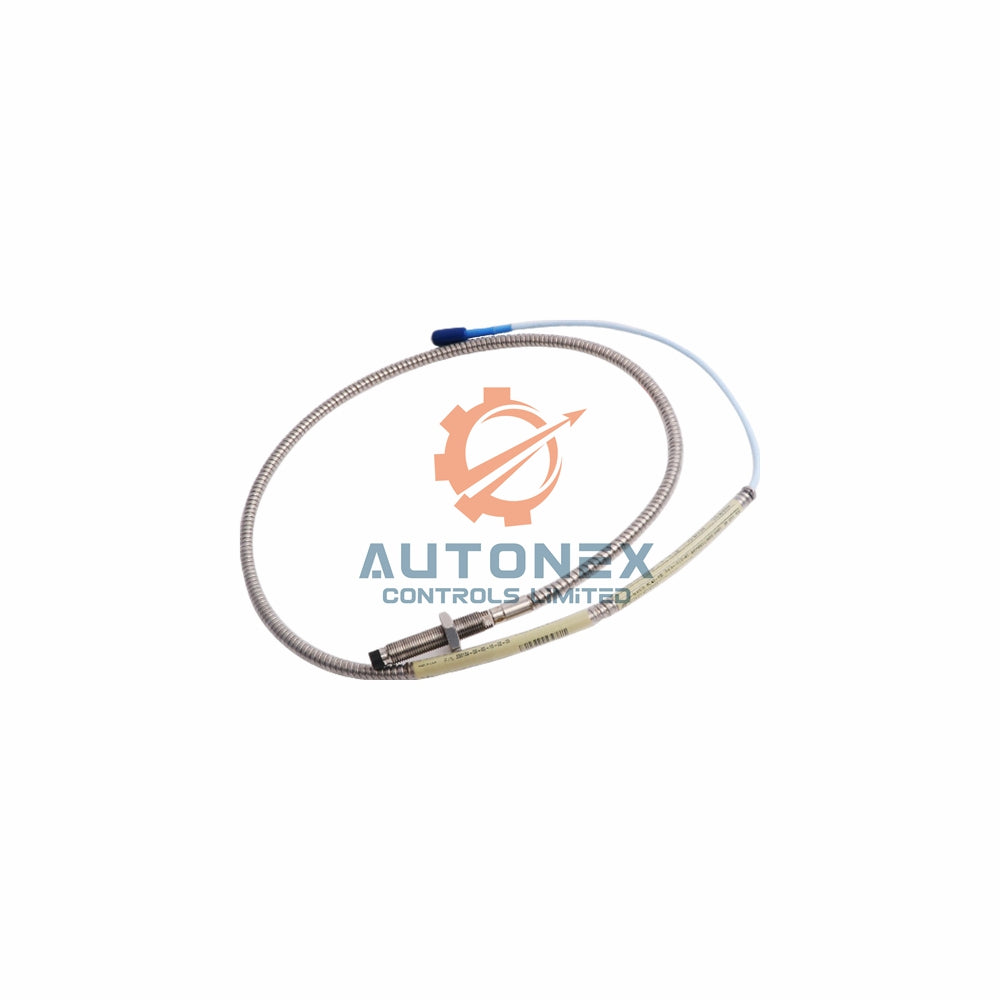

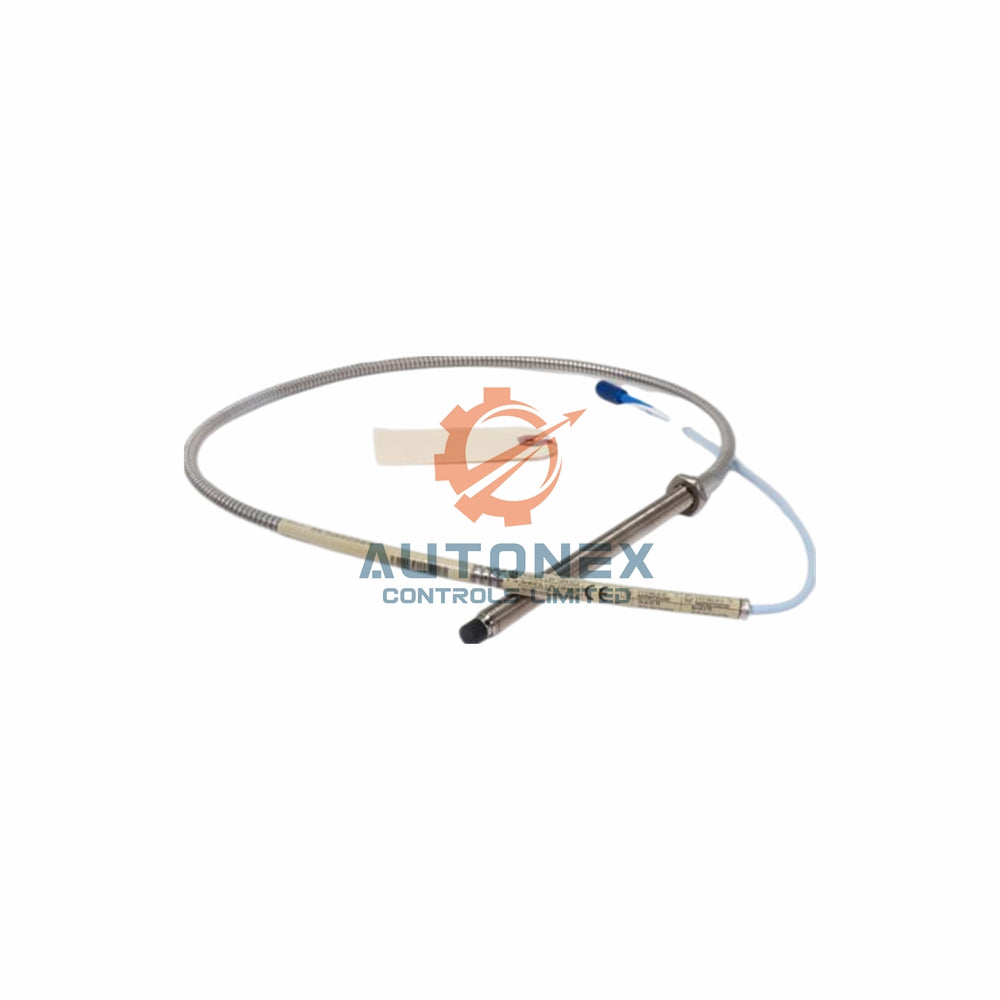

Bently Nevada 3300 NSv Proximity Probe Model 330910-03-09-05-02-05

Technical Specifications

• Brand and Series: Bently Nevada 3300 NSv Proximity Probes
• Full Part Number: 330910-03-09-05-02-05 – M10X1 thread with armor
• Unthreaded Length: -03 = 30 mm
• Overall Case Length: -09 = 90 mm
• Total Probe Length: -05 = 0.5 meter (20 inches)
• Connector Type: -02 = Miniature coaxial ClickLoc connector, standard cable
• Agency Approval: -05 = Multiple approvals
• Linear Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm
• Recommended Gap Setting: 1.0 mm (40 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% tolerance
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils)
• Frequency Response: 0 to 10 kHz with +0, -3 dB typical up to 305 meters of field wiring
• Probe DC Resistance: 4.0 ± 0.5 ohms at 0.5 meter length (center to outer conductor)
• Minimum Target Size: 8.9 mm (0.35 in) diameter
• Recommended Minimum Target: 13 mm (0.5 in) diameter

Environmental and Mechanical Ratings

• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Storage Temperature: -52°C to +177°C (-62°F to +351°F)
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel (SST)
• Probe Cable: 75 ohm coaxial with fluoroethylene propylene (FEP) insulation
• Minimum Bend Radius: 25.4 mm (1.0 inch) with or without SST armor
• Maximum Torque: 0.56 N•m (5 in•lb) – finger tight recommended
• Connector-to-Connector Torque (3/8-24 or M10X1): 7.5 N•m (66 in•lb) recommended, 22.6 N•m (200 in•lb) maximum for first three threads
• Pressure Seal: Viton O-ring design for differential pressure sealing

Extension Cable and Field Wiring

• Extension Cable Center Conductor: 0.220 Ω/m (0.067 Ω/ft)
• Extension Cable Shield: 0.066 Ω/m (0.020 Ω/ft)
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Field Wire Size: 0.2 to 1.5 mm² (16 to 24 AWG)
• Maximum Field Wiring Length: 305 meters (1000 feet) between the 3300 XL NSv Proximitor Sensor and the monitor
• Recommended Cable Type: Three-conductor shielded triad cable

Frequently Asked Questions (FAQ)

• Is the 330910-03-09-05-02-05 a new original part?
  Yes, we supply only new and original Bently Nevada 3300 NSv Proximity Probes in factory packing.
• What is the linear range of the 3300 NSv probe?
  The linear range measures 1.5 mm (60 mils) from 0.25 mm to 1.75 mm from the target.
• What temperature range does this probe support?
  The probe operates and stores safely between -52°C and +177°C (-62°F to +351°F).
• Do you have the 330910-03-09-05-02-05 in stock?
  Yes, we keep this model in stock for immediate orders.
• What is your shipping and delivery policy?
  We ship within 5 business days using DHL, FedEx, or UPS.
• Can I return this product?
  Yes, we support returns within 30 days of delivery.
• What field wiring length works with this probe?
  You can use up to 305 meters (1000 feet) of field wiring between the Proximitor Sensor and monitor.
• What torque should I apply to the probe case?
  Apply finger tight torque as recommended. Do not exceed 0.56 N•m (5 in•lb).
