330703-000-040-50-11-00 Proximity Probe 5 m FluidLoc Bently Nevada

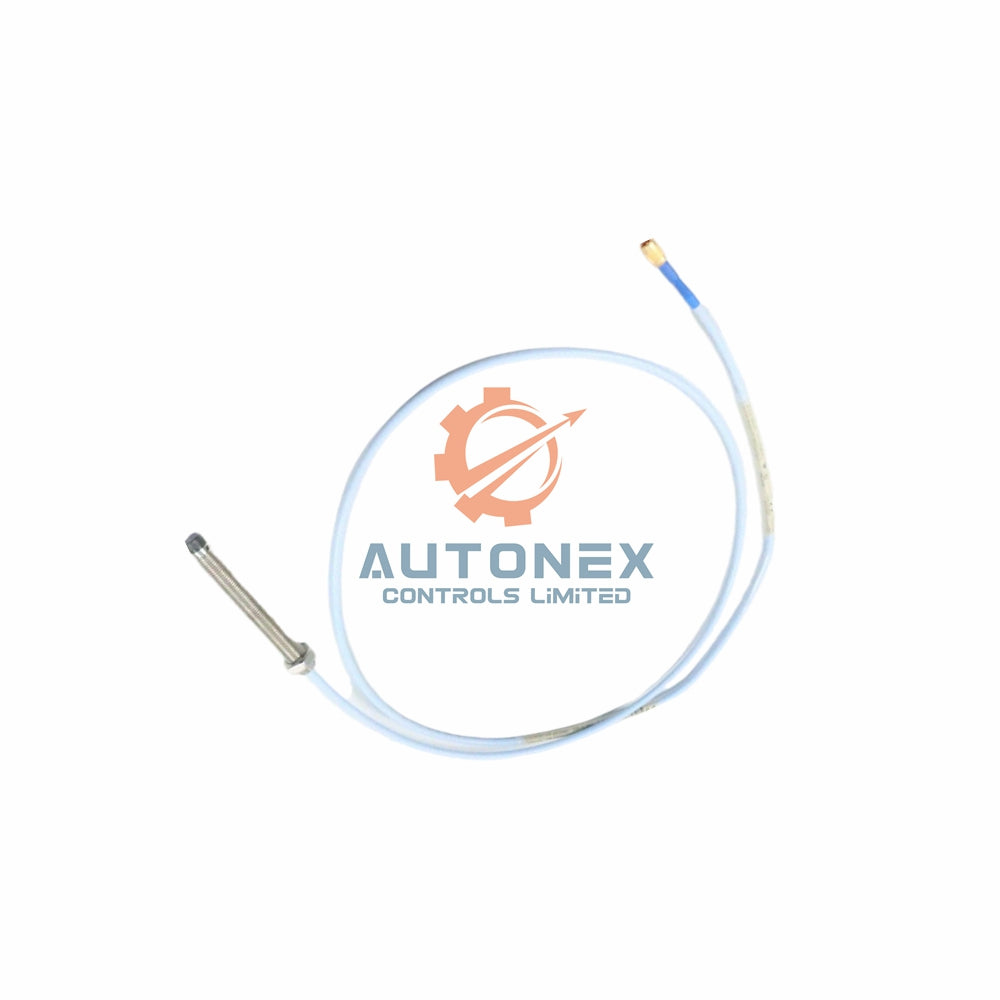

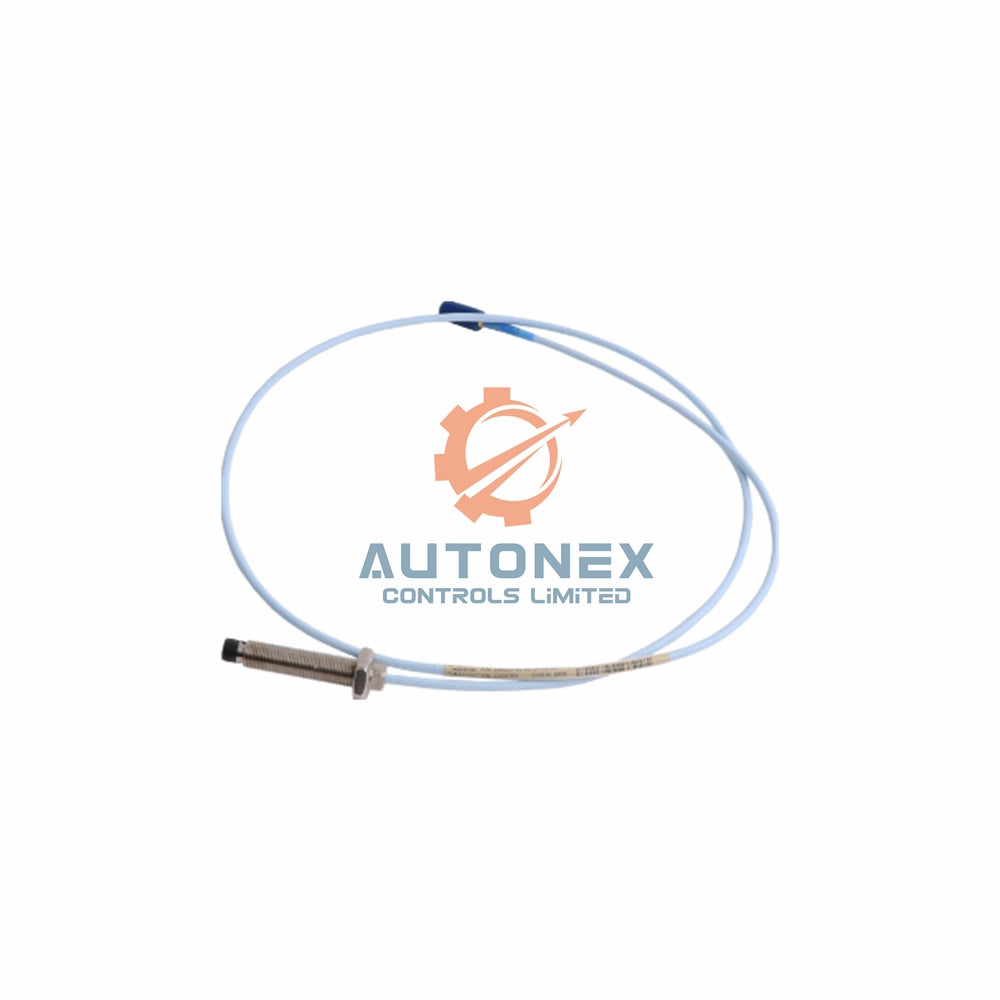

Bently Nevada 330703-000-040-50-11-00 – 3300 XL 11 mm Proximity Probe with FluidLoc Cable

Ordering Code Breakdown

• Part Number: 330703-000-040-50-11-00 – 3300 XL 11 mm probe, M14 x 1.5 thread, without armor.
• Unthreaded Length: 000 – 00 mm (standard).
• Overall Case Length: 040 – 40.0 mm.
• Total Length: 50 = 5.0 meters (16.4 feet). This 5‑meter probe works exclusively with the 5‑meter Proximitor Sensor.
• Connector Type: 11 = Miniature coaxial ClickLoc connector with connector protector and FluidLoc cable.
• Agency Approval: 00 = Not required.

Electrical & Environmental Performance

• Probe DC Resistance: 7.2 ± 0.8 Ω (center to outer conductor).
• 60 Hz Magnetic Field Immunity (5 m system):
  • Gap 0.5 mm (20 mil) → 0.001 mV pp/gauss.
  • Gap 2.5 mm (100 mil) → 0.009 mV pp/gauss.
  • Gap 4.6 mm (180 mil) → 0.027 mV pp/gauss.
• Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F). Exposing the probe below -34°C may prematurely damage the pressure seal.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case: AISI 304 stainless steel.
• Cable: 75 Ω triaxial, FEP insulated, available in 1, 5, or 9 meter lengths.

Frequently Asked Questions

• Is this probe brand new and original?
  Yes – every 330703-000-040-50-11-00 is New & Original in factory sealed packaging.
• Do you have this model in stock?
  Yes, we keep regular stock for this 5‑meter FluidLoc configuration.
• What is the typical lead time?
  We ship within 5 working days from order placement.
• Which carriers do you use?
  We offer FedEx, UPS, and DHL – you can choose your preferred option.
• Can I return this probe?
  Yes, we accept returns within 30 days of delivery in original condition.
• What is the maximum torque for the M14 x 1.5 thread?
  The maximum rated torque is 63.3 N•m, but we strongly recommend 21.1 N•m for reliable long‑term performance.
• Can I use this probe with a different extension cable?
  No – the 5‑meter probe is designed specifically for the 5‑meter Proximitor Sensor. Using other cables may affect calibration and linearity.
• What is FluidLoc cable?
  FluidLoc provides enhanced resistance to oil and fluid ingress, making it ideal for harsh industrial environments.
