330192-00-60-10-00 3300 XL Probe 3/8-24 UNF Bently Nevada

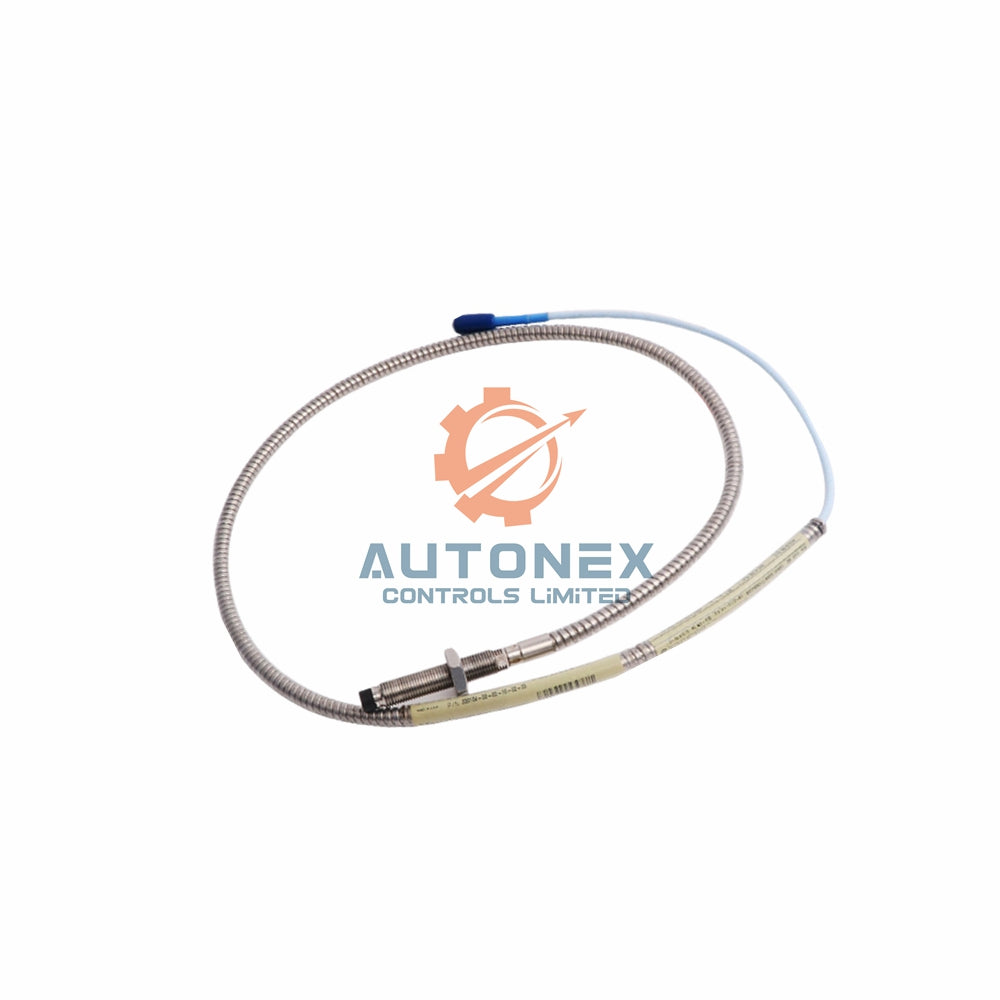

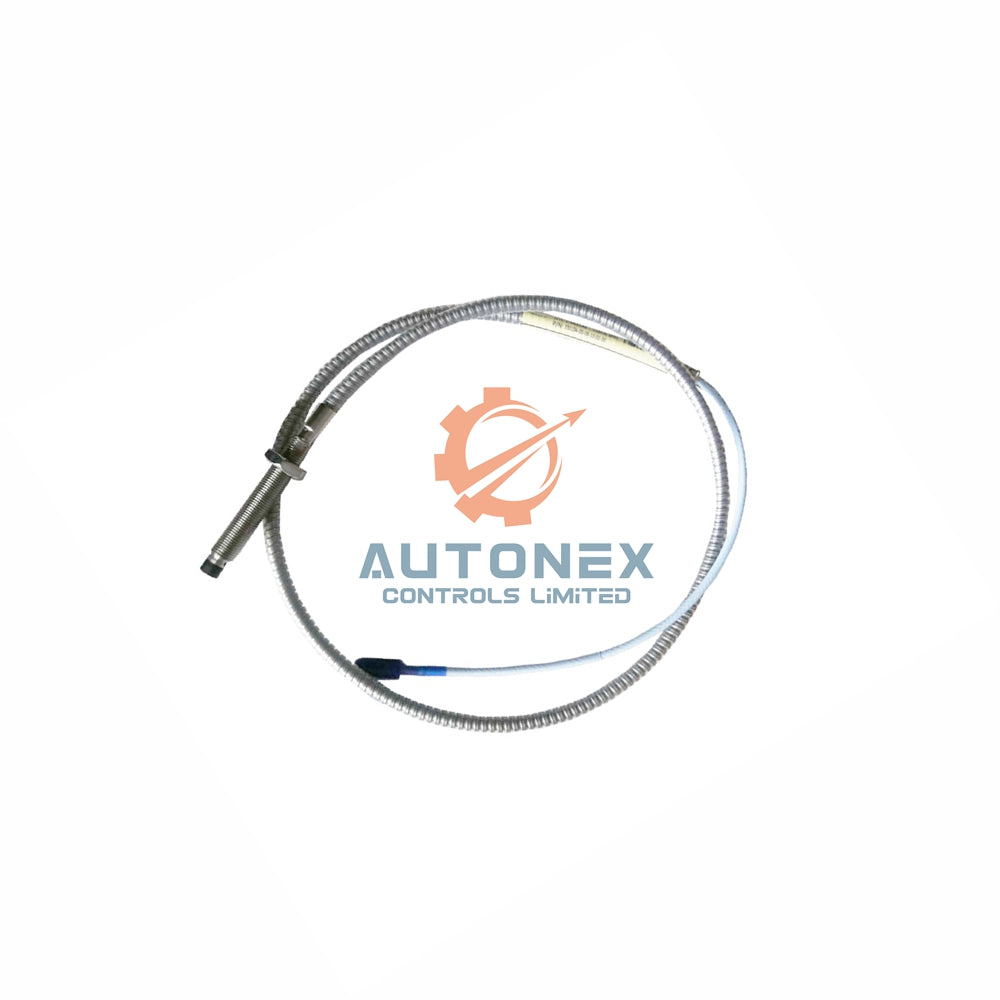

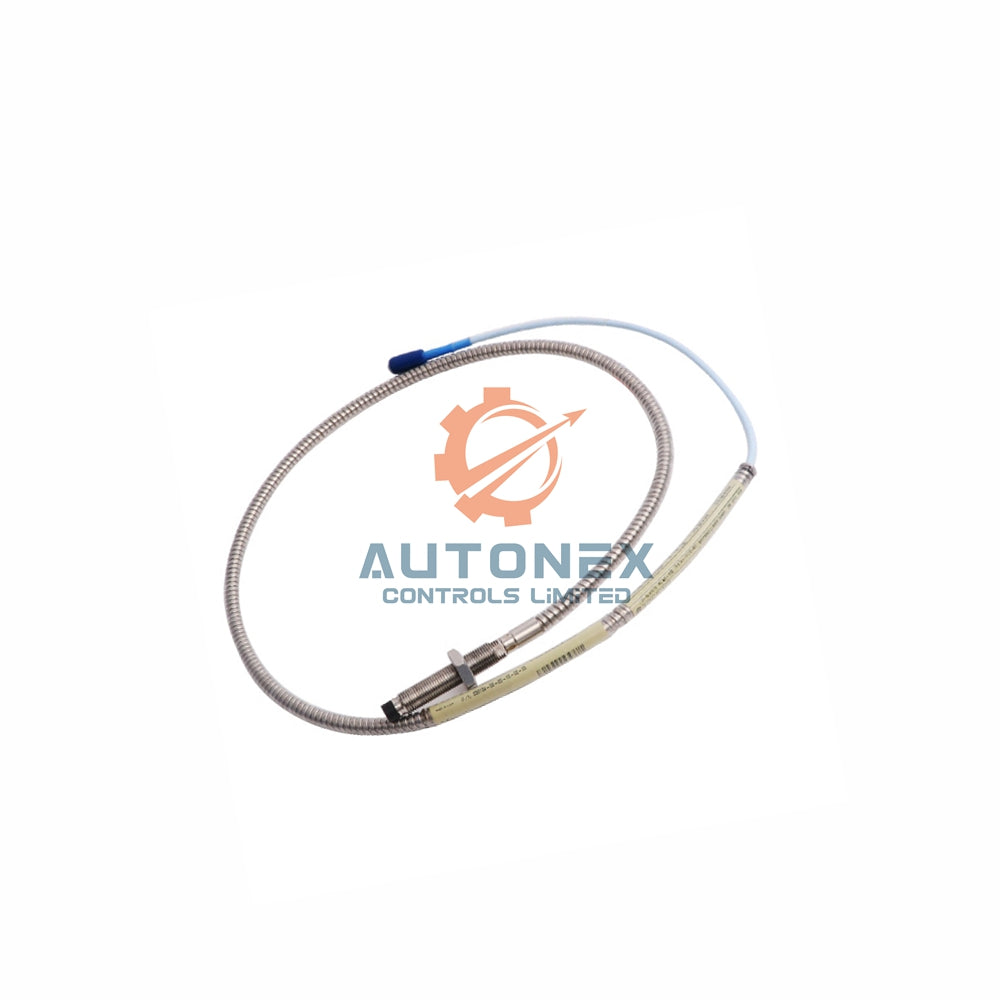

Bently Nevada 330192-00-60-10-00 3300 XL 8 mm ETR Probe

Technical Specifications

• Brand: Bently Nevada. Model: 330192-00-60-10-00.
• Unthreaded length option: minimum 0.0 inches. Unthreaded length must be at least 0.8 inches less than case length.
• Overall case length option: 60 = 6.0 inches. Total length option: 10 = 1.0 meter (3.3 feet).
• Agency approval option: 00 = Not required. Probe pressure design uses a Viton O-ring for sealing.
• Nominal probe DC resistance (1.0m length): 7.59 ± 0.50 Ω from center to outer conductor.
• Probe tip material: Polyphenylene sulfide (PPS). Probe case material: AISI 303 or 304 stainless steel (SST).
• Maximum thread engagement length for 3/8-24 thread: 0.563 inches.
• Relative humidity performance: less than 3% change in Average Scale Factor (ASF) at 93% humidity for up to 56 days (IEC 68-2-3).
• Standard temperature range: -52°C to +177°C (-62°F to +350°F). Extended tip range: -52°C to +218°C (-62°F to +425°F).
• Exposing the probe below -34°C (-30°F) may cause premature pressure seal failure.

Frequently Asked Questions (FAQ)

• Is this probe a brand new original unit?
  Yes, we only supply brand new original 330192-00-60-10-00 probes from Bently Nevada.
• Do you have this model in stock?
  Yes, we keep the 330192-00-60-10-00 in stock for fast order processing.
• What is your return policy?
  We support returns within 30 days of delivery for eligible items.
• How long does delivery take?
  We ship within 5 days after order confirmation. Transit time varies by courier (FedEx, UPS, DHL).
• Can I use this probe at very low temperatures?
  Avoid using the probe below -34°C (-30°F) to prevent pressure seal damage.
• Which temperature class suits my hazardous area?
  Refer to the temperature schedule above. Select the class matching your ambient temperature range.
• Are probes pressure tested before shipment?
  No, standard probes do not receive pressure testing. Contact us if your application requires a test.
