330101-14-10-10-02-05 Bently Nevada - 3300 XL 8 mm Probe

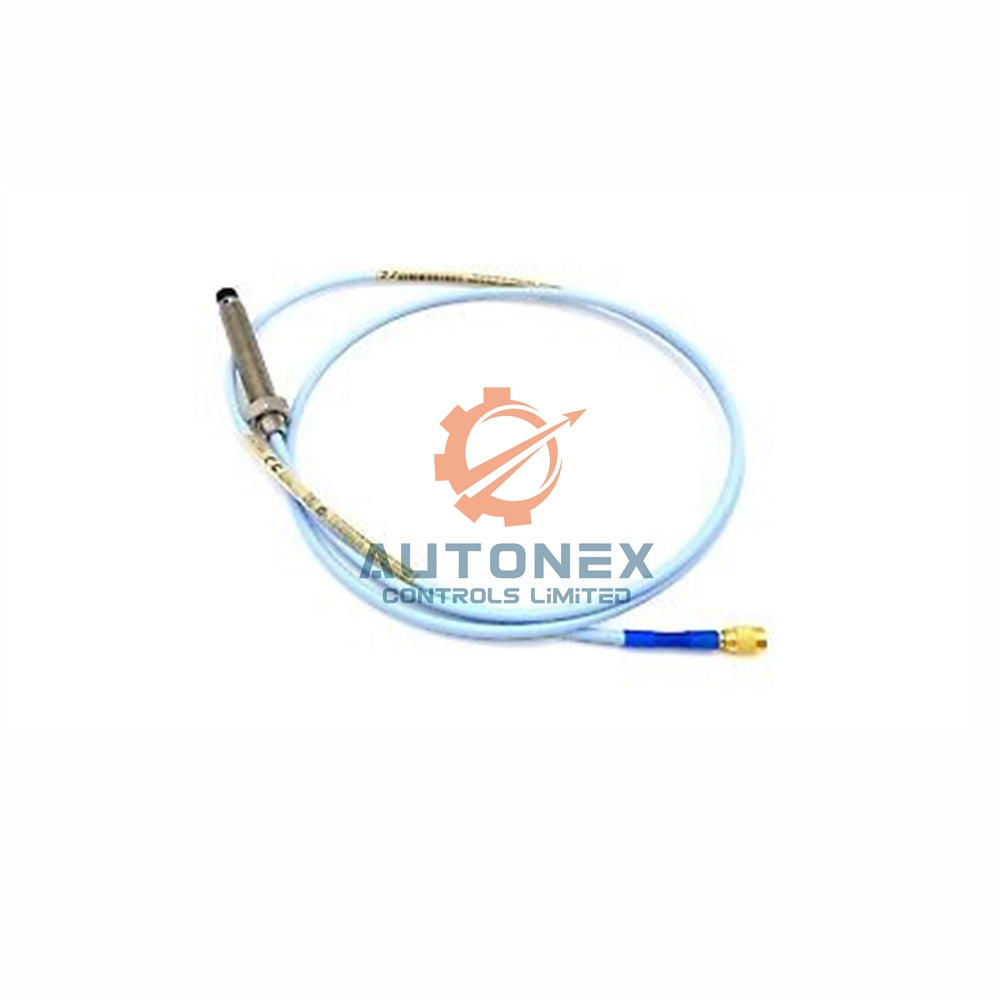

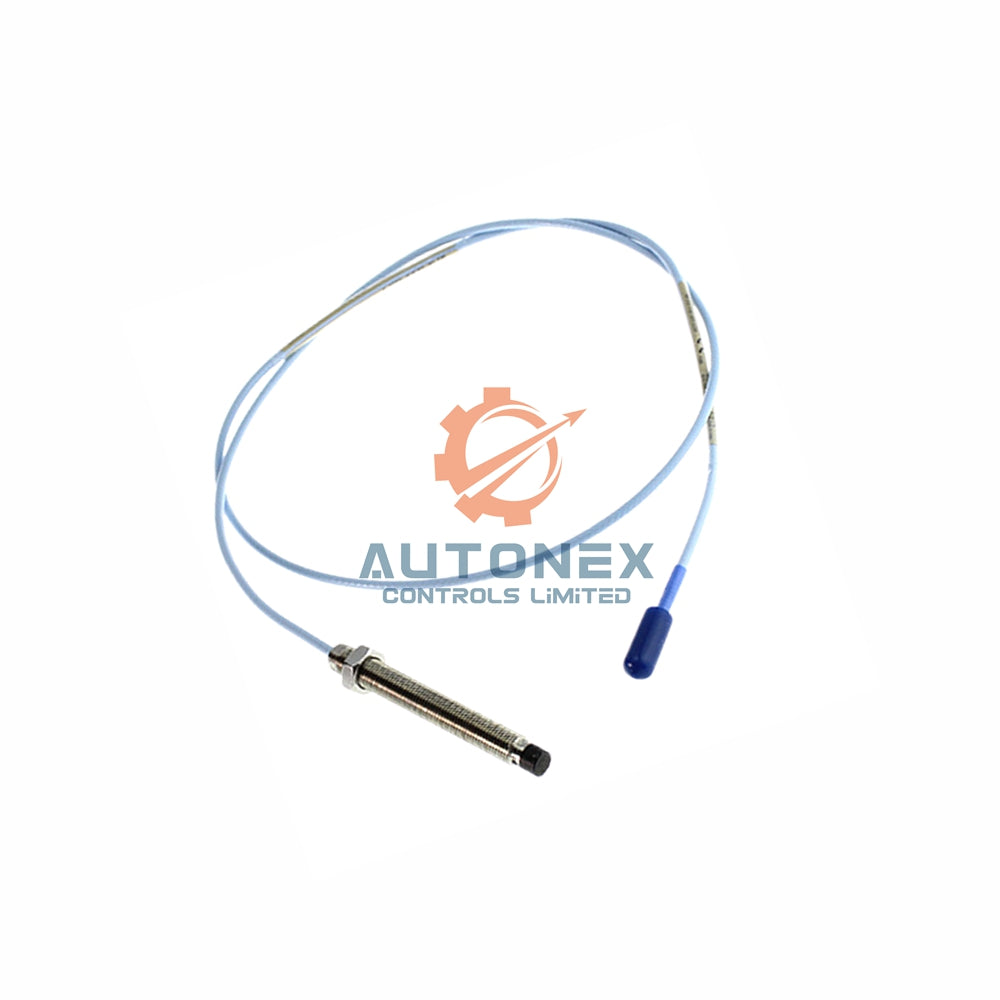

Bently Nevada 330101-14-10-10-02-05 – 3300 XL 8 mm Probe

• Brand & Model: Bently Nevada, 330101-14-10-10-02-05 (3300 XL 8 mm Probe).
• Thread & Configuration: 3/8-24 UNF thread, without armor, miniature coaxial ClickLoc connector.
• Length Options: unthreaded length 1.4 in, overall case 1.0 in, total length 1.0 meter (3.3 feet).
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% (1 or 5 m system).

Key Technical Specifications

• DC Resistance (RPROBE): 7.59 ±0.50 Ω for 1.0 m length.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Field Wiring: 0.2 to 1.5 mm² (16-24 AWG), 3-conductor shielded triad, max 305 m (1000 ft).
• Recommended Gap: -9 Vdc (~1.27 mm / 50 mils) for radial vibration.
• Deviation from Straight Line (DSL): <±0.025 mm (±1 mil) for 1/5 m system at 0-45°C.

Environmental & Mechanical Durability

• Probe Tip Material: Polyphenylene sulfide (PPS) with TipLoc molding.
• Case Material: AISI 303/304 stainless steel, weight 323 g/m (11.4 oz).
• Temperature Range (Standard): -52°C to +177°C (-62°F to +350°F).
• Pressure Seal: Viton® O-ring, differential pressure design.
• Humidity Tolerance: <3% ASF change after 56 days at 93% RH (IEC 68-2-3).

Frequently Asked Questions (FAQ)

• Q: Is this a genuine new Bently Nevada probe?
  A: Yes, we supply 100% brand new original Bently Nevada 330101-14-10-10-02-05 probes.
• Q: What is the typical linear range for this 3300 XL 8 mm probe?
  A: The linear range is 2 mm (80 mils), starting from ~0.25 mm (10 mils) to 2.3 mm (90 mils).
• Q: Can I use this probe with a 9-meter extension cable?
  A: Yes, the 3300 XL system supports 9 m cables with ISF ±6.5% and DSL ±0.038 mm.
• Q: What is the maximum field wiring length?
  A: You can run up to 305 meters (1000 feet) between the Proximitor Sensor and the monitor.
• Q: Do you have this item in stock?
  A: Yes, we maintain regular stock of this model. Orders ship within 5 business days.
• Q: What are the return conditions?
  A: We support 30-day returns for unused items in original packaging.
• Q: Which shipping carriers do you use?
  A: We ship via FedEx, UPS, or DHL – you can choose your preferred option.
