146054-08-50-01-05 100% Original Brand New Bently Nevada Ceramic Probe

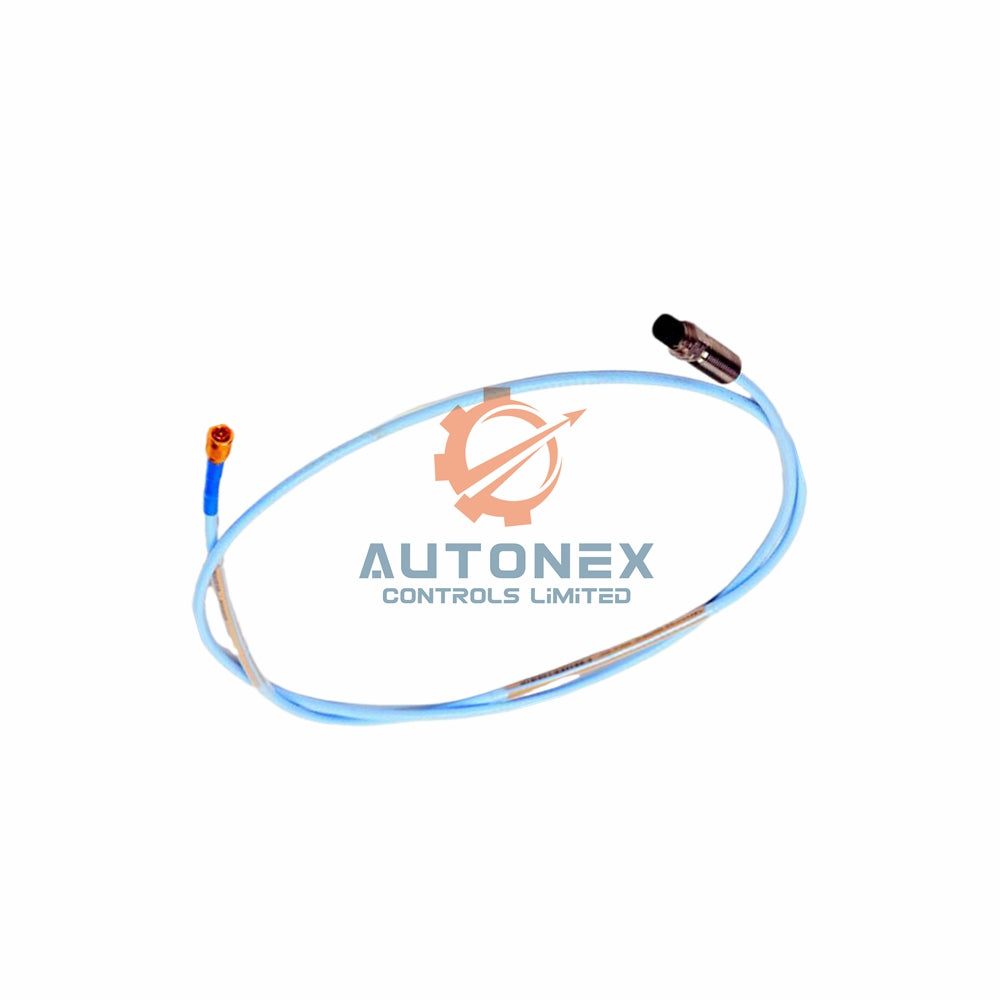

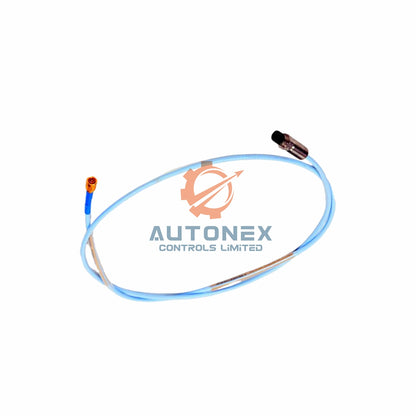

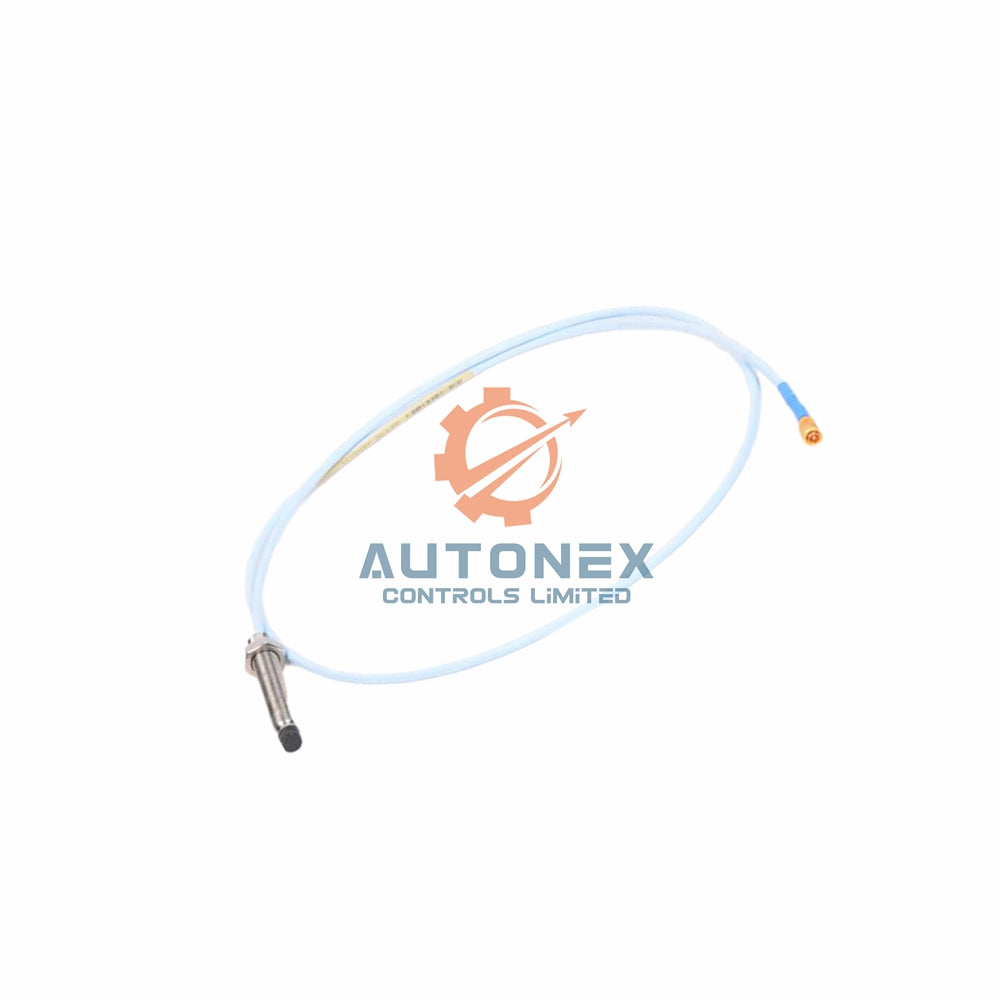

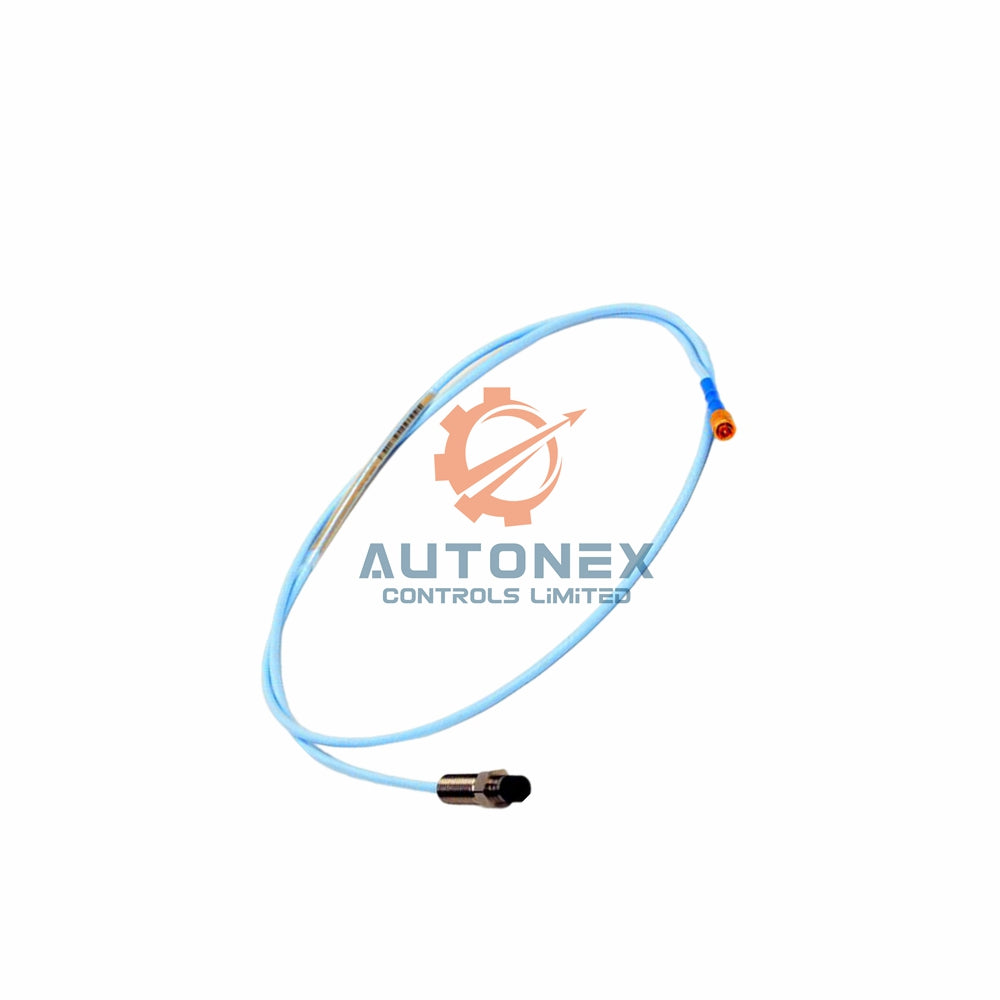

Bently Nevada 3300 Ceramic Capped Probe 146054-08-50-01-05

• Brand & Model: Bently Nevada, 3300 Ceramic Capped Probe, Part Number 146054-08-50-01-05.
• Linear Range: 1.52 mm (60 mils), starting from approximately 0.25 mm (10 mils) from the target.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±6.5% including interchangeability error.
• Probe Tip Material: Alumina ceramic (Al₂O₃) for superior wear and corrosion resistance.
• Case Material: AISI 304 stainless steel, offering excellent durability in industrial settings.
• Temperature Range: Operating and storage from -51 °C to +177 °C (-60 °F to +351 °F).
• Pressure Rating: Sealed to 34 Bar (500 psi) nitrogen, with options for higher-pressure applications.
• Cable: Standard 75 Ω coaxial, FEP insulated, total length 5.0 meters (16.4 feet).
• Connector: Miniature coaxial ClickLoc with connector protector, standard cable.
• Agency Approvals: CSA, ATEX, IECEx (Option -05) for use in explosive atmospheres.

Detailed Technical Specifications

• Probe Case Thread: 3/8-24 UNF, with a maximum thread engagement of 0.563 inches.
• Nominal DC Resistance: 8.73 ± 0.70 ohms between center and outer conductor (for 5.0 m probe).
• System Accuracy: Calibrated to AISI 4140 steel target; performance characteristics apply to 3300 XL systems.
• Temperature Classification (EPL Ga/Gc): T1 to T5 depending on ambient temperature range.
• Environmental Tolerance: Withstands extreme temperatures and pressure, suitable for hazardous areas.
• 5 m Probe Design: Specifically designed for use with the 5 m Proximitor Sensor only.

Installation & Compatibility

• Designed for 3300 Proximitor sensors and extension cables, forming a complete 5 mm system.
• Probe length options: 0.5, 1, 2, 5, or 9 meters; this model includes a 5.0 m cable.
• Easy mounting with 3/8-24 UNF thread; ensure proper torque and gap settings per manual.
• Compatible with standard 75 Ω coaxial cables and ClickLoc connectors for secure connections.
• CSA, ATEX, and IECEx approvals allow installation in classified hazardous locations.

What's in the Box

• One Bently Nevada 3300 Ceramic Capped Probe (Part 146054-08-50-01-05).
• Pre-attached 5.0 meter FEP insulated coaxial cable with miniature ClickLoc connector.
• Connector protector cap for safe storage and transport.
• Installation guide and quick-start reference card.

Shipping & Delivery

• We ship via FedEx, UPS, or DHL for fast and reliable global delivery.
• All orders dispatch within 5 business days from our warehouse.
• Products arrive in factory-sealed, original packaging to ensure integrity.

Frequently Asked Questions

• Is this a genuine Bently Nevada product? Yes, we supply only new, original factory-packed units.
• What is the lead time? We ship within 5 days; express options available upon request.
• Can I return this probe? Yes, we accept returns within 30 days of delivery.
• Does this probe work with 5 mm Proximitor systems? Absolutely, it is designed for 3300 5 mm systems.
• What target material is it calibrated for? It is calibrated to AISI 4140 steel; other targets may affect accuracy.
• Is the cable length interchangeable? This model has a fixed 5.0 m cable; other lengths are available.
• What approvals does this version carry? It includes CSA, ATEX, and IECEx certifications for hazardous areas.
• Can I use this probe with a 9 m Proximitor? No, 5 m probes are designed for use with the 5 m Proximitor Sensor only.
