330707-00-25-10-11-05 Bently Nevada - 3300 XL 11 mm Probe

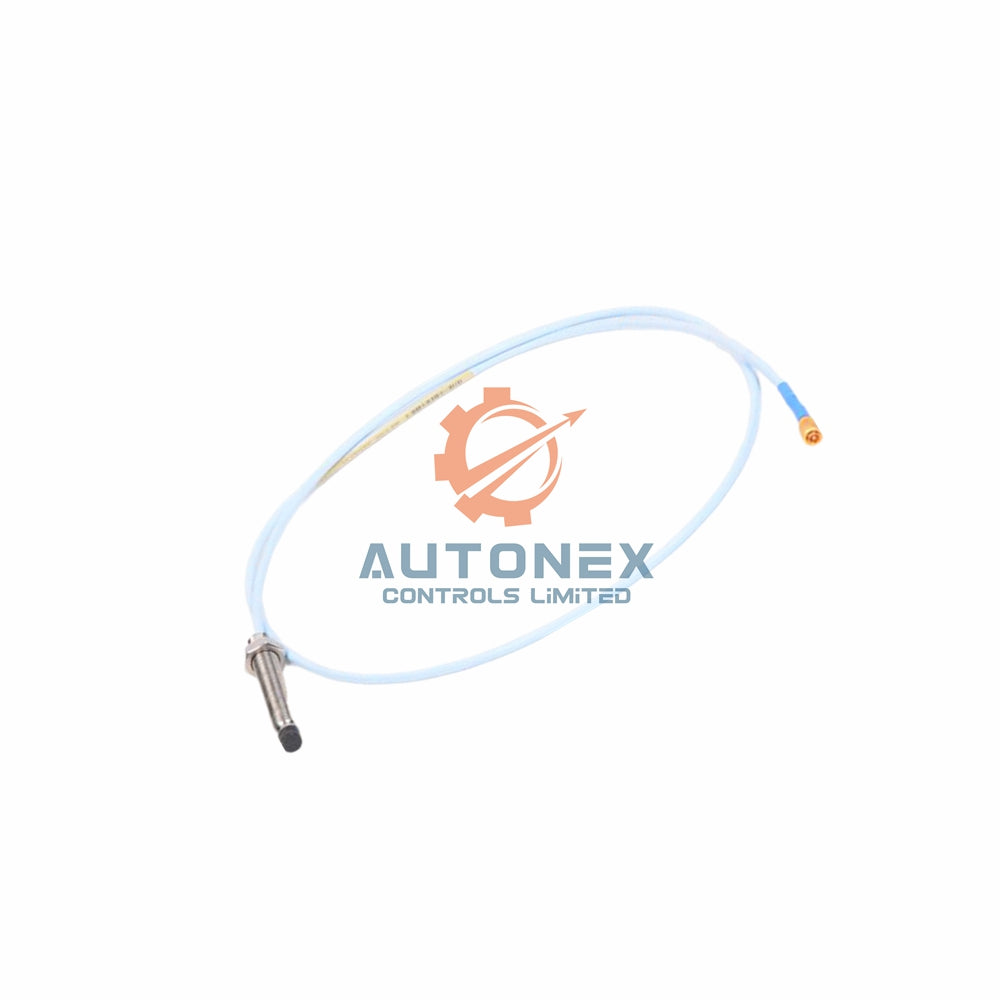

Bently Nevada 330707-00-25-10-11-05 3300 XL 11 mm Probe

• Manufacturer: Bently Nevada (Made in U.S.A).
• Full Model: 330707-00-25-10-11-05.
• Probe Series: 3300 XL 11 mm Proximity Probe.
• Unthreaded Length: 0.0 inches (00 option).
• Overall Case Length: 2.5 inches (25 option).
• Total Cable Length: 1.0 meter (3.3 feet) – 10 option.
• Connector: Miniature coaxial ClickLoc with connector protector, FluidLoc cable (11 option).
• Agency Approval: Multiple Approvals (05 option).
• Probe Tip: Polyphenylene sulfide (PPS).
• Probe Case: AISI 304 stainless steel (SST).
• Cable Type: 75 Ω triaxial FEP insulated FluidLoc cable.
• Temperature Range: -51°C to +177°C (-60°F to +351°F).
• Pressure Seal: Viton O-ring design (custom pressure testing available).
• Shipping Weight: 0.17 Kg.
• Connector Material: Gold-plated brass.

Electrical & Mechanical Specifications

• DC Resistance (RPROBE): 5.9 ± 0.5 ohms (center to outer conductor) for 1.0 m length.
• Probe Case Thread: 5/8-18 UNF (max engagement 0.938 in).
• Maximum Case Torque: 45.2 N•m (400 in•lb).
• Recommended Case Torque: 15.0 N•m (133 in•lb).
• Connector Torque (Max): 0.565 N•m (5 in•lb) – finger tight recommended.
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without armor.
• M16x1.5 Thread Option: Max engagement 24 mm.

Temperature Classification Schedule (Probe Only)

• EPL Ga and Gc – T1: -55°C to +232°C ambient.
• EPL Ga and Gc – T2: -55°C to +177°C ambient.
• EPL Ga and Gc – T3: -55°C to +120°C ambient.
• EPL Ga and Gc – T4: -55°C to +80°C ambient.
• EPL Ga and Gc – T5: -55°C to +40°C ambient.
• EPL Dc – T280°C @ Ta: -55°C to +232°C ambient.
• EPL Dc – T225°C @ Ta: -55°C to +177°C ambient.
• EPL Dc – T170°C @ Ta: -55°C to +120°C ambient.
• EPL Dc – T130°C @ Ta: -55°C to +80°C ambient.
• EPL Dc – T105°C @ Ta: -55°C to +100°C ambient.
• EPL Dc – T90°C @ Ta: -55°C to +40°C ambient.

Installation Guidelines

• Do not exceed the 0.938 inch thread engagement for the 5/8-18 UNF case.
• Apply the recommended 15.0 N•m torque when installing the probe case.
• Keep connector torque to finger tight – do not exceed 0.565 N•m.
• Maintain a minimum bend radius of 25.4 mm for the cable.
• Avoid exposing the probe to temperatures below -34°C to protect the pressure seal.

Package Contents

• 1 x Bently Nevada 330707-00-25-10-11-05 3300 XL 11 mm Probe.
• Pre-installed miniature coaxial ClickLoc connector with protector.
• 1.0 meter FluidLoc FEP triaxial cable.
• Installation torque and thread engagement reference sheet.

Frequently Asked Questions (FAQ)

• Q: Is this 330707-00-25-10-11-05 probe brand new?
  A: Yes, we supply only 100% new and original Bently Nevada probes.
• Q: Do you have this exact model in stock?
  A: Yes, we keep the 330707-00-25-10-11-05 in stock for immediate orders.
• Q: How quickly do you ship?
  A: We ship within 5 business days using FedEx, UPS, or DHL.
• Q: Can I return this probe if it does not fit my application?
  A: Yes, we support 30-day returns for unused items in original packaging.
• Q: What is the pressure rating for this probe?
  A: The probe seals differential pressure with a Viton O-ring; contact us for custom pressure testing.
• Q: What is the operating temperature range?
  A: The range is -51°C to +177°C, but avoid prolonged use below -34°C.
• Q: What does the FluidLoc cable option provide?
  A: FluidLoc cable offers enhanced fluid resistance for harsh industrial environments.
