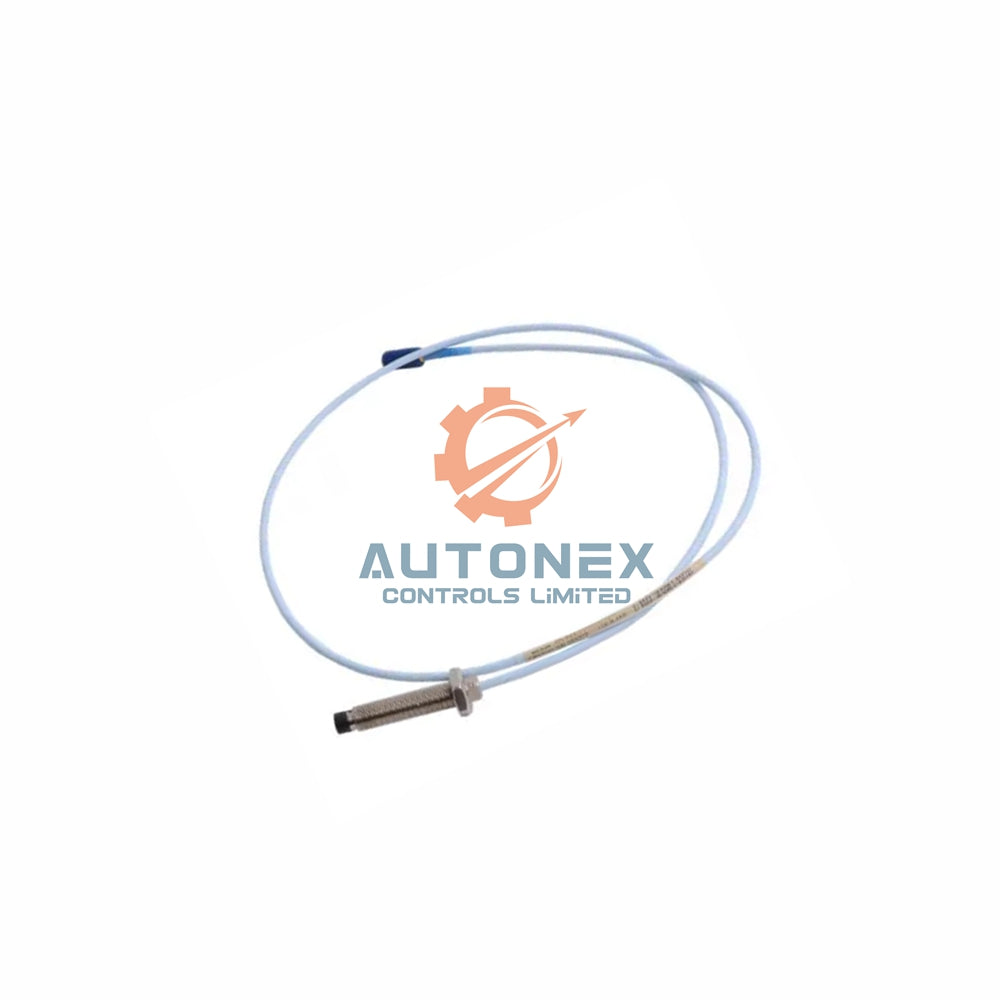

330703-000-060-50-02-05 Bently Nevada 3300 XL 11 mm Probe

Bently Nevada 330703 Proximity Probe – Precision Measurement for Critical Machinery

Core Technical Specifications

• Part Number: 330703-000-060-50-02-05 – 3300 XL 11 mm probe, M14 x 1.5 thread, without armor.
• Unthreaded Length: 000 – 00 mm (standard).
• Overall Case Length: 060 – 60.0 mm.
• Total Length: 50 = 5.0 meters (16.4 feet) – designed exclusively for use with the five meter Proximitor Sensor.
• Connector: 02 = Miniature ClickLoc coaxial connector.
• Agency Approval: 05 = Multiple Approvals (ATEX, CSA, FM, etc.).

Electrical & Environmental Performance

• Probe DC Resistance: 7.2 ± 0.8 Ω (center to outer conductor).
• 60 Hz Magnetic Field Immunity (5 m system):
  • Gap 0.5 mm (20 mil) → 0.001 mV pp/gauss.
  • Gap 2.5 mm (100 mil) → 0.009 mV pp/gauss.
  • Gap 4.6 mm (180 mil) → 0.027 mV pp/gauss.
• Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F). Note: exposure below -34°C may prematurely degrade the pressure seal.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case: AISI 304 stainless steel.
• Cable: 75 Ω triaxial, FEP insulated, in 1, 5, or 9 meter lengths.

Frequently Asked Questions

• Is this product brand new and original?
  Yes – every 330703 unit is New & Original in factory sealed packaging.
• Do you have stock available?
  Yes, we maintain regular stock for this popular 5‑meter probe configuration.
• What is the typical lead time?
  We ship within 5 working days from receipt of your order.
• Which carriers do you use?
  We ship with FedEx, UPS, or DHL – you can choose your preferred option.
• Can I return the probe if it does not fit my application?
  Yes, we accept returns within 30 days of delivery in original condition.
• What is the maximum case torque for the M14 x 1.5 thread?
  The maximum rated torque is 63.3 N•m (560 in•lb), but we strongly recommend 21.1 N•m (187 in•lb) for reliable performance.
• Does this probe work with other extension cables?
  No – the 5‑meter probe is designed specifically for the 5‑meter Proximitor Sensor. Using other cables may affect calibration.
