TC-OAV081 Honeywell Analog Output Module | 8-Channel

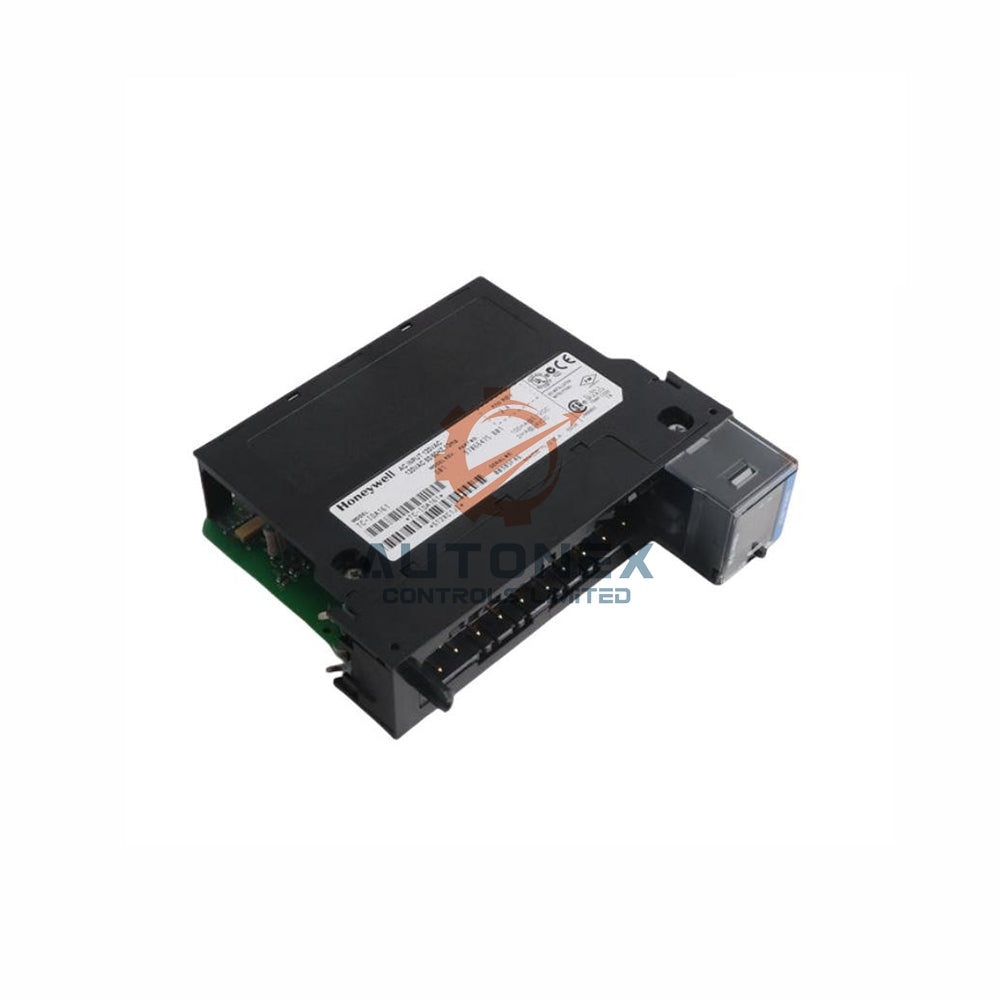

Honeywell TC-OAV081 Analog Output Module – 8-Channel Voltage and Current

Key Technical Specifications

• Brand: Honeywell
• Model: TC-OAV081
• Category: Analog Output Module
• Number of Points: 8 channels
• Voltage Output Range: ±10.4 V
• Current Output Range: 0 to 21 mA
• Voltage Resolution: 320 µV per count
• Current Resolution: 650 nA per count
• Output Overvoltage Protection: 24 VAC/VDC continuous at room temperature
• Open Short Circuit Protection: Electronically current limited to 21 mA or less
• Drive Capability: Greater than 2000 Ω for voltage, 0 to 750 Ω for current
• Calibrated Accuracy @ 25°C: Better than 0.05% of range
• Current Accuracy Range: 4 to 21 mA
• Voltage Accuracy Range: -10.4 V to +10.4 V
• RFI Immunity: Error less than 2.0% of range at 10 V/m, 27 to 1000 MHz
• Module Update Rate: 25 milliseconds for all channels
• Output Settling Time: Less than 2 milliseconds to 95% of final value with resistive loads
• Output Offset Drift: 50 µV/°C typical for voltage, 100 nA/°C typical for current
• Output Gain Drift: 25 ppm/°C maximum for voltage, 50 ppm/°C maximum for current
• Module Error Over Full Temp Range: 0.15% of range for voltage, 0.3% of range for current
• Isolation Voltage: User to system, 100% tested at 2550 VDC for 1 second
• Power Dissipation: 6.9 W maximum
• Backplane Current: 150 mA @ 5.1 VDC, 210 mA @ 24 VDC
• Connection Terminal Blocks: TC-TBNH, 20-position terminal block

Frequently Asked Questions

• Q: What output types does the TC-OAV081 provide?
  A: It provides ±10.4 V voltage outputs and 0 to 21 mA current outputs.
• Q: How many output channels does this module have?
  A: It offers 8 separate output channels.
• Q: What is the update rate of the TC-OAV081?
  A: The module updates all channels every 25 milliseconds.
• Q: How fast do outputs settle?
  A: Outputs settle to 95% of final value in less than 2 milliseconds.
• Q: What load can each channel drive?
  A: Voltage outputs drive over 2000 Ω, and current outputs drive 0 to 750 Ω.
• Q: What terminal block fits this module?
  A: Use the TC-TBNH 20-position terminal block.
• Q: What is the accuracy at 25°C?
  A: Accuracy is better than 0.05% of range at 25°C.
• Q: How fast do you ship?
  A: We ship within 5 days via FedEx, UPS, or DHL.
• Q: Can I return the module?
  A: Yes, we support 30-day returns for eligible orders.
