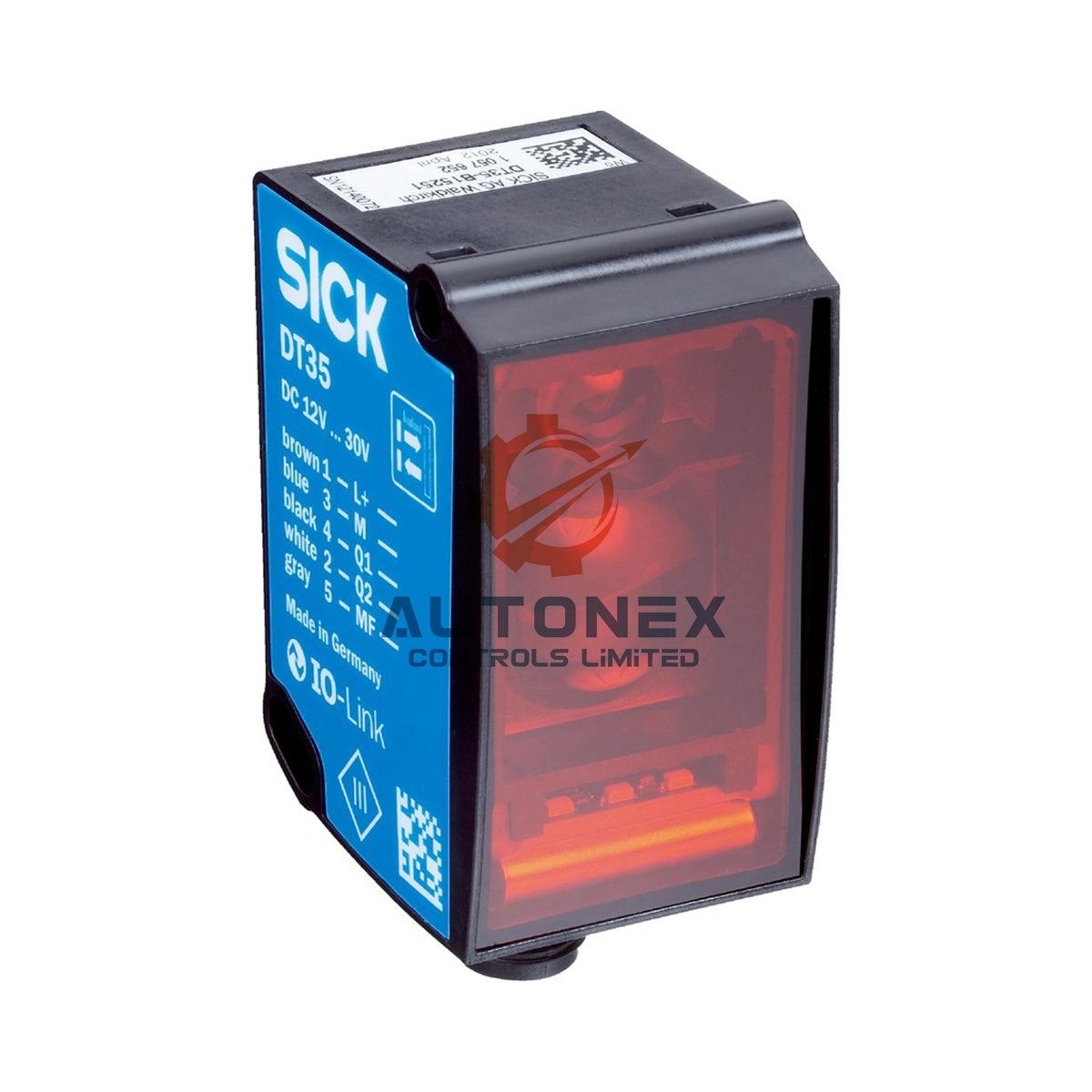

SICK DR35-B15522 Dx35 Laser Distance Sensor

SICK DR35-B15522 Time-of-Flight Sensor – Dx35 Series

Key Technical Specifications

• Brand: SICK
• Model: DR35-B15522
• Series: Dx35
• Measuring range: 200 mm ... 35,000 mm on reflective tape
• Target: Reflector
• Resolution: 100 µm
• Repeatability: ≥ 0.5 mm
• Measurement accuracy: Typ. ± 15 mm
• Response time: 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms
• Switching frequency: 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz
• Output time: 1 ms / 2 ms / 4 ms / 8 ms / 32 ms
• Light source: Laser, red, visible red light
• Light spot size: 15 mm x 15 mm at 2 m
• Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
• Average laser service life: 100,000 h at 25 °C

Performance and Output Features

• Additional function: Set speed from Super Fast to Super Slow
• Switching mode: Distance to reflective tape (DtR), switching window (Wnd), or object between sensor and background (ObSB)
• MTTFD: 101 years
• DCavg: 0%
• Interface: IO-Link V1.1
• IO-Link function: Process data, parameterization, diagnosis
• Data transmission rate: 38.4 kbit/s
• Digital output: 2 outputs, push-pull PNP/NPN
• Output Q2: Adaptable as digital output, Q1 not deactivated
• Maximum output current: IA ≤ 100 mA
• Hysteresis: 0 mm ... 34,950 mm

Electrical and Mechanical Data

• Supply voltage: DC 12 V ... 30 V
• Power consumption: ≤ 1.7 W
• Ripple: ≤ 5 Vpp
• Initialization time: ≤ 500 ms
• Warm-up time: ≤ 20 min
• Display: LEDs
• Enclosure rating: IP65 and IP67
• Protection class: III
• Connection type: Male connector
• Dimensions (W x H x D): 32 mm x 58.67 mm x 42.7 mm
• Housing material: Plastic (ABS/PC)
• Window material: Plastic (PMMA)
• Weight: 65 g

Ambient and Environmental Tolerance

• Ambient temperature, operation: –30 °C ... +55 °C with Uv ≤ 24 V
• Ambient temperature, storage: –40 °C ... +75 °C
• Max. relative humidity: ≤ 95%, not condensing
• Vibration resistance: EN 60068-2-6, EN 60068-2-64
• Shock resistance: EN 60068-2-27
• Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-3, EN 61000-6-4

Installation Guide

• Mount the DR35-B15522 on a stable bracket to avoid vibration errors.
• Align the sensor perpendicular to the diamond grade reflective tape.
• Keep the light spot free from dust, water, and strong ambient light.
• Connect the male connector to a 12 V ... 30 V DC power supply.

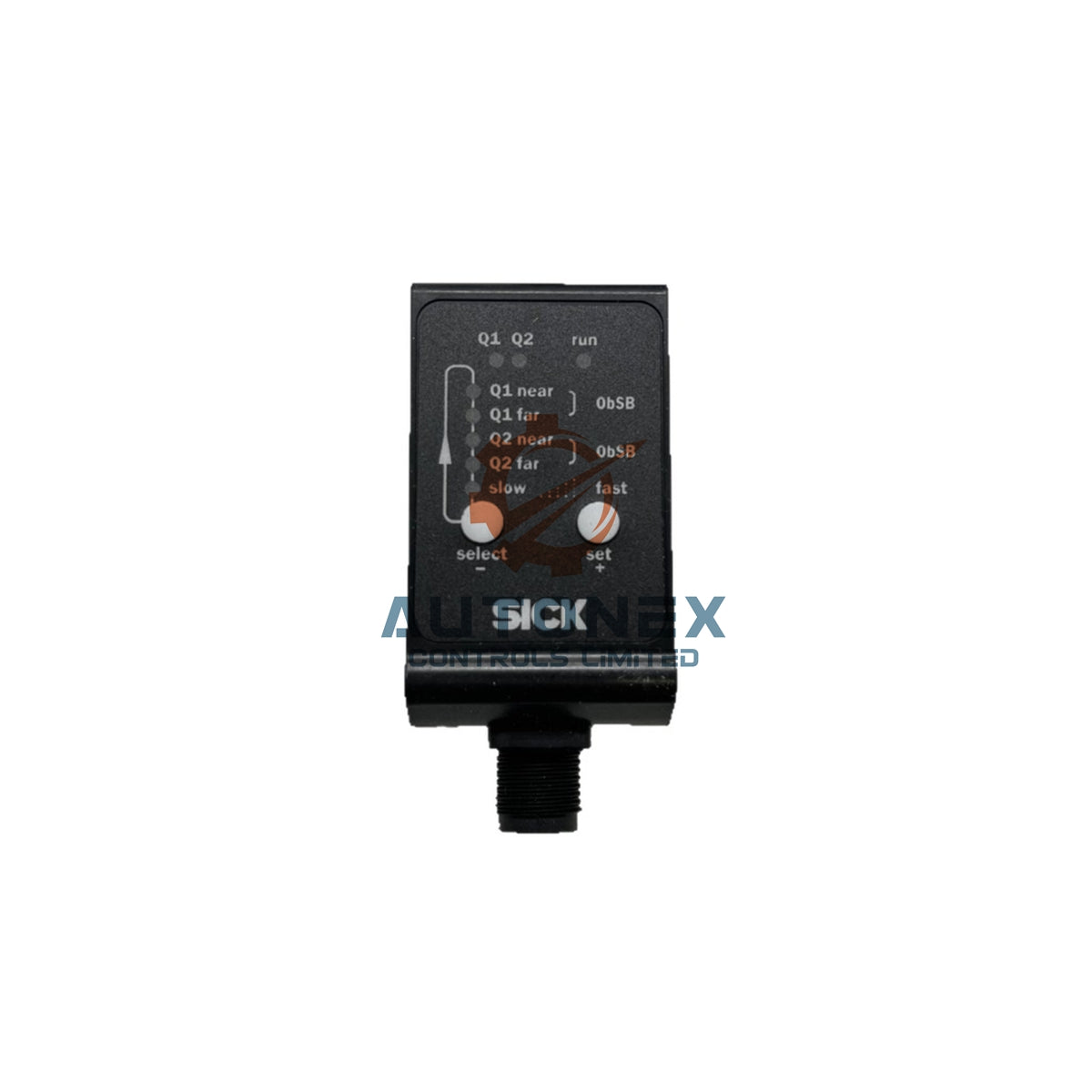

• Set the switching mode (DtR, Wnd, or ObSB) through IO-Link or the display.
• Choose the response time and switching frequency for your line speed.
• Verify the output signal with a multimeter or PLC before full operation.

Package List

• 1 x SICK DR35-B15522 time-of-flight sensor
• 1 x Male connector
• 1 x Quick start guide
• 1 x Protective packaging

Shipping and Support

• We ship by FedEx, UPS, and DHL.
• We dispatch orders within 5 days.
• We accept returns within 30 days.
• We offer brand new original products only.
• We keep popular SICK Dx35 items in stock.

FAQ

• Q: What is the measuring range of the SICK DR35-B15522?
  A: It measures 200 mm to 35,000 mm on diamond grade reflective tape.
• Q: How fast does this sensor respond?
  A: You can select 2.5 ms, 6.5 ms, 12.5 ms, 24.5 ms, or 96.5 ms.
• Q: What is the laser class?
  A: It uses a class 1 red laser, which is safe for normal operation.
• Q: Does it support IO-Link?
  A: Yes, it supports IO-Link V1.1 for process data, parameters, and diagnosis.
• Q: What is the operating temperature range?
  A: It works from –30 °C to +55 °C with Uv ≤ 24 V.
• Q: How many digital outputs does it have?
  A: It has 2 push-pull PNP/NPN outputs with a maximum current of 100 mA.
• Q: What is the enclosure rating?
  A: It offers IP65 and IP67 protection for dusty and wet environments.
• Q: Is the product new and in stock?
  A: Yes, we sell brand new original units and keep stock available.
• Q: How long is the delivery time?
  A: We ship within 5 days using FedEx, UPS, or DHL.
• Q: Can I return the sensor?
  A: Yes, we accept returns within 30 days of delivery.
