IS220PPROS1B GE Emergency Turbine Protection I/O Pack Mark VIe

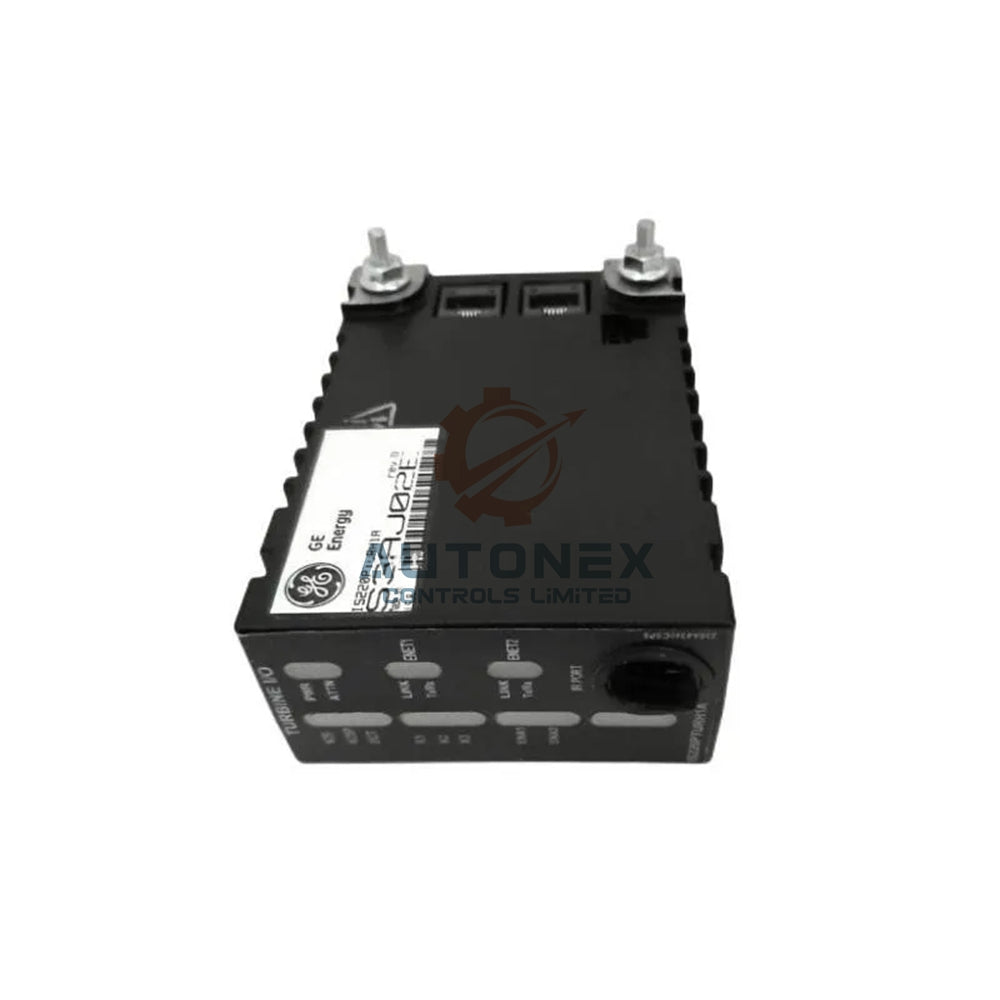

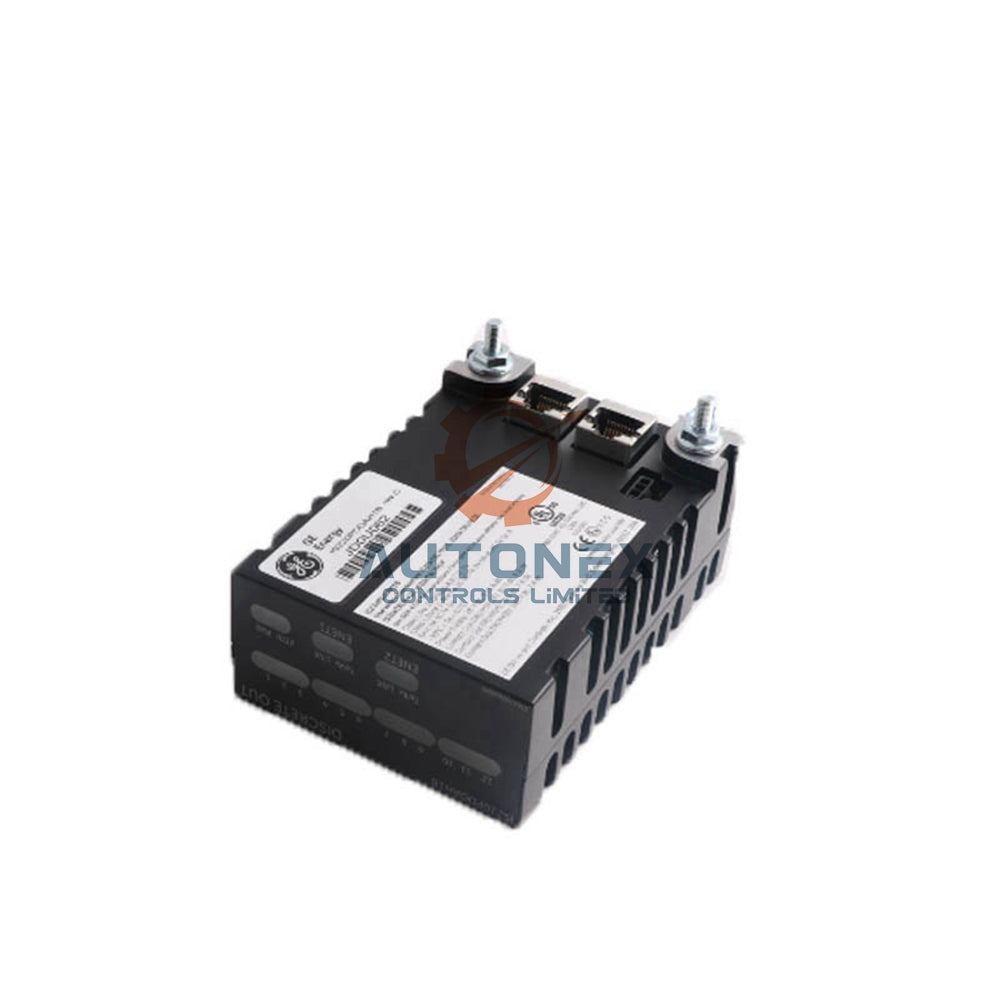

GE IS220PPROS1B Emergency Turbine Protection I/O Pack

Technical Specifications

• Brand & Model: General Electric IS220PPROS1B. This Emergency Turbine Protection I/O Pack belongs to the Mark VIe series.
• Power Supply: 24 V dc with a built-in soft-start circuit. This circuit regulates inrush current levels during power-up.
• Operating Temperature: -30 to 65°C. The unit withstands harsh industrial environments reliably.
• Dimensions & Weight: Board size measures 14.3 cm high x 23.1 cm wide. Weight is only 0.45 kg, allowing easy mounting.
• Speed Signal Handling: Processes three types of speed signals. These include hardware-implemented overspeed, acceleration, deceleration, and basic overspeed.
• Communication: Connects to IONet via Ethernet. Two independent 10/100 Ethernet ports support automatic negotiation.
• Compatibility: Directly mounts on SPRO or TREA terminal boards. Cable-compatible with TREG, TREL, and TRES when using SPRO.
• Built-in Features: Includes a fast CPU, flash memory, RAM, a watchdog timer, an internal temperature sensor, and LED status indicators.

Frequently Asked Questions (FAQ)

• Q: Is the IS220PPROS1B brand new or refurbished?
  A: We supply only brand new and original General Electric IS220PPROS1B packs. No refurbished or counterfeit units.
• Q: Do you have this item in stock now?
  A: Yes, we keep the IS220PPROS1B in stock. We can ship within 5 days after order confirmation.
• Q: What documentation do I need for installation?
  A: Refer to manual GEH-6721L. The ToolboxST* software provides configuration guidance.
• Q: Can I use one IS220PPROS1B with a TREA terminal board?
  A: Yes, direct mounting on TREA supports single or TMR configurations. Three packs give full TMR protection.
• Q: What happens if one Ethernet port fails?
  A: The pack keeps operating using the active port. The system will show a fault for the failed network path.
• Q: Does this pack work with older Mark VI systems?
  A: No, the IS220PPROS1B belongs to the Mark VIe series. It does not support legacy Mark VI controllers.
