IS200DSPXH2DBD GE DSP Control Board | Mark VI

IS200DSPXH2DBD Digital Signal Processor Control Board by General Electric

Technical Specifications

• Brand: General Electric.
• Model Number: IS200DSPXH2DBD.
• Part Number: IS200DSPXH2D.
• Series: Mark VI Speedtronic and EX2100.
• Product Type: Digital Signal Processor Control Board.
• Functional Abbreviation: DSPX.
• Assembly Type: Normal Assembly.
• Total Revisions: 3 revisions.
• Technology: Surface mount.
• Common Mode Voltage Range: ±5 V.
• Number of Analog Voltage Inputs: 6.
• Backplane Input Quantity: 6.
• Size: 15.9 cm high x 17.8 cm.
• Operating Temperature: -30 to +65°C.
• Country of Origin: United States.
• Repair Time: 3 to 7 days.
• Availability: In Stock.

Hardware Features and Physical Layout

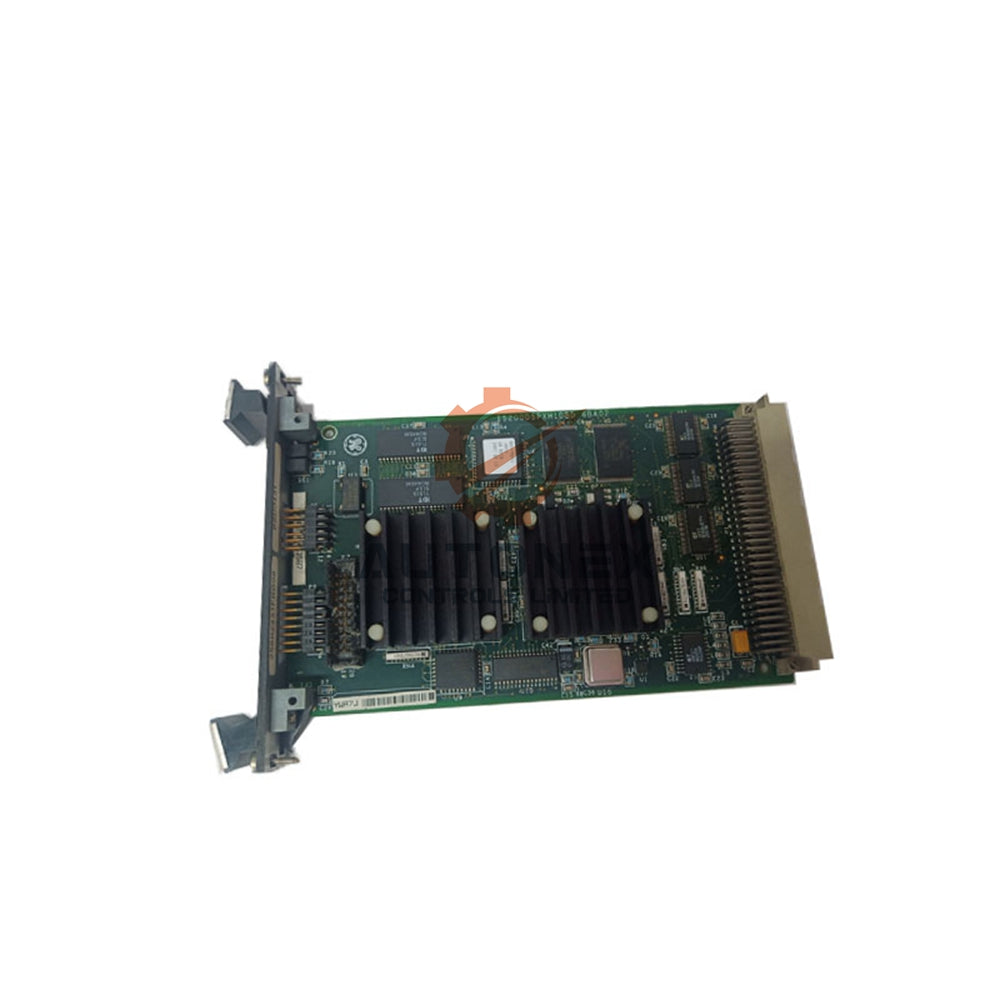

• The IS200DSPXH2DBD is a mid-sized printed circuit board with many electronic components.
• A large white connector port attaches to the right edge of the board.
• This white connector port contains a series of metal connector pins.
• Two smaller black connector ports sit on the opposite end of the PCB.
• Two large black square components sit in the center of the board.
• A white screw at each corner of these components connects them to the circuit card.
• Two white resistor networks sit between these two square components.
• Each resistor network contains a row of small resistors.
• The total resistance of each resistor network equals the sum of its individual resistors.
• Two additional resistor networks sit to the right of the large black components.
• Many integrated circuits of varying sizes connect to the board surface.
• These integrated circuits are black in color.

I/O Connectors and Interfaces

• The IS200DSPXH2DBD features three I/O connectors: P1, P5, and P6.
• P1 backplane connector provides memory mapping and backplane communication.
• P5 DSP emulator port offers a scan interface to the T1 emulator port.
• The P5 port supports both emulation and FLASH programming.
• P6 engineering monitor port connects to the DSP synchronous serial port.

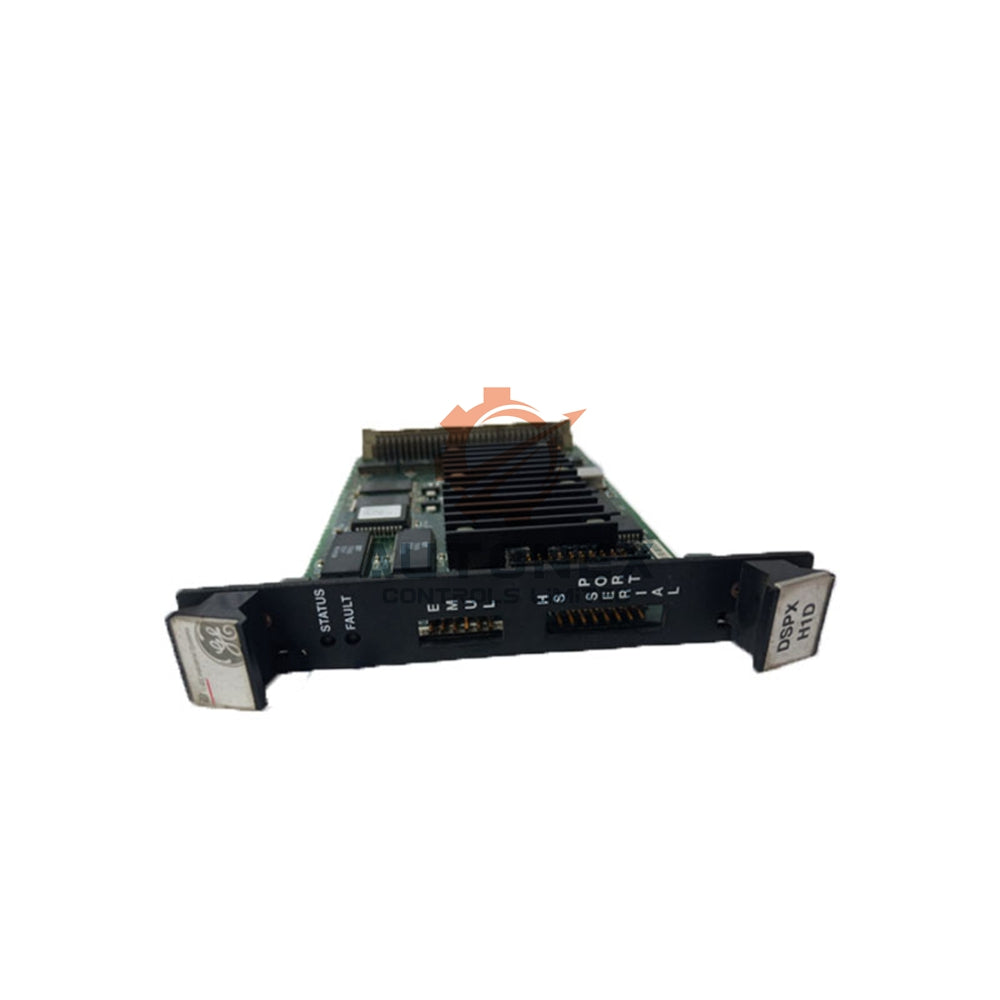

• Two LED indicators sit on the board: one for status and one for fault.
• Serial interfaces include asynchronous TTLs and 5 Mb/s ISBus interfaces.

Frequently Asked Questions (FAQ)

• Q: Is the IS200DSPXH2DBD brand new and original?
  A: Yes, we supply only brand new and original units from authorized sources.
• Q: Which turbine systems use this board?
  A: This board works with GE gas, steam, and wind turbines in the Mark VI series.
• Q: What memory types does this board include?
  A: It includes FLASH, RAM, NVRAM, and add-only memory for revision identification.
• Q: How many I/O connectors does the board have?
  A: The board has three I/O connectors: P1 backplane, P5 DSP emulator, and P6 engineering monitor.
• Q: What do the two LEDs indicate?
  A: One LED shows status and the other shows fault conditions.
• Q: What is the PWM output frequency?
  A: The board provides PWM outputs at a fixed frequency of 24 kHz with 10-bit resolution.
• Q: Do you have the IS200DSPXH2DBD in stock?
  A: Yes, we have this model in stock and ready to ship.
• Q: What is the typical repair time for this board?
  A: Standard repair takes 3 to 7 days.
