330709-000-030-10-11-05 Bently Nevada - 3300 XL 11 mm Probe

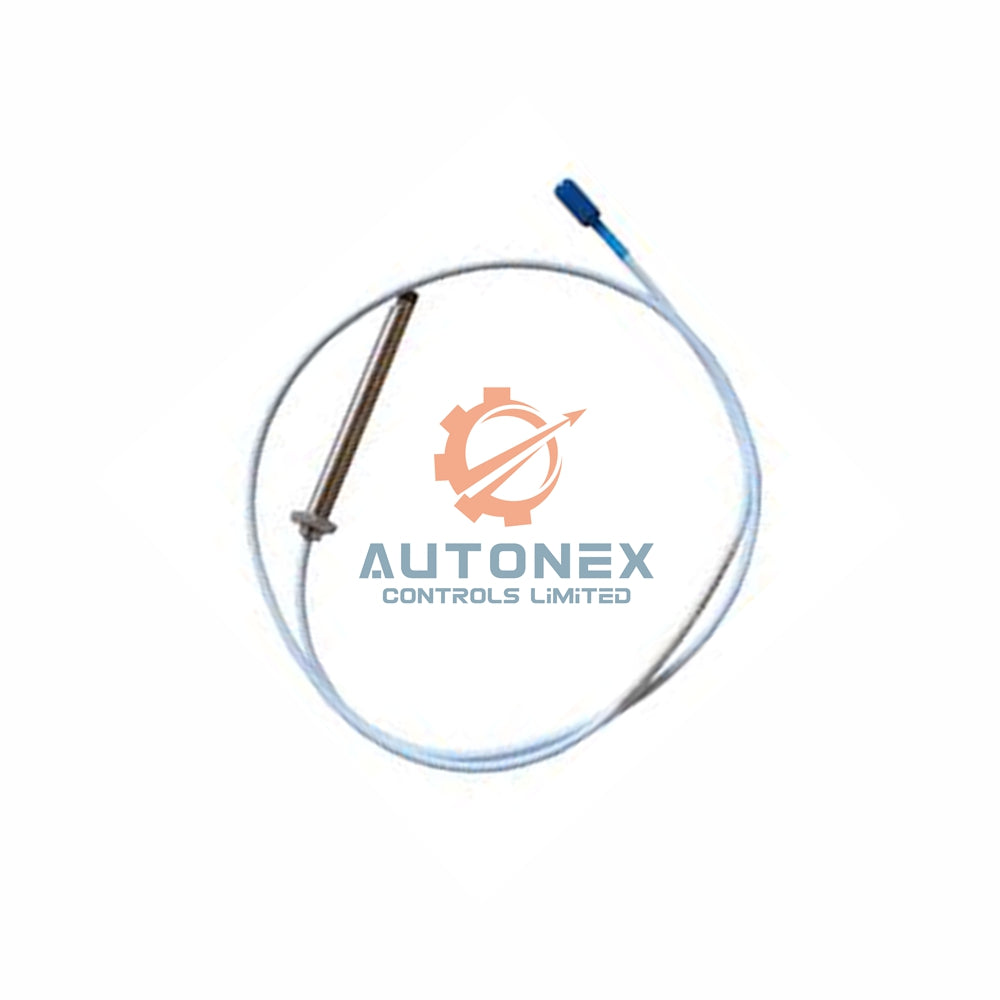

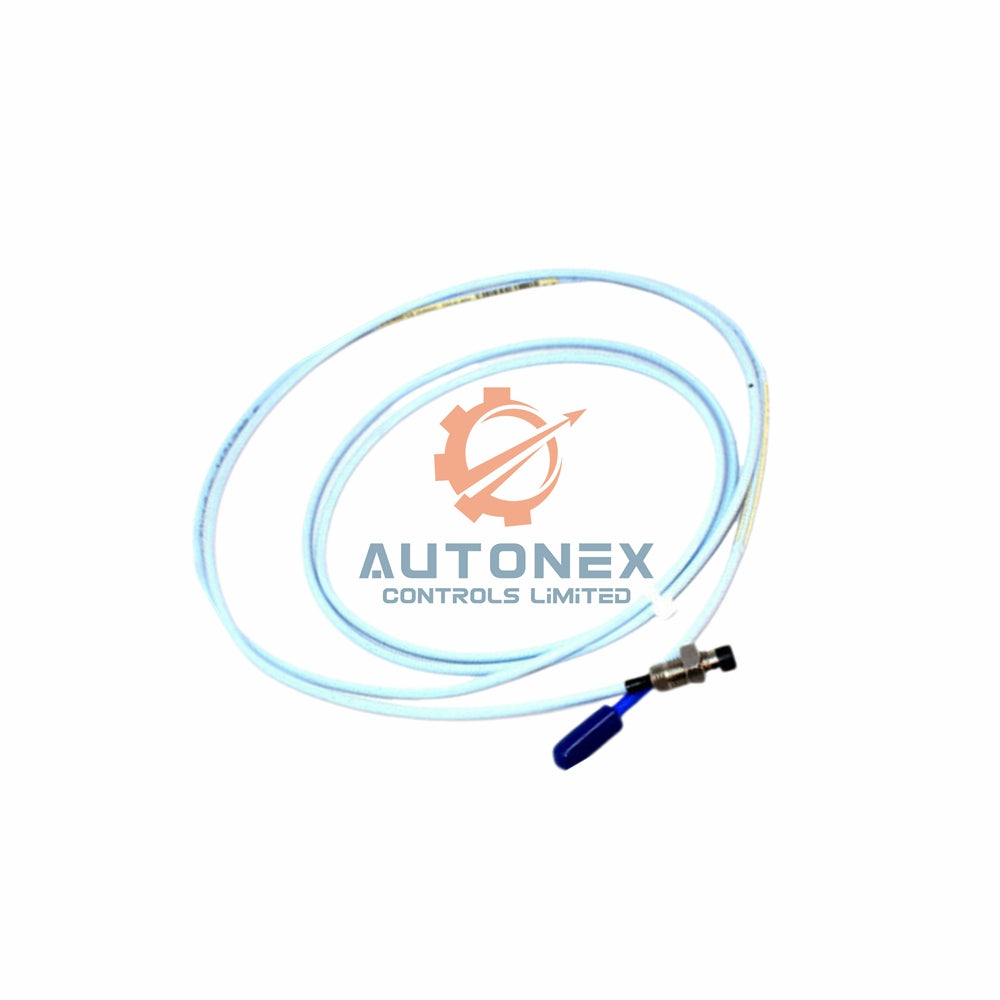

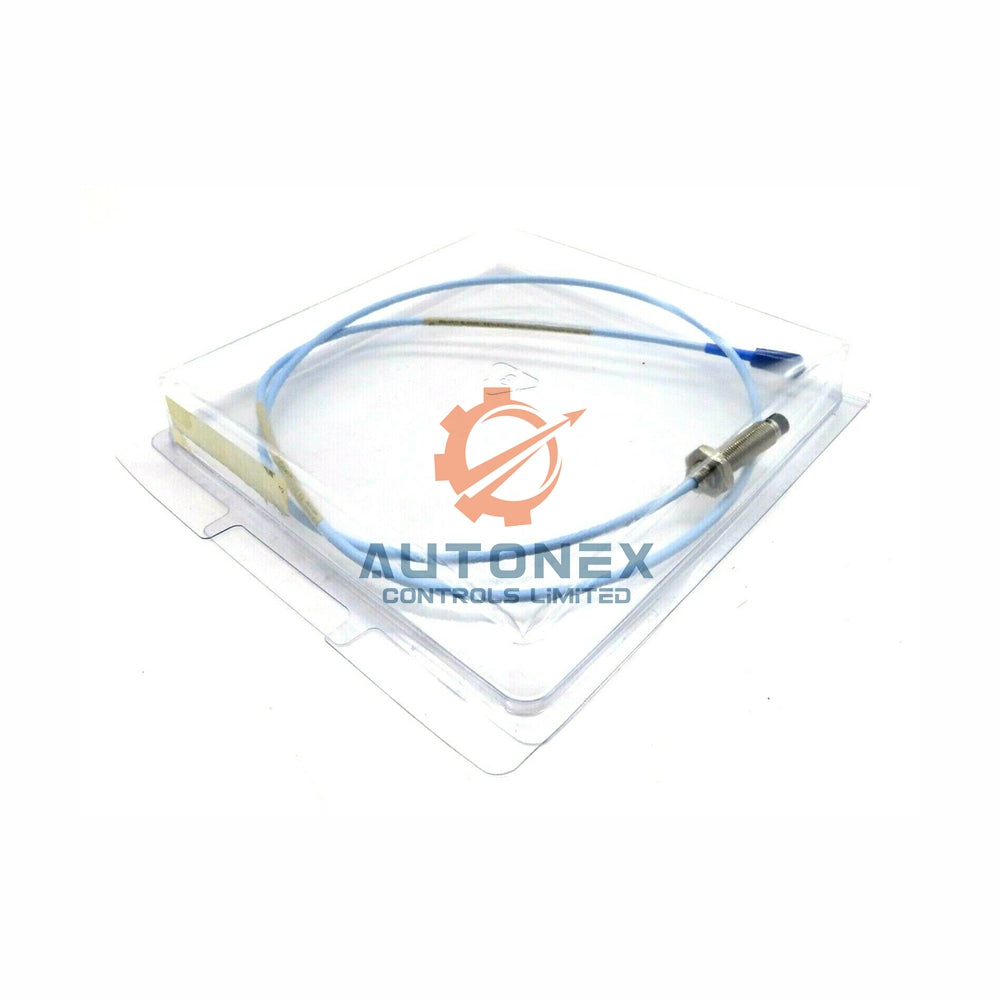

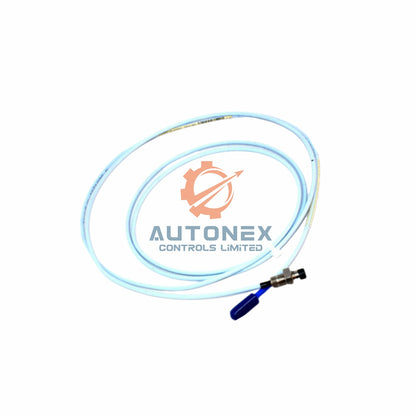

Bently Nevada 330709-000-030-10-11-05 3300 XL 11 mm Proximity Probe

• Brand & Series: Manufactured by Bently Nevada in the U.S.A., part of the 3300 XL family.
• Exact Model: 330709-000-030-10-11-05 – M16 x 1.5 thread, without armor, with connector protector.
• Unthreaded Length: 0 mm (000 option).
• Overall Case Length: 30 mm (030 option).
• Total Probe Length: 1.0 metre (3.3 feet) – option 10.
• Connector Type: Miniature coaxial ClickLoc connector with connector protector and FluidLoc cable (option 11).
• Agency Approval: Multiple approvals (option 05) for global compliance.

Key Technical Specifications

• DC Resistance (RPROBE): 5.9 ± 0.5 ohms from center to outer conductor for the 1.0 m probe.
• Recommended Flat Target Diameter: Minimum 30.5 mm (1.2 in).
• Recommended Shaft Diameter: Minimum 152 mm (6.0 in) to prevent cross-talk interference.
• Probe Case Torque (M16x1.5): Maximum 63.3 N•m (560 in•lb); Recommended 21.1 N•m (187 in•lb).
• Connector-to-Connector Torque: Finger tight recommended; Maximum 0.565 N•m (5 in•lb).
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without SST armor.
• Maximum Thread Engagement: 24 mm for M16x1.5 case threads.
• Cable Specification: 75 Ω triaxial, FEP insulated, FluidLoc cable for enhanced fluid resistance.

Temperature Range & Classifications

• Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F). Avoid exposing the probe below -34°C to protect the pressure seal.
• EPL Ga/Gc (Probe Only): T1 (-55°C to +232°C), T2 (-55°C to +177°C), T3 (-55°C to +120°C), T4 (-55°C to +80°C), T5 (-55°C to +40°C).
• EPL Dc: T280°C @ Ta (-55°C to +232°C), T225°C @ Ta (-55°C to +177°C), T170°C @ Ta (-55°C to +120°C), T130°C @ Ta (-55°C to +80°C), T105°C @ Ta (-55°C to +100°C), T90°C @ Ta (-55°C to +40°C).

Installation & Handling Guidelines

• Apply the recommended torque of 21.1 N•m for the M16x1.5 probe case.
• Keep the connector-to-connector torque at finger tight, not exceeding 0.565 N•m.
• Never bend the probe cable beyond the 25.4 mm minimum bend radius.
• Ensure the target surface diameter is at least 30.5 mm for accurate measurements.
• For shaft mounting, use a minimum shaft diameter of 152 mm to avoid cross-talk.

Package Contents

• 1 x 330709-000-030-10-11-05 3300 XL 11 mm proximity probe with 1.0 m FluidLoc cable.
• Miniature coaxial ClickLoc connector with connector protector.
• Standard FEP insulated triaxial cable (75 Ω).
• No mounting hardware or accessories included.

Shipping & Logistics

• We ship worldwide via FedEx, UPS, or DHL express services.
• Orders dispatch within 5 business days after order confirmation.
• We stock genuine new units ready for immediate shipment.

Frequently Asked Questions (FAQ)

• Q: Is this 330709-000-030-10-11-05 probe brand new and original?
  A: Yes, we supply 100% genuine new Bently Nevada probes with full traceability.
• Q: What is the total length of this probe?
  A: The 330709-000-030-10-11-05 has a total length of 1.0 metre (3.3 feet).
• Q: What is FluidLoc cable and why is it special?
  A: FluidLoc cable offers enhanced resistance to fluids and chemicals, making it ideal for harsh industrial environments.
• Q: What agency approvals does this probe have?
  A: This probe features multiple approvals (option 05) for global compliance in various regions.
• Q: Can I install this probe on a 100 mm shaft?
  A: No, the recommended minimum shaft diameter is 152 mm to avoid cross-talk interference.
• Q: What is the maximum ambient temperature for T4 classification?
  A: For T4, the ambient temperature range is -55°C to +80°C.
• Q: What torque should I apply to the M16x1.5 case?
  A: Use 21.1 N•m (187 in•lb) as the recommended torque; never exceed 63.3 N•m.
• Q: What shipping methods do you offer?
  A: We ship via FedEx, UPS, or DHL. Orders leave our warehouse within 5 business days.
• Q: What is your return policy?
  A: We accept returns within 30 days of delivery for unused items in original packaging.
