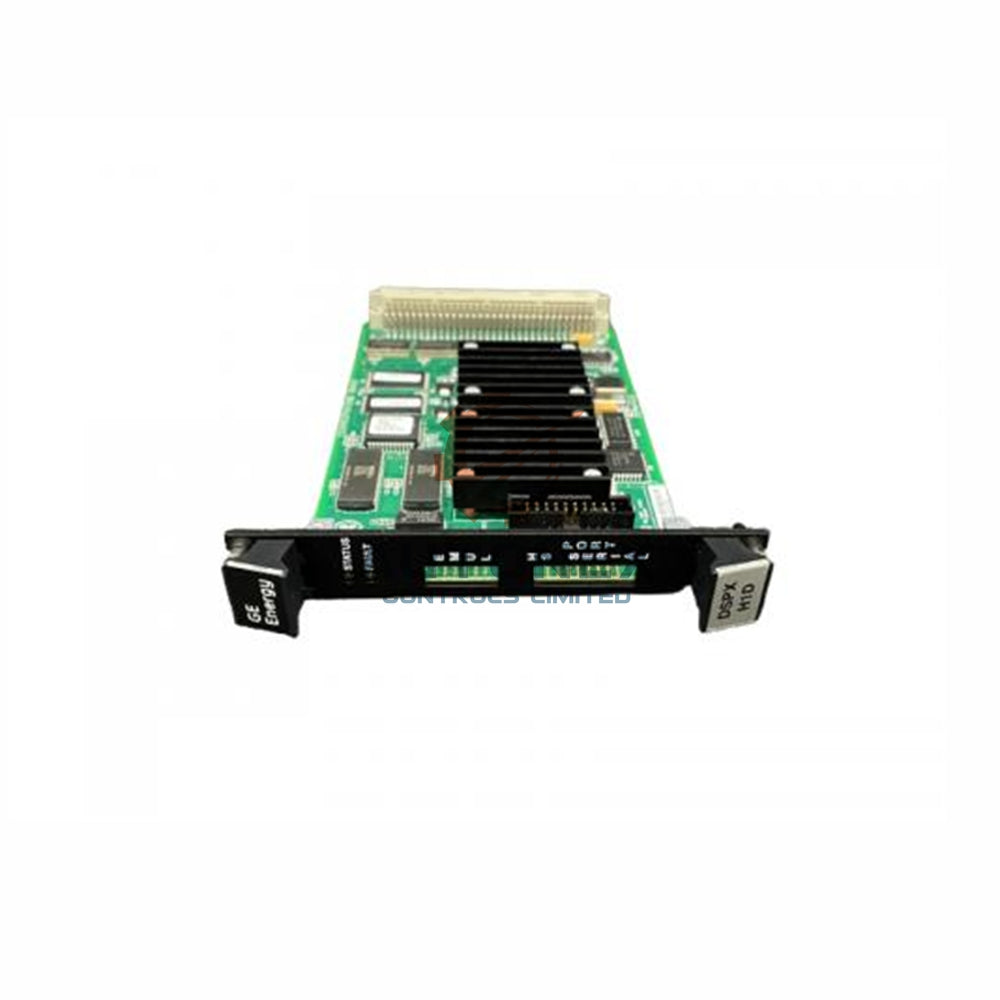

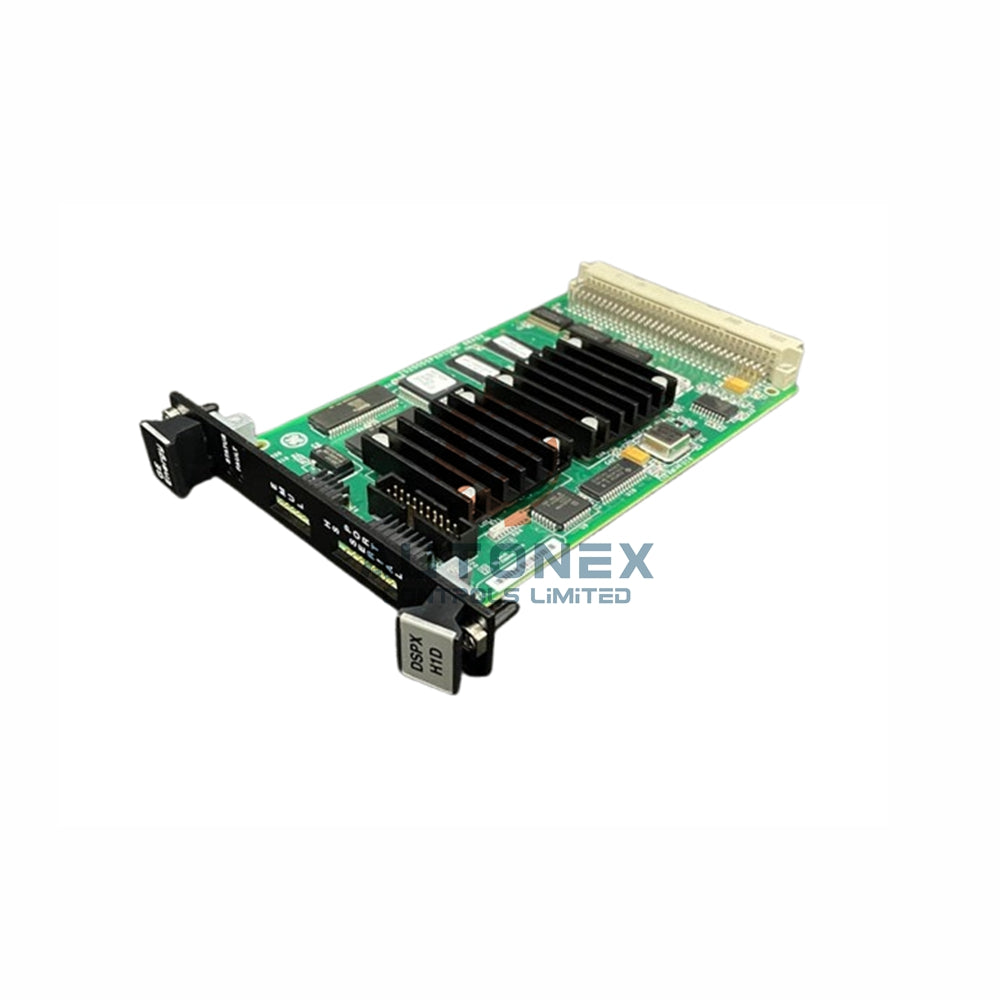

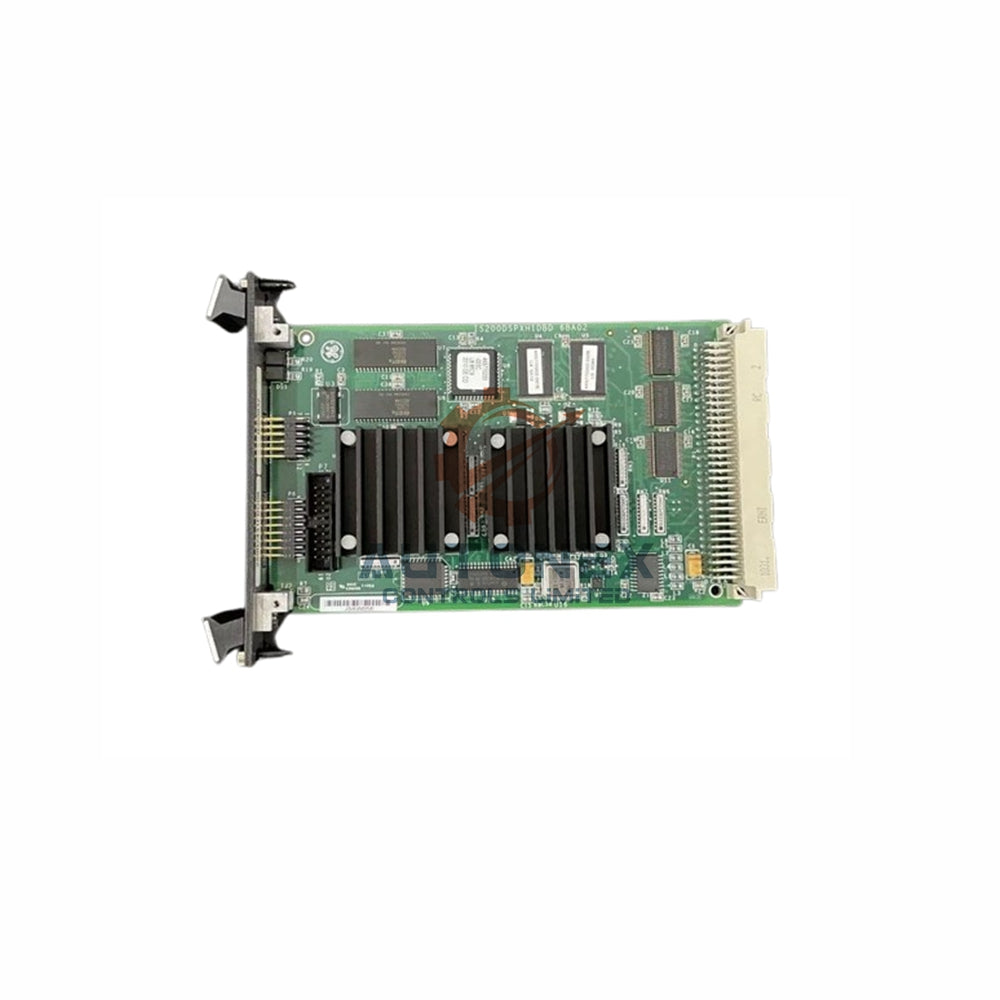

IS200DSPXH1BBD GE DSP Control Board EX2100

IS200DSPXH1BBD DSP Control Board by General Electric

Technical Specifications

• Brand: General Electric (GE Motors and Industrial Systems).
• Model Number: IS200DSPXH1BBD.
• Part Number: IS200DSPXH1BBD with assembly level base.
• Functional Revision: B with ISBus Revision One.
• Group Variation: H, includes conformal coating.
• Processing Speed: 60 MHz digital signal processor.
• Memory Types: Flash, NVRAM, RAM, and Add-Only memory.
• I/O Connectors: P1 backplane, P5 DSP emulator, P6 monitor port.
• External Interrupts: INT0 (stack overflow), INT1 (inner loop load pulse), INT2 and INT3 (configurable inputs).
• LED Indicators: DS1 (red fault) and DS2 (green status).
• Operating Temperature: 0 to 50 degrees Celsius for industrial environments.
• Environmental Tolerance: Conformal coating protects against moisture and dust.
• Noise Immunity: ASIC logic provides robust noise rejection for reliable field operations.

Key Features and Hardware Functions

• The IS200DSPXH1BBD includes a specialized 60 MHz DSP for real-time signal processing.
• It uses Flash memory for boot images, executable code, and system history records.
• NVRAM stores critical configuration parameters across power cycles.
• RAM provides fast temporary storage for code execution and data buffers.
• Add-only memory identifies board revisions for compatibility checks.
• Four external interrupts handle stack overflow, inner loop pulses, and custom inputs.
• A watchdog timer triggers a hard reset if a timeout occurs.
• A free-running 24-bit timer serves as a reference for control functions.
• The board connects to the backplane via a 128-pin, 4-row DIN connector.
• You can attach the IS200DSPXH1BBD to the EISB board or detach it for flexible configuration.

Memory and Firmware Management

• Boot loader manages the power-on sequence and system initialization.
• Do not reload or modify the boot loader in the field.
• Application code defines drive or exciter control functions via the Tool port.
• Configuration parameters load through the Unit Data Highway using toolbox software.
• Exciter parameters include voltage limits, feedback gains, and control modes.
• Drive parameters load into the ACL section via serial port, ISBus, or Ethernet.
• Flash memory stores DSP boot images and system history securely.

I/O Connectors and Interfaces

• P1 backplane connector supports memory mapping and four serial interfaces.
• Two 5 Mb/s ISBus interfaces can operate as master or slave.
• One asynchronous TTL interface connects to a PC-based configuration tool.
• One asynchronous TTL interface links to a programmer board.
• P5 DSP emulator port provides a scan interface for emulation and FLASH programming.
• P6 engineering monitor port establishes a connection with the DSP synchronous serial port.
• Test point ports P6 and P7 allow direct signal monitoring.

Installation Guidelines

• Position the IS200DSPXH1BBD securely inside the EX2100 board rack.
• Connect it to the backplane using the 128-pin DIN connector.
• Ensure the board has no adjustable hardware or user test points.
• Attach or detach the EISB board as needed for your system configuration.
• Verify that the conformal coating remains intact for environmental protection.
• Do not apply external force to the LEDs or connector pins during installation.

Package List

• One IS200DSPXH1BBD DSP Control Board (factory sealed).
• No additional cables or mounting hardware included.
• Product documentation: quick reference guide (digital download).

Shipping and Logistics

• We ship via FedEx, UPS, and DHL for global delivery.
• All orders dispatch within 5 business days after payment confirmation.
• We keep this model in stock for immediate shipment.
• We support 30-day returns for unopened and unused units.

Frequently Asked Questions (FAQ)

• Q: Is the IS200DSPXH1BBD brand new and original?
  A: Yes, we supply only brand new and original units directly from authorized sources.
• Q: What memory types does this board include?
  A: It includes Flash, NVRAM, RAM, and add-only memory for different storage needs.
• Q: Can I detach this board from the EISB board?
  A: Yes, you can detach or attach the EISB board without special tools.
• Q: What does the green DS2 LED indicate?
  A: A flashing DS2 LED means normal operation. A solid light shows the DSP stopped.
• Q: How do I load configuration parameters?
  A: Use the Unit Data Highway with standard toolbox software for parameter loading.
• Q: What happens during a watchdog timer timeout?
  A: A timeout triggers a hard reset to protect system integrity.
• Q: Do you have stock of the IS200DSPXH1BBD?
  A: Yes, we have this model in stock and ready to ship.
• Q: What is the typical repair time?
  A: Standard repair service takes 3 to 5 days.
