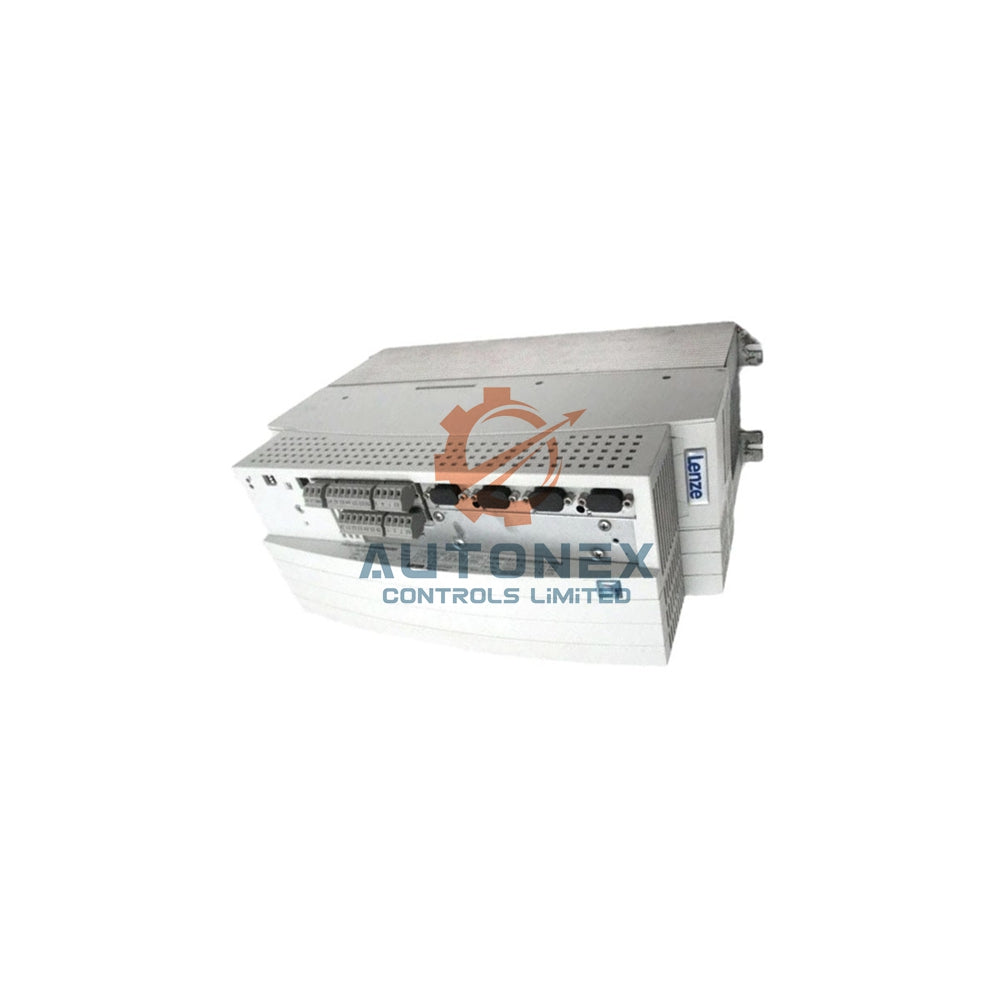

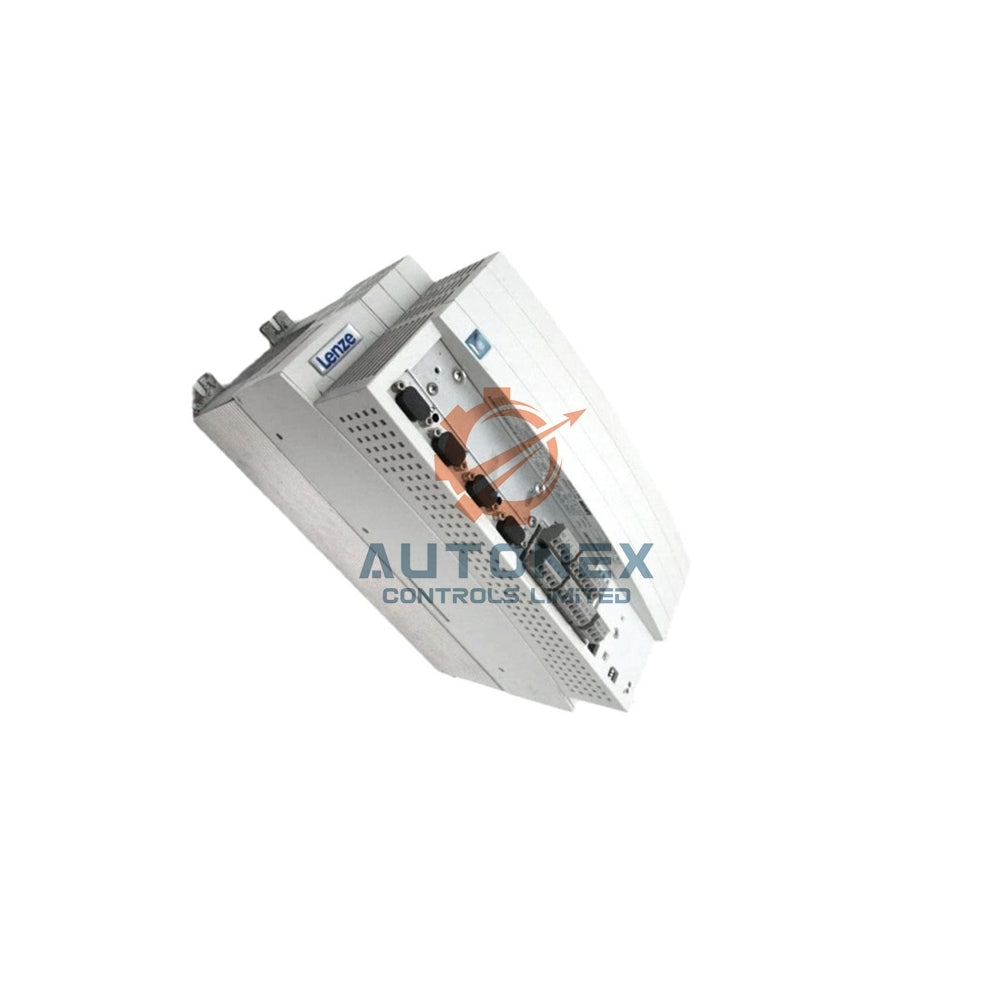

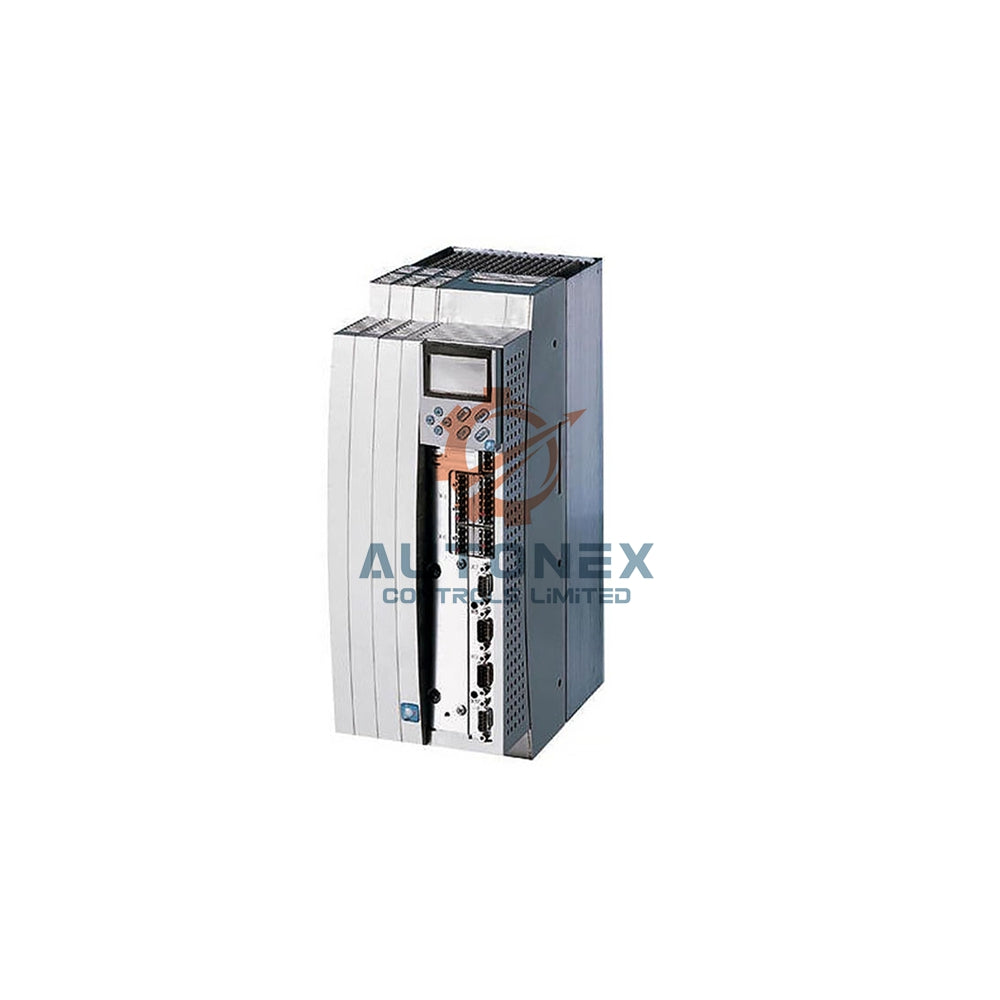

EVF9382-EVV060 Lenze 9300 Vector Inverter 315 kW Drive

EVF9382-EVV060 Lenze 9300 Vector Frequency Inverter

Technical Specifications

• Brand: Lenze
• Model: EVF9382-EVV060
• Series: 9300 vector
• Variant: EVV060 with integrated brake transistor, brake resistor external
• Construction: Master plus slave parallel design
• Rated motor power: 315 kW for a 4-pole asynchronous motor at 3 AC 400 V
• Output current: 600 A nominal at 2 kHz chopper frequency
• Maximum output current: 900 A for 60 s
• Overload capacity: 150% rated torque for 60 s
• Control methods: U/f characteristic control (linear or square), vector control and sensorless speed control
• Chopper frequency: Adjustable to 1, 2 or 4 kHz
• Output frequency range: 0…600 Hz at 16 kHz, 0…300 Hz at 8 kHz, and 0…150 Hz at 2 or 4 kHz for sizes 9321–9333
• Power loss: 8 kW
• Cooling: Internal fan with bottom-to-top airflow
• Supply voltage: 3/PE AC 340…456 V nominal at 45…65 Hz
• DC supply: Not possible on this 110–400 kW platform
• Operating temperature: 0…+50 °C
• Storage temperature: -20…+60 °C
• Humidity class: Class F, non-condensing
• Protection rating: IP20
• Dimensions (H×W×D): 1145×1050×436 mm across the master and slave units
• Weight: 320 kg

Communication and Signal Quality

• Built-in ports: AIF automation interface (X1) for a pluggable fieldbus module and CAN system bus (X4)
• Integrated protocol: CAN system bus runs as standard on the drive
• AIF fieldbus modules: LECOM-A/B, PROFIBUS DP, CANopen, DeviceNet, INTERBUS and LON
• Standard scope: No fieldbus module is integrated, so order the AIF module that matches your network
• Anti-interference design: Shielded signal routing and the master-slave layout keep control stable under load
• Resolution and sensitivity: Sensorless speed control maintains accurate torque response across the full frequency range

Installation Guide

• Mount the 320 kg master and slave pair on a stable floor frame with bottom-to-top airflow clearance.
• Connect the 3/PE AC supply within 340…456 V and confirm the 45…65 Hz line frequency.
• Keep ambient temperature at or below +50 °C and avoid condensing humidity around the cabinet.
• Wire the external brake resistor to the integrated brake transistor before you start braking cycles.
• Set the chopper frequency to 1, 2 or 4 kHz according to your motor and noise requirements.
• Fit the AIF fieldbus module on X1 and wire motor cables with shielding to preserve signal quality.

Package Contents

• 1 × Lenze EVF9382-EVV060 frequency inverter, master and slave units
• 1 × printed terminal assignment and wiring diagram
• 1 × mounting hardware set
• Protective packaging for safe transport via FedEx, UPS or DHL

Lifecycle and Migration

• Lenze lists this order code in its previous-products documentation as a legacy drive.
• Newer drive generations replace the 9300 vector series over time.
• Lenze includes the 9300 in its official i950 migration set alongside 8200vector, 8400 and 9400.
• The i950 migration uses the i950 PROFIBUS module and the L_ICIP library.
• No drop-in replacement shares the same order code, so plan the upgrade carefully.

FAQ

• Q: What motor power does the EVF9382-EVV060 support?
  A: It drives a 315 kW four-pole asynchronous motor on a 3 AC 400 V supply.
• Q: How much overload can the drive handle?
  A: It delivers 150% rated torque for 60 s and reaches 900 A maximum output current.
• Q: Does the EVV060 variant include a brake resistor?
  A: It includes the brake transistor, while the brake resistor remains external.
• Q: What is the output frequency range?
  A: It reaches 0…600 Hz at 16 kHz, 0…300 Hz at 8 kHz and 0…150 Hz at 2 or 4 kHz.
• Q: Does the drive include a fieldbus module?
  A: No, the AIF slot accepts pluggable modules such as PROFIBUS DP, CANopen or DeviceNet.
• Q: What supply voltage does it need?
  A: It runs on 3/PE AC 340…456 V at 45…65 Hz, and DC supply is not possible.
• Q: What are the protection rating and weight?
  A: The housing offers IP20 protection and the master-slave unit weighs 320 kg.
• Q: Is the product new and in stock?
  A: Yes, we offer brand new original units and keep them in stock now.
• Q: How fast do you ship and which carriers do you use?
  A: We ship within 5 days through DHL, FedEx or UPS.
• Q: Can I return the product?
  A: Yes, we support returns within 30 days of delivery.
