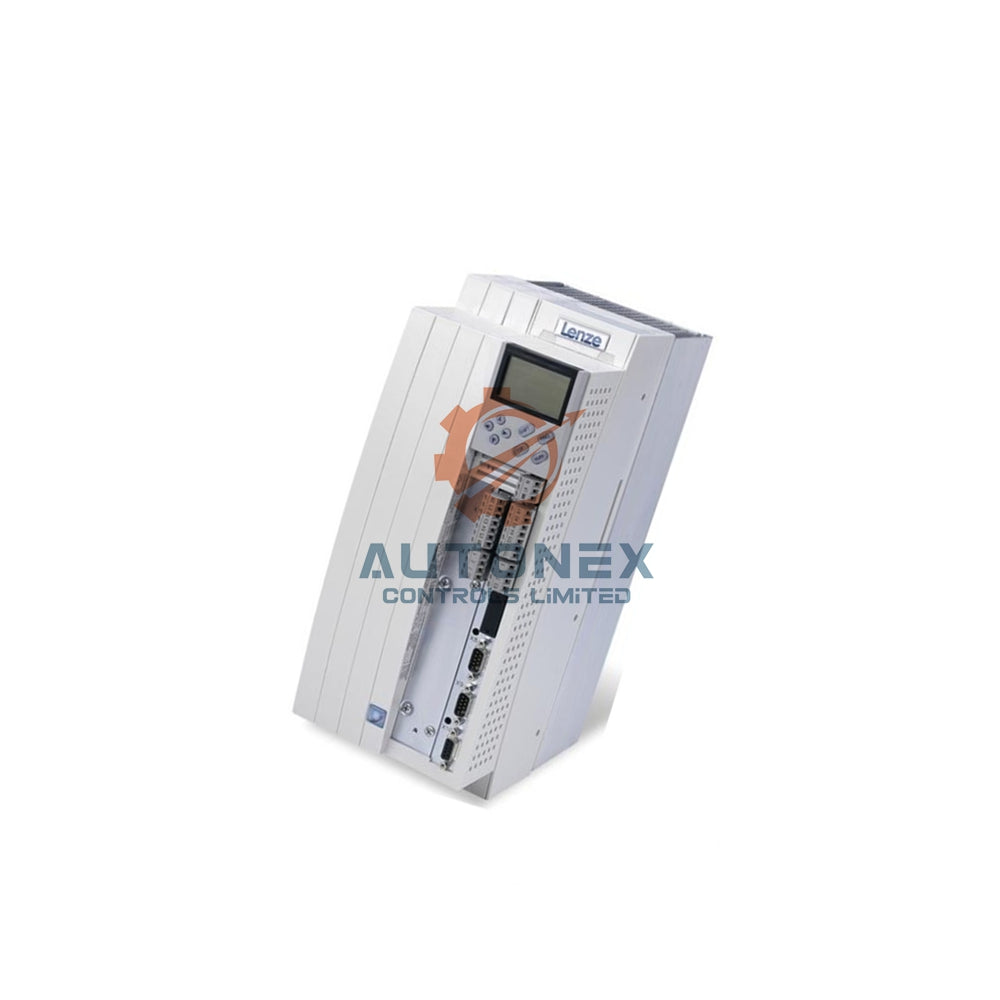

EVS9322-EK Lenze Global Drive 9300 Servo Cam Profiler

EVS9322-EK Lenze Global Drive 9300 Servo Inverter

Technical Specifications

• Brand: Lenze
• Model: EVS9322-EK
• Series: Global Drive 9300 Servo Inverters
• Category: Servo inverter / cam profiler
• Rated motor power: 0.75 kW for a 4-pole asynchronous motor at 400 V
• Rated output current: 2.5 A nominal at 8 kHz switching frequency
• Maximum output current: 3.8 A at 8 kHz in overload mode
• Overload capacity: 150% of rated current
• Control: field-oriented servo control (SC) for synchronous and asynchronous motors
• Analog inputs: 2, ±10 V (switchable 0 to 20 mA), 11 bits plus sign
• Analog outputs: 2, 9 bits plus sign
• Digital inputs: 6 (1 controller enable plus 5 freely assignable), PLC level per IEC 61131-2
• Digital outputs: 4, 50 mA per output
• Resolver input: Sub-D 9-pin
• Encoder input: multi-encoder input for TTL/SinCos incremental and Hiperface absolute encoders
• Digital frequency input/output: two-track each, Sub-D 9-pin
• Supply voltage: 3/PE AC 320 to 528 V nominal, 45 to 65 Hz; alternative DC 460 to 740 V
• Power loss at 400 V: 110 W
• Dimensions: 350 × 78 × 250 mm (H×W×D)
• Weight: 3.5 kg

FAQ

• Q: What motor power does the EVS9322-EK support?
  A: It drives a 0.75 kW four-pole asynchronous motor at 400 V.
• Q: Which feedback devices can I connect?
  A: You can use resolvers, TTL/SinCos incremental encoders and Hiperface absolute encoders.
• Q: What overload current does the drive deliver?
  A: It reaches 3.8 A at 8 kHz switching frequency, which is 150% of rated current.
• Q: Which fieldbus modules fit the AIF slot?
  A: PROFIBUS DP, DeviceNet, INTERBUS and LECOM A/B modules are available.
• Q: What is the operating temperature range?
  A: The drive runs from 0 to +55 °C with derating above +40 °C.
