GE Fanuc IC694TBC032 Terminal Block | RX3i PACSystems

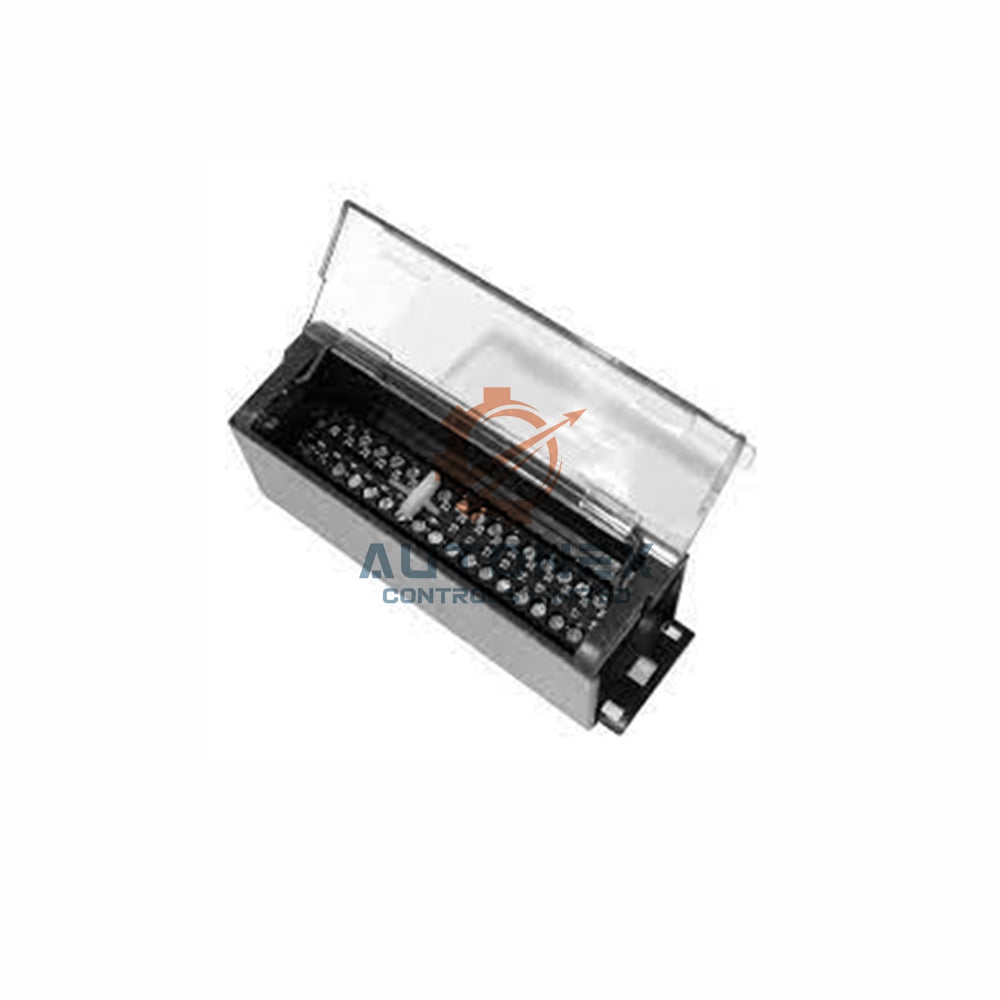

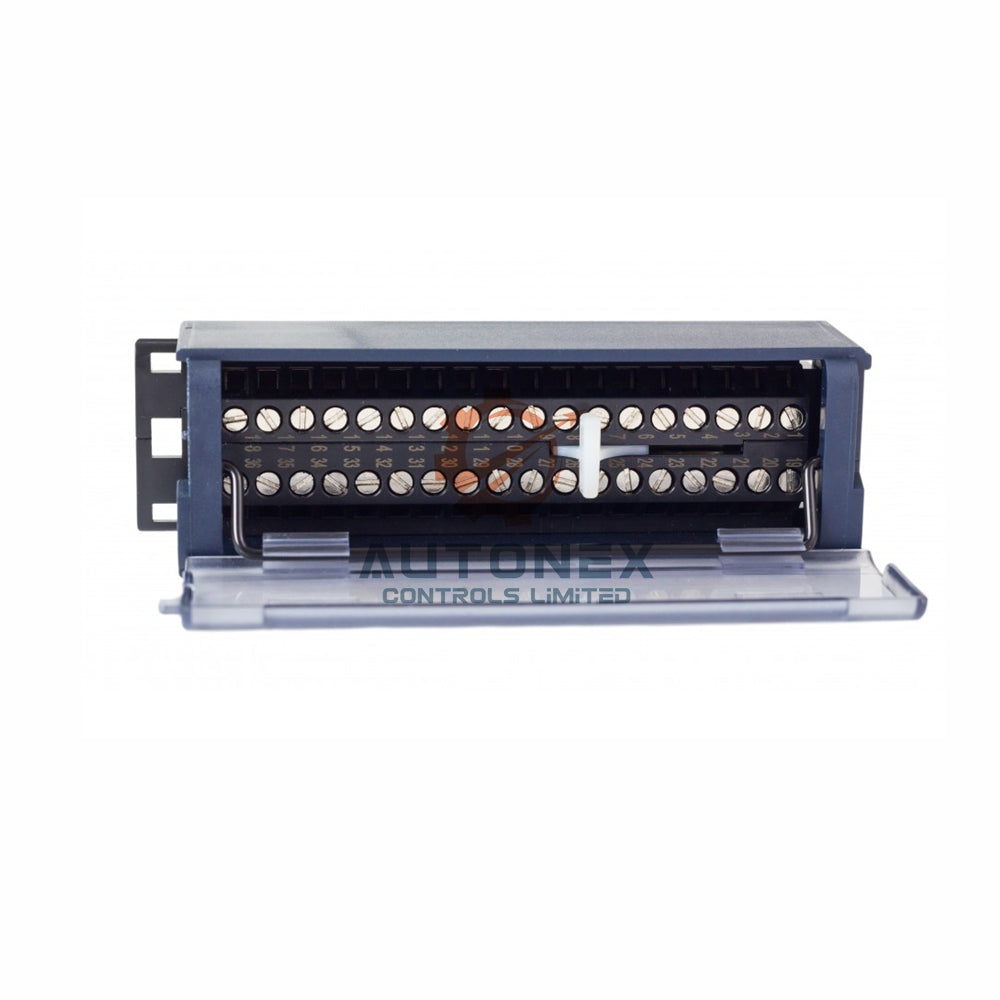

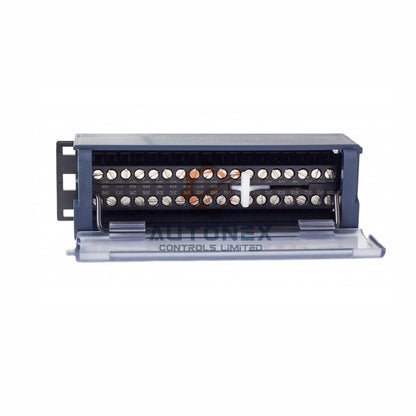

GE Fanuc IC694TBC032 RX3i PACSystems Terminal Block Overview

• The IC694TBC032 terminal block accommodates 12 to 24 AWG wire sizes, providing flexibility for various field wiring requirements.
• This unit operates within a wide temperature range of -20°C to 60°C, making it suitable for diverse industrial environments.
• The terminal block supports cable lengths up to 3 meters and provides 1500V AC isolation for robust electrical protection.
• Engineers commonly use the IC694TBC032 in factory machines, motor controls, and water systems for reliable I/O connections.
• Please note that this terminal block is not compatible with thermocouple modules, ensuring proper application selection.

Technical Specifications and Features

• Brand and Series: This unit is a GE Fanuc IC694TBC032 from the RX3i PACSystems series, ensuring genuine compatibility.
• Connector Type: The terminal block features a 36-pin D-sub connector for secure and reliable I/O module connections.
• Compatibility: This block works with analog and discrete I/O modules and pairs specifically with the IC694RTB032 terminal block.
• Application Note: The IC694TBC032 requires shielded cables for optimal performance and noise reduction in industrial settings.
• Isolation Rating: With 1500V AC isolation, this component provides excellent protection against electrical interference and voltage spikes.

Installation and Operating Conditions

• Mounting Method: The IC694TBC032 mounts directly onto the I/O module, requiring secure connector engagement for proper operation.
• Operating Temperature: This terminal block functions reliably in temperatures ranging from -20°C to 60°C, suitable for most industrial control cabinets.
• Wire Range: It supports wire sizes from 12 to 24 AWG, accommodating standard industrial field wiring practices.
• Cable Length: You can use shielded cables up to 3 meters in length with the IC694TBC032 for flexible installation options.
• Installation Check: Always verify all wire connections are secure and properly seated before applying power to the system.

Common Applications and Packaging

• Factory Machines: The IC694TBC032 provides reliable I/O connections for automated manufacturing equipment and production lines.
• Motor Controls: This terminal block works well with motor control systems requiring analog or discrete signal interfacing.
• Water Systems: Engineers use this component in water treatment and distribution systems for reliable process control.
• Package Contents: Your order includes one brand-new IC694TBC032 terminal block, ready for installation.
• Inventory Status: We maintain the RX3i IC694TBC032 in stock for immediate fulfillment.

Frequently Asked Questions (FAQ)

• Q: What wire size does the IC694TBC032 terminal block support?
  A: This terminal block accepts wire sizes ranging from 12 AWG to 24 AWG for flexible field wiring options.
• Q: What is the operating temperature range for the IC694TBC032?
  A: The unit operates reliably between -20°C and 60°C, making it suitable for most industrial environments.
• Q: Is the IC694TBC032 compatible with thermocouple modules?
  A: No, this terminal block is not designed for thermocouple modules. Use it only with analog and discrete I/O modules.
• Q: What cable type does the IC694TBC032 require?
  A: This terminal block requires shielded cables for optimal performance and noise reduction in industrial applications.
• Q: What is the isolation voltage rating of this terminal block?
  A: The IC694TBC032 provides 1500V AC isolation for robust protection against electrical interference.
• Q: Does the IC694TBC032 work with the IC694RTB032 block?
  A: Yes, this terminal block is designed to work specifically with the IC694RTB032 block for complete I/O solutions.
