Bently Nevada 200350-10-00-00 Accelerometer: Adhesive Mount Solution

Product Overview & Identification

• Brand: Bently Nevada
• Product Series: 200350 Accelerometer
• Complete Model Number: 200350-10-00-00
• Manufacturing Origin: Made in USA
• Documentation: Certificate of Origin (COO) available upon request

Model Number Suffix Decoder

• 200350: Base Accelerometer Model
• -10: Mounting Stud Type = 1/4-28 Adhesive Stud Mount
• -00: Output Sensitivity = 100 mV/g ±20%
• -00: Agency Approvals = No Specific Approvals

Core Performance Specifications

• Sensitivity: 100 mV/g ±20% (10.2 mV/(m/s²) ±20%)
• Frequency Range: 30 to 600,000 cpm (0.5 to 10,000 Hz)
• Maximum Measurement Range: ±50 g
• Transverse Sensitivity: ≤ 7%
• Amplitude Linearity: ±1% of full scale
• Mounted Resonant Frequency: 1500 kcpm (25 kHz)
• Broadband Noise (1-10 kHz): 350 µg (3,434 µm/s²)
• Output Bias Voltage: 8 to 12 VDC

Electrical & Operational Parameters

• Excitation Voltage: 18 to 28 VDC
• Constant Current Excitation: 2 to 20 mA
• Output Impedance: < 150 ohms
• Discharge Time Constant: ≥ 0.3 seconds
• Electrical Isolation (Case): > 10⁸ ohms
• Settling Time: < 2.0 seconds to within 1% of final bias

Environmental & Durability Ratings

• Operating Temperature: -65°F to +250°F (-54°C to +121°C)
• Storage Temperature: -67°F to +257°F (-55°C to +125°C)
• Shock Survivability: 5,000 g pk (operating)
• Enclosure Rating: IP68 (dust-tight and submersible)
• Relative Humidity: 100% condensing, non-submerged

Physical & Mechanical Details

• Primary Mounting: 1/4-28 Adhesive Stud Mount (Configuration -10)
• Alternative Mounting Thread: ¼-28 Female in sensor base
• Maximum Mounting Torque: 2 to 5 ft-lb (2.7 to 6.8 N·m)
• Housing Material: Stainless Steel, Hermetically Sealed

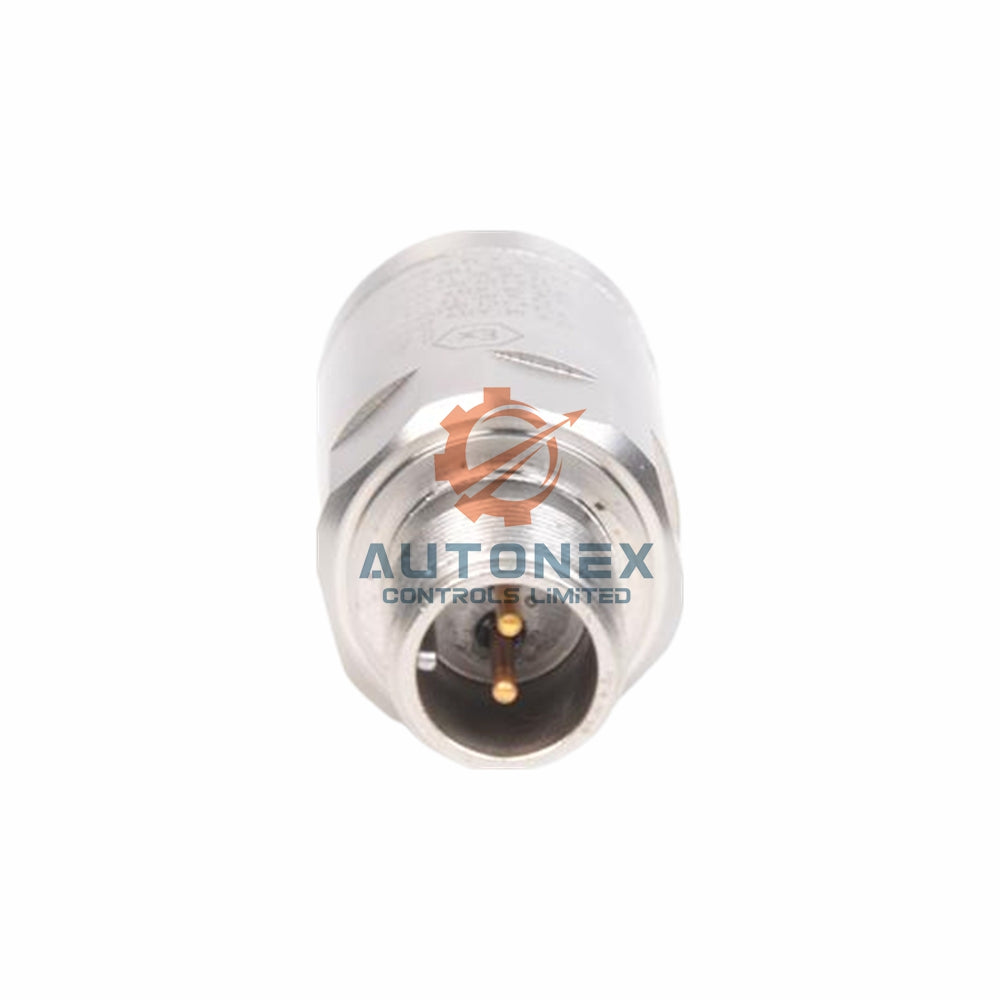

• Electrical Connector: 2-Pin Mil-C-5015, Top Exit
• Sensing Element: Ceramic Shear Design
• Hex Size: 11/16 inch (1.8 cm)
• Height: 1.65 inch (4.24 cm)
• Weight: 0.051 kg (51 grams)

Frequently Asked Questions (FAQ)

• Q: What does the "-10" mean in model 200350-10-00-00?
  A: It specifies an adhesive stud mount (1/4-28), ideal for non-permanent or non-drilled installations.
• Q: What are the key performance specs?
  A: It features 100 mV/g sensitivity, a 0.5-10,000 Hz range, and measures up to ±50 g.
• Q: Is this sensor waterproof and durable?
  A> Yes, it has an IP68 rating for submersion and a stainless steel housing for harsh environments.
• Q: What power does it need?
  A: Standard operation requires 18-28 VDC with a 2-20 mA constant current supply.
• Q: Is this model new and authentic?
  A: We supply only new, original, and authentic Bently Nevada sensors, all USA-made.
• Q: What is your shipping and return policy?
  A> We ship via DHL/FedEx/UPS within 5 business days and offer a standard 30-day return policy.

Get the Complete Technical Manual
For installation guidelines for the adhesive mount, wiring diagrams, and full technical data for the 200350 series, download the official PDF.

Download Full 200350 Series Datasheet PDF Here

For more information on the Bently Nevada 200350-10-00-00 or to discuss your application needs, please get in touch with our team.
