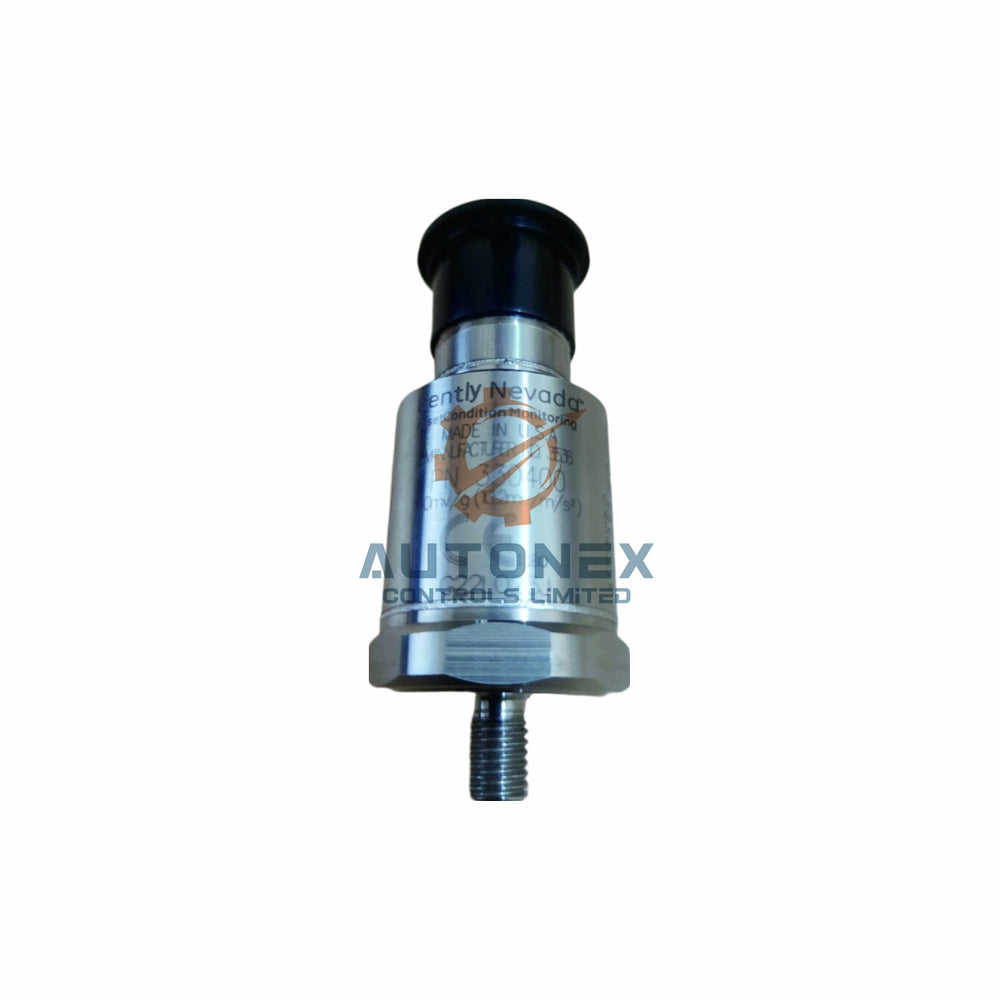

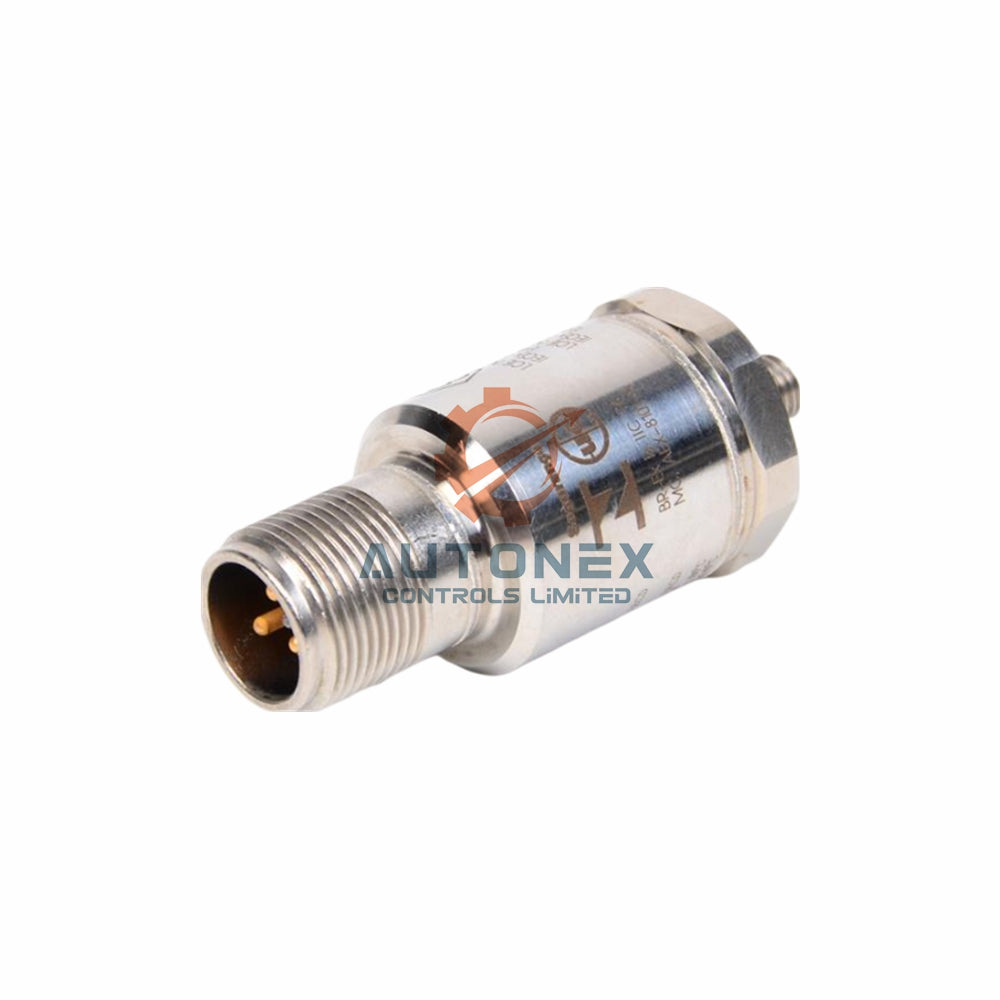

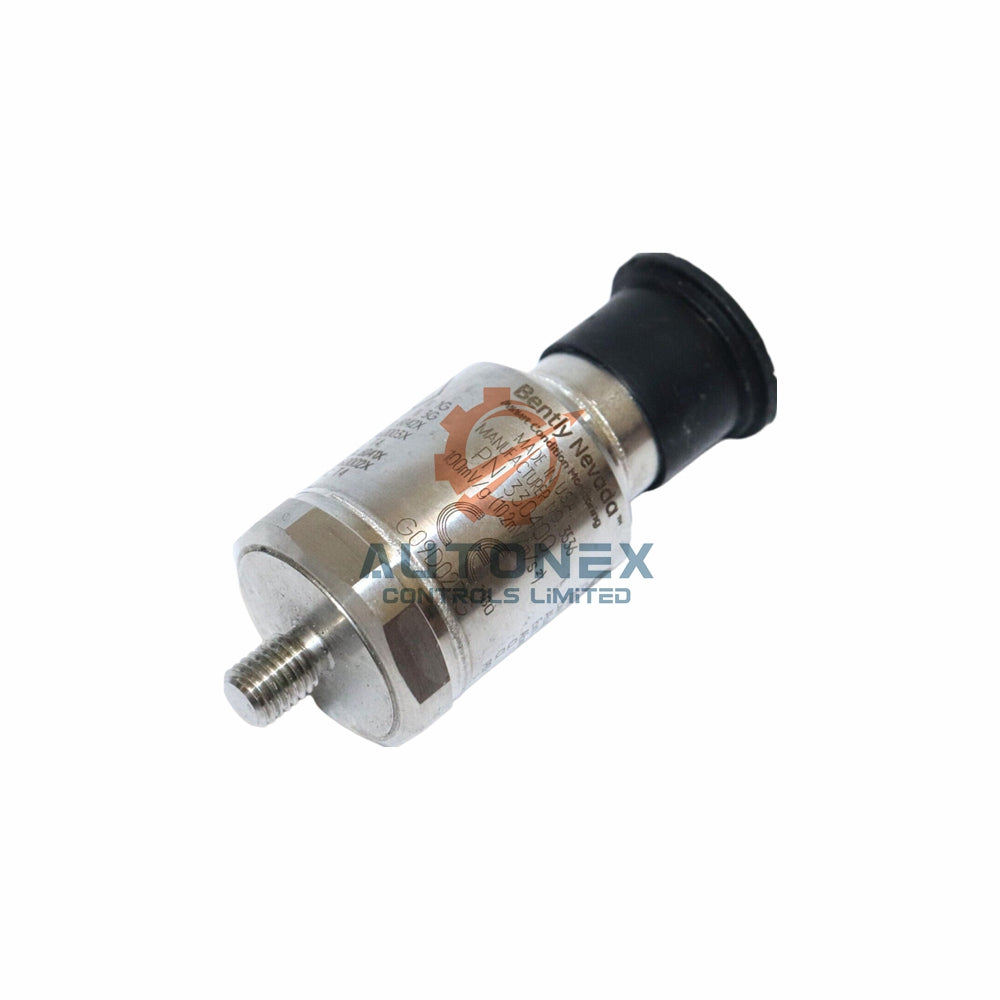

Bently Nevada 200350-11-00-CN Accelerometer – 100 mV/g

Bently Nevada 200350-11-00-CN Accelerometer – Precision Vibration Sensing

Core Technical Specifications

• Manufacturer: Bently Nevada
• Model Series: 200350 Accelerometer
• Full Part Number: 200350-11-00-CN
  • 200350 → Series
  • -11 → 100 mV/g sensitivity, top exit, 10 ft integral cable
  • -00 → Standard mounting stud, no filter
  • CN → Certified for China market
• Sensitivity: 100 mV/g ± 20% (10.2 mV/m/s² ± 20%)
• Frequency Range: 30 to 600,000 cpm (0.5 to 10,000 Hz) within ±3 dB
• Measurement Range: ±50 g peak
• Amplitude Linearity: ±1%
• Transverse Sensitivity: ≤7%
• Mounted Resonant Frequency: 1,500 kcpm (25 kHz)
• Electrical Noise (1-10 kHz): 350 µg (3,434 µm/s²)

Physical and Mechanical Features

• Height: 1.65 inches (4.24 cm)
• Weight: 0.051 kg — lightweight for minimal mass loading
• Hex Size: 11/16 inch (1.8 cm) for easy installation
• Housing Material: Stainless steel, welded hermetic seal
• Mounting Thread: 1/4-28 female; apply 2 to 5 ft-lb (2.7 to 6.8 N·m) torque

Frequently Asked Questions

• What is the sensitivity of the 200350-11-00-CN?
  This model provides 100 mV/g ± 20%. It suits general-purpose vibration monitoring on pumps, motors, and fans.
• Can I use this accelerometer in hazardous areas?
  The 200350-11-00-CN features a stainless steel hermetic housing. It resists dust and moisture but does not carry intrinsic safety approvals.
• What cable length does this version include?
  The -11 suffix indicates a top exit design with a 10-foot integral cable. This cable is permanently attached and sealed.
• Does this sensor support AC or DC coupling?
  It requires constant current power between 18 and 30 VDC. The output is AC-coupled vibration signal.
• Is this model RoHS compliant?
  Yes, the 200350-11-00-CN complies with RoHS directives for restricted hazardous substances.
• Do you have stock for this item?
  Yes, we keep new original units in stock ready for immediate shipment.
• Which shipping carriers do you use?
  We ship via FedEx, UPS, or DHL — you can choose your preferred carrier.

Download Product Documentation

Download 200350 and 200355 Accelerometers PDF
