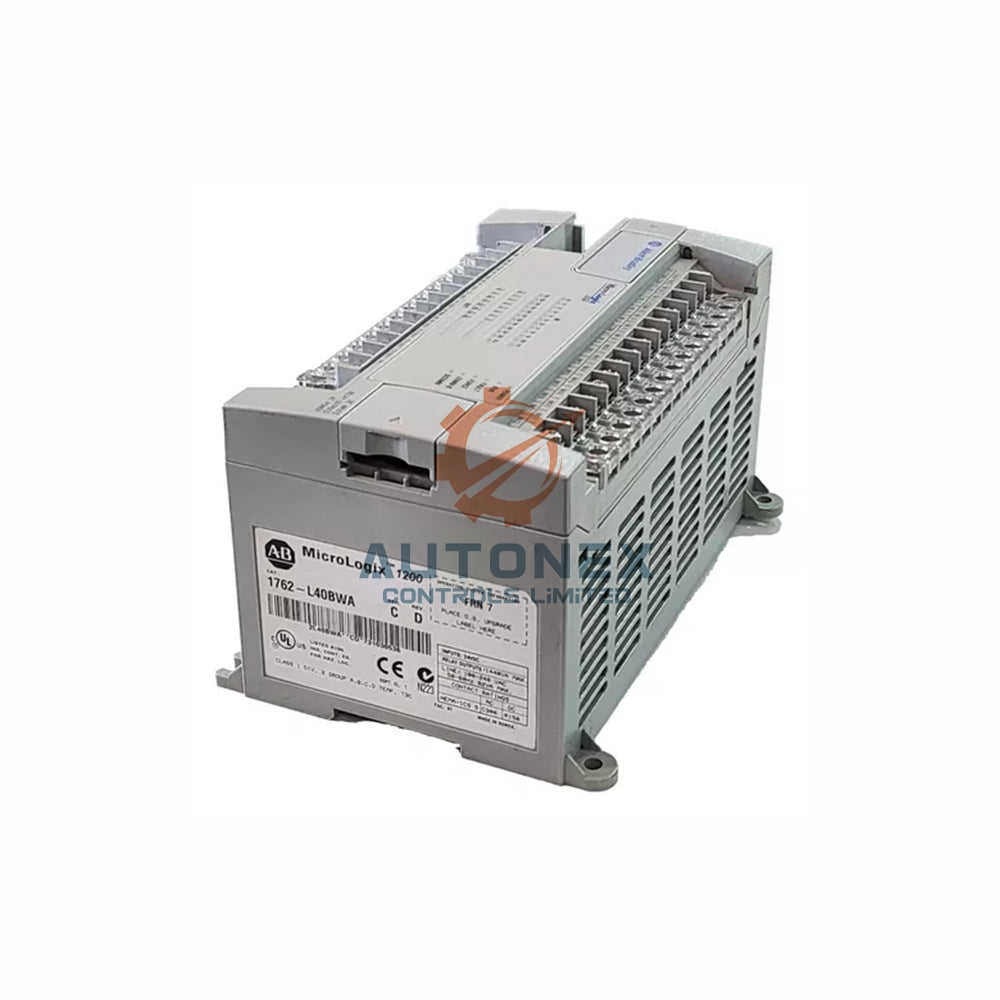

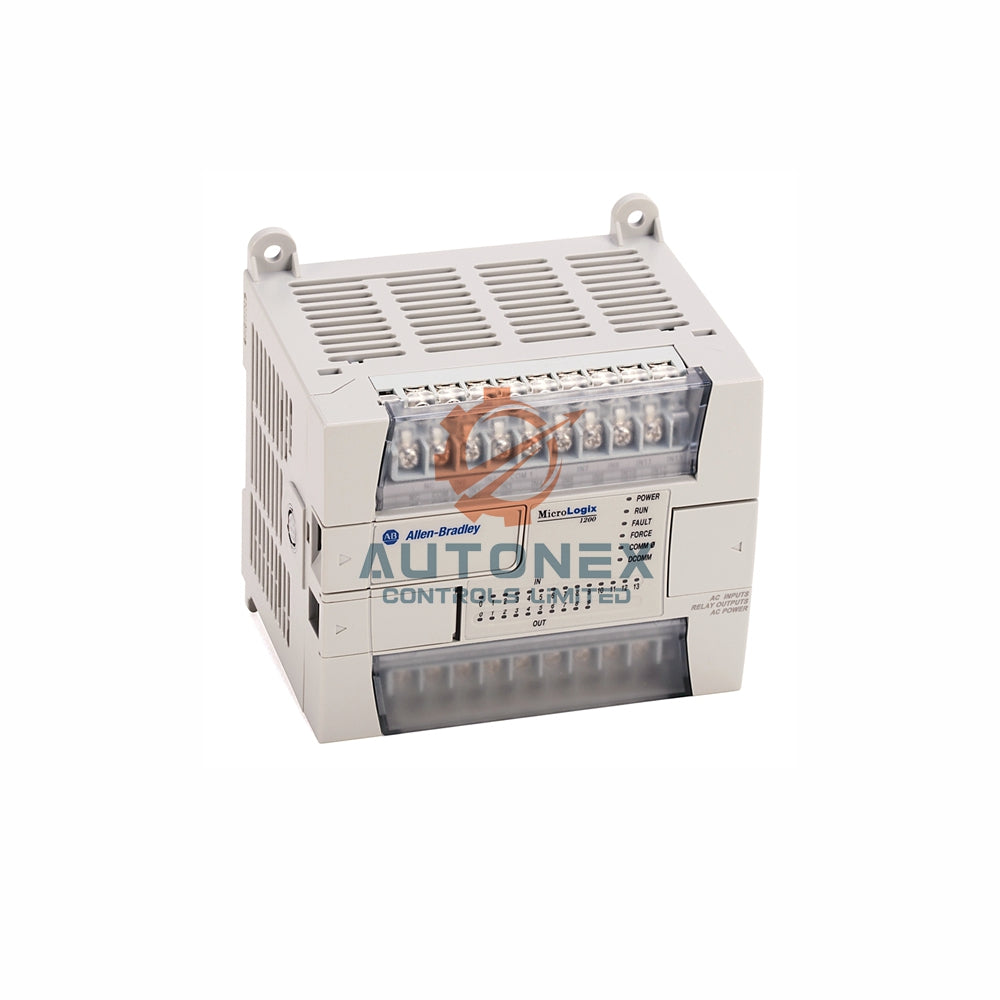

Allen-Bradley 1762-L40BWA MicroLogix 1200 PLC Module

Allen-Bradley 1762-L40BWA MicroLogix 1200 Programmable Controller

Technical Specifications and Power Details

• The Allen-Bradley 1762-L40BWA requires an input power of 120 to 240 Volts AC with an operating frequency of 47 to 63 Hertz.
• It features twenty standard 24V DC inputs plus four fast 24V DC inputs, supporting both sinking and sourcing wiring configurations.
• The output circuit includes sixteen relay contacts rated for 24-125VDC and 120-240VAC, handling a minimum load current of 10A.
• This controller consumes 82 VA of power usage, with an inrush current of 25A for 8 ms at 120V ac or 40A for 4 ms at 240V ac.
• Operating temperature ranges from 0 to 55 degrees Celsius, making it suitable for controlled industrial environments.

Installation and Mounting Guidelines

• You can mount the 1762-L40BWA easily on a DIN Rail or directly to a panel using its integrated mounting holes.
• The unit measures 160 mm in width, 87 mm in depth, and 90 mm in height (104 mm with the DIN latch open).
• Always install this electronic device in a protective enclosure to maintain ambient temperatures between 0 and 55 degrees Celsius.
• Use appropriate climate control devices, such as fans or heaters, to ensure reliable operation within the specified thermal limits.

Communication and Connectivity Features

• The MicroLogix 1200 1762-L40BWA includes an integrated 8-pin Mini DIN RS232 communication port for flexible networking.
• It supports multiple protocols including DF1 Full/Half Duplex, DH-485, Modbus Master/Slave, and ASCII in peer-to-peer configurations.
• You can use external converters like the 1761-NET-AIC to connect the serial port to a DH-485 network bus.
• For expanded connectivity, employ RS232 to Ethernet or RS232 to RS485 converters to communicate with multiple devices simultaneously.

Frequently Asked Questions (FAQ)

• Is the 1762-L40BWA a sinking or sourcing input module? The Allen-Bradley 1762-L40BWA supports both sinking and sourcing wiring configurations for its 24V DC inputs, offering maximum flexibility.
• What is the relay contact rating for the outputs? The relay outputs on this MicroLogix 1200 controller are rated for 24-125VDC and 120-240VAC, with a minimum load current of 10A.
• Do you offer a return policy for this PLC? Yes, we support returns within 30 days of receiving the item, provided it remains in its original, unused condition.
• What communication protocols does the 1762-L40BWA support? This model supports DH-485, DF1 Full and Half Duplex, Modbus Master and Slave, and ASCII protocols via its RS232 port.
• Can you ship this item internationally? Absolutely. We ship the 1762-L40BWA worldwide using trusted carriers like DHL, FedEx, and UPS to ensure prompt delivery.
