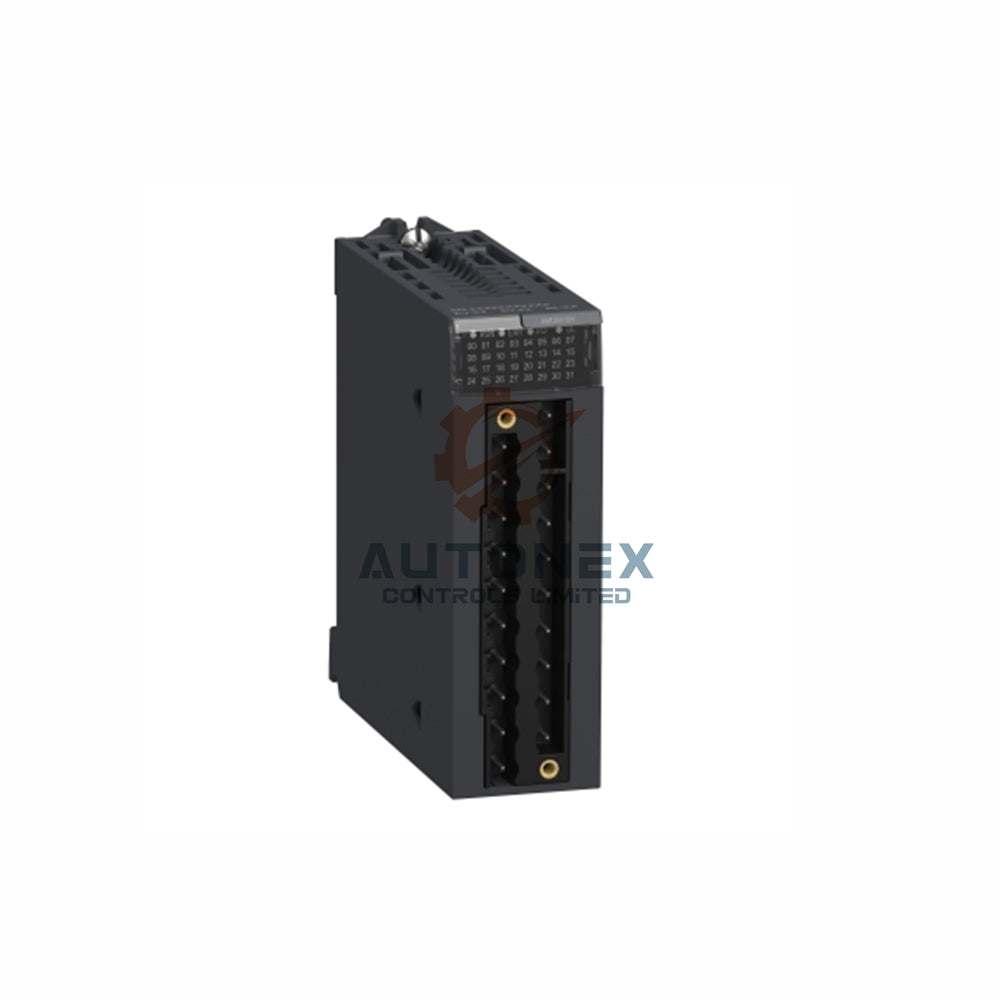

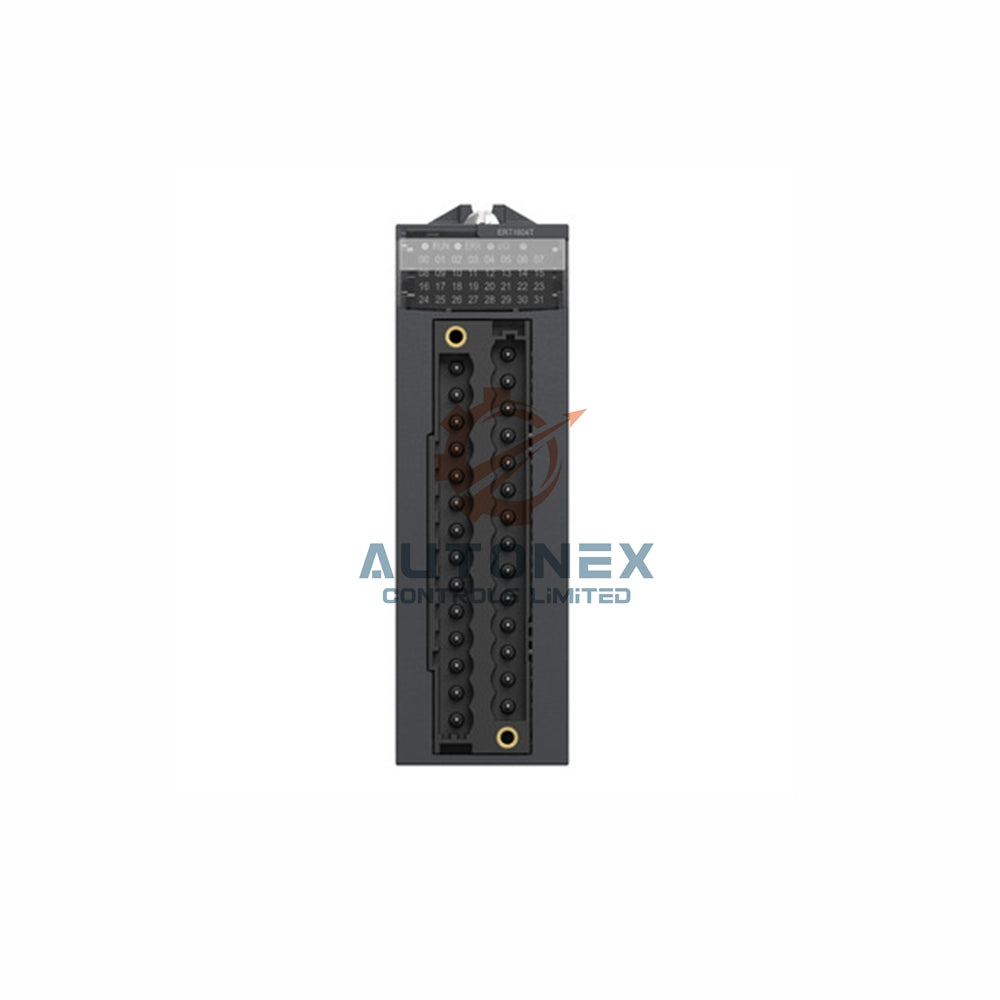

BMXART0814H Schneider Electric Modicon X80 Analog Input Module

BMXART0814H Schneider Electric Modicon X80 Analog Input Module

Technical Specifications

• Brand: Schneider Electric
• Model: BMXART0814H
• Category: Modicon X80 analog input module
• Inputs: 8 isolated low level analog channels
• Input signal: ±40 mV positive or negative voltage range
• Resolution: 15 bits plus sign, 16-bit sigma delta converter
• Measurement cycle: 200 ms with thermocouple, 400 ms with temperature probe
• Common mode rejection: 120 dB at 50/60 Hz for stable readings
• Isolation: Channel-to-channel isolation blocks interference
• Overload protection: ±7.5 V tolerance protects the module
• Operating temperature: -25°C to 70°C for severe environments
• Protection rating: IP20 against dust and contact
• Environmental tolerance: Resists harsh conditions, vibration, and electrical noise

FAQ

• Q: What is the brand and model of this module?
  A: It is Schneider Electric BMXART0814H from the Modicon X80 series.
• Q: How many inputs does this module have?
  A: It has 8 isolated low level analog input channels.
• Q: What input signal does it accept?
  A: It handles ±40 mV positive or negative voltage signals.
• Q: What makes the H version different?
  A: It works in severe environments with an extended -25°C to 70°C range.
• Q: What is the resolution and converter type?
  A: It offers 15 bits plus sign with a 16-bit sigma delta converter.
• Q: Does it work with thermocouples and RTDs?
  A: Yes, it supports thermocouple types B, E, J, K, L, N, R, S, T, U and Pt/Ni RTDs.
• Q: How fast can you ship?
  A: We keep stock and ship within 5 days via DHL, FedEx, or UPS.
• Q: Can I return it?
  A: Yes, we support 30-day returns for this product.
• Q: Is it new and original?
  A: Yes, every unit is brand new and original.
