3500/61-05-00 Bently Nevada RTD TC Non-isolated Temp Monitor

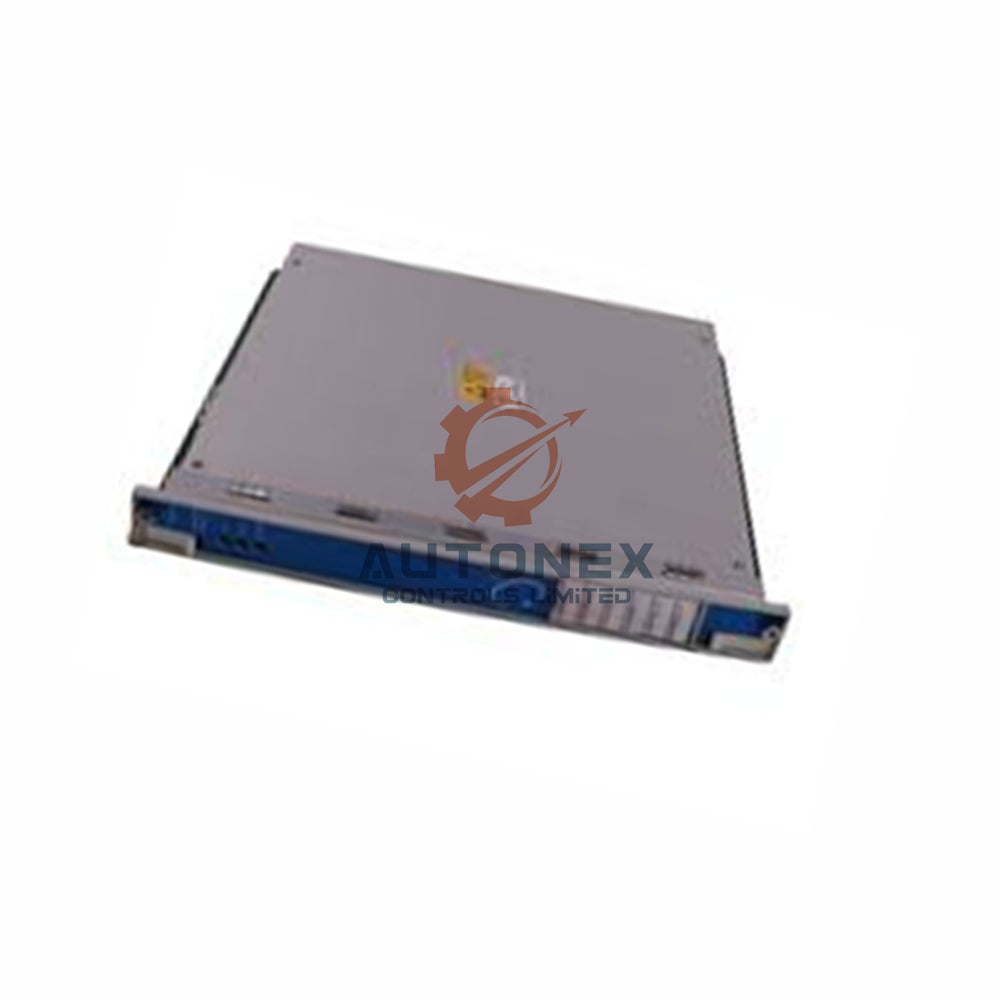

Bently Nevada 3500/61-05-00 Temperature Monitor with Recorder Outputs

Key Technical Specifications

• Brand & Model: Bently Nevada 3500/61-05-00 temperature monitor with recorder outputs.
• I/O Module Type: RTD/TC Non-isolated I/O Module with internal barriers (ordering option 05).
• Agency Approval: None (Agency Approval Option 00).
• Input Impedance: 10 MΩ for each lead input ensures strong signal integrity.
• Power Consumption: The 3500/61-05-00 consumes only 9 watts nominal.
• Thermocouple Types (TCs): Type E (-100°C to +1000°C), Type J (-18°C to +760°C), Type K (-18°C to +1370°C), Type T (-160°C to +400°C).
• RTD Types: Supports 100Ω platinum (α=0.00385, -200°C to +850°C), 100Ω platinum (α=0.00392, -200°C to +700°C), 120Ω nickel (-80°C to +260°C), and 10Ω copper (-100°C to +260°C).
• RTD with External Barriers Range: For platinum 0.00385, range limits to -50°C to +850°C; for platinum 0.00392 and nickel, limits to -50°C to +260°C.
• Recommended Sensor: Platinum RTD with 0.00385 alpha offers the global industrial standard.
• Recorder Outputs: Provides +4 to +20 mA signals proportional to monitor full-scale values.
• Voltage Compliance: 0 to +12 Vdc range across a 0 to 600 Ω load.
• Resolution: 0.3662 µA per bit with ±0.15% error at room temperature.
• Temperature Accuracy (RTD/TC): ±1°C to ±3°C at 25°C depending on termination type and rack configuration.
• Cold Junction Compensation: Accuracy at ±1°C at 25°C for TC measurements.
• Alarm Setpoints: User adjusts Alert and Danger from 0 to 100% of full scale via software.
• Alarm Time Delays: Alert delays from 1 to 60 seconds (1-second steps); Danger delays from 1 to 60 seconds (0.5-second steps).
• Operating Temperature Range: 0°C to +65°C when using internal barrier I/O modules like this model.
• Storage Temperature: -40°C to +85°C ensures durability during transport.

Frequently Asked Questions (FAQ)

• Q: Is the 3500/61-05-00 a brand new original unit?
  A: Yes, we only supply brand new and original Bently Nevada modules.
• Q: Do you have this temperature monitor in stock?
  A: Yes, we have the 3500/61-05-00 in stock and ready to ship.
• Q: What is the typical lead time for delivery?
  A: We ship within 5 days via FedEx, UPS, or DHL based on your preference.
• Q: What does the internal barrier do on this module?
  A: Internal barriers provide intrinsic safety for field wiring in hazardous locations.
• Q: Does the recorder output survive a short circuit?
  A: Yes, short circuits on recorder outputs do not affect monitor operation.
• Q: What is the operating temperature range for this model?
  A: The 3500/61-05-00 operates from 0°C to +65°C due to its internal barrier design.
• Q: Do I need to calibrate the monitor after configuration?
  A: No, the 3500/61-05-00 requires no calibration after software setup.
• Q: Can I return the product if it does not meet my needs?
  A: Yes, we support returns within 30 days of delivery.
