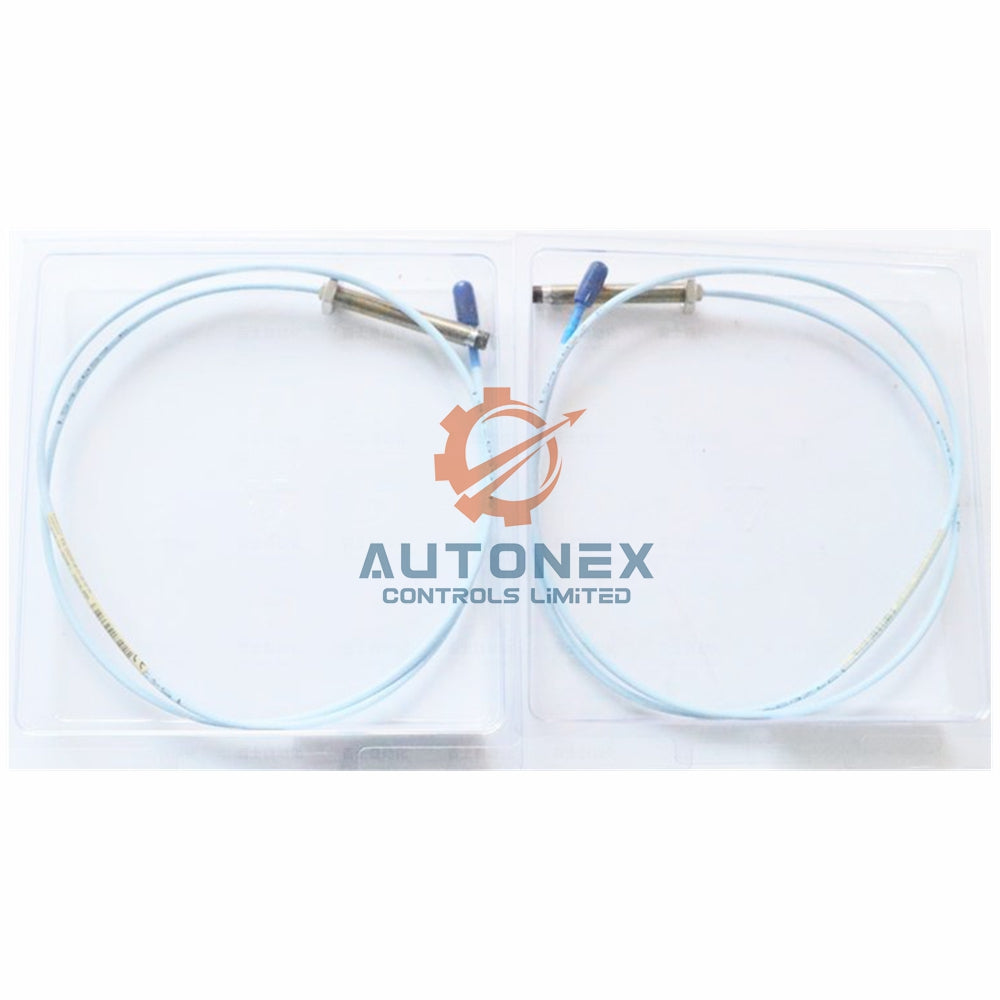

330908-00-31-05-02-05 3300 NSv Proximity Probe Bently Nevada

330908-00-31-05-02-05 | 3300 NSv Proximity Probes – Technical Overview

Key Technical Parameters

• Brand & Model: Bently Nevada 330908-00-31-05-02-05 (3300 NSv Proximity Probes)
• Probe Case Thread: 3/8-24 UNF, without armor
• Unthreaded Length: 0.0 inches (Option 00)
• Overall Case Length: 3.1 inches (Option 31)
• Total Probe Length: 0.5 meter / 20 inches (Option 05)
• Connector & Cable: Miniature coaxial ClickLoc connector with standard cable (Option 02)
• Agency Approval: Multiple Approvals (Option 05)
• Case Material: AISI304 stainless steel (SST)
• Tip Material: Polyphenylene sulfide (PPS)
• Cable Specs: 75 Ω coaxial, FEP insulation. Total lengths available: 0.5, 1, 5, or 7 meters
• DC Resistance (0.5m length): 4.0 ± 0.5 ohms (center to outer conductor)
• Temperature Range (Operating & Storage): -52°C to +177°C (-62°F to +351°F)
• Pressure Seal Alert: Prolonged exposure below -34°C (-30°F) may damage the pressure seal
• Pressure Design: Viton O-ring seals differential pressure between tip and case (not pressure tested before shipment)
• Weight Range: Approximately 14 to 150 grams (0.5 to 5.3 oz)

Frequently Asked Questions (FAQ)

• Q: Is this probe brand new and original?
  A: Yes, we provide 100% new and original 3300 NSv Proximity Probes directly from factory stock.
• Q: What total probe lengths do you offer for the 330908 series?
  A: We stock 0.5, 1, 5, and 7 meter cable lengths for the 3300 NSv model.
• Q: Can this probe work at 150°C continuously?
  A: Yes, the operating temperature range reaches +177°C, but avoid sustained exposure below -34°C.
• Q: Do you have the 330908-00-31-05-02-05 in stock now?
  A: Yes, we keep ample stock of this exact model for immediate orders.
• Q: What is the pressure sealing material?
  A: The probe uses a Viton O-ring to seal differential pressure between tip and case.
