330908-00-16-05-02-05 Proximity Probe Bently Nevada

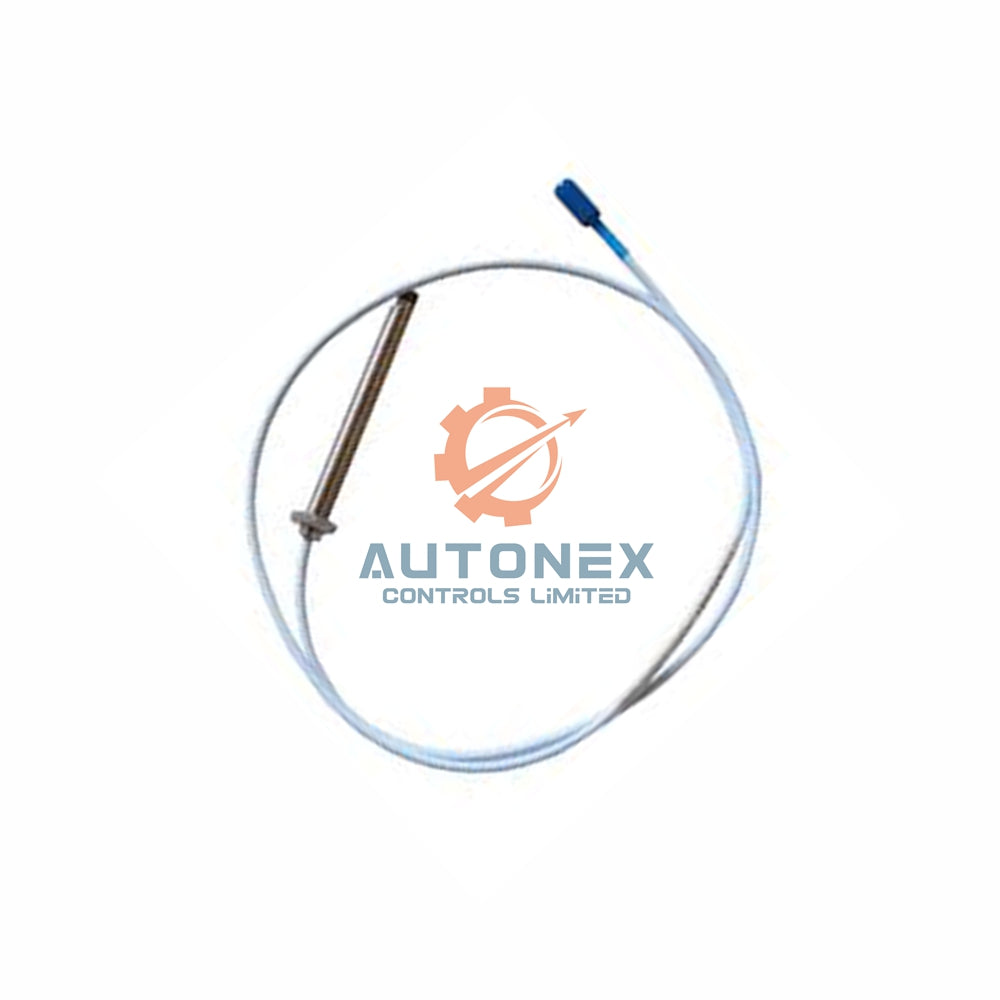

330908-00-16-05-02-05 - 3300 NSv Proximity Probe by Bently Nevada

Technical Specifications

• Brand & Model: Bently Nevada 330908-00-16-05-02-05 (3300 NSv Proximity Probes)
• Thread Type: 3/8-24 UNF without armor
• Unthreaded Length: 0.0 inches (Option 00)
• Overall Case Length: 1.6 inches (Option 16)
• Total Probe Length: 0.5 meter / 20 inches (Option 05)
• Connector & Cable: Miniature coaxial ClickLoc connector with standard cable (Option 02)
• Agency Approval: Multiple Approvals (Option 05)
• Case Material: AISI304 stainless steel (SST)
• Tip Material: Polyphenylene sulfide (PPS)
• Cable Type: 75 Ω coaxial with FEP insulation. Available lengths: 0.5, 1, 5, or 7 meters
• DC Resistance (0.5m): 4.0 ± 0.5 ohms (center to outer conductor)
• Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F)
• Pressure Seal Warning: Prolonged exposure below -34°C (-30°F) may damage the Viton O-ring seal
• Sealing Design: Viton O-ring seals differential pressure between probe tip and case. Bently Nevada does not pressure test probes before shipment.
• Weight Range: 14 to 150 grams (0.5 to 5.3 oz)

Frequently Asked Questions (FAQ)

• Q: Is this probe brand new and original?
  A: Yes, we provide 100% new and original 3300 NSv Proximity Probes from factory stock.
• Q: What total probe lengths do you offer for the 330908 series?
  A: We stock 0.5, 1, 5, and 7 meter cable lengths for the 3300 NSv model.
• Q: Can this probe withstand 150°C continuously?
  A: Yes, the operating range reaches +177°C, but avoid sustained use below -34°C to protect the pressure seal.
• Q: Do you have the 330908-00-16-05-02-05 in stock now?
  A: Yes, we keep ample stock of this exact model for immediate orders.
• Q: What material seals the probe pressure?
  A: A Viton O-ring seals the differential pressure between the probe tip and case.
