330903-00-05-70-01-05 Bently Nevada 3300 NSv Probe

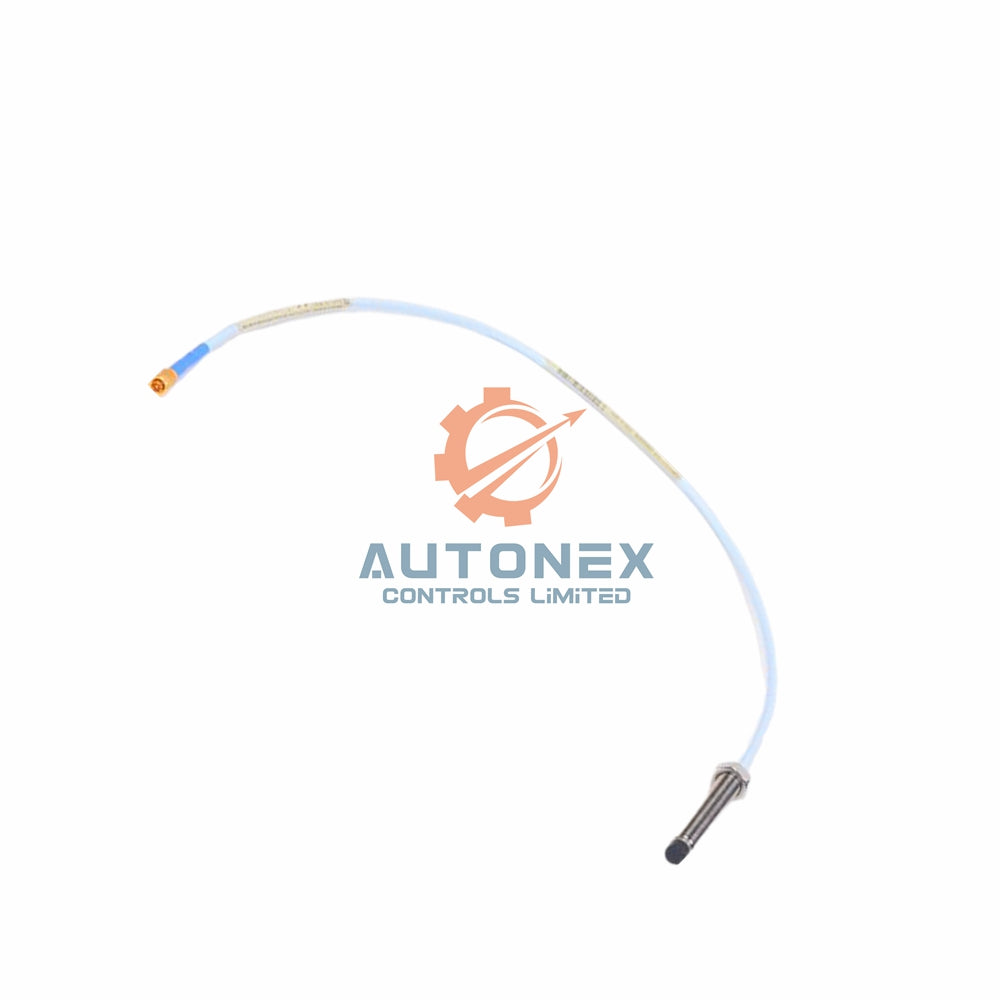

Bently Nevada 3300 NSv Proximity Probe – Model 330903-00-05-70-01-05

Key Technical Specifications

• Brand: Bently Nevada
• Model: 330903-00-05-70-01-05
• Overall Case Length: 50 mm (option -05-)
• Connector Type: Miniature coaxial ClickLoc with connector protector, standard cable (option 01)
• Linear Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm
• Recommended Gap Setting: 1.0 mm (40 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils)
• Frequency Response: 0 to 10 kHz at +0, -3 dB typical with up to 305 m field wiring
• Probe DC Resistance (RPROBE): 5.9 ± 0.9 ohms for 7.0 m length
• Extension Cable DC Resistance: Center conductor 0.220 Ω/m, shield 0.066 Ω/m
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Minimum Target Diameter: 8.9 mm (0.35 in); recommended 13 mm (0.5 in)
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel (SST)
• Cable Type: 75 Ω coaxial FEP insulated, 7.0 meters total length
• Agency Approval: Multiple approvals (option 05)
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Storage Temperature: -52°C to +177°C (-62°F to +351°F)
• Maximum Probe Case Torque: 7.3 N•m (65 in•lb); recommended 5.1 N•m (45 in•lb)
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without SST armor
• Field Wiring Length: Maximum 305 m (1000 ft) between Proximitor Sensor and monitor
• Thread Type: M8X1, maximum thread engagement 12 mm

Frequently Asked Questions (FAQ)

• Is this a genuine Bently Nevada 330903-00-05-70-01-05 probe?
  Yes, this is a brand new, original 3300 NSv probe in factory packing.
• What does the connector protector do?
  The connector protector shields the ClickLoc connection from dust and mechanical damage.
• Do you have this probe in stock?
  Yes, we keep the 330903-00-05-70-01-05 in stock for immediate orders.
• What is the linear range of this probe?
  The linear range is 1.5 mm (60 mils) from 0.25 mm to 1.75 mm from target.
• Can I use this with previous 3300 RAM extension cables?
  Yes, the 3300 NSv probe is fully interchangeable with 3300 RAM probes and cables.
• What is the maximum frequency response?
  The probe delivers 0 to 10 kHz frequency response with up to 305 m field wiring.
• What shipping methods do you use?
  We use FedEx, UPS, and DHL for reliable worldwide shipping.
• How long until you ship my order?
  We ship all orders within 5 business days after payment clears.
• Can I return this probe if needed?
  Yes, we accept returns within 30 days from the delivery date.
