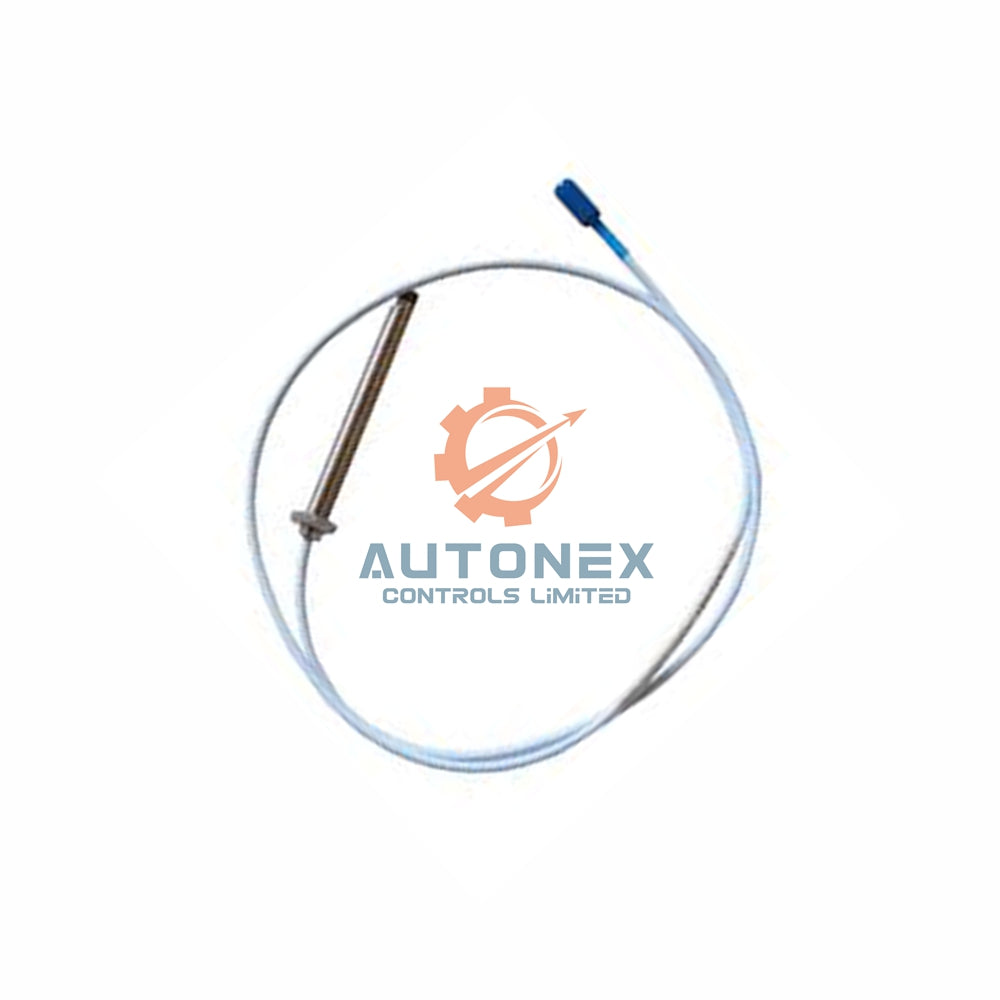

Bently Nevada 330903-00-04-10-01-00 NSv Proximity Probe – Detailed Specifications

• Manufacturer: Bently Nevada – a leader in machinery condition monitoring.
• Part number: 330903-00-04-10-01-00 (3300 NSv Proximity Probe).
• Condition: New & original in factory packing.
• Unthreaded length option: 00 mm.
• Overall case length option: 40 mm (-04).
• Connector type: Miniature coaxial ClickLoc with protector and standard cable.
• Agency approval: 00 = not required.

Core Technical Specifications – Electrical & Performance

• Probe DC resistance (RPROBE): 4.2 ± 0.5 ohms for the 1.0m length (center to outer conductor).
• Extension cable DC resistance: center conductor 0.220 Ω/m, shield 0.066 Ω/m.
• Extension cable capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Field wiring type: 0.2 to 1.5 mm² (16-24 AWG); use three-conductor shielded triad cable.
• Maximum field wiring length: 305 meters (1000 feet) between the Proximitor Sensor and monitor.
• Linear range: 1.5 mm (60 mils) starting at 0.25 mm (10 mils) from target; output spans -1 to -13 Vdc.
• Recommended gap setting: 1.0 mm (40 mils).
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) +12.5%/-20% including interchangeability error.
• Deviation from best fit straight line (DSL): less than ±0.06 mm (±2.3 mils).
• Frequency response: 0 to 10 kHz: +0, -3 dB typical with up to 305m of field wiring.
• Target size (flat target): minimum 8.9 mm diameter; recommended minimum 13 mm diameter.

Mechanical & Environmental Tolerances

• Probe tip material: Polyphenylene sulfide (PPS).
• Probe case material: AISI 304 stainless steel (SST).
• Probe cable type: 75 Ω coaxial, FEP insulated; total lengths available: 0.5, 1.0, 5, or 7 meters.
• Recommended torque: Finger tight only.
• Maximum torque: 0.56 N•m (5 in•lb).
• Minimum bend radius: 25.4 mm (1.0 inch) with or without SST armor.
• Operating temperature: -52°C to +177°C (-62°F to +351°F).
• Storage temperature: -52°C to +177°C (-62°F to +351°F).
• Probe pressure sealing: Viton O-ring seals differential pressure between tip and case. Bently Nevada does not pressure test units before shipment.
• Connector-to-connector torque (M8x1 case): max rated 7.3 N•m (65 in•lb), recommended 5.1 N•m (45 in•lb).
• Maximum thread engagement length (M8x1): 12 mm.

Frequently Asked Questions (FAQ)

• Q: Is the 330903-00-04-10-01-00 brand new and original?
  A: Yes, we supply 100% new, original Bently Nevada stock in factory packing. No refurbished or counterfeit units.
• Q: Do you have this 3300 NSv probe in stock?
  A: Yes, the 330903-00-04-10-01-00 is currently in stock and available for immediate order.
• Q: What is the linear range and recommended gap setting?
  A: The linear range covers 1.5 mm (from 0.25 mm to 1.75 mm). Bently Nevada recommends a 1.0 mm gap setting.
• Q: What temperature range can this NSv probe handle?
  A: The probe operates from -52°C up to +177°C (-62°F to +351°F) for both operation and storage.
• Q: How long does shipping take and which carriers do you use?
  A: We dispatch within 5 business days. We use FedEx, UPS, or DHL. Typical transit takes 2-6 business days.
• Q: Can I return the product if it does not suit my application?
  A: Yes, we offer a 30-day return policy from the delivery date. The probe must be in unopened factory packaging.
• Q: What is the scale factor of the 330903-00-04-10-01-00?
  A: The incremental scale factor equals 7.87 V/mm (200 mV/mil) with a +12.5%/-20% interchangeability tolerance.
• Q: Does the probe seal against high pressure?
  A: The Viton O-ring seals differential pressure between tip and case. However, Bently Nevada does not pre-pressure-test each unit. Contact our team for custom pressure test requests.
