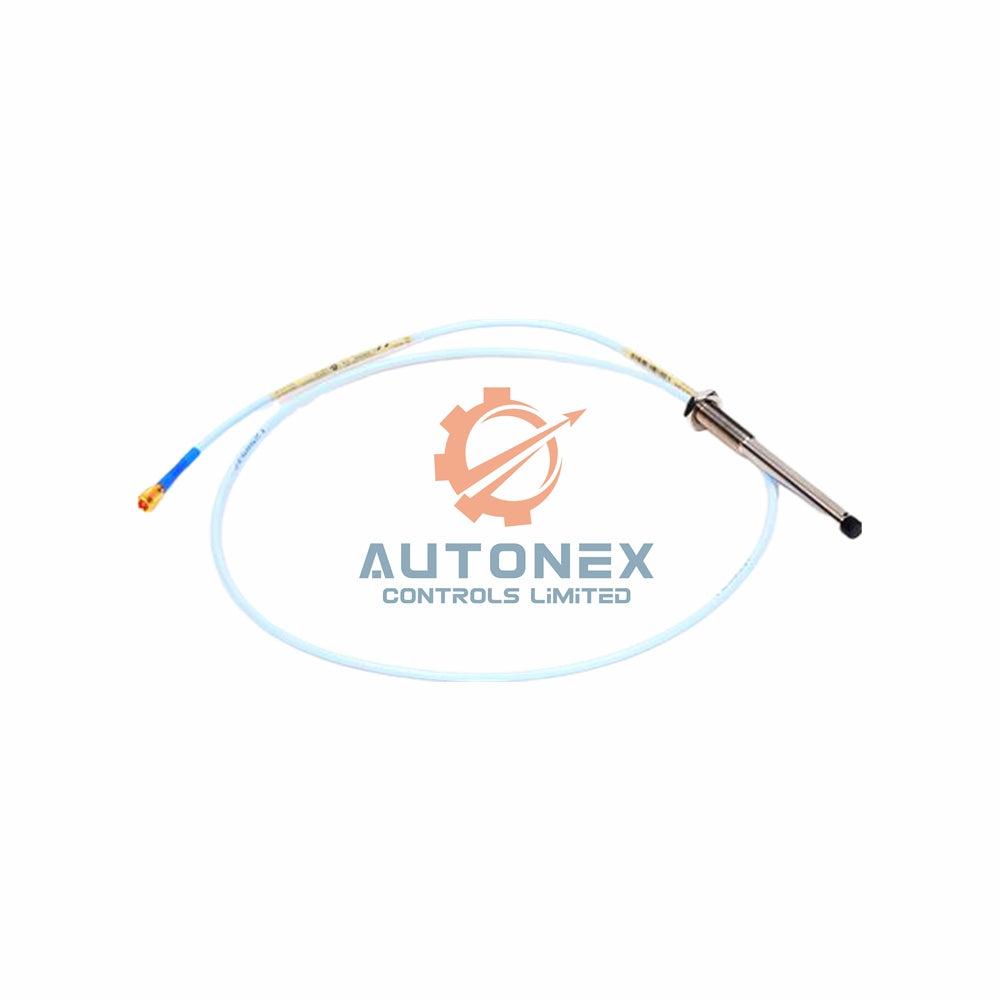

330709-000-080-90-01-05 Bently Nevada - 3300 XL 11 mm Probe

3300 XL 11 mm Proximity Probes by Bently Nevada

Key Technical Specifications

• Brand & Model: Bently Nevada 330709-000-080-90-01-05 (3300 XL 11 mm Probe).
• Probe DC Resistance (RPROBE): 8.5 ± 1.1 Ω (center to outer conductor at 9.0 m).
• Cross-talk Limitation: Requires minimum flat target diameter of 30.5 mm (1.2 in).
• Shaft Diameter: Recommended minimum shaft diameter is 152 mm (6.0 in).
• Probe Tip Material: Polyphenylene sulfide (PPS) for durability.
• Probe Case Material: AISI 304 stainless steel (SST) for harsh environments.
• Cable Specification: 75 Ω triaxial FEP insulated cable in 1, 5, or 9 m lengths.
• Probe Case Torque: Recommended 21.1 N•m (187 in•lb); maximum rated 63.3 N•m (560 in•lb).
• Connector Torque: Finger tight recommended; maximum 0.565 N•m (5 in•lb).
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without SST armor.
• Thread Engagement: Maximum length of thread engagement is 24 mm (M16x1.5).
• Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F). Avoid below -34°C for seal integrity.
• Agency Approval: Option 05 provides Multiple Approvals for global compliance.

Temperature Classification (EPL Ga/Gc & Dc)

• EPL Ga & Gc: T1 (-55°C to +232°C), T2 (-55°C to +177°C), T3 (-55°C to +120°C), T4 (-55°C to +80°C), T5 (-55°C to +40°C).
• EPL Dc: T280°C @ Ta (-55°C to +232°C), T225°C @ Ta (-55°C to +177°C), T170°C @ Ta (-55°C to +120°C), T130°C @ Ta (-55°C to +80°C), T105°C @ Ta (-55°C to +100°C), T90°C @ Ta (-55°C to +40°C).

Installation & Mechanical Guidelines

• Apply recommended torque of 21.1 N•m (187 in•lb) for the M16x1.5 probe case.
• Do not exceed maximum torque of 63.3 N•m (560 in•lb) to prevent damage.
• Finger tighten the connector; do not apply more than 0.565 N•m (5 in•lb).
• Maintain a minimum bend radius of 25.4 mm (1.0 in) for cable routing.
• Ensure at least 30.5 mm target diameter for accurate cross-talk performance.
• The probe case thread is M16x1.5; maximum engagement length is 24 mm.

Environmental & Durability Features

• Probe withstands -52°C to +177°C for both operating and storage conditions.
• PPS tip and 304 SST case offer excellent chemical and mechanical resistance.
• FEP insulated cable provides reliable signal integrity in high-temperature areas.
• Miniature coaxial ClickLoc connector ensures secure and stable connections.
• Standard cable version suits most industrial monitoring systems.
• Multiple Approvals (Option 05) simplify international installation requirements.

Packaging, Logistics & Returns

• Packaging: Each probe comes in a protective anti-static bag with individual labeling.
• Shipping Carriers: We use FedEx, UPS, and DHL for fast and trackable delivery.
• Stock Status: This model is brand new and in stock for immediate shipment.
• Dispatch Time: Orders ship within 5 business days after payment confirmation.
• Return Policy: We support 30-day returns for unused items in original condition.

Frequently Asked Questions (FAQ)

• What is the total length of 330709-000-080-90-01-05? – The total length is 9.0 meters (29.5 feet) including cable.
• Does this probe work with a 152 mm shaft? – Yes, the recommended minimum shaft diameter is 152 mm (6.0 in).
• What is the probe case torque specification? – Recommended torque is 21.1 N•m; maximum is 63.3 N•m.
• Is the cable armored? – This version (without armor) uses standard FEP insulated triaxial cable.
• Can I use this probe below -34°C? – Yes, but avoid prolonged exposure below -34°C to protect the pressure seal.
• Is the connector a standard type? – It uses a miniature coaxial ClickLoc connector with protector.
• What agency approvals does this version have? – Agency approval option 05 means Multiple Approvals are included.
• Do you have stock? – Yes, we keep this model in stock for fast shipping.
