330705-02-18-10-00-00 3300 XL Probe Bently Nevada

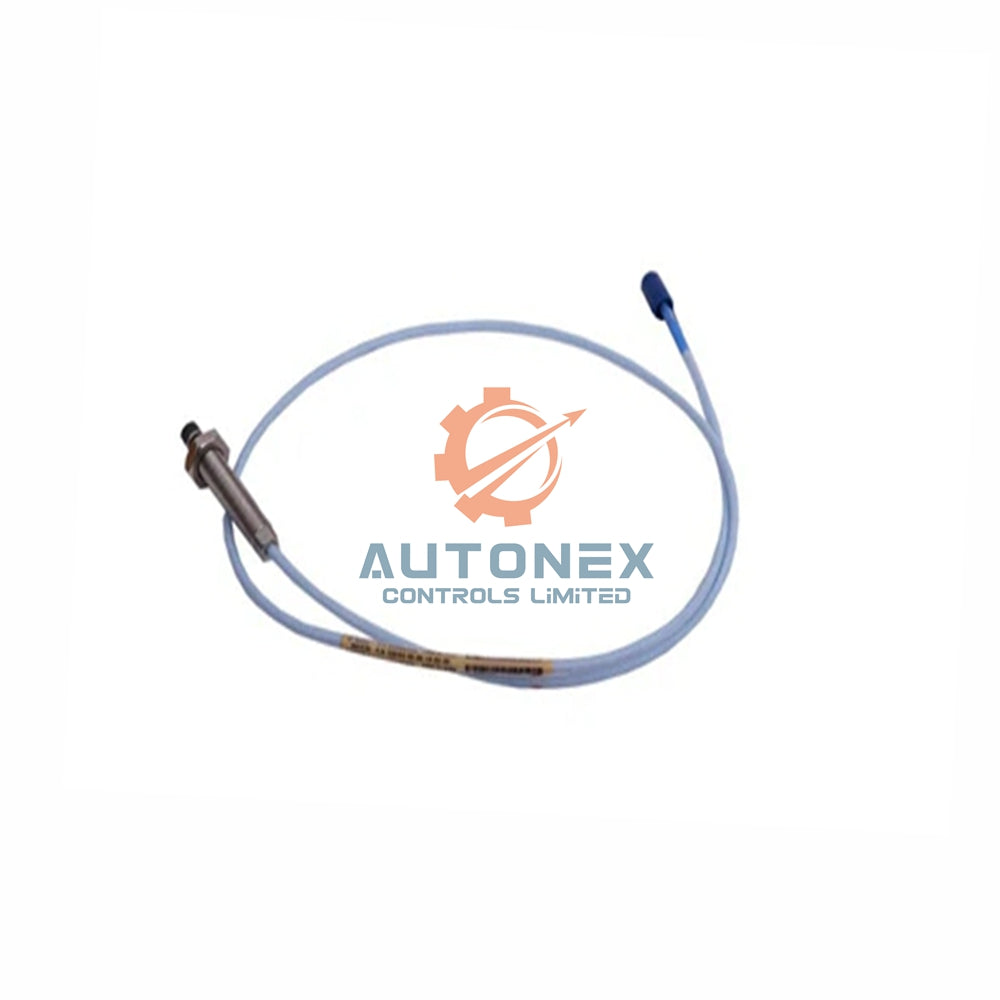

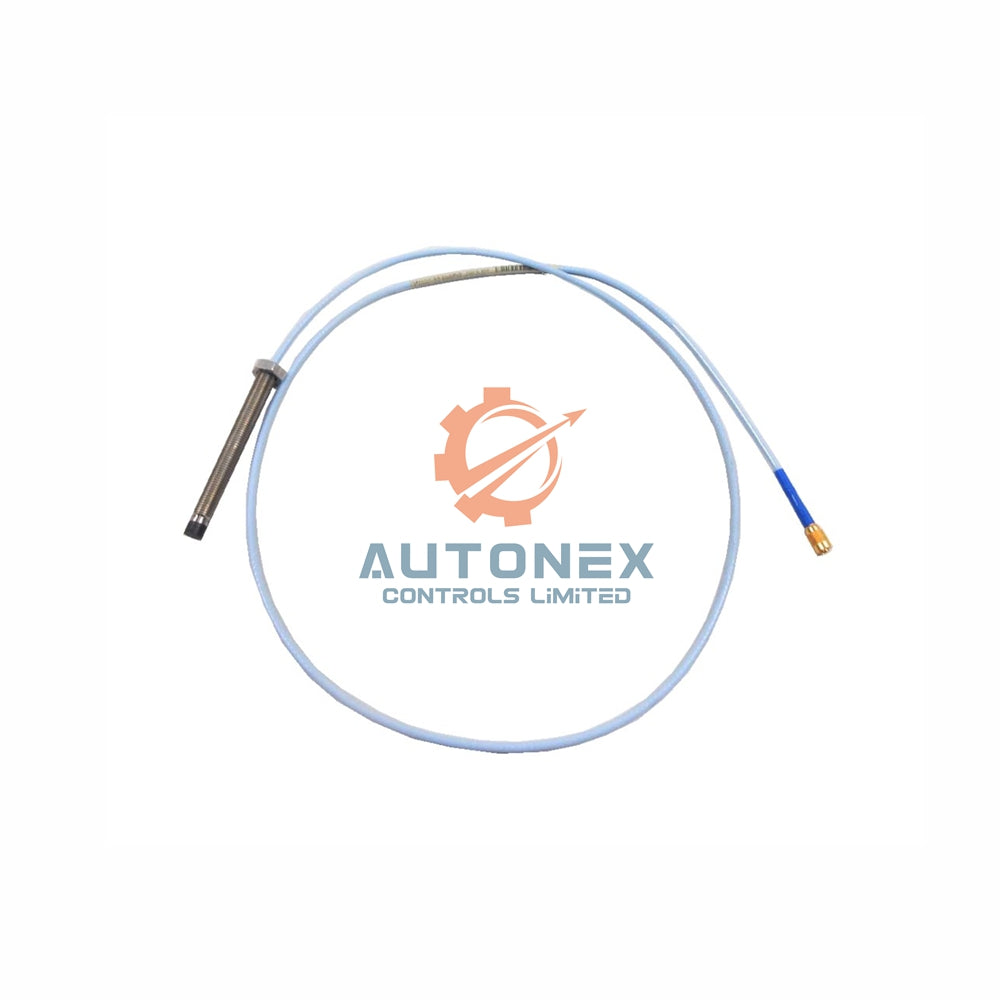

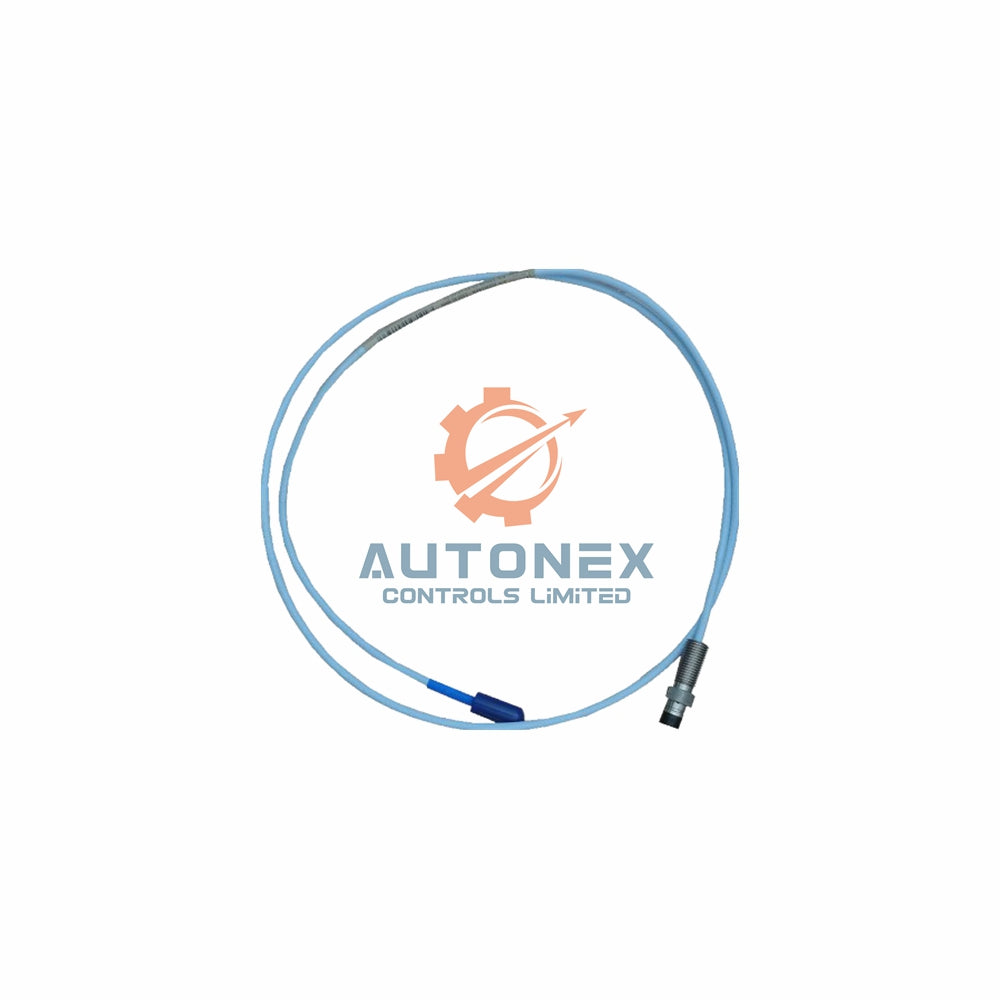

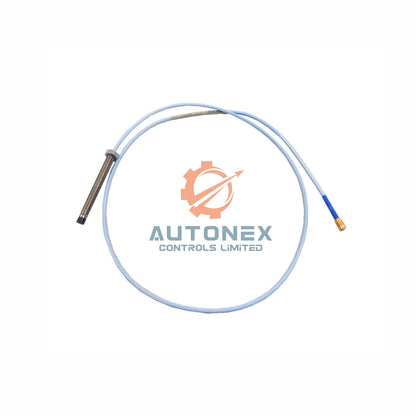

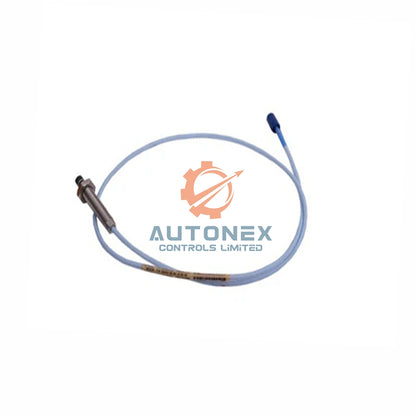

Bently Nevada 330705-02-18-10-00-00 3300 XL 11 mm Reverse Mount Probe

Core Technical Specifications

• Brand: Bently Nevada
• Model: 330705-02-18-10-00-00
• Type: 3300 XL 11 mm Reverse Mount Probe
• Total Length: 1.0 meter (3.3 feet)
• Thread: 3/8-24 UNF
• Connector: Miniature ClickLoc™ coaxial connector
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel
• Cable: 75 Ω triaxial, FEP insulated (1, 5, or 9 m options)
• DC Resistance (Center to Outer): 5.9 ± 0.5 Ω
• Operating & Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
• Pressure Seal: Viton® O-ring (differential pressure design)
• Weight: 0.07 kg
• Recommended Torque: Finger tight (max 0.565 N•m / 5 in•lb)
• Minimum Bend Radius: 25.4 mm (1.0 in)

Frequently Asked Questions (FAQ)

• Is this probe compatible with 5 m Proximitor? Yes – the 1 m length works with any Proximitor Sensor.
• What is the resistance value for this 330705 probe? DC resistance is 5.9 ± 0.5 Ω from center to outer conductor.
• Can this probe operate in high pressure? It seals differential pressure via Viton O-ring – contact our team for pressure testing.
• What approvals does the 3300 XL series carry? It includes intrinsic safety (ia) and nonincendive (nA/ec) for hazardous zones.
• Is this a genuine Bently Nevada part? Yes – 100% new and authentic from the original manufacturer.
