330702-00-26-90-12-05 | Bently Nevada 3300 XL 11mm Probe

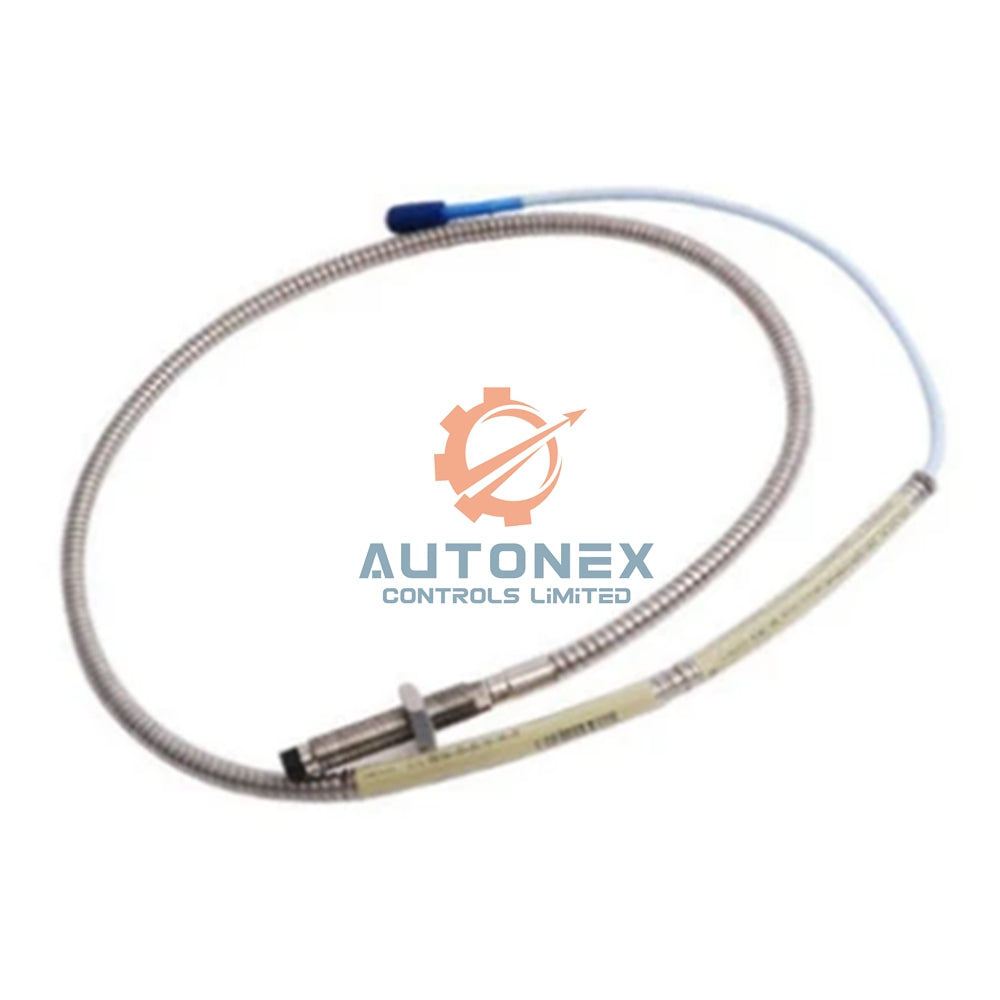

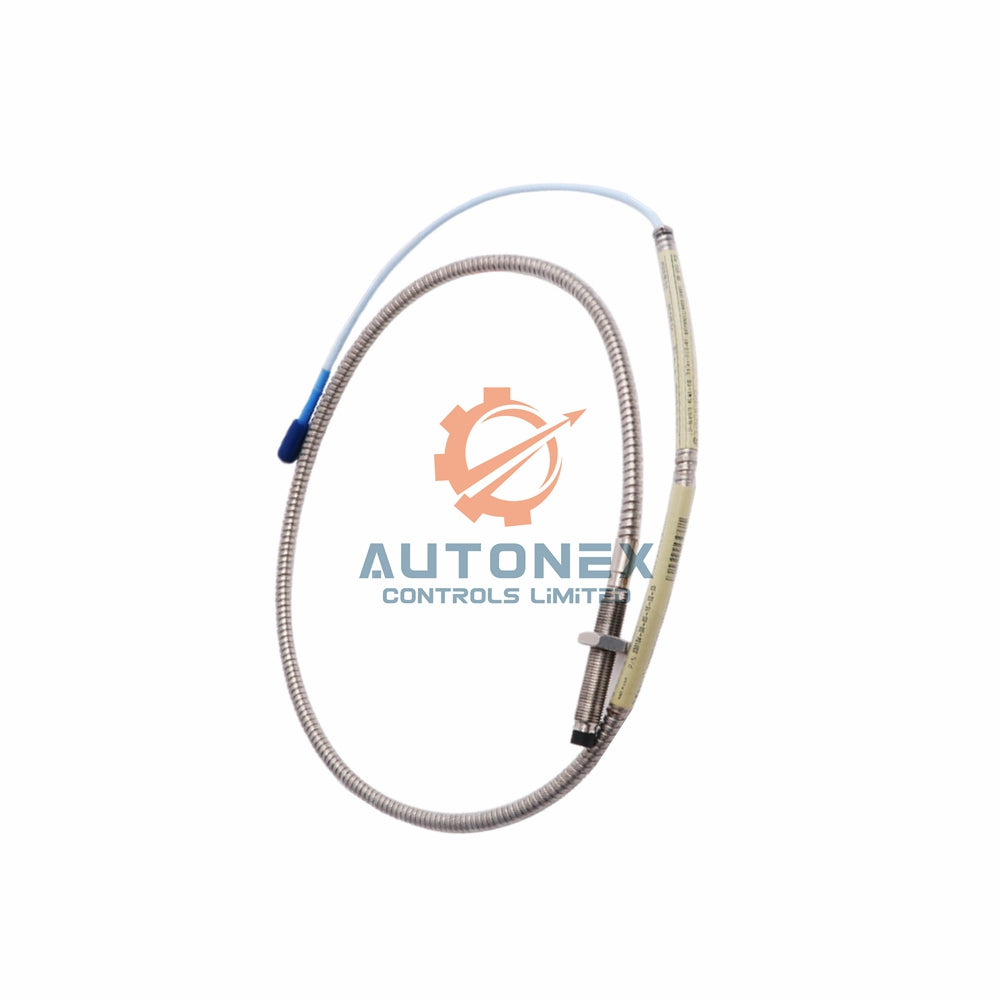

3300 XL 11 mm Probe (330702-00-26-90-12-05) by Bently Nevada

• Manufacturer & Series: Bently Nevada, 3300 XL family.
• Model Number: 330702-00-26-90-12-05. Unthreaded length option 00 = 0 inches. Overall case length option 26 = 2.6 inches. Total length option 90 = 9.0 meters (29.5 feet). Connector and cable option 12 = Miniature coaxial ClickLoc with FluidLoc cable. Agency approval option 05 = multiple approvals.
• Probe Tip Material: Polyphenylene sulfide (PPS). Resists chemicals and high temperatures.
• Probe Case Material: AISI 304 stainless steel (SST). Provides excellent corrosion resistance.
• Cable Specification: 75 Ω triaxial cable with FEP insulation. Available total lengths: 1, 5, or 9 meters.
• Operating & Storage Temperature: -51°C to +177°C (-60°F to +351°F). Avoid exposing below -34°C (30°F) to prevent seal failure.
• Pressure Capability: Seals differential pressure between tip and case. Uses a Viton O-ring. Not pressure tested before shipment.
• DC Resistance (9.0m length): 8.5 ± 1.1 ohms (center conductor to outer conductor).
• Case Thread & Engagement: 1/2-20 UNF thread. Maximum thread engagement length: 0.750 inches.
• Torque Ratings: Maximum rated torque: 45.2 N•m (400 in•lb). Recommended torque: 15.2 N•m (133 in•lb).
• Connector Torque: Finger tight recommended. Maximum torque: 0.565 N•m (5 in•lb).
• Minimum Bend Radius (with or without armor): 25.4 mm (1.0 inch).
• Shipping Weight: 0.17 kg.

Frequently Asked Questions (FAQ)

• Q: Is this product brand new and original?
  A: Yes, we supply only 100% brand new, original Bently Nevada parts.
• Q: Do you have this model in stock?
  A: Yes, we have the 330702-00-26-90-12-05 in stock ready for immediate orders.
• Q: What is your shipping time and courier?
  A: We dispatch within 5 business days. We use FedEx, UPS, and DHL for fast delivery worldwide.
• Q: Can I return the probe if it does not fit my application?
  A: Yes, we support 30-day returns from the delivery date. Items must be unused and in original condition.
• Q: Does the probe work with 3300 XL extension cables?
  A: Yes, the 3300 XL probe works with Bently Nevada 3300 XL series extension cables and proximity systems.
• Q: Is the pressure seal tested before shipping?
  A: No, Bently Nevada does not pressure test these probes. Contact our custom design department if you need a pressure seal test.
