330702-00-26-10-12-05 Bently Nevada 3300 XL 11mm Probe

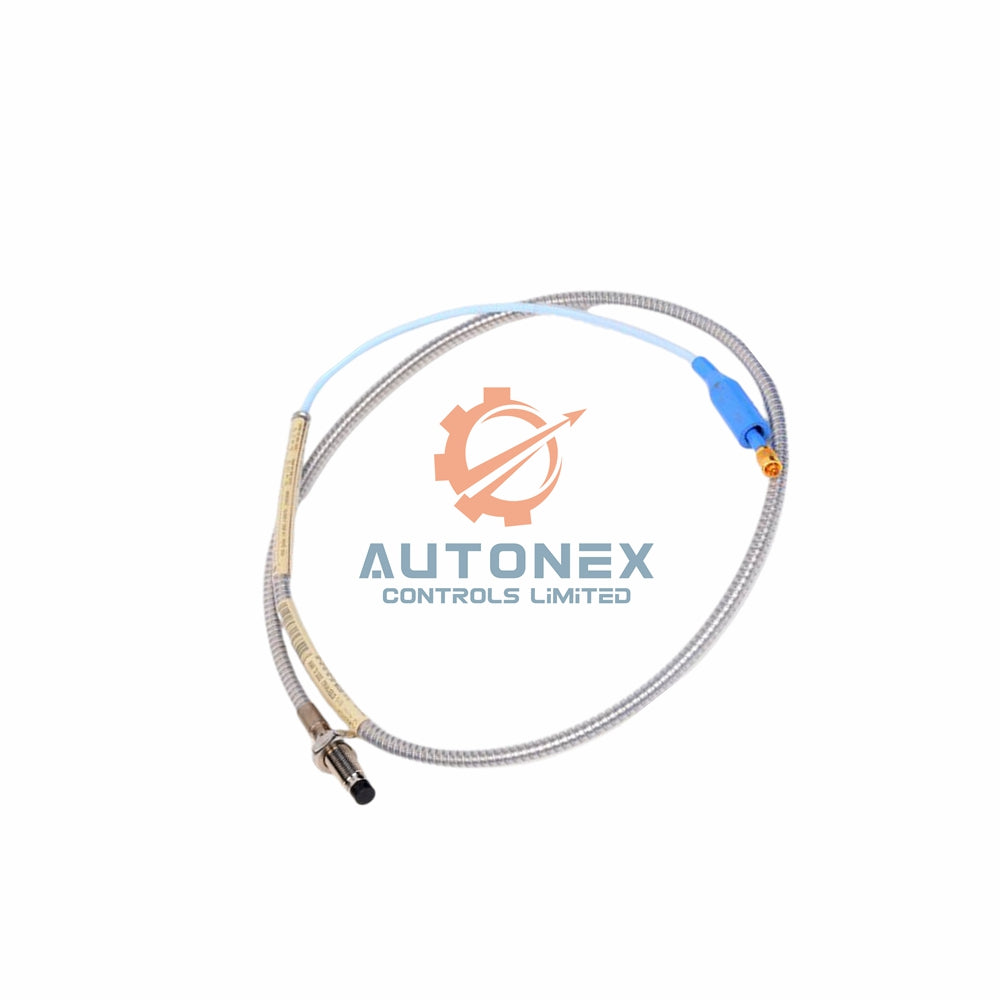

Bently Nevada 330702-00-26-10-12-05: 3300 XL 11 mm Proximity Probe with 1.0m Cable

• Brand & Model: Bently Nevada 330702-00-26-10-12-05 from the 3300 XL 11 mm Proximity Probes series.
• Thread Type: 1/2-20 UNF thread with armor provides secure mounting.
• Unthreaded Length Option: 00 = 0.0 inches – no unthreaded section.
• Overall Case Length Option: 26 = 2.6 inches for compact installation.
• Total Length Option: 10 = 1.0 metre (3.3 feet) – short cable for local connections.
• Connector and Cable Type: 12 = Miniature coaxial ClickLoc connector, FluidLoc cable.
• Agency Approval Option: 05 = Multiple Approvals for global compliance.

Technical Specifications for Bently Nevada 330702-00-26-10-12-05

• Probe DC Resistance (1.0m length): 5.9 ± 0.5 ohms from center conductor to outer conductor.
• Cable Specification: 75 Ω triaxial, FEP insulated probe cable with total length 1.0 meter.
• Operating & Storage Temperature: -51°C to +177°C (-60°F to +351°F).
• Extended Temperature Classification (EPL Ga/Gc): T1 (-55°C to +232°C), T2 (-55°C to +177°C), T3 (-55°C to +120°C), T4 (-55°C to +80°C), T5 (-55°C to +40°C).
• Probe Pressure Capability: Designed to seal differential pressure with a Viton O-ring (not pressure tested before shipping).
• Maximum Probe Case Torque: 45.2 N•m (400 in•lb); Recommended torque: 15.2 N•m (133 in•lb).
• Maximum Thread Engagement Length (1/2-20): 0.750 inches.
• Connector-to-connector torque: Finger tight (recommended), max 0.565 N•m (5 in•lb).
• Minimum Bend Radius (with or without armor): 25.4 mm (1.0 inch).
• Shipping weight: 0.17 kg (lightweight and easy to handle).

Frequently Asked Questions (FAQ) – Bently Nevada 3300 XL Probe

• Q: Is the Bently Nevada 330702-00-26-10-12-05 a brand new genuine unit?
  A: Yes, we supply 100% genuine new original Bently Nevada probes with full factory traceability.
• Q: What is the maximum operating temperature for this probe?
  A: The probe operates from -51°C to +177°C (-60°F to +351°F) for standard use. For specific T-class ratings, refer to the temperature classification table above.
• Q: Can this probe handle high-pressure environments?
  A: The probe seals differential pressure with a Viton O-ring. Bently Nevada does not pressure test before shipping. Contact us for custom pressure seal testing.
• Q: What is the DC resistance of the 1.0m probe?
  A: The DC resistance from center conductor to outer conductor is 5.9 ± 0.5 ohms for the 1.0m length.
• Q: How do I mount this probe correctly?
  A: Use the 1/2-20 UNF thread, engage max 0.750 inches, and apply 15.2 N•m (133 in•lb) torque. Avoid over-tightening.
• Q: What connector type does this probe include?
  A: It includes a miniature coaxial ClickLoc connector with FluidLoc cable for reliable connections.
• Q: How long does delivery take?
  A: We ship within 5 days via FedEx, UPS, or DHL. Delivery time depends on your location (typically 3-7 business days).
• Q: Can I return the probe if it does not suit my system?
  A: Yes, we support 30-day returns for items in original new condition. Contact us before returning.
• Q: What is the minimum bend radius for the cable?
  A: The minimum bend radius is 25.4 mm (1.0 inch) with or without stainless steel armor.
