330192-00-08-50-05 Bently Nevada 3300 XL ETR Probe 5m

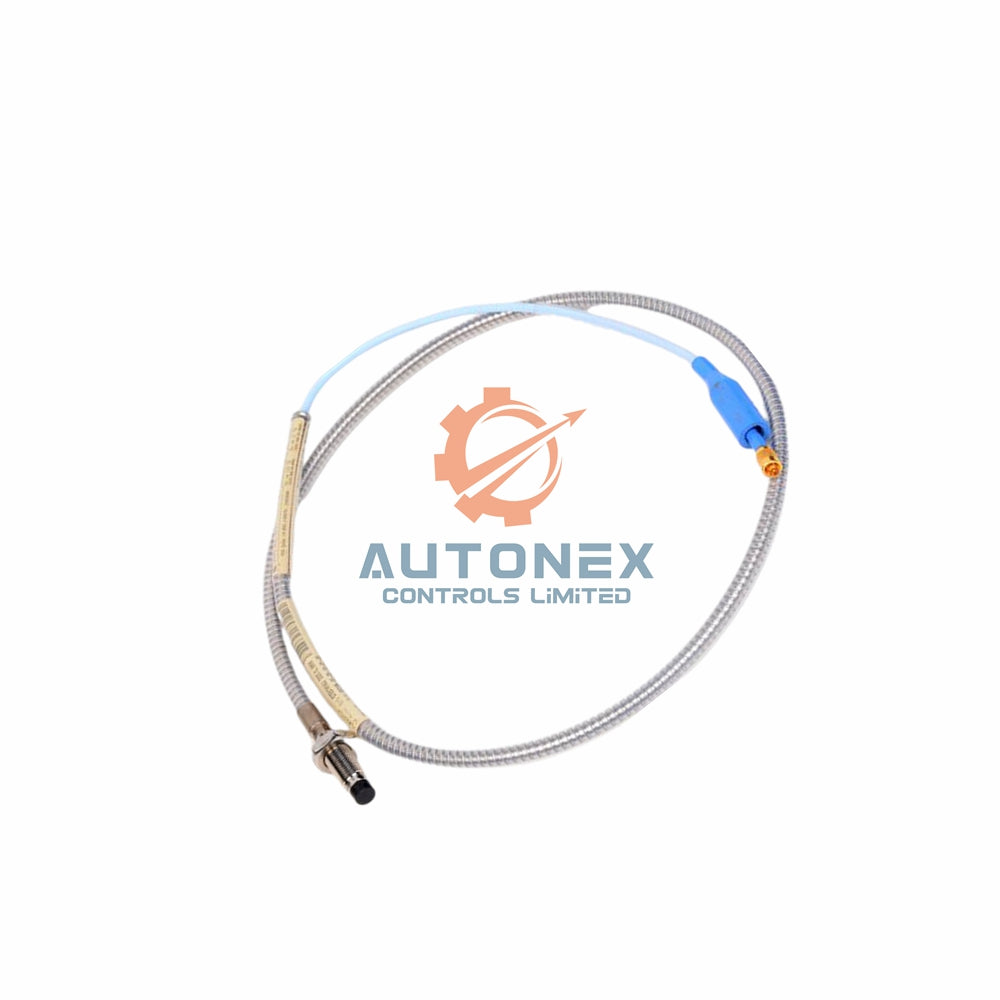

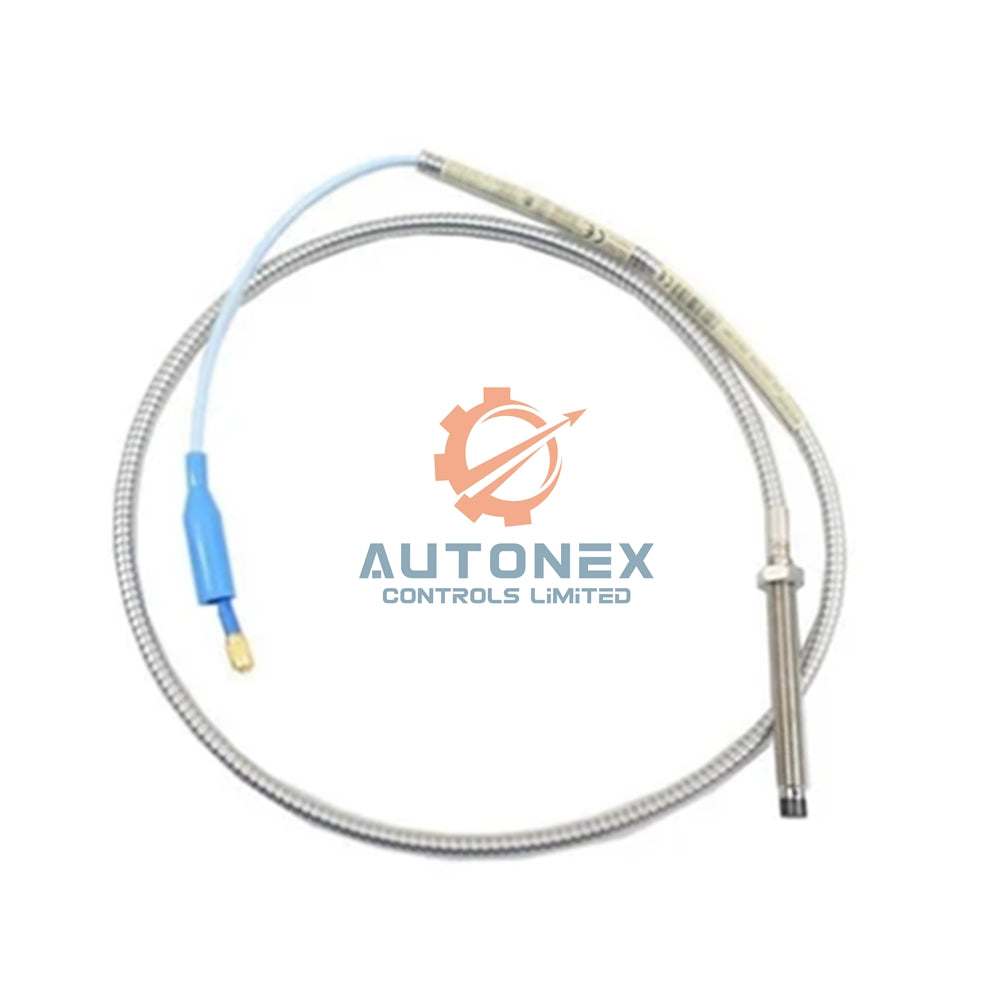

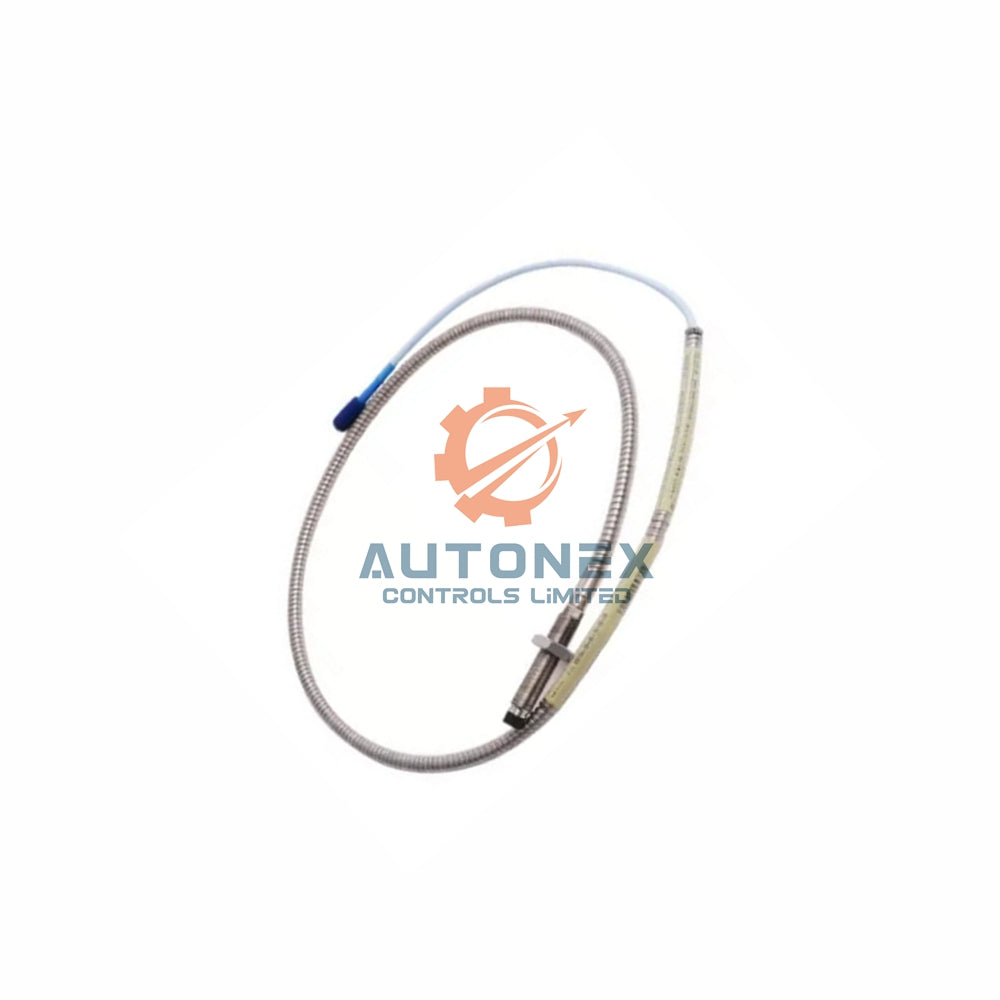

Bently Nevada 330192-00-08-50-05: 3300 XL 8 mm ETR Probe

• Manufacturer & Series: Bently Nevada – 3300 XL series. Model 330192-00-08-50-05 delivers high accuracy.
• Probe Type: 8 mm ETR (Enhanced Tip Recess) probe. Thread specification: 3/8-24 UNF with armor.
• Unthreaded Length Option: Minimum unthreaded length equals 0.0 inches. Unthreaded length must be at least 0.8 inches less than case length.
• Overall Case Length Option: 08 = 0.8 inches.
• Total Length Option: 50 = 5.0 meters (16.4 feet). Use 5-meter probes only with the 5-meter Proximitor sensor.
• Agency Approval Option: 05 = CSA, ATEX, IECEx Approvals. Suits hazardous area installations.

Technical Specifications

• Nominal Probe DC Resistance (RPROBE): 8.73 ± 0.50 Ω for 5.0m length (center to outer conductor).
• Probe Tip Material: Polyphenylene sulfide (PPS). Provides chemical resistance and durability.
• Probe Case Material: AISI 303 or 304 stainless steel (SST). Ensures robust mechanical strength.
• Maximum Thread Engagement Length: 3/8-24 thread – 0.563 inches.
• Relative Humidity Performance: Less than 3% change in Average Scale Factor (ASF). Test meets IEC 60068-2-3 at 93% humidity for up to 56 days.
• Probe Temperature Range (Standard): -52°C to +177°C (-62°F to +350°F) for operating and storage.
• Extended Temperature Range: Tip works from -52°C to +218°C (-62°F to +425°F). Probe cable and connector handle -51°C to +260°C (-60°F to +500°F).
• Pressure Seal Caution: Exposing the probe below –34°C (-30°F) may cause premature pressure seal failure.
• Probe Pressure Sealing: Design seals differential pressure between probe tip and case. Sealing uses a Viton® O-ring. Bently Nevada does not pressure test probes before shipment. For a pressure seal test, contact the custom design department.

Frequently Asked Questions (FAQ)

• Do you have this probe in stock? We keep this model in stock. Ready for immediate order processing.
• What is your shipping and delivery time? We ship within 5 days after order confirmation. We use DHL, FedEx, and UPS for fast delivery.
• Can I return this probe? We support 30-day returns. Conditions apply – contact us for details.
• What proximity system works with this 5m probe? This 5.0-meter probe only works with the 5-meter Bently Nevada Proximitor sensor.
• Does the probe withstand high humidity? Yes, humidity testing shows less than 3% ASF change at 93% RH for 56 days.
• What approvals does option 05 include? CSA, ATEX, and IECEx approvals for hazardous locations.
